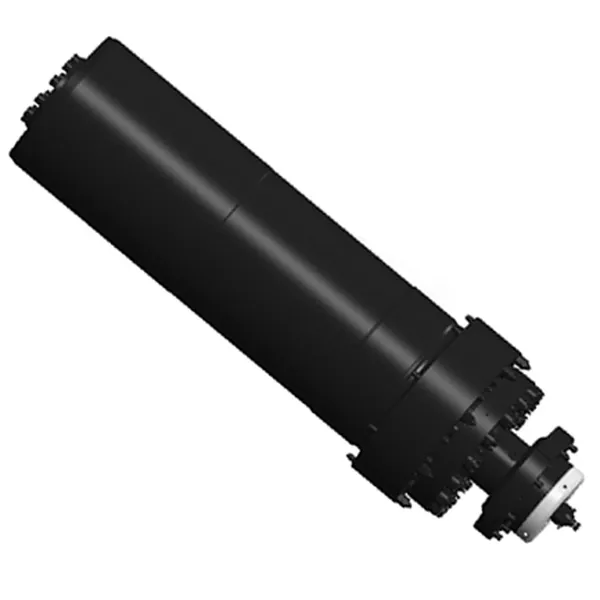

Hydraulic Press Master Cylinder

Hydraulic Press Master Cylinder

A hydraulic press master cylinder is a vital component of hydraulic press systems. It plays a crucial role in converting mechanical force into hydraulic pressure, allowing for the efficient operation of hydraulic presses. The master cylinder is typically located at the heart of the hydraulic press, and its primary function is to generate and control the hydraulic pressure required for various pressing applications.The hydraulic master cylinder consists of several key elements, including a piston, cylinder barrel, fluid reservoir, and hydraulic lines. The piston is driven by an external force, such as a lever or motor, which exerts pressure on the hydraulic fluid within the cylinder barrel. As the piston moves, it compresses the fluid, increasing its pressure.The fluid reservoir, usually located above the master cylinder, stores a sufficient amount of hydraulic fluid. This fluid is typically an incompressible liquid, such as oil, which enables the transmission of force without significant loss or deformation. The hydraulic lines connect the master cylinder to other components of the hydraulic press system, such as the hydraulic pump and press ram.The hydraulic master cylinder incorporates various valves and seals to regulate the flow of hydraulic fluid. These valves control the direction, speed, and intensity of the pressurized fluid, ensuring precise and controlled movement of the press components. The seals prevent leakage and maintain the integrity of the hydraulic system.When the external force is applied to the master cylinder, the resulting hydraulic pressure is transferred to the press ram or other hydraulic actuators in the system. This pressure enables the press to exert significant force on the workpiece or material being processed. The master cylinder's size and design depend on the specific requirements of the hydraulic press, including the desired force output, stroke length, and operating speed.

Hydraulic Press Master Cylinder Specifications:

Product Name	Hydraulic Press Master Cylinder
Features:	Provide the main thrust for the press
Plunger:	500mm～1800mmStroke≤4500mm
Thrust force:	Maximum 80MN(Plunger 1800mm/pressure31.5MPa)
Hydraulic Master Cylinder Applications:	Press

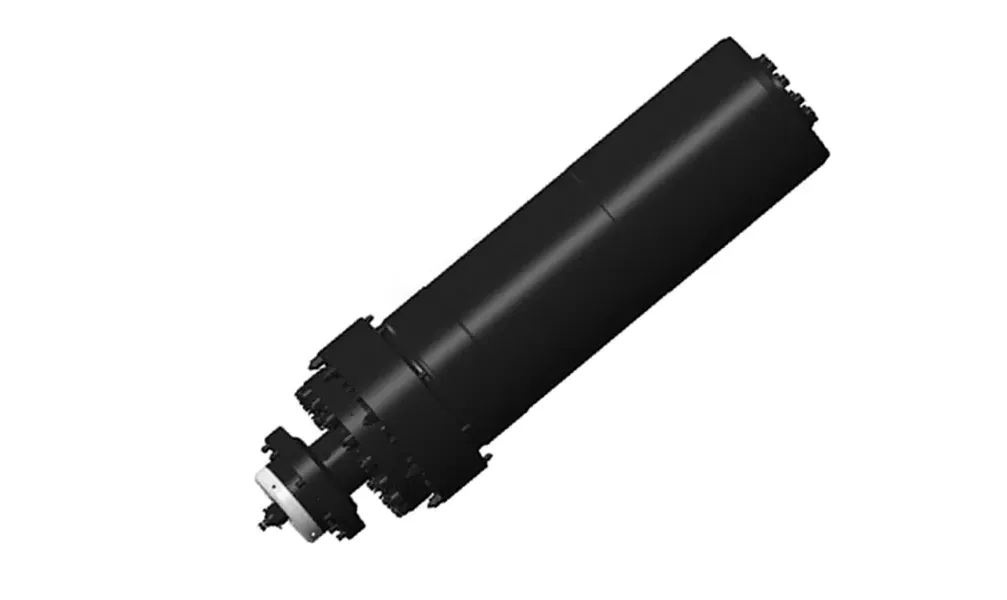

Advantages of Hydraulic Press Master Cylinder:

The hydraulic press master cylinder offers several advantages that make it a preferred choice in many industrial applications. Here are some of the key advantages:1. High Force Output: Hydraulic press master cylinders can generate extremely high forces, making them capable of exerting significant pressure on the workpiece or material being processed. This high force output allows for efficient deformation, shaping, or compression of even the toughest materials.2. Precise Control: Hydraulic systems, including the master cylinder, offer precise control over the pressurized fluid. The valves and control mechanisms enable operators to regulate the speed, intensity, and direction of the hydraulic force, ensuring accurate and repeatable results. This level of control is crucial in applications that require tight tolerances and consistent performance.3. Versatility: Hydraulic press master cylinders are highly versatile and can be adapted to suit various applications. They can be used in a wide range of industries, including manufacturing, metalworking, plastics, automotive, aerospace, and more. Hydraulic presses can handle diverse tasks, such as bending, punching, molding, stamping, and shearing, making them suitable for different production needs.4. Safety and Overload Protection: Hydraulic systems are designed with safety features that help prevent overloads and protect the press and operators. For example, pressure relief valves are incorporated into the system to prevent excessive pressure buildup, reducing the risk of damage or accidents. Additionally, hydraulic systems can be equipped with sensors and control mechanisms to monitor and respond to abnormal conditions, ensuring safe operation.5. Smooth and Consistent Operation: Hydraulic systems, including the master cylinder, offer smooth and consistent operation. The incompressible hydraulic fluid transmits force evenly, resulting in uniform pressure distribution throughout the system. This characteristic helps minimize distortion or irregularities in the workpiece, ensuring high-quality results.6. Durability and Longevity: Hydraulic press master cylinders are known for their durability and long service life. They are designed to withstand high pressures, heavy loads, and frequent use in demanding industrial environments. With proper maintenance and care, hydraulic systems can operate reliably for many years.

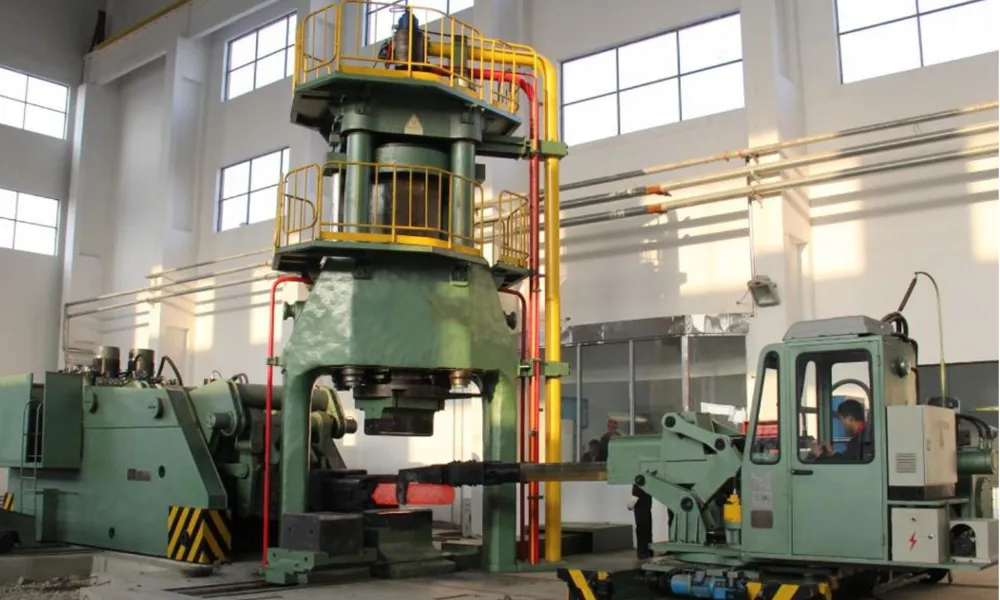

Applications of Hydraulic Press Master Cylinder:

A hydraulic press master cylinder is a component of a hydraulic press that converts the force applied by a piston into a much larger force. It is used to generate the high pressure needed to operate the press.

The applications of a hydraulic press master cylinder are many and varied. Some of the most common applications include:

(1) Forging: Forging is a metalworking process that uses compressive force to shape metal. Hydraulic press master cylinders are used in forging presses to generate the high pressure needed to deform the metal.(2) Clitching: Clinching is a metalworking process that joins two pieces of metal together by using a punch and die. Hydraulic press master cylinders are used in clinching presses to generate the force needed to pierce the metal and form a joint.(3) Molding: Molding is a manufacturing process that creates objects by pouring liquid material into a mold. Hydraulic press master cylinders are used in molding presses to generate the force needed to inject the material into the mold.(4) Blanking: Blanking is a metalworking process that cuts a piece of metal to a desired shape. Hydraulic press master cylinders are used in blanking presses to generate the force needed to shear the metal.(5) Punching: Punching is a metalworking process that creates holes in a piece of metal. Hydraulic press master cylinders are used in punching presses to generate the force needed to pierce the metal.(6) Deep drawing: Deep drawing is a metalworking process that forms sheet metal into a three-dimensional shape. Hydraulic press master cylinders are used in deep drawing presses to generate the force needed to deform the sheet metal.(7) Stretch forming: Stretch forming is a metalworking process that stretches a sheet metal into a three-dimensional shape. Hydraulic press master cylinders are used in stretch forming presses to generate the force needed to stretch the sheet metal.(8) Rubber pad forming: Rubber pad forming is a manufacturing process that creates rubber products by using a mold and a hydraulic press. Hydraulic press master cylinders are used in rubber pad-forming presses to generate the force needed to deform the rubber.(9) Powder compacting: Powder compacting is a manufacturing process that creates solid objects from powders. Hydraulic press master cylinders are used in powder compacting presses to generate the force needed to compact the powders.

These are just a few of the many applications of hydraulic press master cylinders. They are used in a wide variety of industries, including manufacturing, metalworking, and construction.

China Hydraulic Press Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.
