Hydraulic Press Return Cylinder

Hydraulic Press Return Cylinder

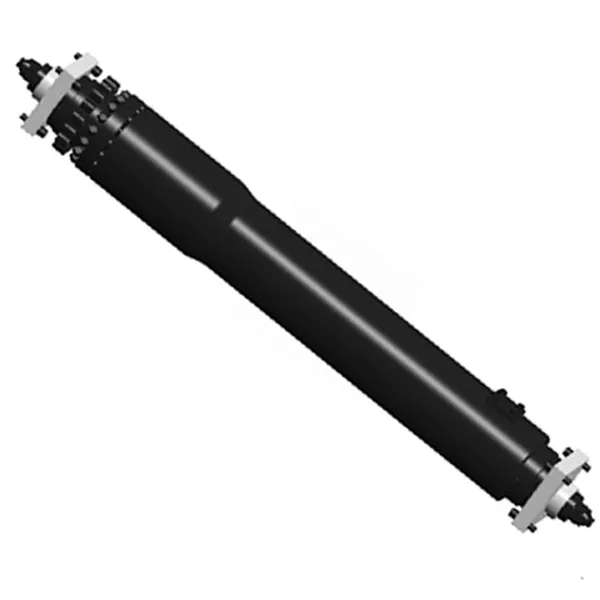

The hydraulic press return cylinder, also known as the hydraulic press retract cylinder, is an essential component of hydraulic press systems. It plays a crucial role in the operation of hydraulic presses by controlling the retraction or return of the press ram or platen.A hydraulic press typically consists of two cylinders: the press cylinder and the return cylinder. The press cylinder is responsible for generating the force required to compress, shape, or mold the material being processed. Once the pressing operation is complete, the return cylinder takes over and retracts the ram or platen, moving it back to its initial position.The hydraulic press return cylinder is typically a single-acting cylinder, meaning it can generate force and motion in one direction only. It uses hydraulic fluid, usually oil, to extend or retract the piston rod. The cylinder is connected to the hydraulic power unit, which includes a pump, valves, and control systems that regulate the fluid flow and pressure.When the pressing operation is complete, the control system activates the hydraulic pump to direct the fluid flow to the return cylinder. The pressurized fluid enters the cylinder's hydraulic chamber, pushing the piston rod in the retracting direction. This action causes the ram or platen to move backward, away from the material being processed.The hydraulic press return cylinder ensures the efficient and controlled retraction of the ram or platen, allowing for quick turnaround times between pressing operations. It provides stability and balance to the hydraulic press system, ensuring proper alignment and positioning of the working components.The design and specifications of hydraulic press return cylinders can vary depending on the specific application and the size and capacity of the hydraulic press. Factors such as the maximum force required, the speed of retraction, and the overall dimensions of the press play a role in determining the appropriate return cylinder for a particular hydraulic press system.

Hydraulic Press Return Cylinder Specifications:

Product Name	Hydraulic Press Return Cylinder
Features:	Provide return force for main cylinder and side cylinder, divided into plunger type/piston type
Bore diameter:	180mm～410mm
Rod diameter:	120mm～360mmStroke≤4500mm
Thrust force:	Maximum 2612KN(Bore diameter: 410mm/pressure31.5MPa)
Plunger:	140mm～360mmStroke≤3000 mm
Plunger Thrust force:	Maximum 3206KN(Plunger 360mm/pressure31.5MPa)
Hydraulic Press Return Cylinder Applications:	Hydraulic Press

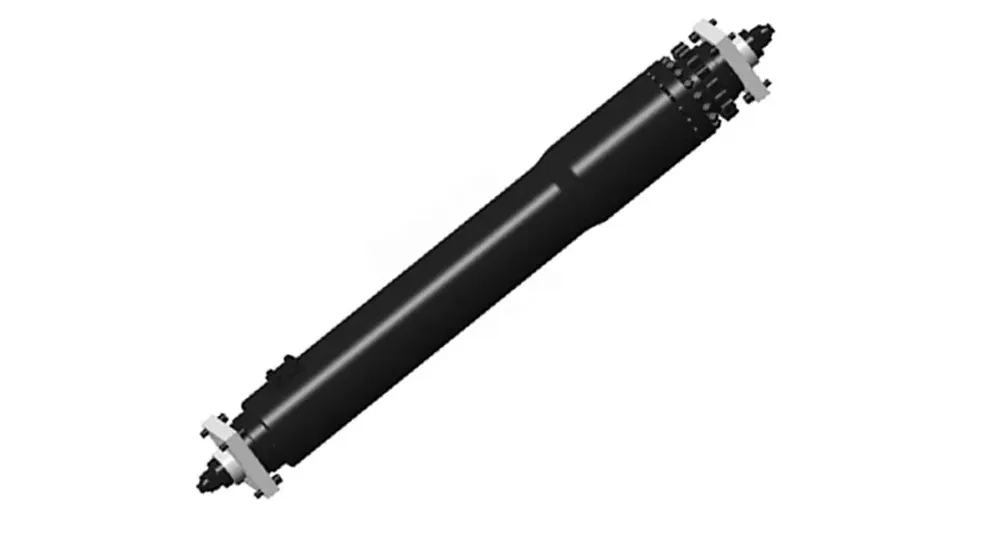

Advantages of Hydraulic Press Return Cylinder:

The hydraulic press return cylinder offers several advantages in hydraulic press systems. Here are some of the key benefits:1. Efficient retraction: The return cylinder allows for quick and efficient retraction of the press ram or platen, reducing the time between pressing operations. This improves the overall productivity of the hydraulic press system by enabling faster cycle times.2. Controlled movement: The return cylinder provides precise control over the retraction of the ram or platen, ensuring smooth and accurate positioning. This control is essential for achieving consistent results in pressing operations and maintaining product quality.3. Stability and balance: By retracting the ram or platen, the return cylinder helps maintain stability and balance in the hydraulic press system. This is particularly important when working with large or heavy materials or when applying high forces, as it prevents the press from becoming unbalanced or toppling over.4. Safety features: Many hydraulic press return cylinders are equipped with safety features such as pressure relief valves and limit switches. These mechanisms ensure that the retraction process is safe and prevent overloading or damage to the press system.5. Versatility: Hydraulic press return cylinders can be designed to accommodate various press sizes and capacities. They can be customized to meet specific application requirements, allowing for versatility in different industries and processes.6. Durability and reliability: Hydraulic press return cylinders are typically built to withstand high pressures and heavy loads, ensuring long-term durability and reliability. They are designed to operate under demanding conditions, providing consistent performance over time.

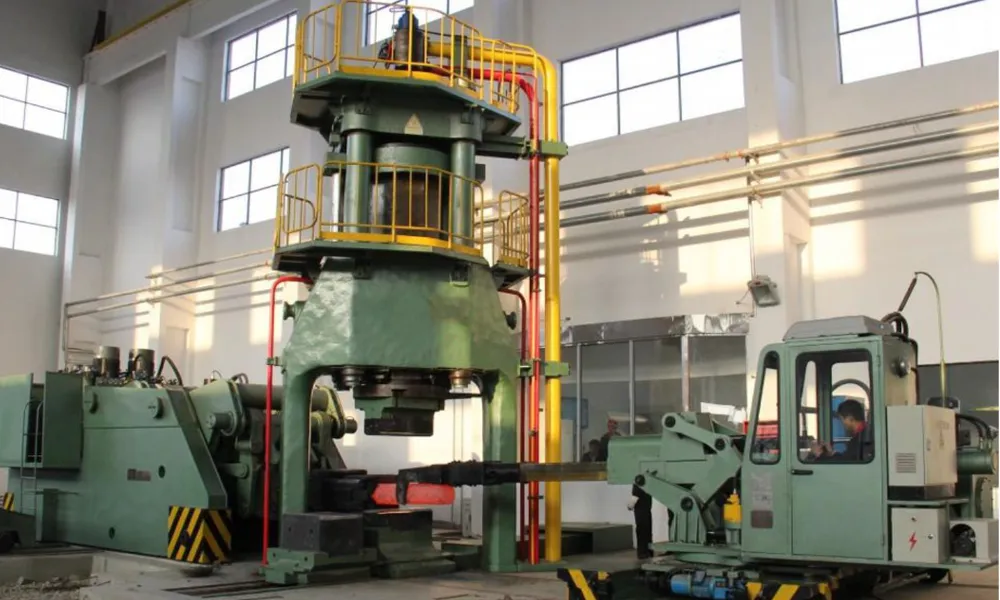

Hydraulic Press Return Cylinder Maintenance:

The hydraulic press return cylinder is responsible for returning the ram to its starting position after it has been extended. It is a critical component of the press and must be properly maintained to ensure safe and efficient operation.

Here are some tips for maintaining the hydraulic press return cylinder:

• Check for leaks. The most common cause of hydraulic cylinder failure is leaks. Inspect the cylinder regularly for any signs of leaks, such as wetness or oil stains. If you find a leak, repair it immediately.
• Inspect the seals. The seals are what keep the oil in the cylinder and prevent it from leaking out. Inspect the seals regularly for any signs of wear or damage. If the seals are damaged, replace them.
• Clean and lubricate the cylinder. The cylinder should be cleaned and lubricated regularly to prevent dirt and debris from accumulating. This will help to extend the life of the cylinder and ensure smooth operation.
• Replace the oil regularly. The oil in the cylinder should be replaced regularly, according to the manufacturer's instructions. Old oil can become contaminated and can cause the cylinder to fail.

By following these tips, you can help to ensure that your hydraulic press return cylinder remains in good condition and operates safely and efficiently for many years to come.

Here are some additional things to keep in mind when maintaining the hydraulic press return cylinder:

• The return cylinder should be aligned properly with the ram. If the cylinder is not aligned properly, it can cause wear and tear on the seals and other components.
• The return cylinder should be the correct size for the press. Using a cylinder that is too small or too large can cause problems with the operation of the press.
• The return cylinder should be installed and removed properly. Improper installation or removal can damage the cylinder.

If you are not comfortable maintaining the hydraulic press return cylinder yourself, you should take it to a qualified technician for service.

China Hydraulic Press Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.
