Hydraulic Press Tilt Cylinder

Hydraulic Press Tilt Cylinder

A hydraulic press tilt cylinder is a crucial component of hydraulic press systems used in various industrial applications. It plays a vital role in controlling the movement and positioning of the press's upper slide or ram. The tilt cylinder is responsible for tilting or angling the ram, allowing for precise and controlled bending, forming, punching, or shearing of materials.The tilt cylinder operates on the principles of hydraulic power and pressure. It consists of a cylinder barrel and a piston connected to the press's ram. Inside the cylinder, hydraulic fluid is pressurized using a hydraulic pump. When the press operator initiates the tilting action, the pressurized hydraulic fluid is directed to one side of the piston, causing it to move and tilt the ram accordingly.The tilt cylinder is designed to withstand substantial forces and pressures, ensuring the safe and efficient operation of hydraulic presses. It is typically equipped with seals and gaskets to prevent fluid leakage and maintain the hydraulic pressure. The cylinder's size and specifications depend on the specific requirements of the hydraulic press system, such as the press's maximum load capacity and the desired tilting range.Hydraulic press tilt cylinders offer several advantages in industrial applications. They provide precise control over the ram's tilting movement, allowing for accurate positioning and alignment of the workpiece. This feature is particularly valuable in processes like sheet metal bending, where precise angles are critical. The hydraulic system's power enables the tilt cylinder to handle heavy loads and exert significant force during the bending or forming process.

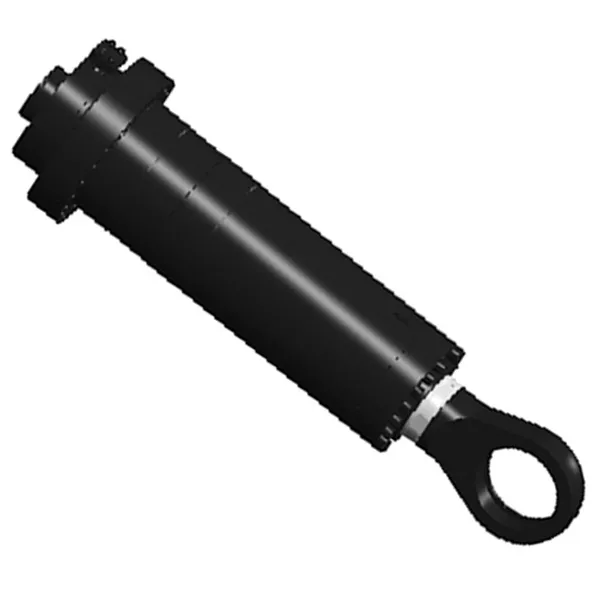

Hydraulic Press Tilt Cylinder Specifications:

Product Name	Hydraulic Press Tilt Cylinder
Features:	Realize the lifting of the clamp head of the manipulator
Bore diameter:	100mm～400mm
Rod diameter:	50mm～300mmStroke≤1500mm
Thrust force:	Maximum 3141KN(Cylinder diameter 400mm/pressure25MPa)
Hydraulic Press Tilt Cylinder Applications:	Hydraulic Press

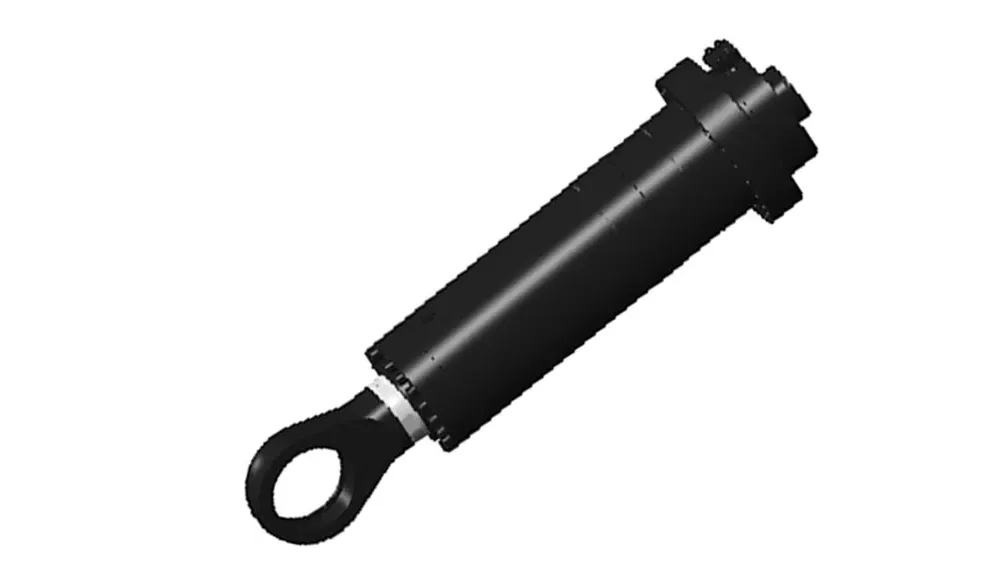

Hydraulic Press Tilt Cylinder Advantages:

Hydraulic press tilt cylinders offer several advantages in industrial applications. Here are some of the key benefits:1. Precise Control: Tilt cylinders provide precise control over the tilting movement of the hydraulic press ram. The hydraulic system allows for fine adjustments, enabling accurate positioning and alignment of the workpiece. This precision is crucial in applications where precise angles or bends are required.2. Versatility: Hydraulic press tilt cylinders are versatile and can be used in a wide range of industrial processes. They are commonly employed in sheet metal bending, forming, punching, and shearing operations. The ability to tilt the ram allows for complex shapes and contours to be achieved with high accuracy.3. Increased Productivity: The precise control and versatility offered by tilt cylinders contribute to increased productivity. Operators can quickly and efficiently position the workpiece, reducing setup time and improving overall production efficiency. Additionally, the ability to achieve accurate bends and forms in a single operation minimizes the need for additional processing steps, saving time and resources.4. Heavy Load Capacity: Hydraulic press tilt cylinders are designed to handle heavy loads. They are capable of exerting significant force during the bending or forming process, allowing for the processing of thick and robust materials. This capability is particularly advantageous in industries such as automotive, aerospace, and construction, where high-strength materials are commonly used.5. Safety: Tilt hydraulic cylinders enhance safety in hydraulic press operations. The precise control and stability they provide minimize the risk of workpiece misalignment or slippage during bending or forming processes. Additionally, safety features such as pressure relief valves and overload protection mechanisms can be integrated into the hydraulic system to ensure safe operation.6. Durability and Reliability: Hydraulic press tilt cylinders are built to withstand the demanding conditions of industrial environments. They are constructed using high-quality materials and are designed to handle continuous and heavy-duty operations. Properly maintained cylinders have a long service life, offering reliability and reducing downtime for maintenance and repairs.

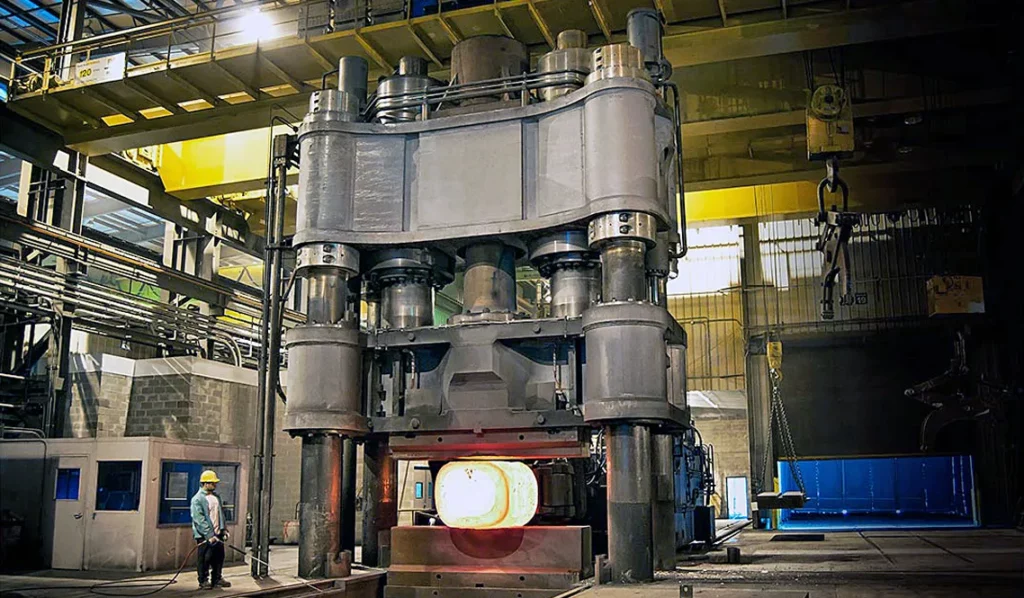

Hydraulic Press Tilt Cylinder Safety Precautions:

When working with hydraulic press tilt cylinders, it is crucial to follow safety precautions to ensure the well-being of operators and prevent accidents. Here are some important safety measures to consider:Operator Training: Ensure that operators receive proper training on the safe operation of hydraulic presses and tilt cylinders. They should be familiar with the equipment, its controls, and the specific safety procedures related to tilt cylinder operation.Personal Protective Equipment (PPE): Operators should wear appropriate PPE, including safety glasses, gloves, and protective clothing, to protect themselves from potential hazards such as flying debris, hydraulic fluid leaks, or accidental contact with moving parts.Lockout/Tagout Procedures: Before performing any maintenance or repair work on the hydraulic press or tilt cylinder, follow lockout/tagout procedures to isolate the energy source and prevent accidental startup or movement of the equipment. This ensures that the machinery cannot be operated while maintenance or adjustments are being made.Inspection and Maintenance: Regularly inspect the tilt cylinder, hydraulic lines, fittings, and seals for signs of wear, damage, or leaks. Follow the manufacturer's recommended maintenance schedule and perform necessary repairs or replacements promptly to keep the equipment in safe working condition.Pressure Relief: Before any maintenance or adjustment, release the pressure in the hydraulic system. This can be done by lowering the ram and ensuring the hydraulic power source is turned off. Proceed with caution as there may still be residual pressure trapped within the system.Proper Positioning: Ensure that the workpiece is correctly positioned and secured before initiating the tilting operation. Improper positioning or insecure clamping of the workpiece can lead to accidents or workpiece ejection during the bending or forming process.Overload Protection: Consider implementing overload protection mechanisms, such as pressure relief valves or load-limiting devices, to prevent excessive force on the tilt cylinder and protect against potential equipment failure or operator injury.
