Hydraulic Side Offset Moveable Flail Mower for Tractor AGF Series

[embed]https://youtu.be/uV9sIx16M9o[/embed]

Hydraulic Side Offset Moveable Flail Mower for Tractor AGF Series

This flail mower has higher coverage, better grass and branches shredding accomplishment, and a more delicate shredding effect. It can easily adjust the stubble height and and can shred grassroots. It also has a number of operational safety protection mechanisms and a self-adjusting balance. It has hydraulic control of flip and better slide capability. It works perfectly for more difficult operation scenarios. The AGF Hydraulic Side Offset Moveable Flail Mower is a specialized attachment designed for tractors. It is primarily used for maintaining and cutting vegetation in various agricultural and land management applications. This mower is equipped with flail blades that effectively chop and mulch grass, weeds, and other vegetation, providing a clean and well-manicured appearance to the land. One of the key features of the AGF Hydraulic Side Offset Moveable Flail Mower is its hydraulic side offset capability. This allows the mower to be shifted laterally, either to the left or right side of the tractor, while remaining connected to the three-point hitch. This offset functionality enables the operator to reach areas that are typically challenging to access, such as along fences, tree lines, ditches, and other obstacles. By offsetting the mower, you can effectively trim and maintain vegetation in tight or hard-to-reach spaces. The flail blades used in this mower are designed to deliver a high cutting performance. They are typically made of durable materials, such as hardened steel, and are arranged in a rotating drum or rotor. As the rotor spins, the flail blades strike the vegetation, cutting it into small pieces. This cutting action not only ensures a neat appearance but also aids in the decomposition of the cut plant material, promoting a healthier growth environment. Another advantage of the AGF Hydraulic Side Offset Moveable Flail Mower is its compatibility with tractors. It is specifically designed to be attached to the three-point hitch of tractors, making it easy to connect and disconnect. The hydraulic system of the tractor provides power to the mower's side offset function, allowing for smooth and precise movements.

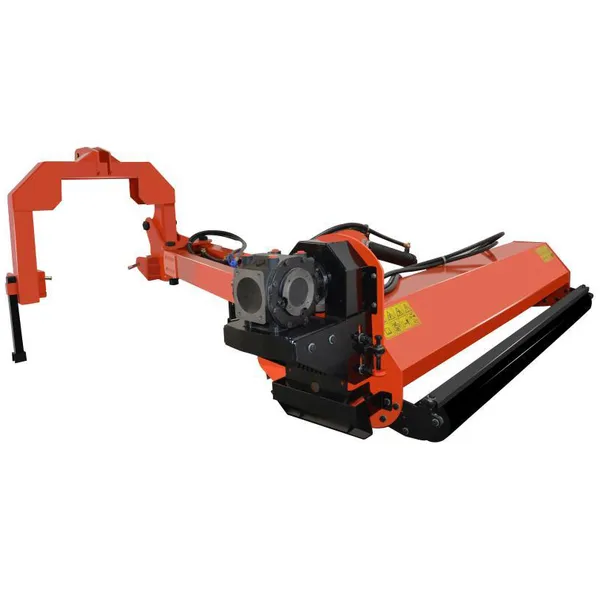

Specifications of the AGF Series Flail Mower

Models	Working Width	PTO Input Seed	Hammer Blades	Rotor Seed	Required HP	Shipped Weight	Overall Dimensions
	mm	rpm	N.	rpm	hp	Kg	mm
AGF160	1550	540	22	2160	60-100	571	2100*900*750
AGF180	1750	540	26	2160	70-110	605	2300*900*750
AGF200	1950	540	28	2160	85-120	632	2500*900*750
AGF220	2150	540	32	2160	95-130	665	2700*900*750

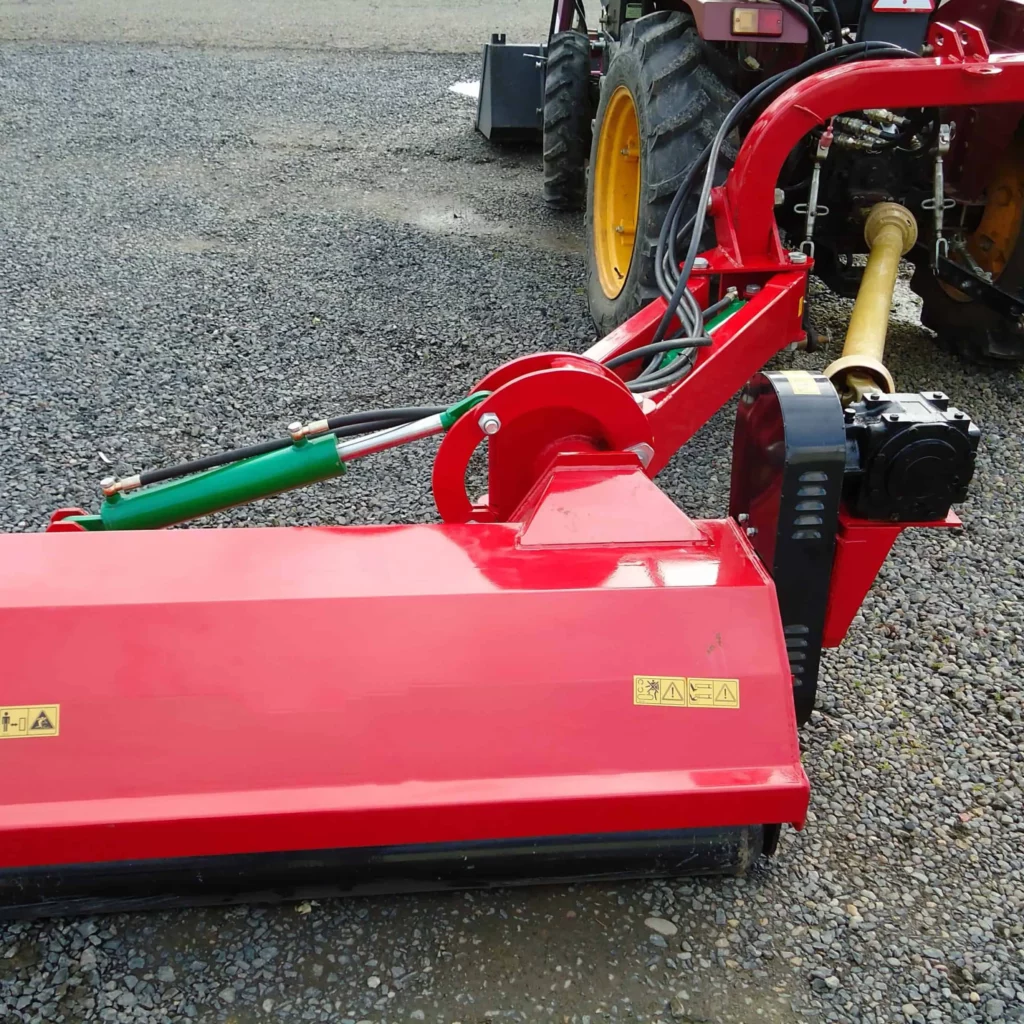

Benefits of the AGF Hydraulic Side Offset Moveable Flail Mower for Tractor

The AGF Hydraulic Side Offset Moveable Flail Mower for tractors offers several benefits that make it a valuable tool for agricultural and land management purposes. Here are some of its key advantages: 1. Versatility: The hydraulic side offset capability of this flail mower allows it to be shifted to the left or right side of the tractor. This versatility enables operators to reach areas that are typically difficult to access, such as along fences, tree lines, ditches, and other obstacles. It provides enhanced maneuverability and ensures thorough vegetation maintenance in tight or hard-to-reach spaces. 2. Efficient Cutting Performance: The flail blades used in the mower are designed to deliver efficient cutting performance. They are made of durable materials and arranged in a rotating drum or rotor. The high-speed rotation of the blades effectively chops and mulches grass, weeds, and other vegetation, resulting in a clean and well-maintained appearance. The cut material also decomposes faster, contributing to a healthier growth environment. 3. Three-Point Hitch Compatibility: The AGF Hydraulic Side Offset Moveable Flail Mower is specifically designed to be attached to the three-point hitch of tractors. This design ensures easy and secure connection, allowing for quick setup and detachment. The three-point hitch provides stability and proper weight distribution, ensuring safe and efficient operation. 4. Time and Cost Efficiency: By using the AGF Hydraulic Side Offset Moveable Flail Mower, operators can accomplish vegetation maintenance tasks more quickly and efficiently. The ability to reach challenging areas reduces the need for manual trimming or additional equipment, saving time and labor costs. The mulching action of the flail blades also eliminates the need for separate debris collection, further streamlining the process and reducing cleanup efforts. 5. Durability and Longevity: The AGF Hydraulic Side Offset Moveable Flail Mower is built with durability in mind. It is constructed using high-quality materials and designed to withstand the demands of heavy-duty use. The use of hardened steel for the flail blades ensures longevity and resistance to wear and tear, reducing maintenance and replacement costs over time.

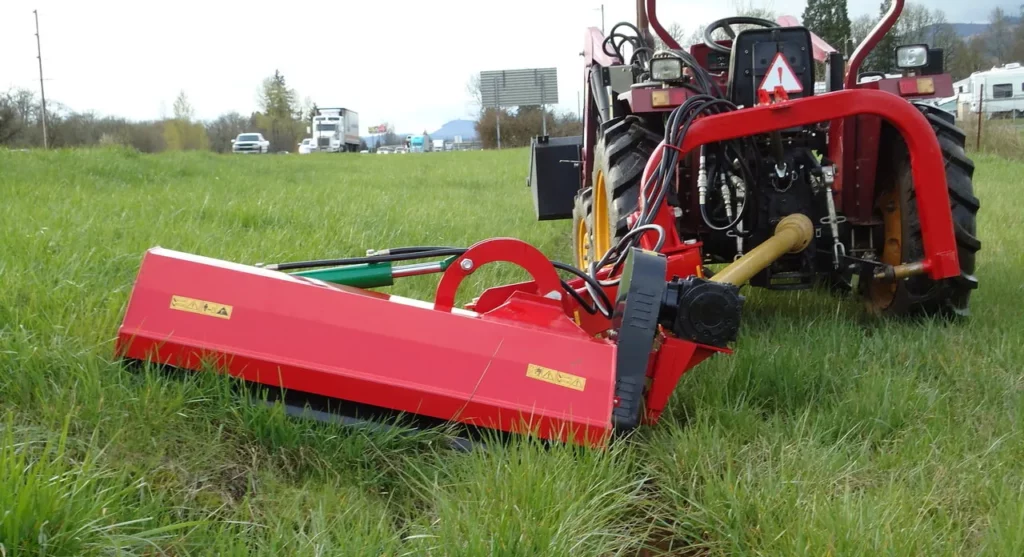

Working Principle of the AGF Hydraulic Side Offset Flail Mower

The AGF Hydraulic Side Offset Flail Mower operates on a combination of mechanical and hydraulic principles to provide efficient vegetation management across various terrains and around obstacles. Here’s an overview of its working principle: 1. Power Source

• The mower is powered by the tractor's engine through the Power Take-Off (PTO) shaft. This connection transfers the tractor's mechanical energy to the mower, enabling it to operate its cutting mechanism.

2. Hydraulic Side Offset

• One of the key features of the AGF mower is its hydraulic side offset capability. This function is controlled by the tractor’s hydraulic system, which can extend or retract a hydraulic cylinder attached to the mower. By doing so, the operator can move the mower laterally (to the left or right side of the tractor) in real-time, allowing for precision mowing around obstacles like trees, fences, and utility poles without moving the tractor off its path.

3. Flail Cutting Mechanism

• At the core of the mower's design is the flail cutting mechanism. This consists of a horizontally oriented drum or rotor equipped with multiple flails — metal blades or chains attached at hinges. When the rotor spins (driven by the PTO shaft), centrifugal force swings the flails outward.
• As the mower moves forward, these flails strike the vegetation with a cutting action. The flails are designed to cut with a scissoring motion, which is gentle on the turf and effective on a wide range of vegetation, from grass to small shrubs and underbrush.

4. Cutting Height Adjustment

• The AGF mower allows for adjustment of the cutting height, which is achieved through a combination of skids or roller adjustments. This enables the mower to perform well in a variety of conditions, from close-cropped lawns to taller, thicker vegetation.

5. Safety and Durability Features

• The mower is designed with several safety and durability features in mind. Protective guards shield the flails to prevent debris from being thrown towards the operator or bystanders. Additionally, the construction of the mower is robust, ensuring it can withstand the rigors of heavy-duty use.

6. Efficient Vegetation Management

• The combination of hydraulic side offset and flail cutting action makes the AGF mower exceptionally versatile and efficient for managing vegetation. It can evenly distribute the cut material across the mowed area, which can decompose and return nutrients to the soil, promoting a healthy regrowth of plants.

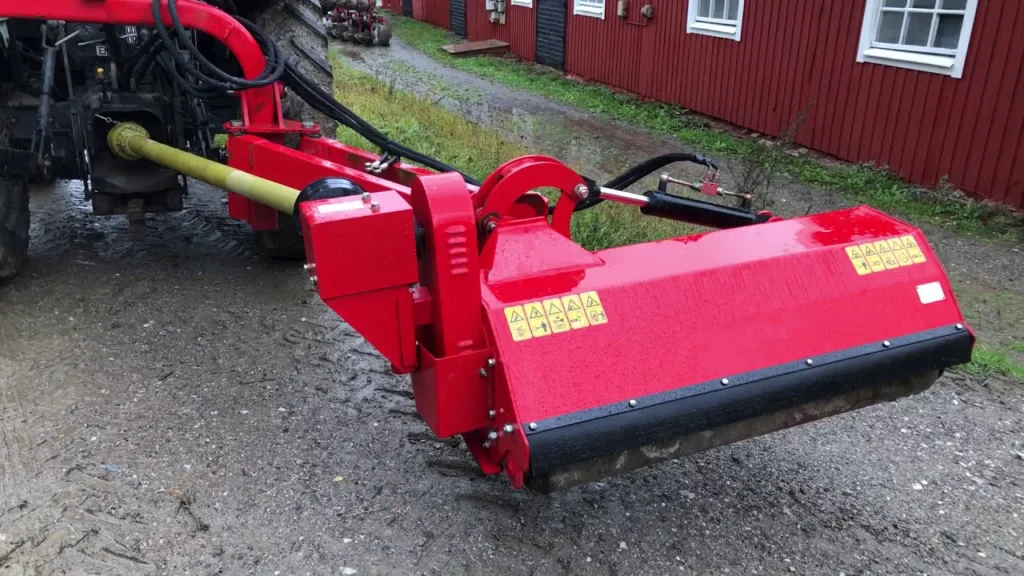

Common Troubleshooting of the AGF Hydraulic Side Offset Flail Mower

Troubleshooting the AGF Hydraulic Side Offset Flail Mower involves diagnosing and resolving issues that may arise during its operation. Despite its robust design and construction, occasional problems can occur, especially with regular use. Here are some common troubleshooting tips: 1. Mower Won't Start or Operate

• Check PTO Connection: Ensure the Power Take-Off (PTO) shaft is properly connected to the tractor. A misalignment or loose connection can prevent the mower from starting.
• Inspect Hydraulic Connections: For the hydraulic side offset feature, verify that all hydraulic connections are secure and there are no leaks. Low hydraulic fluid levels can also affect operation.

2. Inadequate Cutting Performance

• Blade Wear or Damage: Regularly inspect the flails for wear, damage, or bending. Replace any damaged flails to maintain optimal cutting performance.
• Cutting Height Adjustment: Adjust the cutting height if the mower is either scalping the ground or leaving vegetation too tall. This may involve adjusting the skids or rear roller.
• Rotor Speed: Ensure the tractor's PTO is operating at the correct RPM as recommended by the manufacturer. Too slow or too fast a speed can affect cutting quality.

3. Hydraulic Side Offset Not Functioning

• Hydraulic Fluid Levels: Check the tractor’s hydraulic fluid level. Low levels can affect the performance of the hydraulic side offset feature.
• Hydraulic Cylinder Issues: Inspect the hydraulic cylinder for leaks or damage. Ensure that the hydraulic hoses and fittings are in good condition and securely connected.
• Control Valve Function: Ensure the hydraulic control valve is functioning correctly and is not stuck or blocked.

4. Excessive Vibration

• Unbalanced Rotor: An unbalanced rotor can cause excessive vibration. Check for missing or unevenly worn flails and replace or adjust as necessary to balance the rotor.
• Loose Components: Inspect all bolts, nuts, and other fasteners on the mower to ensure they are tight. A loose PTO shaft or mower attachment can also contribute to vibration.

5. Mower Leaves Uneven Cut

• Terrain: Uneven terrain can result in an irregular cut. Adjust the mower’s cutting height or approach angle to better match the ground contours.
• Worn Skids or Roller: Check the condition of the skids or rear roller. Worn components can affect the mower’s ability to maintain a consistent cutting height.

6. Debris Accumulation

• Regular Cleaning: After each use, clean any accumulated debris from the mower. Build-up of plant material can obstruct the flails or other moving parts and affect performance.

7. Hydraulic Oil Overheating

• System Strain: Continuous heavy use, especially in high ambient temperatures, can overheat the hydraulic oil. Allow the system to cool down periodically.
• Oil Quality and Level: Check the hydraulic oil quality and level. Replace the oil or top it up if necessary, and ensure it meets the manufacturer's specifications.

Why Choose Raydafon's Flail Mower?

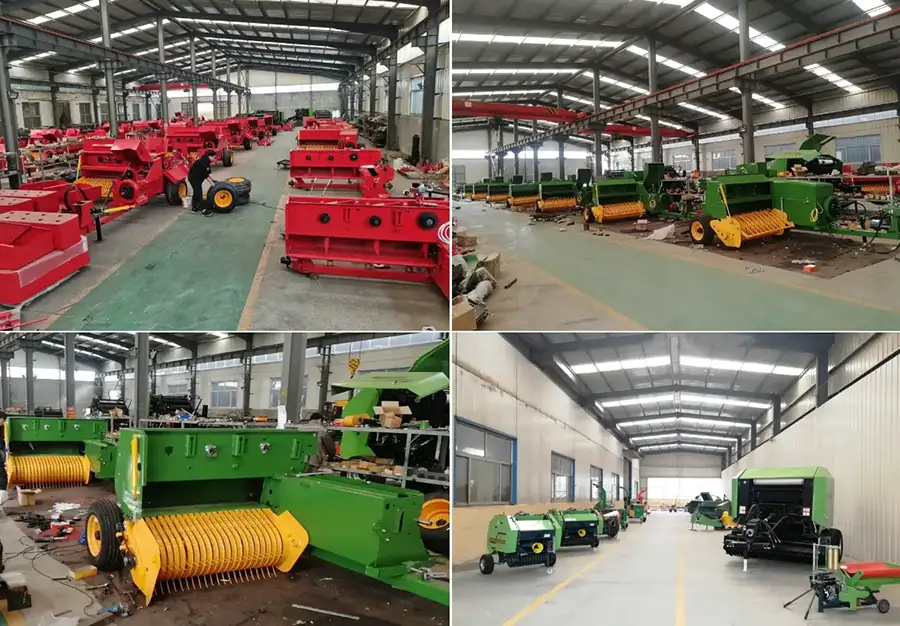

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, corn seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
