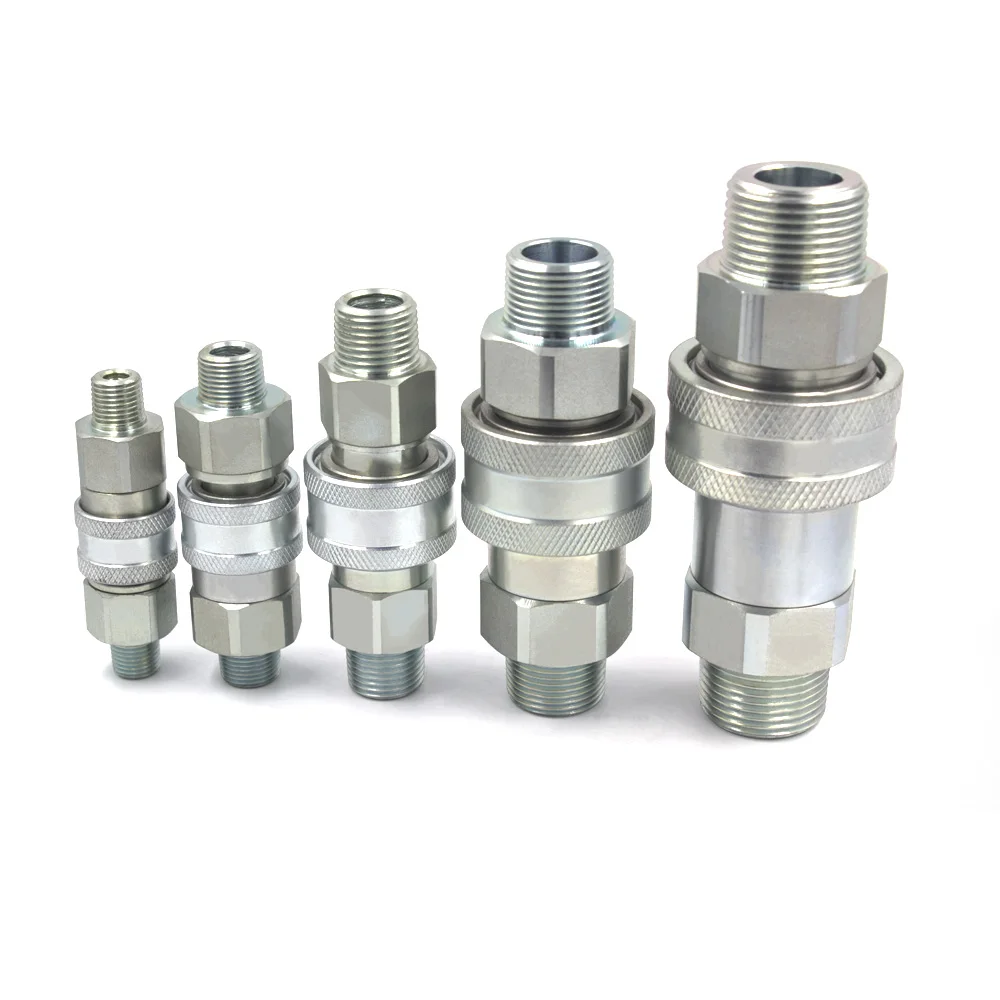

ISO 7241 A 1/4 inch NPT/BSP Thread Female/Male Hansen Exchange Couplings Hydraulic Quick & Hydraulic Quick Release Coupling

Our ISO 7241 A 1/4 inch NPT/BSP Thread female/male hansen exchange couplings are the epitome of precision and quality. Made from durable steel and assembled with the utmost care, these hydraulic quick release couplings are designed to provide long service life and exceptional performance. They are equipped with an NPT G BSP thread and offer a pressure of 34.5MPA. The secure screw thread connection ensures a tight and reliable fit. Moreover, we provide a one-year warranty to guarantee your satisfaction. These fittings are packaged meticulously in a box or carton and can be shipped from Ningbo or Shanghai, as per your convenience.

Advantages of Our Hydraulic Quick Release Couplings

Our hydraulic quick release couplings stand out from the rest due to their unique features and benefits. Here are six primary advantages of using our product:

1. Poppet valves are incorporated to prevent leakage when the couplings are uncoupled.
2. Critical components are hardened for increased durability and longevity.
3. The secure ball-locking mechanism ensures that the two mating parts stay together.
4. The socket and plug are precision machined from solid bar stock, ensuring high quality and performance.
5. The male thread end offers versatile connection options.
6. We offer customization according to customer specifications, and can also mark your logo on the product with your authorization.

Our team of skilled professionals and advanced manufacturing facilities enable us to produce this product with precision and consistency.

Applications of Hydraulic Quick Couplings

Hydraulic Quick Couplings are versatile and find extensive usage across a range of industries due to their ability to efficiently connect and disconnect hydraulic lines and components. Here are six common applications:

1. Construction and Heavy Machinery: The couplings are integral to construction equipment like excavators, loaders, and bulldozers, enabling rapid attachment and detachment of hydraulic attachments.
2. Agriculture: Agricultural machinery, for tasks like plowing, seeding, and harvesting, depends on these couplings for quick switching between different implements.
3. Manufacturing and Automation: Couplings connect hydraulic actuators, presses, and tools in manufacturing processes, facilitating speedy tool changes and adjustments.
4. Oil and Gas Industry: In the oil and gas sector, quick couplings are essential for connecting hydraulic lines and components in harsh environments.
5. Aerospace: During aircraft operation, hydraulic systems play a crucial role and quick couplings are used during maintenance and repair activities.
6. Automotive Industry: Quick couplings enable easy assembly and servicing of hydraulic components in automotive applications.

How Does the Hydraulic Quick Coupling Work?

Hydraulic quick couplings, also known as hydraulic quick disconnects or hydraulic quick connectors, are devices used to rapidly connect and disconnect hydraulic lines and components without the need for tools or extensive manual labor. They work based on a simple yet effective principle to ensure a secure and leak-free connection:

1. Male and Female Couplings: The couplings consist of two main components: the male coupling and the female coupling, designed to fit together seamlessly.
2. Valve Mechanism: Both the male and female couplings have a valve mechanism, which can be in the form of poppet valves, ball valves, or flat-face valves.
3. Sealing O-Ring: Each coupling has an O-ring or other sealing mechanism that ensures a watertight and pressure-tight seal when the couplings are connected.
4. Push-to-Connect: The operator simply pushes the male coupling into the female coupling, opening a pathway for hydraulic fluid to flow.
5. Fluid Flow: With the valves open, hydraulic fluid can flow freely from one side of the coupling to the other, allowing for the transmission of hydraulic power.
6. Locking Mechanism: Most couplings have a locking mechanism that holds the couplings together securely, preventing accidental disconnection during operation.

Hydraulic Quick Coupling Installation Steps

Installing hydraulic quick couplings correctly is crucial for the efficient and safe operation of hydraulic systems. Below are the installation steps:

1. Select the Right Couplings: Choose suitable couplings for your specific application, taking into account factors like size, pressure rating, and compatibility with your hydraulic lines.
2. Clean the Couplings: Ensure that both the male and female couplings are clean and free from contaminants. Apply a small amount of compatible hydraulic oil or grease to the O-rings or seals for smooth coupling.
3. Position the Couplings: Align the male and female couplings correctly for connection. Push the male coupling into the female coupling until they snap or click into place.
4. Secure the Connection: If your couplings have a locking mechanism, engage it to secure the connection further.
5. Test the Connection: Perform a pressure test to ensure that the couplings are securely connected and there are no leaks.

Maintenance of Hydraulic Quick Couplings

Maintenance of hydraulic quick couplings is essential to ensure the reliability and longevity of hydraulic systems. Here are some maintenance steps:

1. Regular Inspection: Perform routine visual inspections of the couplings. Check for any hydraulic fluid leaks around the couplings.
2. Cleanliness: Keep the couplings and surrounding areas clean. Use a lint-free cloth or compressed air to clean the couplings.
3. Lubrication: Apply a small amount of compatible hydraulic oil or grease to O-rings and seals before coupling.
4. Torque Checks: Periodically check the torque on the coupling nuts. Use a torque wrench to tighten them to the manufacturer's specifications.
5. Replace Damaged Components: If you notice any damaged or worn-out components, replace them immediately.
6. Use Protective Caps: When couplings are not in use, protect the exposed ends with dust caps or plugs.

Why Choose Raydafon's Hydraulic Quick Couplings?

Raydafon Hydraulic Component Co., Ltd is located in the Ningbo Industrial Zone Zhejiang City, covering 6500 square meters. It launched in 1992, which is the design, development, production, and sales of quick couplings, including hydraulic cylinders, hydraulic couplings, hydraulic fittings, hydraulic ball valves, pneumatic couplings, and pipe couplings.

Raydafon is focused on international market explorations and the South China market's development. Our products are not only sold well in the domestic market but also in the USA, Europe, Southeast Asia, and the Middle East. We mainly provide the hydraulic and pneumatic products for oil, engineering, metallurgical, machine tools, military equipment and machinery manufacturing industry.

We stick to the principle of "Quality first, Customer first, Reputation first, and Service first" to satisfy the customers' requirements and increase the market share. We are growing stably and healthily. We pursue the excellent brand and comply to the best service, which will make us move faster to keep up with the international enterprise. We look forward to creating a bright future with you.
