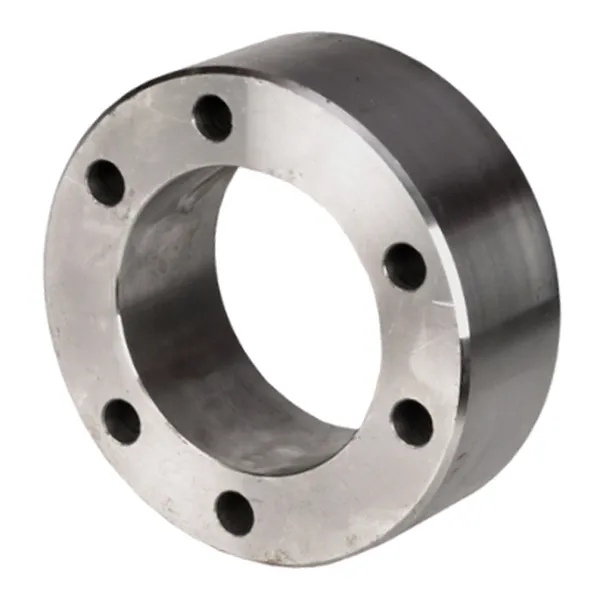

J-A QD Weld-On Hubs

J-A QD Weld-On Hubs

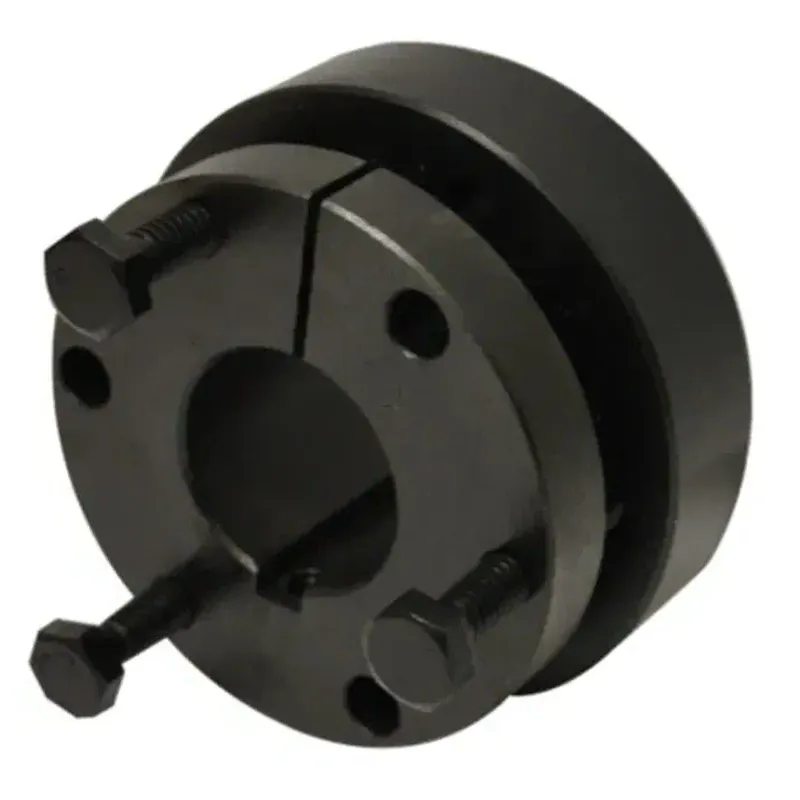

J-A QD weld-on hubs are specialized components designed for use with J QD (Quick Detachable) bushings. These hubs provide a secure and reliable method of attaching J QD bushings to various shafts or surfaces.The J-A QD weld-on hubs are specifically designed to be welded onto shafts, sprockets, pulleys, or other surfaces. They are typically made of high-quality steel to ensure strength and durability. The hubs have a tapered bore that matches the taper of the J QD bushing, allowing for a precise and secure fit.To install a J-A QD weld-on hub, the hub is first aligned and welded onto the target surface. Once the weld has cooled and solidified, a J QD bushing can be mounted onto the hub. The bushing is then tightened using the provided screws or bolts, creating a tight and reliable connection between the bushing and the hub.The J-A QD weld-on hubs provide several advantages. They offer a strong and rigid attachment method, ensuring that the bushings stay securely in place during operation. Additionally, the weld-on hubs eliminate the need for keyways or set screws, simplifying installation and reducing the risk of shaft damage.

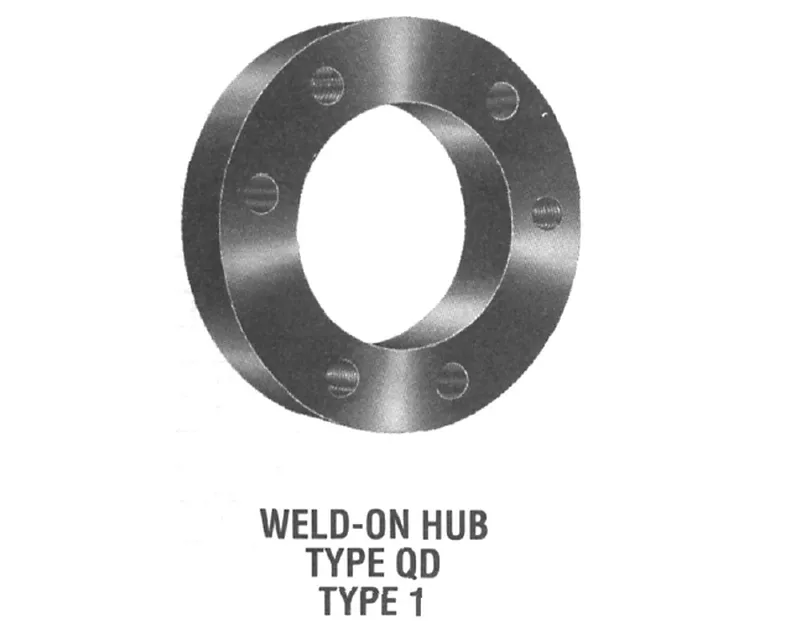

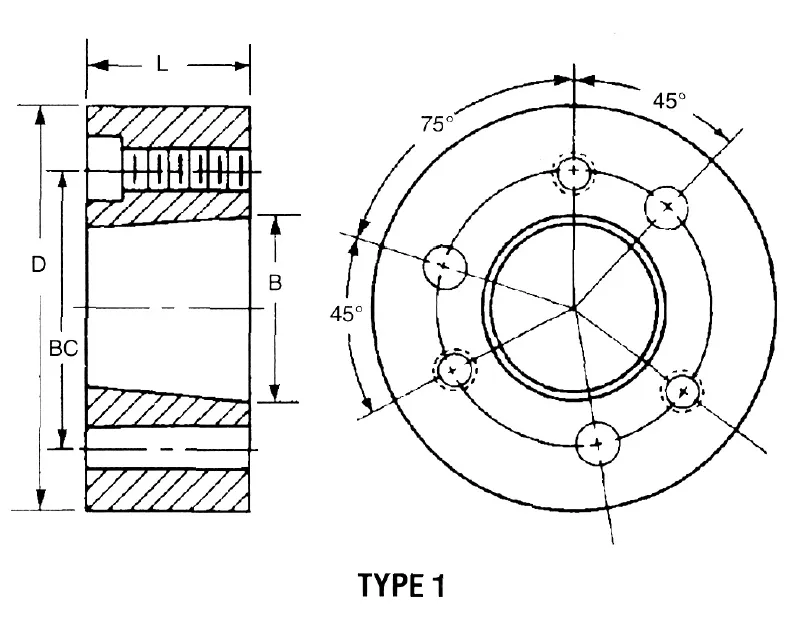

J-A QD Weld-On Hubs Dimensions:

QD Hub Types		J-A Weld-On Hubs
For Bushing		J QD Bushings
Dimensions (Inches)	D	7.75"
	L	3 3/16"
	B	5.14"
	P	-
	L1	-
	BC	6 1/4"
Type Drilling		1"
Weight (lbs)		22.5 lbs

Tolerance of D Dimension (or P dimension where applicable) JA-A Thru J-A = (+-.002) M-A Thru S-A = (+-.003)

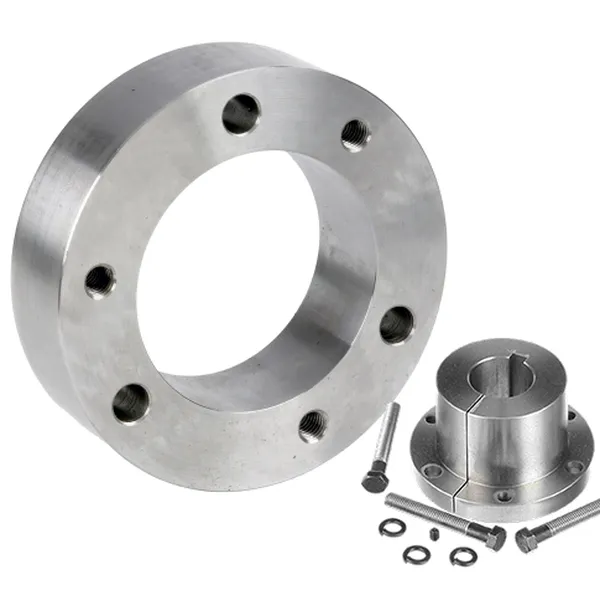

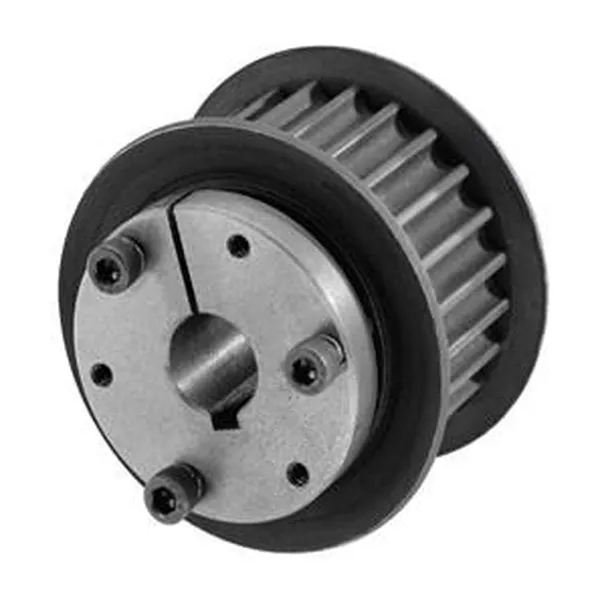

J-A QD Weld-On Hubs Design Advantages:

J-A QD weld-on hubs have a number of design advantages that make them a reliable and versatile choice for mounting J QD bushings to shafts. These advantages include:1. Taper bore: The taper bore on the J-A QD weld-on hub matches the taper of the J QD bushing, ensuring a secure and accurate fit.2. Six bolt holes: The six bolt holes on the J-A QD weld-on hub provide a strong and evenly distributed clamping force.3. Durable steel construction: The J-A QD weld-on hub is made of durable steel that can withstand high loads and vibration.4. Long life: The J-A QD weld-on hub is designed for long life and can be expected to provide many years of reliable service.5. Easy to install: The taper bore, and six bolt holes make it quick and easy to install the J-A QD weld-on hub. This is important for applications where quick installation is important, such as in maintenance or repair situations.Overall, the design of J-A QD weld-on hubs makes them a reliable and versatile choice for mounting J QD bushings to shafts. They are easy to install, provide a secure and accurate fit, and are made of durable materials that can withstand high loads and vibration.

QD Weld-On Hubs Vs Taper Bore Bolt-On Hubs:

QD (Quick Detachable) weld-on hubs and taper bore bolt-on hubs are two different types of mounting options used for connecting components to shafts or cylindrical surfaces. Here's a comparison between the two:QD Weld-On Hubs:

1. Mounting Method: QD weld-on hubs are designed to be permanently welded onto the shaft or cylindrical surface. They provide a secure and rigid connection.
2. Installation: The hub is positioned and welded onto the surface, making it a one-time installation.
3. Bushing Compatibility: QD weld-on hubs are typically used in conjunction with QD bushings, which have a split-tapered design for easy installation and removal.
4. Convenience: QD weld-on hubs offer a convenient and efficient solution for mounting components, as the QD bushings can be easily attached or detached without disassembling the entire hub assembly.
5. Strength and Load Capacity: QD weld-on hubs are known for their strength and ability to handle high torque and axial loads.

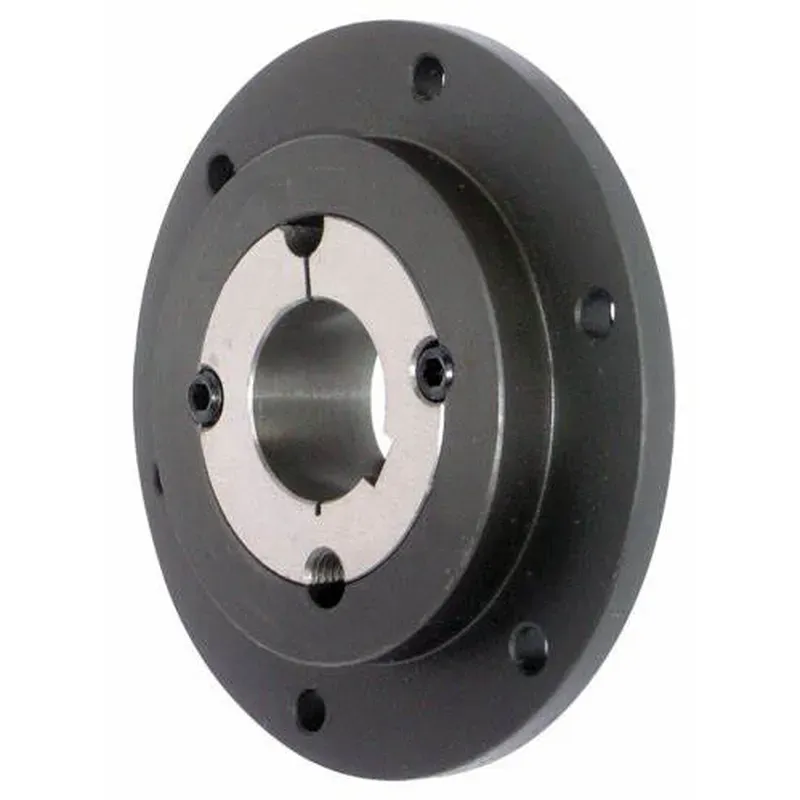

Taper Bore Bolt-On Hubs:

1. Mounting Method: Taper bore bolt-on hubs utilize a tapered bore that matches the shaft's taper. They are secured to the shaft using bolts or screws, providing a removable connection.
2. Installation: The hub is placed onto the shaft, and bolts or screws are tightened to secure it in place. This allows for easy removal and repositioning of the hub.
3. Bushing Compatibility: Taper bore bolt-on hubs can be used with various types of bushings, including taper bushings and bushings with a keyway.
4. Convenience: Taper bore bolt-on hubs offer convenience in terms of installation and removal, as they can be easily attached or detached without requiring welding or extensive disassembly.
5. Strength and Load Capacity: Taper bore bolt-on hubs provide good strength and load capacity, suitable for many power transmission applications.

The choice between QD weld-on hubs and taper bore bolt-on hubs depends on specific application requirements and preferences. QD weld-on hubs offer a permanently welded connection and are ideal for applications that require a fixed, robust, and reliable connection. Taper bore bolt-on hubs, on the other hand, provide a removable and versatile connection suitable for applications that may require frequent changes or adjustments.

QD Weld-On Hubs	Taper Bore Bolt-On Hubs

China QD Weld-On Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT weld-on hubs, Type “B” steel hubs, split taper weld-on hubs, QD Type weld-on hubs, and taper bore weld-on hubs will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
