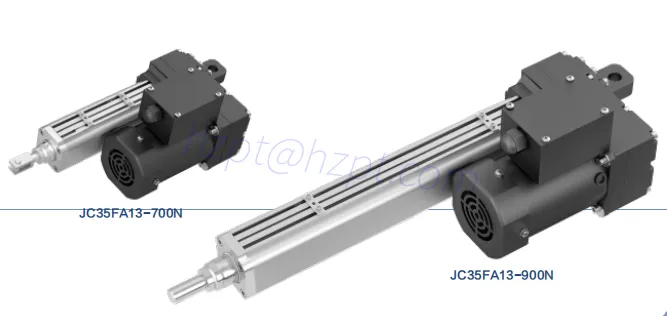

JC35FA13-700N Industrial Push Rod

The JC35FA13-700N Industrial Push Rod is a high-performance device designed to deliver exceptional performance in a variety of industrial applications. The unique design and advanced technology incorporated in this push rod set it apart from other products in the market.

Product Overview

The JC35FA13-700N Industrial Push Rod is a state-of-the-art device boasting high-quality materials and cutting-edge technology. It is specifically designed to provide fast speed and high load bearing capacity. With a maximum dynamic load of 0.7/0.9KN and a load speed of 31/47mm/s, it ensures efficient operation in various industrial environments.

Design Features

External Hall Switch

The JC35FA13-700N Industrial Push Rod features an external Hall switch, enhancing efficiency and reliability due to its ability to offer non-contact detection of the magnetic field.

Y-Type Rod End and Standard Threaded Joint

This push rod comes with a Y-type rod end ??8 and a standard threaded joint of sizes M16X2-M14X2, ensuring easy installation and optimum performance.

High Protection Level

The device has an IP65 protection rating, indicating its dust and water resistance, thus making it suitable for harsh industrial environments.

High-Quality Materials

The JC35FA13-700N Industrial Push Rod is manufactured using premium materials that ensure long-term durability and reliability. It has also passed the C3-48H salt spray test, demonstrating its corrosion resistance capabilities.

Application Fields

This push rod is widely used in various industrial applications such as machinery, automation equipment, agricultural machinery, and more due to its robustness and high performance.

Installation and Usage Instructions

With its straightforward design, the installation and usage of the JC35FA13-700N Industrial Push Rod are simple and hassle-free.

Advantages and Value

The JC35FA13-700N Industrial Push Rod offers superior performance, high reliability, and long life span, providing excellent value for your investment.

Technical Specifications

Max Dynamic Load	Load Speed	Rod End Type	Threaded Joint Size	Protection Level
0.7/0.9KN	31/47mm/s	Y-type ??8	M16X2-M14X2	IP65

Choose Raydafon for the Best Industrial Push Rod

Raydafon is a renowned manufacturer of high-quality industrial equipment. We are dedicated to providing superior products at competitive prices with outstanding customer service. In addition to the JC35FA13-700N Industrial Push Rod, we also manufacture a wide range of agricultural machinery parts including PTO shafts, agricultural PTO gearboxes, agricultural pulleys, and more. We invite you to explore our products and contact us for your purchase needs.

Q&A

Q1. What is the protection level of the JC35FA13-700N Industrial Push Rod?

A1. The protection level is IP65, indicating its dust and water resistance.

Q2. What is the load speed of the JC35FA13-700N Industrial Push Rod?

A2. The load speed is 31/47mm/s.

Q3. What type of rod end does the JC35FA13-700N Industrial Push Rod have?

A3. It has a Y-type rod end ??8.
