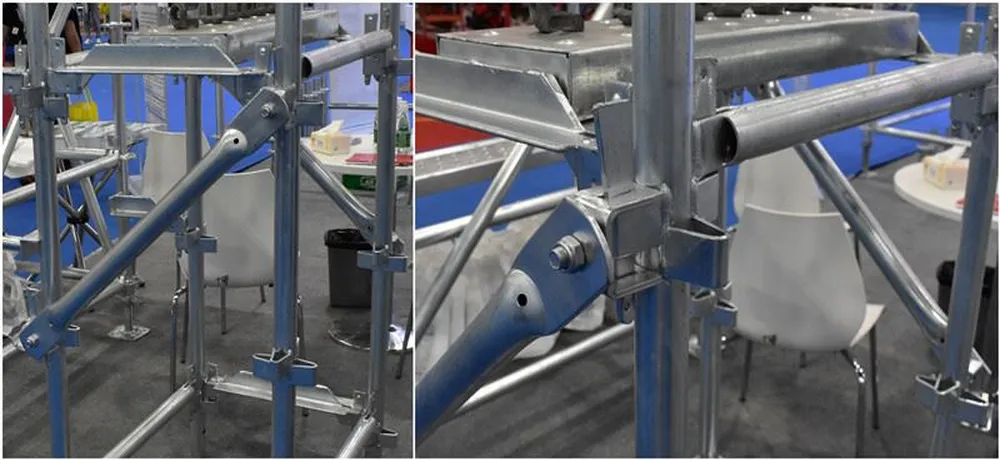

Kwikstage Scaffolding Diagonal Brace for Building Construction

Kwikstage Scaffold Diagonal Braces are made from a 48mm scaffold tube with parts of C pressing and wedge pin to make system scaffolding stable in a Diagonal.A scaffold diagonal braces are paramount to ensure a proper and level scaffold. As the scaffold diagonal braces fit diagonally across the bays, it will only fit into place if your scaffold is level. Made from a nominal scaffold tube and flattened at each end, they come in various sizes to accept a swivel “c” type coupler. Fitting one of these to your first bay will ensure a level scaffold tower from the start.Features● The diagonal brace is used to reach the full height of the scaffolding in a longitudinal direction.● They provide support in the slope direction.● Hot dip galvanized or powder coated.● It fits 1.5m standard, 2.0m standard, or as requested.

Technical Information

The tube dimensions are OD48.3mm ×3.2mm; the Material: is Q235 grade steel.The effective length is from tube center to tube center.

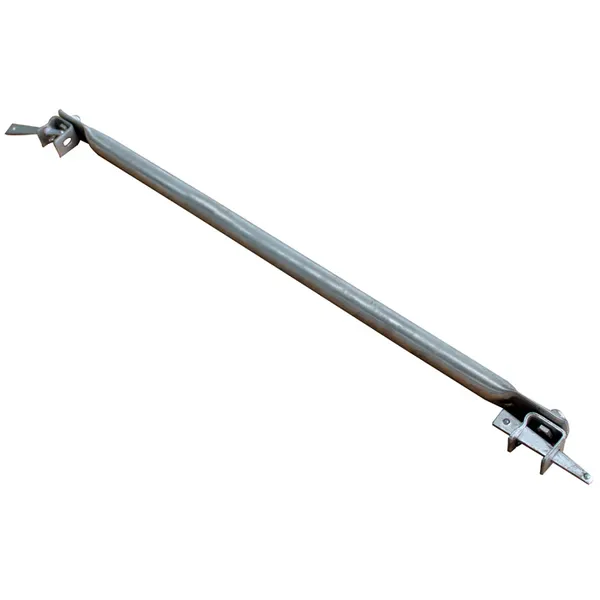

Kwikstage Scaffolding Diagonal Brace
Product Code	Specification(mm)	Material	Surface Treatment
TY-KDB170	48.3*2.5*1700mm	Q235	hot-dip galvanized or painting
TY-KDB200	48.3*2.5*2000mm	Q235	hot-dip galvanized or painting
TY-KDB270	48.3*2.5*2700mm	Q235	hot-dip galvanized or painting
TY-KDB320	48.3*2.5*3200mm	Q235	hot-dip galvanized or painting
TY-KDB360	48.3*2.5*3600mm	Q235	hot-dip galvanized or painting

Instructions for UseLift the wedge pin.Put away the end into the hole of the cups of the kwikstage standard.Hammer down the wedge pin until it stays in position.

Product Advantage

1. High-quality materials, higher quality.Material--The product is Q235 or Q345 carbon steel, which is higher than the raw material standard.Quality assurance, not easy to crush deformation.2. Advanced technology, better performanceProducts using advanced technology avoid the production malpractice of old craft, causing the effect of the anti-deformation and anti-stretching performance to be more robust and fit the scaffolding.3. Anti-rust treatment, long service life.After passivation and surface galvanized anti-rust treatment, its corrosion resistance is better than the ordinary tubes, with longer service life.4. Standard production is more secure.According to professional design and advanced technology, all products are manufactured strictly with EN74 and BS1139 standards, quality guarantee, and ensure construction safety and personnel safety.

Product Display

Company Information

The company has an independent R & D team, import and export rights, global sales network that can provide customers with comprehensive scaffolding solutions. Products mainly include hot-dip galvanized steel tube; galvanized metal plank, hot-dip galvanized ring lock scaffolding, scaffolding couplers, frame systems, steel props, and so on; hot product sales at home and abroad are widely used in construction engineering facades, building support bridges, tunnels, chimneys, power plants, oil and petrochemical projects.The factory has 10 production lines, processing lines, 4,000 square meters of production workshop, 4,000 square meters of warehousing, and 10,000 square meters yard, with an annual output of 200,000 tons, and has more than 10,000 tons perennial spot. "Customer-centric, continue to meet customer needs, improve customer satisfaction" is the long-term development basic strategy. In the future, "high-quality products are a bridge to the world" for this purpose, we will continue to provide customers with "the best quality of products, the most comprehensive sales service, the lowest market price" to enhance customer market competitive advantages.If you need, you can contact our branch：SN TRADING & TRANSPORTATION PTE LTDMp: 89417358    Tel: 65923150    Email: [email protected]
