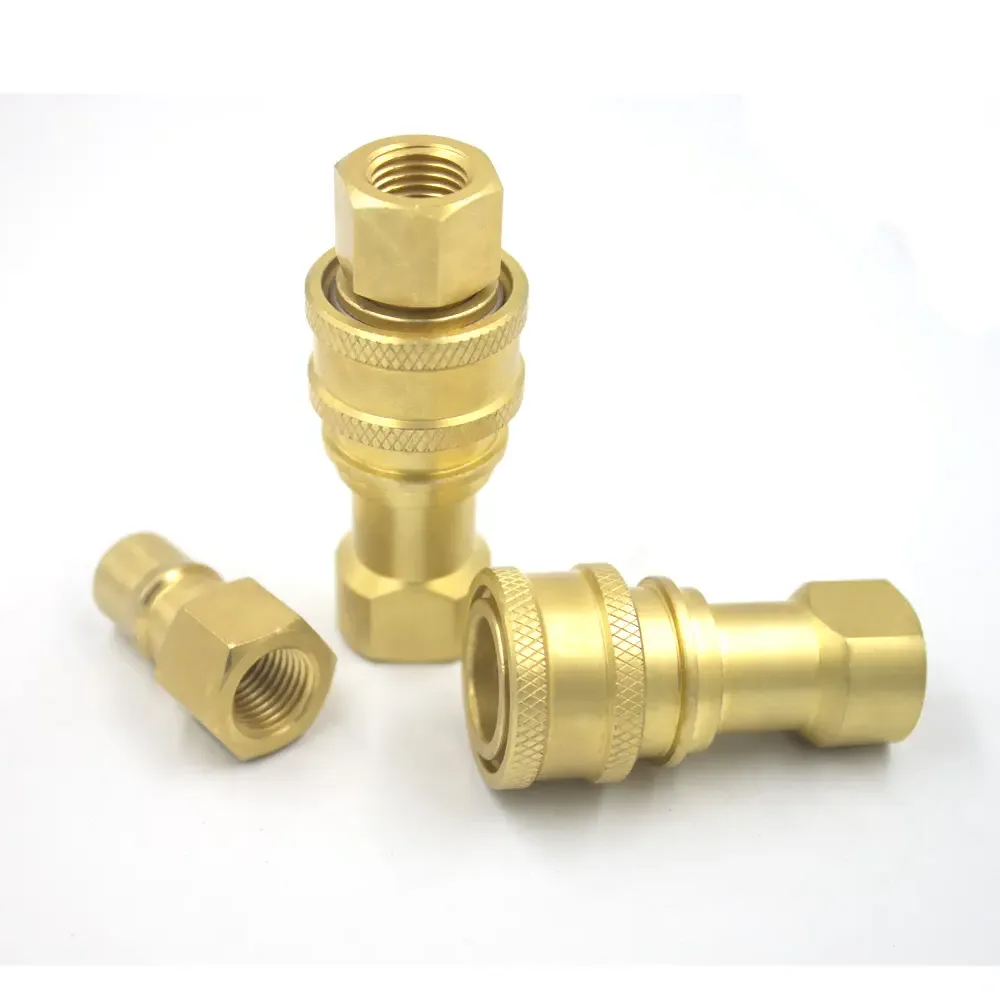

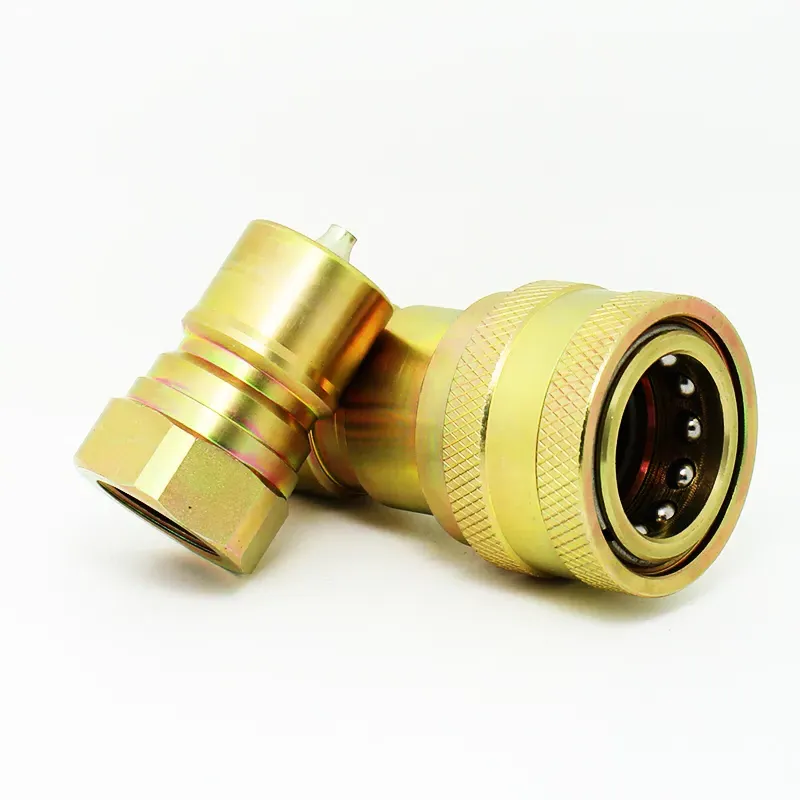

KZE 3/8 inch NPT/BSP Thread female/male hydraulic quick connector & hydraulic quick release coupling

The KZE 3/8 inch NPT/BSP Thread female/male hydraulic quick connector & hydraulic quick release coupling is a superior quality fitting that's made of highly durable steel. The product features NPT G BSP screw thread connection and can withstand pressure up to 20.7MPA. The fitting comes with a one-year warranty and can be packaged in a box or carton as per your preference. The product is shipped from the ports of Ningbo or Shanghai.

Product Name	Factory Price KZE Carbon Steel Hydraulic Quick Couplings
Material	Carbon Steel
Color	Silver
Temperature	-40~+100°C
Pressure	0~35 MPA
MOQ	50 Pieces
Custom Size	Available
Brand	EP
Sample	Free
Sample Time	(1) 3-5days-If you want to customize your product and logo. (2) 1day-For our existing samples for reference.
Delivery	1~30 Days
Advantage	1. We have acquired CE, CCC, ISO 9001: 2000, SAE and Quality Management System Certificate. 2. The product is easy for you to use, and you can use it freely. 3. The error is controlled within 0.12mm. 4. We are looking forward to your inquiry about the details of our product and our company.

Advantages of KZE Hydraulic Quick Couplings

Our KZE hydraulic quick couplings come with a host of advantages, making them your ideal choice for all your hydraulic needs. Here are six reasons why you should choose our products:1. High quality: Made from durable carbon steel, our hydraulic quick couplings are designed to last.2. Versatility: These fittings are suitable for both male and female NPT/BSP thread connections.3. High pressure tolerance: Our couplings can withstand pressure up to 20.7MPA, making them suitable for high-pressure applications.4. Easy to use: The screw thread connection design makes our hydraulic quick couplings easy to use.5. Customizable: Our couplings can be customized to meet your specific requirements.6. Warranty: We provide a one-year warranty on our hydraulic quick couplings.We have the capacity and capability to produce these high-quality hydraulic quick couplings to meet your needs.

Applications of Hydraulic Quick Couplings

Hydraulic Quick Couplings find widespread applications across various industries due to their ability to efficiently connect and disconnect hydraulic lines and components. Here are some common applications where hydraulic quick couplings are extensively used:1. Construction and Heavy Machinery: Hydraulic quick couplings are integral to construction equipment like excavators, loaders, and bulldozers. They enable the rapid attachment and detachment of hydraulic attachments such as buckets, breakers, and grapples, enhancing the versatility and efficiency of the machinery.2. Agriculture: Agricultural machinery relies on hydraulic systems for tasks like plowing, seeding, and harvesting. Quick couplings enable farmers to quickly switch between different implements, saving time and increasing productivity.3. Manufacturing and Automation: In manufacturing processes, hydraulic quick couplings are used to connect hydraulic actuators, presses, and tools. They facilitate fast tool changes and adjustments, improving production efficiency.4. Oil and Gas Industry: Hydraulic systems are common in the oil and gas sector for various applications, including wellhead control, drilling rigs, and offshore platforms. Quick couplings are essential for connecting hydraulic lines and components in these harsh environments.5. Aerospace: Hydraulic systems play a crucial role in aircraft operation, from landing gear to flight control surfaces. Quick couplings are used during maintenance and repair activities to ensure the integrity of hydraulic connections.6. Automotive Industry: Hydraulic systems are present in vehicles for functions like power steering and braking. Quick couplings enable easy assembly and servicing of hydraulic components in automotive applications.

How Does the Hydraulic Quick Coupling Work?

Hydraulic quick couplings, also known as hydraulic quick disconnects or hydraulic quick connectors, are devices used to rapidly connect and disconnect hydraulic lines and components without the need for tools or extensive manual labor. They work based on a simple yet effective principle to ensure a secure and leak-free connection. Here's how hydraulic quick couplings work:1. Male and Female Couplings: Hydraulic quick couplings consist of two main components: the male coupling and the female coupling. These components are designed to fit together seamlessly.2. Valve Mechanism: Within both the male and female couplings, there is a valve mechanism. This valve can be in the form of poppet valves, ball valves, or flat-face valves, depending on the coupling design.3. Sealing O-Ring: Each coupling has an O-ring or other sealing mechanism that ensures a watertight and pressure-tight seal when the male and female couplings are connected.4. Push-to-Connect: To make a connection, the operator simply pushes the male coupling into the female coupling. The external force applied during this process compresses the valve mechanism and opens a pathway for hydraulic fluid to flow.5. Fluid Flow: With the valves open, hydraulic fluid can flow freely from one side of the coupling to the other. This allows for the transmission of hydraulic power, such as pressure or flow, to operate various hydraulic components or machinery.6. Locking Mechanism: Most hydraulic quick couplings have a locking mechanism that holds the male and female couplings together securely. This prevents accidental disconnection during operation, especially in high-pressure hydraulic systems.

Hydraulic Quick Coupling Installation Steps

Installing hydraulic quick couplings correctly is crucial for the efficient and safe operation of hydraulic systems. Here are the installation steps for hydraulic quick couplings:1. Select the Right Couplings: Choose hydraulic quick couplings that are suitable for your specific application, taking into account factors like size, pressure rating, and compatibility with your hydraulic lines.2. Clean the Couplings: Ensure that both the male and female couplings are clean and free from dirt, debris, and contaminants. Use a lint-free cloth or compressed air to clean them thoroughly.3. Position the Couplings: Position the male and female couplings so that they align correctly for connection. Ensure that the couplings are oriented in the same direction.4. Secure the Connection: If your hydraulic quick couplings have a locking mechanism, engage it to secure the connection further.5. Test the Connection: Perform a pressure test to ensure that the hydraulic quick couplings are securely connected and there are no leaks.

Maintenance of Hydraulic Quick Couplings

Maintenance of hydraulic quick couplings is essential to ensure the reliability and longevity of hydraulic systems. Proper maintenance can prevent leaks, reduce downtime, and improve the overall efficiency of your hydraulic equipment. Here are some maintenance steps for hydraulic quick couplings:1. Regular Inspection: Perform routine visual inspections of the hydraulic quick couplings. Look for signs of wear, damage, or corrosion.2. Cleanliness: Keep the couplings and surrounding areas clean. Dirt and debris can damage seals and prevent proper engagement.3. Lubrication: Apply a small amount of compatible hydraulic oil or grease to O-rings and seals before coupling.4. Torque Checks: Periodically check the torque on the coupling nuts. Over time, they may loosen, leading to leaks or improper connection.5. Replace Damaged Components: If you notice any damaged or worn-out O-rings, seals, gaskets, or locking mechanisms, replace them immediately.6. Use Protective Caps: When quick couplings are not in use, protect the exposed ends with dust caps or plugs.

Why Choose Raydafon's Hydraulic Quick Couplings?

Raydafon Hydraulic Component Co., Ltd is located in the Ningbo Industrial Zone Zhejiang City, covering 6500 square meters. It launched in 1992, which is the design, development, production, and sales of quick couplings, including hydraulic cylinders, hydraulic couplings, hydraulic fittings, hydraulic ball valves, pneumatic couplings, and pipe couplings.We are not just manufacturers, we are also innovators. We are proud of our R&D team, which is dedicated to creating cutting-edge hydraulic solutions that meet and exceed our customers' expectations. Our products are rigorously tested for quality and durability, ensuring that they can withstand the toughest industrial conditions.We have earned international certifications, including CE, CCC, ISO 9001: 2000, and SAE. This demonstrates our commitment to quality and our ability to meet the highest international standards. We offer customized services, and we can tailor our products to meet your specific needs. Our production facilities are equipped with advanced technology and machinery, enabling us to deliver high-quality products on time.In terms of after-sales service, we are always there for our customers. We provide technical support, troubleshooting, and product replacement services to ensure your complete satisfaction. Our goal is to provide the best hydraulic solutions and the best customer service in the industry.By choosing Raydafon, you are choosing a reliable partner for your hydraulic needs. Let's create a bright future together!Author: Yjx.
