Linear Guideway for LG-KL/KT(Ball Style）

Linear Guideway for LG-KL/KT(Ball Style）

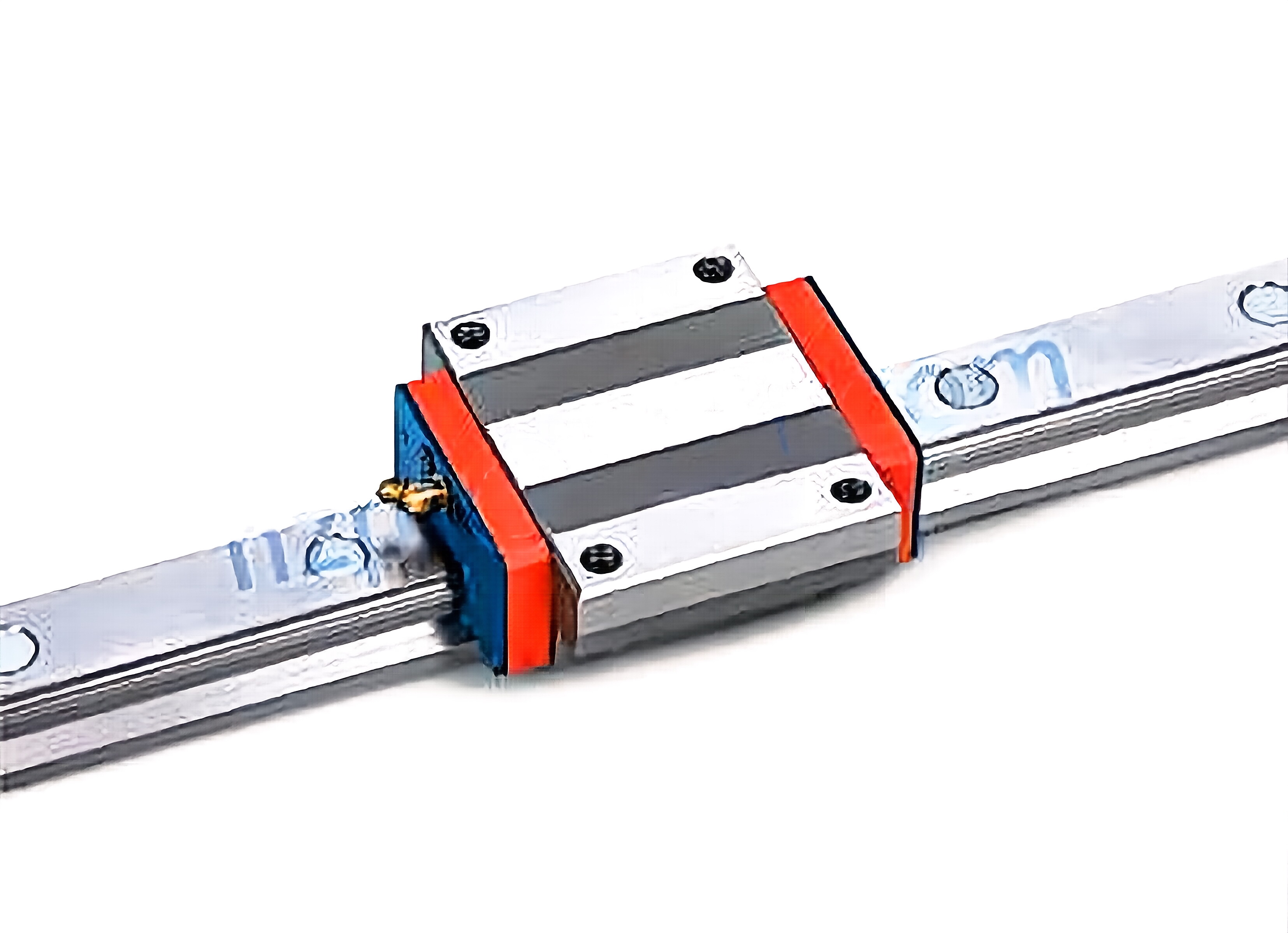

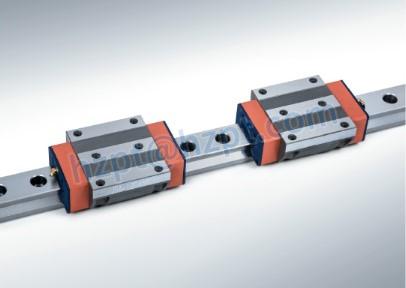

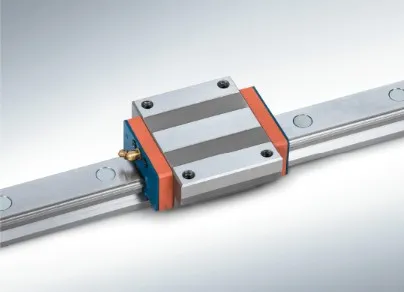

Linear guideways provide linear motion by circulating rolling elements between the profiled guide and the bearing housing. Compared with conventional slide rails, linear guides have a friction coefficient of only 1/50 and can withstand loads in all directions. These features, linear guideways, can achieve high precision and significantly improve movement accuracy.

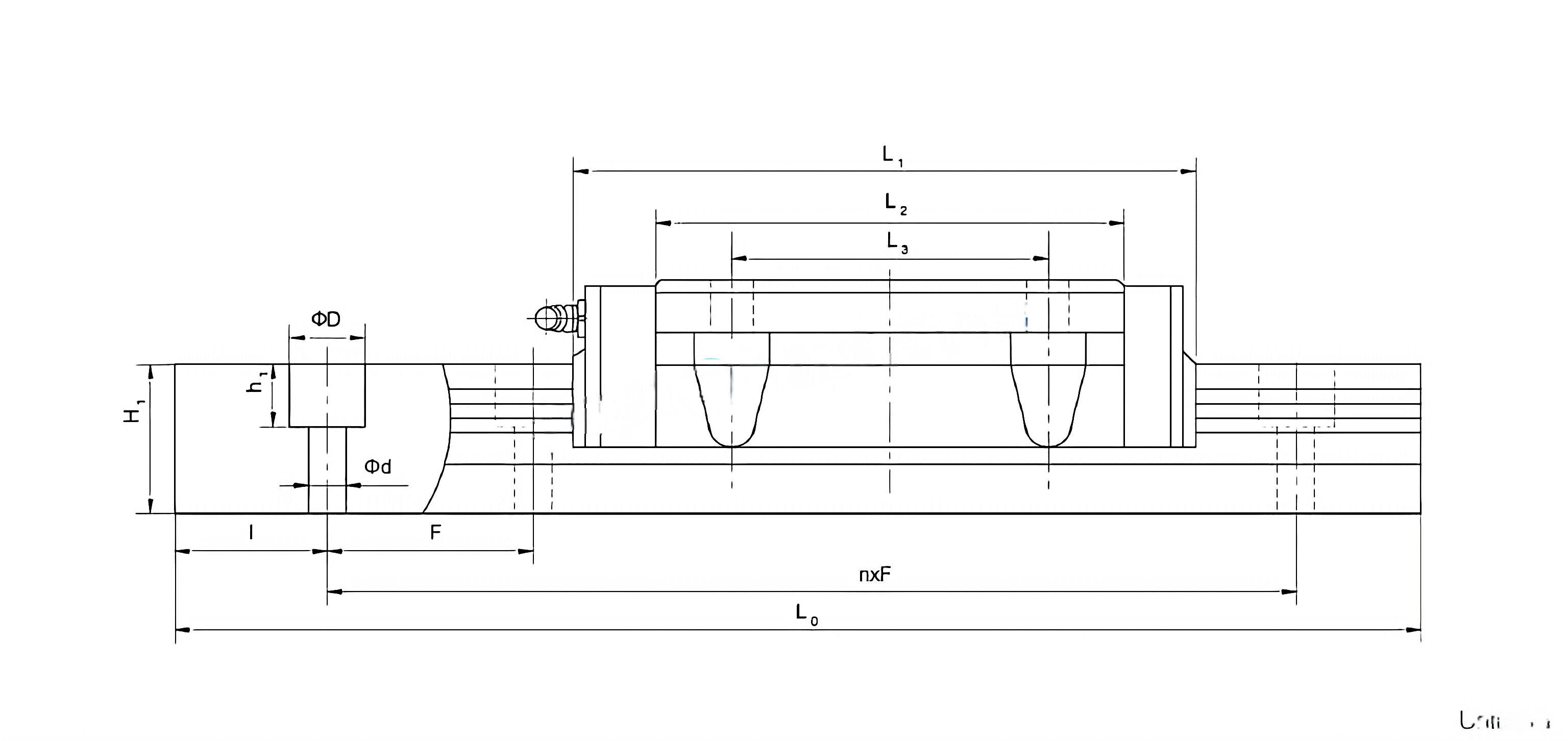

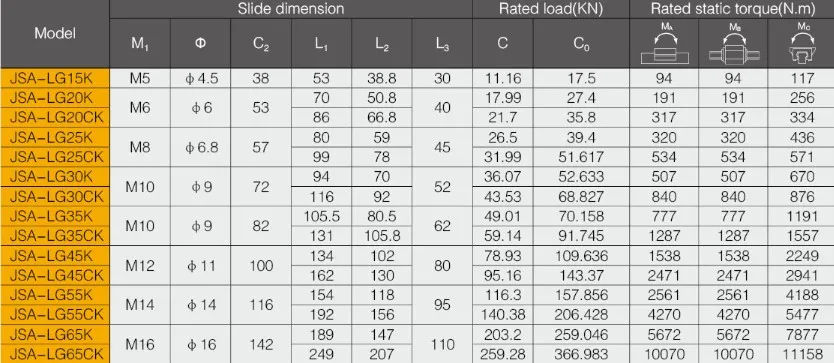

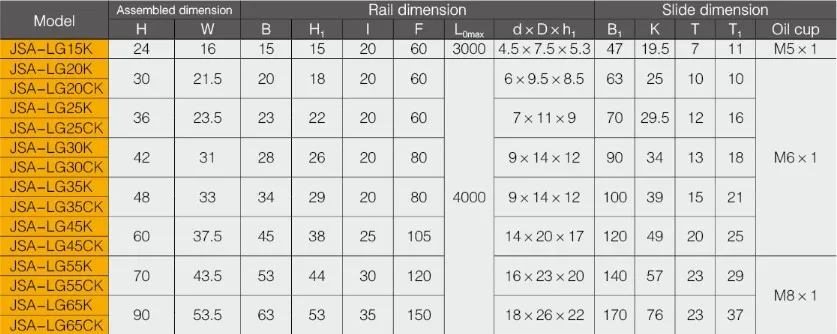

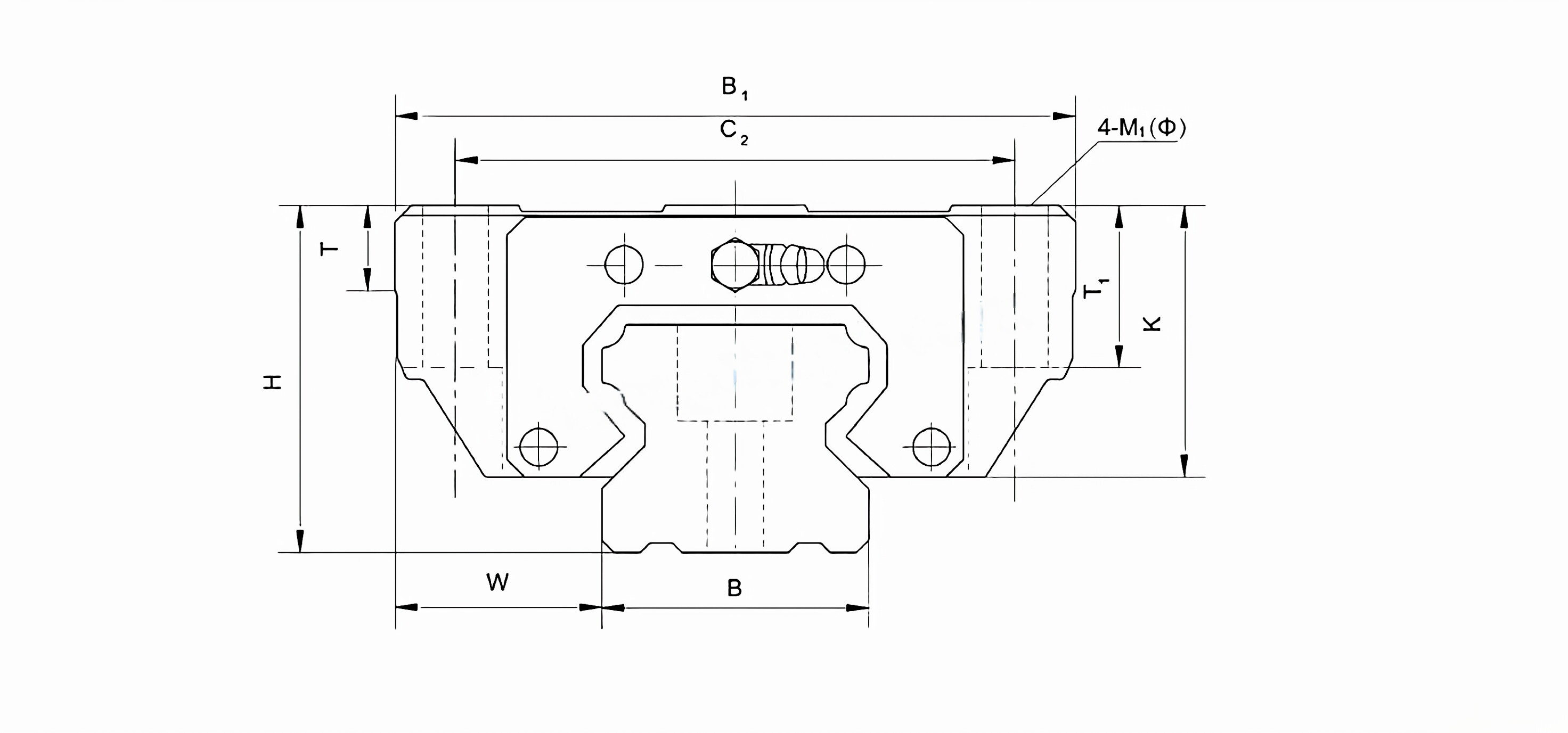

Nomenclature explanation of ball screw

Accuracy Grade

The method of accuracy grade for check and accept s according to Chinese standards Jb/T7175.2-93. This standard is equal to forcingmanufacture of the same line.1. The accuracy is classified as moving accuracy, and general accuracy six grades the items, and allowable error can see in the table.2. Since the tack on the railway is fixed on damp by screw before finish ground, there is an error when in space on the state of freedomBesides that, the track needs a screw to fix on the base element while.Operating. it is stipulated that the linear guideway should be fixed on a particular flat while accepting.3.W/hen there are more than two blocks on the benchmark railway, the variation value W1'of Blocks from beginning to end shouldaccording to the rule in the table and the value of W/1of media, the block should be smaller than that.

Moving Accuracy

General Accuracy

How to Choose Linear Guideway？

When choosing a linear guide, there are many factors to consider. These factors include the load type, the rails' size and orientation, and the speed and acceleration of motion. Additionally, you will need to determine the accuracy and durability your system needs. Here are some tips to help you choose the right linear guide for your needs.Keep linear guides clean. Dirt and debris collected on the rails can hinder internal lubrication, reducing accuracy and efficiency. Additionally, improper lubrication can lead to excessive misalignment. Proper lubrication is essential for extended service life. The best way to lubricate linear guides is to use grease.The service life of a linear guide depends on how much stress it can withstand. A good rule of thumb is calculating the total travel distance of 90% of the same linear guide system under the same conditions. However, it's important to note that this number is not a lifetime guarantee. It is also essential to consider the static load rating. This will allow you to calculate the static safety factor, which is a valuable measure of the service life of your linear guide system.
