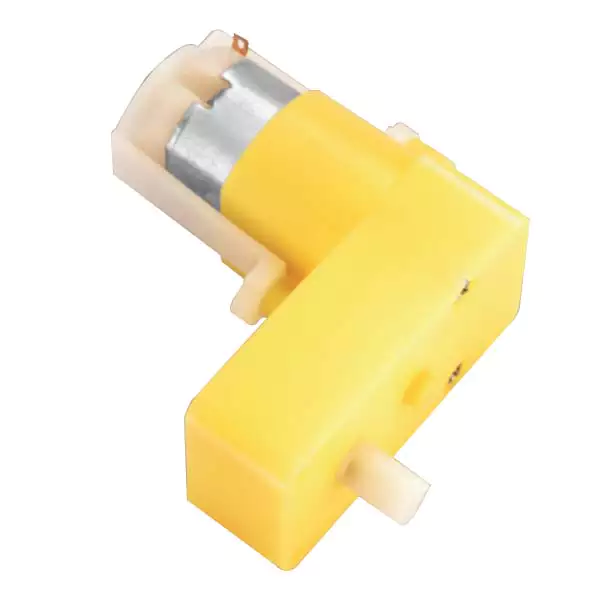

Low Noise Basic DC Toy Motor for Toy Car TGP02S-A130

Low Noise Basic DC Toy Motor for Toy Car TGP02S-A130

Characters Of Basic DC Toy Motor

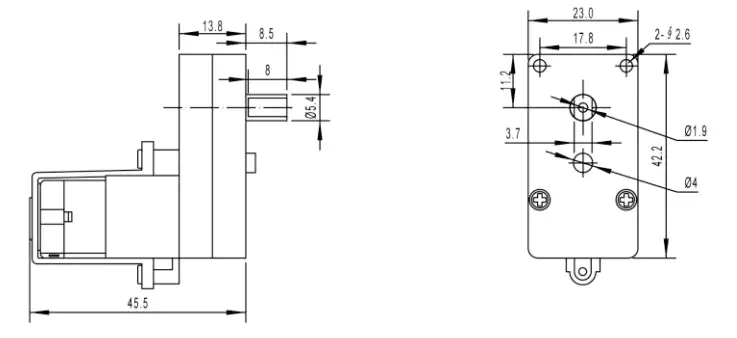

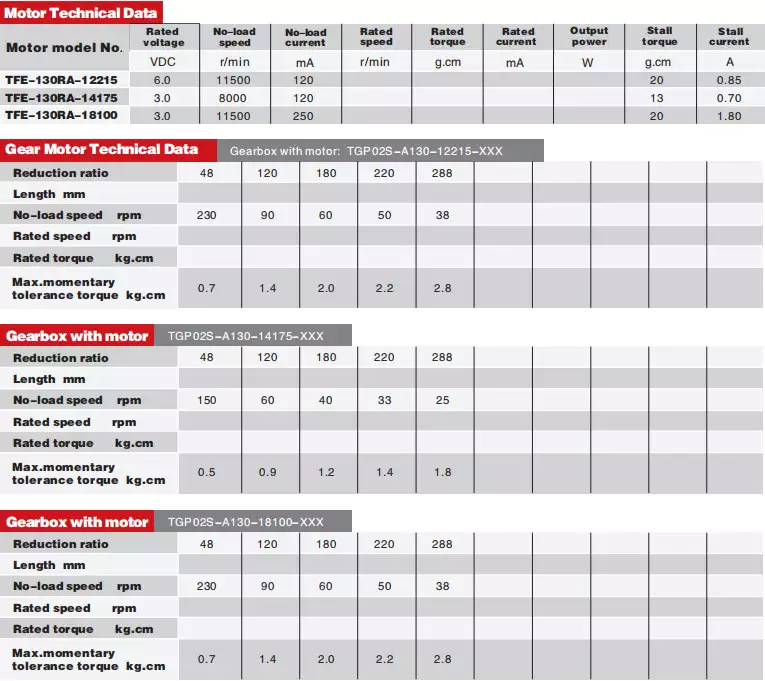

1. Single shaft.Small size 42.2mm*45.5mm*23mm2. DC plastic gear motor with low speed and big torque3. Suitable for small diameter, low noise, and big toque application4. Reduction Ratio: 48、120、180、220、288

Application:Robots, Toys, Remote Control Toy cars, etc.



How to know this gear motor you chose fits your designs?

What is a DC Motor?

A direct current (DC) motor is a type of electric machine that converts electrical energy into mechanical energy. DC motors take electrical power through direct current and convert this energy into mechanical rotation.

DC motors use magnetic fields that occur from the electrical currents generated, which powers the movement of a rotor fixed within the output shaft. The output torque and speed depend upon both the electrical input and the design of the motor.

What type of motor is used in children's toys

You may see a simple small motor used in children's toys. PMDC or permanent magnet DC motor is used for toys. Let's know what's in the toy motor. The different parts of the toy motor are shown in the figure.The steel frame constituting the main body of the motor can be seen from the outside. The permanent magnet is fixed on the main body of the motor. Armature coil placed inside. The motor also works according to the principle of Fleming's left-hand rule. When the current carrying conductor is placed in a magnetic field, a torque will be generated on it, so it moves.

Working principle of toy motor

In the motor, the magnetic field is generated by the permanent magnet. The voltage is applied to the armature conductor through the brush and commutator, so it is forced and rotates.Lead out two leads from the motor and connect them to the battery or DC power supply for operation. You will notice that when you swap connections, the direction of rotation will reverse.These motors usually operate at 3v-5v DC.These types of motors are also used in school projects and electronic products.
