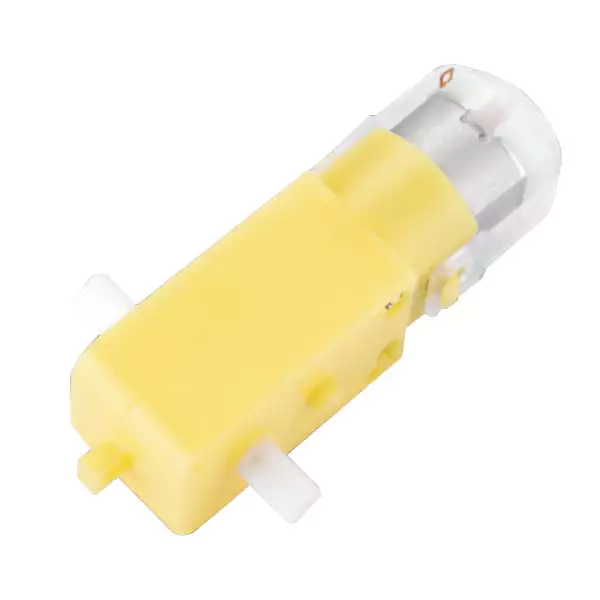

China Supplier Mini DC Motor TGP01D-A130 Plastic Gearbox Plus A130

China Supplier Mini DC Motor TGP01D-A130 Plastic Gearbox Plus A130

● Small size dc gear motor with low speed and big torque● Suitable to small diameter. Low noise and big torque application● Reduction ratio: 48、120、180、220、288Application: Motorized Toy, Ride-on Toy, Robot

Characters of Mini DC Motor

• voltage: 3v 6v
• Reduction Ratio: 1/48,,1/120,1/180,1/220,1/256,1/288
• Dize:64.2 X 22.5 X 18.8mm,64.2mm length micro motor
• Double side
• can match with wheels, leading wires, and battery boxes
• Samples can be sent first. The delivery time is 15-20 days

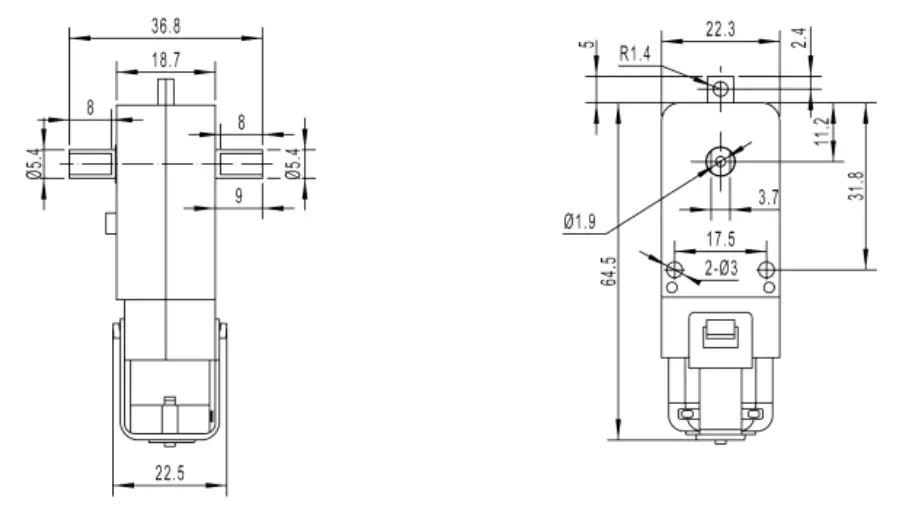

Gear motor dimension (mm)

Mini DC Motor Technical Data

Motor model No	Rated voltageVDC	No-load speedr/min	No-load currentmA	Stall torqueg.cm	Stall currentA
TFE-130RA-12215	6.0	11500	120	20	0.85
TFE-130RA-14175	3.0	8000	120	13	0.70
TFE-130RA-18100	3.0	11500	250	20	1.80

Gear Motor Technical Data:

Gearbox with motor: TGP01D-A130-12215-XXXreduction ratio: 48  120  180  220  288No-load speed rpm: 230  90  60  50  38Max. momentary tolerance torque kg.cm: 0.7   1.4   2.0   2.2   2.8

Gearbox with motor

TGP01D-A130-14175-XXXreduction ratio: 48  120  180  220  288No-load speed rpm: 150  60  40   33  25Max. momentary tolerance torque kg.cm: 0.5   0.9   1.2   1.4   1.8TGP01D-A130-18100-XXXreduction ratio: 48  120  180  220  288No-load speed rpm: 230   90   60   50   38Max. momentary tolerance torque kg.cm: 0.7   1.4   2.0   2.2   2.8

Mini DC Motor Manufacturer

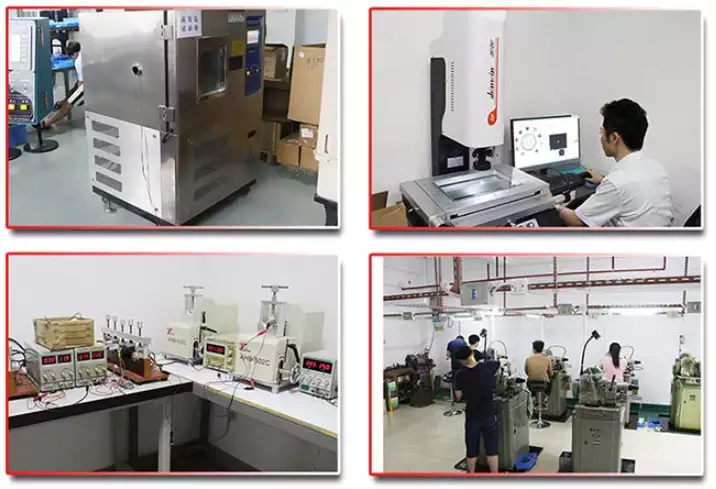

Raydafon, which is the toy production base in China. The company is a complex company, which includes research and development, manufacturing, and marketing.The primary business of the company is producing the gear of the toy car, various precise accurate gearboxes, plastic gearboxes, reduction gears of a toy car, various accessories of a toy car, miniature motor, iron shaft and etc. Through the long-term unremitting efforts of all staff, our company has become one of the leading companies in the industry. All products are sold around the world, especially in Europe, North America, and Southeast Asia. Our products have a good reputation, which is highly recommended by customers.Nowadays, the company has a large-scale workshop, administration buildings, and staff dormitories. In the meanwhile, the company has an excellent research facility, manufacturing facility, and inspection facility. The company owns a specialized product engineering department, mold making and assembled center, and customer customization accepted. The company has strong technical strength, and excellent production, and management system. The company always focuses on every detail: materials, design, production, shipment, and customers’ feedback. Providing satisfactory service to our customers is always the main principle of the company.Instead of high profit-seeking, building and maintaining long-term cooperation relationship with customers is what the company truly focus on, and the company is sincerely looking forward to having a better future with cooperative partners.
