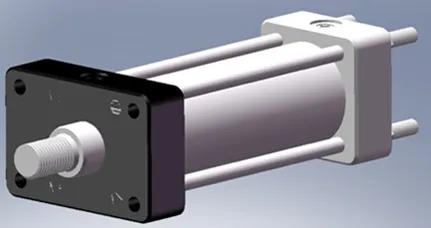

A low-pressure hydraulic cylinder with a back flange refers to a specific type of hydraulic cylinder with a flange on its rear end. This flange is a mounting point or connection interface for attaching the cylinder to other components or equipment. Here's an overview of the low-pressure hydraulic cylinder with a back flange:Design and Construction Of Low-pressure Hydraulic Cylinder:

• Cylinder Body: The cylinder body is typically high-strength steel or other durable materials to withstand hydraulic pressure and external forces. It houses the piston and other internal components.
• Piston and Rod: The piston is a cylindrical component that moves back and forth within the cylinder barrel. It is connected to a rod, which extends through the rear end of the cylinder and transmits hydraulic force.
• Back Flange: The back flange is a flat or circular plate located at the rear end of the cylinder. It is designed with mounting holes or other connection mechanisms, allowing easy attachment to other equipment or components.

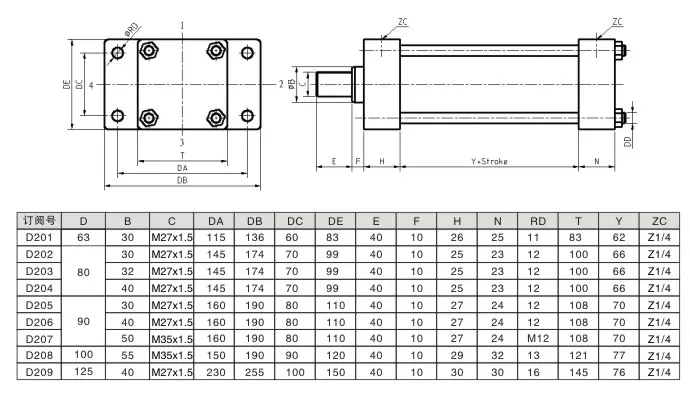

Low-Pressure Hydraulic Cylinder Back Flange Parameter:

 Low-Pressure Hydraulic Cylinder Back Flange Applications:

• Low-pressure hydraulic cylinders with back flanges find applications in various industries and systems that operate under lower hydraulic pressures.
• They are commonly used in industrial machinery, mobile equipment, and other systems where space constraints or specific mounting requirements exist.
• These cylinders are suitable for applications such as material handling, lifting mechanisms, conveyor systems, and other equipment that requires linear force or motion.

Low-Pressure Hydraulic Cylinder Back Flange Mounting and Connection:

• The back flange of the low-pressure hydraulic cylinder provides a convenient and secure way to mount and connect the cylinder. It allows for direct attachment to other equipment or structural elements.
• The mounting holes or connection points on the back flange are typically aligned with corresponding holes or connection points on the equipment or structure it is being attached to.
• Fasteners, such as bolts or screws, are used to secure the back flange of the cylinder to the mating surface, ensuring a stable and rigid connection.

How To Bleed Double Acting Hydraulic Cylinder?

Bleeding a double-acting hydraulic cylinder involves removing any trapped air or excess fluid from the cylinder to ensure proper operation. Here's a general procedure for bleeding a double-acting hydraulic cylinder:

1. Ensure Safety: Before beginning any work on the hydraulic system, make sure the system is depressurized and the equipment is safely supported or immobilized.
2. Identify Bleed Points: Locate the bleed points on the hydraulic cylinder. Typically, there is a bleed valve or fitting on each end of the cylinder.
3. Position the Cylinder: Position the hydraulic cylinder so that the end with the bleed valve is at the highest point. This will allow air to rise and be expelled more easily.
4. Open Bleed Valve: Open the bleed valve on the highest end of the cylinder. This will allow air and excess fluid to escape.
5. Actuate the Cylinder: Actuate the hydraulic cylinder by extending and retracting it several times. This will help push any trapped air or excess fluid towards the bleed valve.
6. Monitor Fluid Flow: As you actuate the cylinder, monitor the fluid flow from the bleed valve. Initially, you may observe air bubbles or a mixture of air and fluid. Continue actuating the cylinder until you see a consistent flow of fluid without any air bubbles.
7. Close Bleed Valve: Once you have achieved a steady flow of fluid without air bubbles, close the bleed valve securely.
8. Repeat the Process: Repeat the bleeding process on the other end of the hydraulic cylinder by opening the bleed valve on the opposite end and following steps 5 to 7.
9. Test Cylinder Operation: After bleeding both ends of the cylinder, test the operation of the hydraulic system to ensure smooth and consistent movement of the cylinder.
