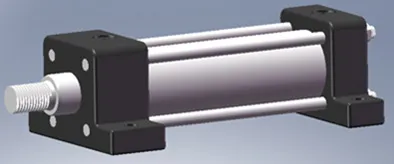

Low-Pressure Hydraulic Cylinder Footstand

Low-Pressure Hydraulic Cylinder Footstand

In the context of a low-pressure hydraulic cylinder, a footstand is a component that provides stability and support for the cylinder. It is typically a metal plate or bracket that is attached to the bottom or base of the cylinder. The footstand serves several purposes, including:Stability: The footstand helps to stabilize the hydraulic cylinder, preventing it from tipping or toppling over during operation or when subjected to external forces.Support: The footstand provides a secure base for the cylinder, ensuring proper alignment and distribution of the cylinder's weight. It helps to maintain the integrity of the cylinder's structure and prevents excessive stress on the mounting points.Mounting: The footstand often includes holes or slots for mounting or attaching the cylinder to the equipment, machinery, or structure it is intended to be used with. These mounting points allow for secure and reliable installation of the cylinder.Leveling: In some cases, the footstand may incorporate adjustable features, such as threaded feet or leveling screws. These allow for fine-tuning and leveling of the cylinder to ensure proper operation and alignment with other components.

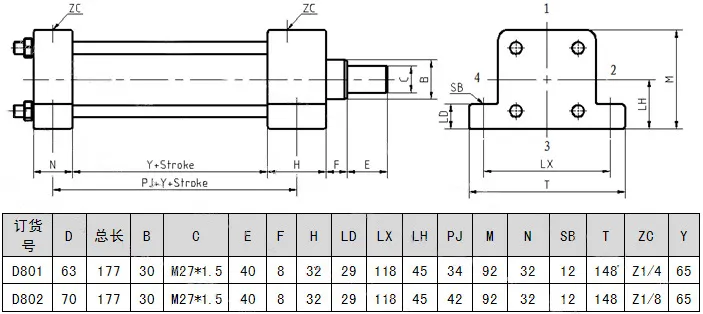

Low-Pressure Hydraulic Cylinder Footstand Parameter:

Low-Pressure Hydraulic Cylinder Footstand Construction:

It's important to note that the design and construction of footstands can vary depending on the specific cylinder model and application. Some hydraulic cylinders may have integrated footstands as part of their design, while others may require separate footstand attachments for stability and support.When selecting or installing a footstand for a low-pressure hydraulic cylinder, it's advisable to consult the manufacturer's documentation or guidelines to ensure compatibility and proper installation procedures. Additionally, considering the specific operating conditions and requirements of your application will help determine the appropriate footstand design and features needed for optimal performance and safety.

How To Repack Hydraulic Cylinder?

1. Preparation:
   • Gather the necessary tools and materials, including replacement seals, O-rings, backup rings, lubricant, cleaning solvent, and a seal installation tool.
   • Ensure you have a clean and organized work area suitable for disassembling and reassembling the hydraulic cylinder.
   • Obtain the manufacturer's documentation or guidelines for your specific hydraulic cylinder model, as it may provide detailed instructions or specifications.
2. Cylinder Disassembly:
   • Safely disconnect any hydraulic lines or fittings connected to the cylinder, ensuring there's no pressure in the system.
   • Securely mount the cylinder in a vise or cylinder holding fixture.
   • Remove the cylinder end caps or retaining bolts, carefully releasing any trapped pressure or fluid.
   • Gently slide the piston rod out of the cylinder barrel, taking care not to damage the rod or seals during removal.
3. Seal Replacement:
   • Inspect all seals, O-rings, and other components for wear, damage, or degradation. Replace any worn or damaged parts with new ones.
   • Use a suitable cleaning solvent to thoroughly clean the cylinder barrel, piston, and other internal components.
   • Lubricate the new seals and O-rings with hydraulic oil or a compatible lubricant to aid in installation and reduce friction.
   • Install the new seals and O-rings in their respective grooves, ensuring proper alignment and orientation.
   • Use a seal installation tool or a soft mallet to gently press the seals into place, taking care not to distort or damage them.
4. Cylinder Reassembly:
   • Carefully insert the piston rod back into the cylinder barrel, aligning it properly with the seals and internal components.
   • Reattach the cylinder end caps or secure the cylinder with the retaining bolts, following the manufacturer's torque specifications.
   • Reconnect any hydraulic lines or fittings, ensuring proper tightening and sealing.
5. Testing and Inspection:
   • Perform a visual inspection of the repacked hydraulic cylinder to ensure all components are properly installed and aligned.
   • Test the cylinder by applying controlled hydraulic pressure to verify its operation and check for any leaks or abnormalities.
   • Monitor the cylinder during initial operation to ensure proper performance and address any issues promptly.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of low-pressure hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle low-pressure hydraulic cylinders, Aerial work vehicle low-pressure hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The low-pressure hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
