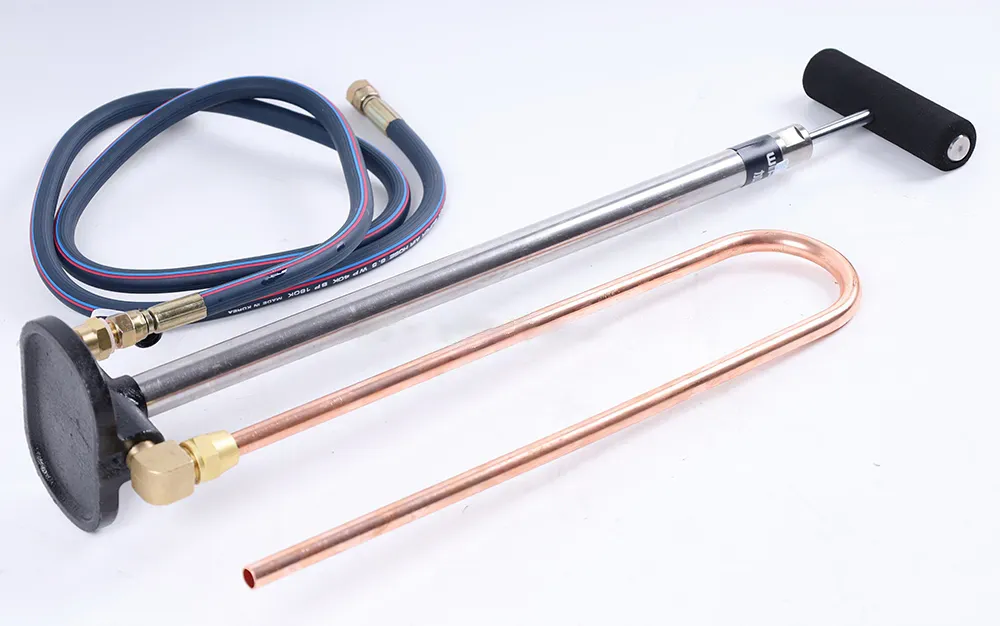

Manual Refrigeration Oil Charging Pump PCO-1 PCO-2 for Refrigeration System and Air Conditioner

Manual Refrigeration Oil Charging Pump PCO-1 PCO-2 for Refrigeration System and Air Conditioner

A manual refrigeration oil charging pump is a tool used in the refrigeration industry to transfer oil into a refrigeration system. It is typically used when adding oil to a system that has been opened for repair or maintenance or when replacing a compressor.The manual refrigeration oil charging pump works by using a hand-operated plunger to create a vacuum in the pump body. This vacuum draws oil from a container or reservoir into the pump. Once the pump is filled with oil, it can be connected to the refrigeration system and used to transfer the oil into the system.Manual refrigeration oil charging pumps are often used in smaller refrigeration systems or for occasional use. They are less expensive than electric oil pumps and do not require an electrical connection or power source. However, they do require some physical effort to operate and can be slower than electric pumps.

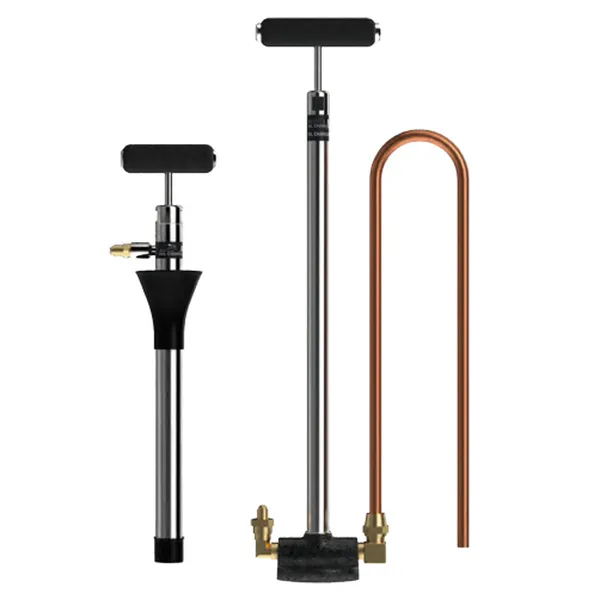

▍Manual Refrigeration Oil Charging Pump PCO-1 PCO-2

Pressurized Oil Charging, Reliable And Durable• Compatible with all refrigeration oil types• Applied stainless steel materials, reliable and durable• Pumps oil into the system without shutting down for charging• Anti-backflow structure, ensure system safety during the charging• Special design, ensure to connect the different sizes of oil bottles

▍Manual Refrigeration Oil Charging Pump PCO-1 PCO-2 Technical Data:

Model	Manual Refrigeration Oil Charging Pump PCO-1	Manual Refrigeration Oil Charging Pump PCO-2
Max. Pump To Against Pressure	10bar (145psi)	15bar (218psi)
Max. Pump Rate Per Stroke	50ml	75ml
Applicable Oil Bottle Size	All sizes
Hose Connect	1/4" SAE	1/4" & 3/8" SAE
Outlet hose	1.5m Charging Hose	1.5m HP Charging Hose

▍Features of Manual Refrigeration Oil Charging Pump PCO-1 PCO-2

There are several features of the manual refrigeration oil charging pump PCO-1 and PCO-2 that make them popular choices in the refrigeration industry:1. Lightweight and portable: These manual refrigeration oil charging pumps are designed to be lightweight and easy to carry, making them ideal for use in the field or in remote locations.2. Durable construction: The manual refrigeration oil charging pumps are made from high-quality materials that are resistant to wear and tear, ensuring long-lasting durability.3. Easy to use: The manual refrigeration oil charging pumps feature a simple design that is easy to operate, even for those with limited experience working with refrigeration systems.4. Versatile: The manual refrigeration oil charging pumps can be used with a variety of refrigerants and oils, making them versatile tools for many different applications.5. Affordable: Compared to electric oil charging pumps, manual refrigeration oil charging pumps are generally more affordable, making them a cost-effective option for small businesses or individuals.6. Dual scale gauge: The manual refrigeration oil charging pumps are equipped with a dual scale gauge that displays both psi and bar readings, making it easy to monitor the pressure during operation.7. Easy to maintain: The manual refrigeration oil charging pumps are designed to be easy to maintain, with simple cleaning procedures and easy-to-replace parts.

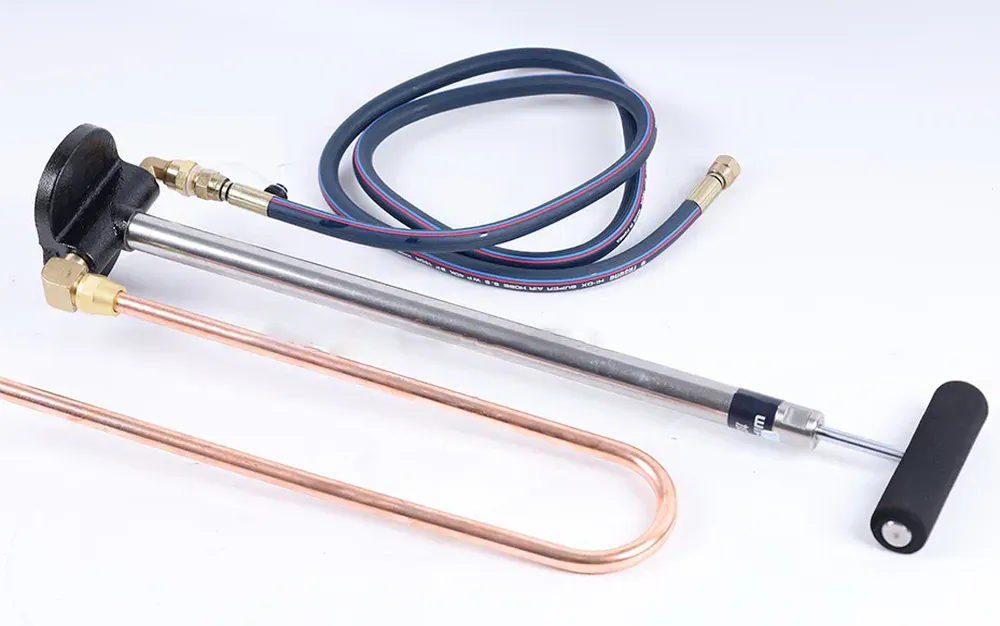

▍PCO-1 PCO-2 Manual Refrigeration Oil Charging Pump Accessories

There are several accessories available for manual refrigeration oil charging pumps that can make their use more efficient and effective. Some common accessories include:Charging hoses: These hoses are used to connect the manual refrigeration oil charging pump to the refrigeration system and transfer oil from the pump to the system.Couplers and fittings: Couplers and fittings are used to connect the charging hoses to the manual refrigeration oil charging pump and the refrigeration system. They come in various sizes to fit different systems and hoses.Oil reservoirs: Oil reservoirs are used to store oil for use with the manual refrigeration oil charging pump. They come in different sizes to accommodate different amounts of oil.Oil injectors: Oil injectors are used to inject oil into the system at specific points, such as the compressor or expansion valve.Vacuum pumps: Vacuum pumps are used to evacuate air and moisture from the refrigeration system before adding oil. These manual refrigeration oil charging pumps can be used in conjunction with manual oil charging pumps to ensure the system is free of contaminants.Pressure gauges: Pressure gauges are used to monitor the pressure in the refrigeration system during oil charging. They can be attached to the manual refrigeration oil charging pump or the system itself.Storage cases: Storage cases are available for some manual refrigeration oil charging pumps, making them easier to transport and store when not in use.The specific accessories needed will depend on the type of refrigeration system being worked on and the preferences of the technician or business owner.

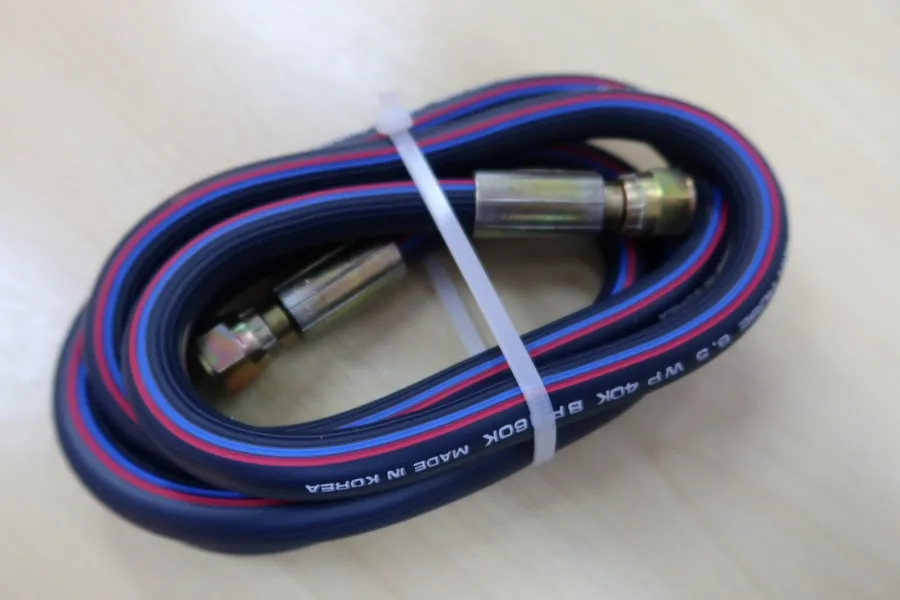

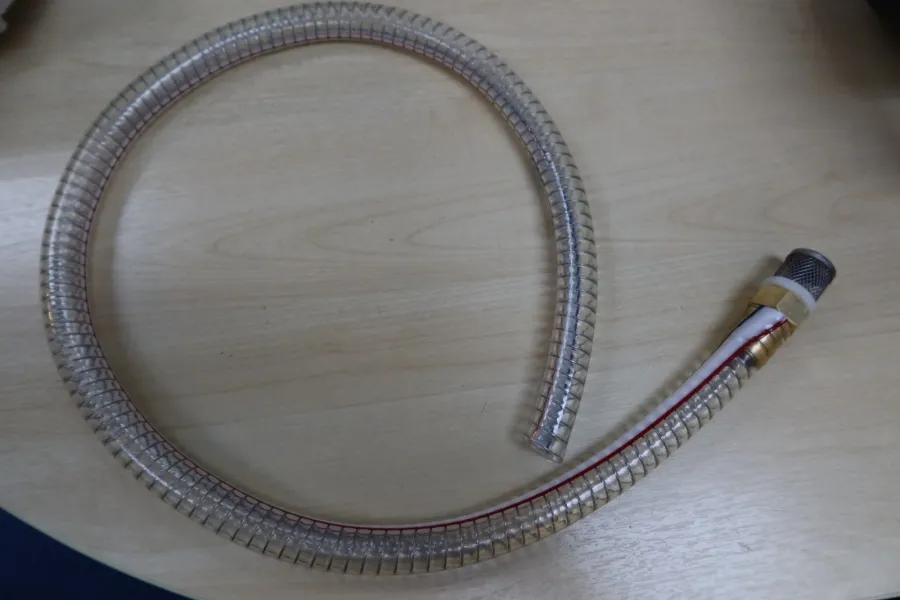

1.5m Manual Refrigeration Oil Charging Pump Transparent Charging Hose	1.5m Manual Refrigeration Oil Charging Pump High-Pressure Charging Hose

▍Manual Refrigeration Oil Charging Pump Applications

The manual refrigeration oil charging pump can be used in a variety of applications, including:

• Air conditioning systems
• Refrigeration systems
• Chillers
• Freezers
• Ice machines

▍Manual Refrigeration Oil Charging Pump Using Directions

Here are some general directions for using a manual refrigeration oil charging pump:1. Insert the manual refrigeration oil charging pump barrel into the oil container until it touches the bottom. Push the universal stopper down into the container opening. A snug fit is important as that enables the rubber stopper to stabilize the pump and keep out contamination.2. Connect either a copper tube or a suitable hose to the 1/4" flare fitting at the top of the manual refrigeration oil charging pump and attach the other end loosely to the valve on the system. Then purge air from the hose and tighten the fitting at the system.3. Open the compressor valve and start pumping the oil into the compressor with slow, even strokes, pushing straight down on the manual refrigeration oil charging pump. Use the other hand to steady the container and pump by holding the neck of the pump where it meets the container opening.4. After the required amount of oil has been pumped into the compressor, close the valve and remove the connecting line from the system. Also, cap the flare connection on the manual refrigeration oil charging pump to help keep it clean and free of contamination for the next job.

▍Manual Refrigeration Oil Charging Pump Vs Electric Refrigeration Oil Charging Pump

Manual refrigeration oil charging pumps and electric refrigeration oil charging pumps are two different types of pumps that are used to charge refrigeration systems with oil. Here are some differences between the two types of pumps:Manual Refrigeration Oil Charging Pump:

• This type of manual refrigeration oil charging pump is manually operated, meaning that the user pumps a handle or lever to create pressure and move the oil into the refrigeration system.
• Manual refrigeration oil charging pumps are typically lightweight and portable, making them easy to use in a variety of settings.
• They are often less expensive than electric refrigeration oil charging pumps and do not require an electrical outlet or power source to operate.
• However, manual refrigeration oil charging pumps can be tiring to use and may not be as efficient or consistent as electric pumps. They may also have a smaller capacity for oil and may take longer to charge a system.

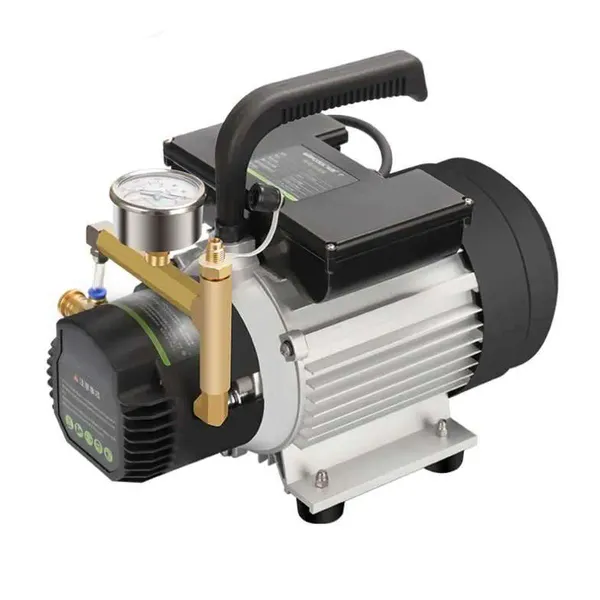

Electric Refrigeration Oil Charging Pump:

• This type of electric refrigeration oil charging pump is powered by electricity and typically has a motor that drives a piston or diaphragm to move the oil into the refrigeration system.
• Electric pumps are generally more efficient and consistent than manual refrigeration oil charging pumps and can often move oil at a faster rate.
• They may have a larger capacity for oil and may be more suitable for larger refrigeration systems or commercial applications.
• However, electric refrigeration oil charging pumps are typically more expensive than manual refrigeration oil charging pumps and require an electrical outlet or power source to operate. They may also be heavier and less portable than manual refrigeration oil charging pumps.

Ultimately, the choice between a manual refrigeration oil charging pump and an electric refrigeration oil charging pump will depend on the specific needs and preferences of the user. For occasional or smaller-scale use, a manual pump may be sufficient. For larger or more frequent use, an electric pump may be more efficient and practical.

Manual Refrigeration Oil Charging Pump	Electric Refrigeration Oil Charging Pump

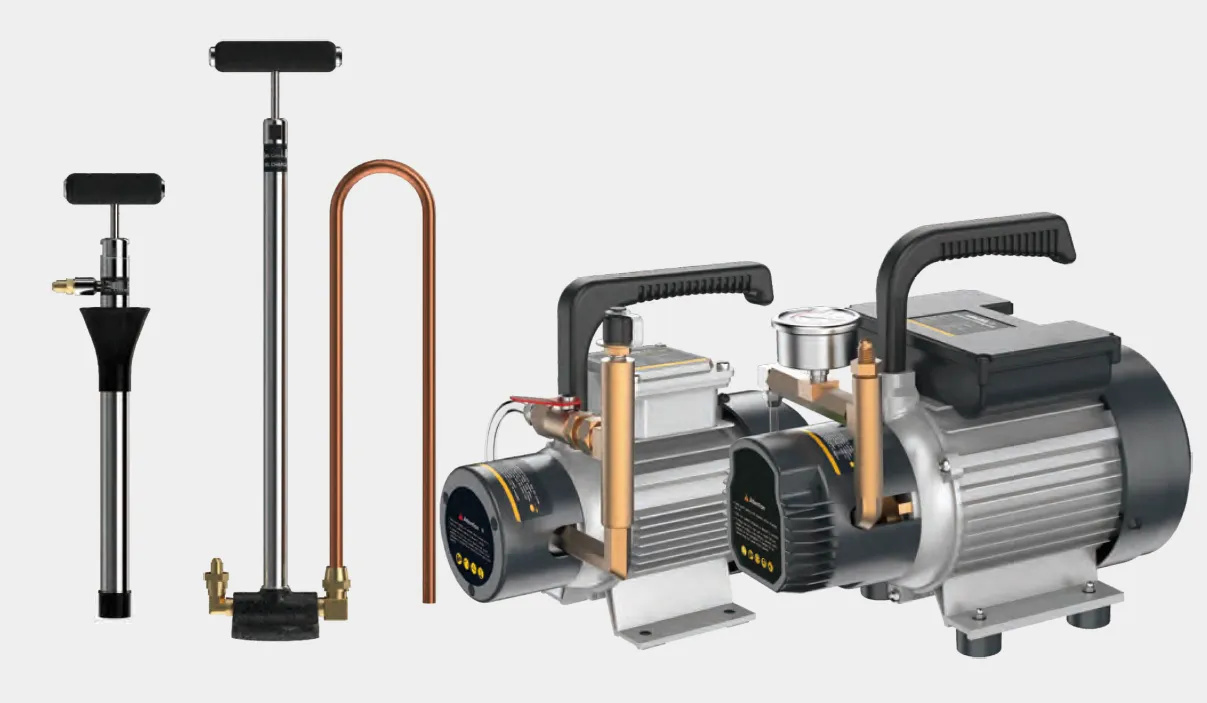

▍Manual Refrigeration Oil Charging Pump Supplier

For Different Kinds of Refrigeration Oil, Unlimited Charging Under Back PressureRefrigeration oil plays an important role in the operation of refrigeration compressors. The correct use and timely replacement of refrigerate oil will have a great impact on the service life and refrigeration effect of the compressor.Our oil charging pump is developed for a wide range of types of refrigeration compressors, represented by the electric oil charging pump series, which solves the charging problem of large flow under large back pressure, saves labor, and improves efficiency. At the same time, considering the high viscosity of refrigeration oil in winter, We developed an unlimited charging series for all kinds of refrigeration oil. It's the industry's first large displacement electric oil charging pump in China, take the easy charging.
