Electric Refrigeration Oil Charging Pump PCO-4 PCO-6 for Refrigeration System and Air Conditioner

Electric Refrigeration Oil Charging Pump PCO-4 PCO-6 for Refrigeration System and Air Conditioner

An electric refrigeration oil charging pump is a device that is used to add or remove refrigeration oil from an air conditioning or refrigeration system. The pump is typically powered by an electric motor and has a built-in filter to prevent contaminants from entering the system. The pump can be used while the unit is operating, so it is not necessary to shut down the system for charging.Refrigeration oil is a lubricant that is used to reduce friction and wear in the compressor and other moving parts of an air conditioning or refrigeration system. It also helps to prevent the formation of ice crystals and other deposits that can damage the system. The amount of refrigeration oil that is needed in a system will vary depending on the size and type of system.To use an electric refrigeration oil charging pump, simply connect the pump to the oil reservoir and the system. Turn on the pump and allow it to run until the desired amount of oil has been added or removed. The pump will automatically shut off when the desired amount of oil has been reached.Electric refrigeration oil charging pumps are a safe and easy way to add or remove refrigeration oil from an air conditioning or refrigeration system. They are a valuable tool for HVAC technicians and other professionals who service these systems.

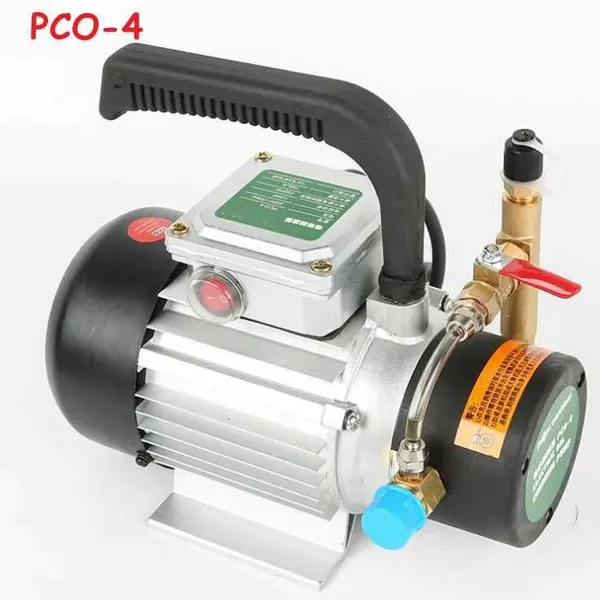

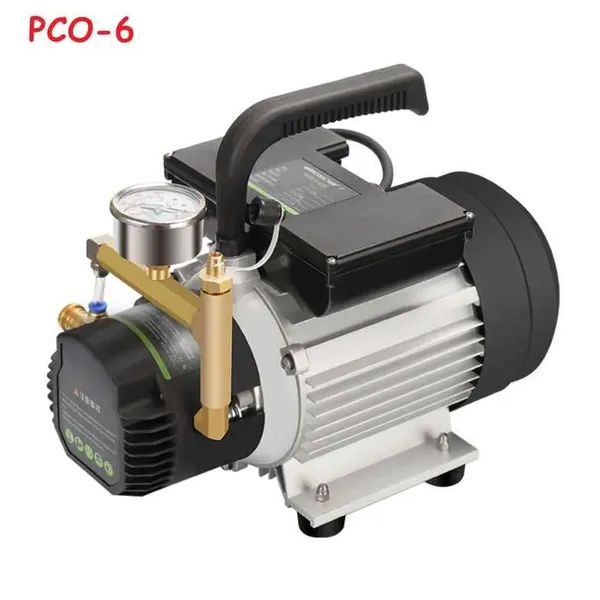

▍Electric Refrigeration Oil Charging Pump PCO-4 PCO-6

Strong Power, Easy Charging• Strong power, easy charging under large back pressure• Patent mechanism, ensure easy charging under low temperature• Configurate pressure relief protection, and ensure safe operation• Built-in thermal protection device effectively prevents overloading

▍Electric Refrigeration Oil Charging Pump PCO-4 PCO-6 Technical Data:

Model	Electric Refrigeration Oil Charging Pump PCO-4	Electric Refrigeration Oil Charging Pump PCO-6
Voltage	230V~/50-60Hz or 100-120V~/50-60Hz
Motor Power	1/3HP	3/4HP
Pump to Against Pressure(Max.)	16bar (232psi)	25bar (362psi)
Flow Rate(Max.)	150L/h	350L/h
Hose Connect	1/4" & 3/8" SAE

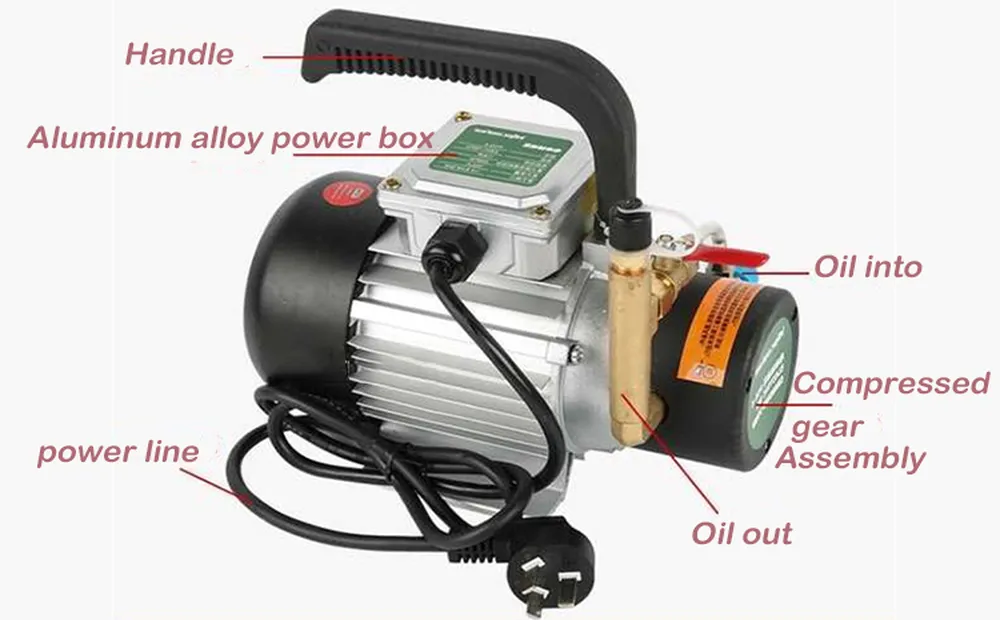

▍Electric Refrigeration Oil Charging Pump Parts

An electric refrigeration oil charging pump is made up of several different parts, each of which plays an important role in the pump's operation. Here are some of the key parts you might find in an electric refrigeration oil charging pump:Electric motor: The electric motor is the power source for the electric refrigeration oil charging pump. It provides the energy needed to drive the pump's various components.Pump housing: The electric refrigeration oil charging pump housing is the outer casing that encloses the pump's internal components.Impeller: The impeller is a rotating component that helps to draw oil into the electric refrigeration oil charging pump and then push it out through the discharge port.Inlet port: The inlet port is the opening through which oil enters the oil charging pump.Outlet port: The outlet port is the opening through which oil exits the oil charging pump and is transferred to the HVAC system.Pressure gauge: Some electric refrigeration oil charging pumps come equipped with a pressure gauge, which allows technicians to monitor the pressure of the oil being transferred.Flow control valve: The flow control valve allows technicians to adjust the rate at which oil is transferred, which can help to prevent overfilling or underfilling the HVAC system.Quick-connect fittings: Quick-connect fittings allow hoses or tubing to be easily connected and disconnected from the electric refrigeration oil charging pump.Filter: Some electric refrigeration oil charging pumps come equipped with a filter, which helps to remove impurities from the oil being transferred.Overall, these parts work together to create a reliable and efficient electric refrigeration oil charging pump that can help to keep HVAC systems running smoothly.

▍Benefits of Using an Electric Refrigeration Oil Charging Pump

There are several benefits to using an electric refrigeration oil charging pump in HVAC systems. Here are some of the most important advantages:1. Quick and efficient oil transfer: An electric refrigeration oil charging pump can transfer refrigeration oil quickly and efficiently, which can save time and labor costs during maintenance or repair work.2. Precise control over oil flow: Many electric refrigeration oil charging pumps come equipped with adjustable flow rates, which allows technicians to control the amount of oil being transferred with precision. This can help to prevent overfilling or underfilling the system, which can lead to operational problems.3. Reduced risk of oil contamination: Electric refrigeration oil charging pumps are typically designed to minimize the risk of oil contamination during transfer. This is important because contamination can lead to system malfunctions and reduced system efficiency.4. Versatility: Electric refrigeration oil charging pumps can be used with a variety of different HVAC systems, making them versatile tools for technicians.5. Cost-effective: Using an electric refrigeration oil charging pump can help to reduce maintenance costs over time by ensuring that the HVAC system is properly lubricated and functioning efficiently.Overall, an electric refrigeration oil charging pump is an important tool for HVAC technicians and can help to ensure that HVAC systems are maintained properly and operate efficiently.

▍Where is Electric Refrigeration Oil Charging Pump Used?

An electric refrigeration oil charging pump is a specialized device used in the refrigeration and air conditioning industry for the purpose of transferring refrigeration oil into a refrigeration or air conditioning system. This device is particularly useful in situations where manual charging is difficult or cumbersome.Here are some common applications for an electric refrigeration oil charging pump:HVAC and refrigeration system maintenance: During the routine maintenance of HVAC and refrigeration systems, technicians may need to add, replace, or remove refrigeration oil. An electric refrigeration oil charging pump can be used for these tasks, making the process easier and more efficient.System repairs: In cases where a refrigeration system has experienced a leak or component failure, it may be necessary to recharge the system with refrigeration oil. An electric refrigeration oil charging pump can be used to inject the oil into the system after the necessary repairs have been made.System retrofits: When upgrading or retrofitting an existing refrigeration system to use a different type of refrigerant, it may be necessary to change the type of refrigeration oil used in the system. An electric refrigeration oil charging pump can facilitate the process of draining and replacing the oil.Compressor oil replacement: Over time, the oil in a refrigeration compressor may degrade or become contaminated. An electric refrigeration oil charging pump can be used to drain the old oil and replace it with new oil to ensure proper compressor operation.Overall, an electric refrigeration oil charging pump is a valuable tool for technicians and engineers working in the refrigeration and air conditioning industry. It simplifies the process of adding, removing, or changing refrigeration oil, making it an essential piece of equipment for professionals in the field.

▍Electric Refrigeration Oil Charging Pump Accessories

There are several accessories that can be used in conjunction with an electric refrigeration oil charging pump to improve its performance and functionality. Here are some common accessories that may be used with an electric refrigeration oil charging pump:Hoses and tubing: Hoses and tubing are necessary for connecting the electric refrigeration oil charging pump to the HVAC system and transferring oil. It's important to choose hoses and tubing that are compatible with both the pump and the HVAC system being serviced.Quick-connect fittings: Quick-connect fittings can make it easier to connect and disconnect hoses and tubing from the electric refrigeration oil charging pump, which can save time and reduce the risk of leaks.Pressure gauges: A pressure gauge can be used to monitor the pressure of the oil being transferred, which can help to ensure that the HVAC system is properly lubricated.Flow control valves: Flow control valves can be used to adjust the rate at which oil is transferred, which can help to prevent overfilling or underfilling the HVAC system.Filters: Filters can be used to remove impurities from the oil being transferred, which can help to prevent contamination of the HVAC system.Carrying case: A carrying case can be used to transport the electric refrigeration oil charging pump and its accessories to job sites, which can help to protect the pump and make it easier to move around.Overall, the right accessories can help to improve the performance and functionality of an electric refrigeration oil charging pump and make it easier to use and transport.

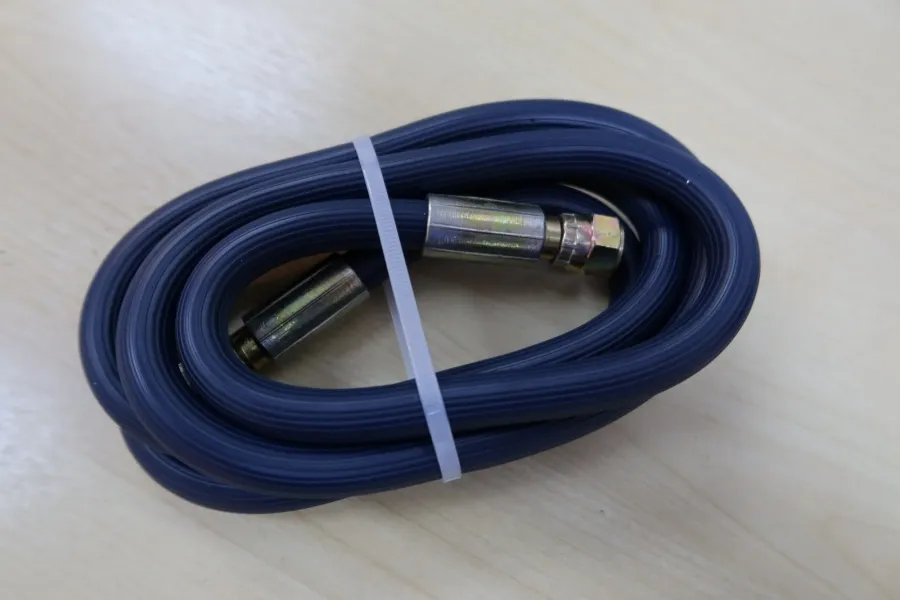

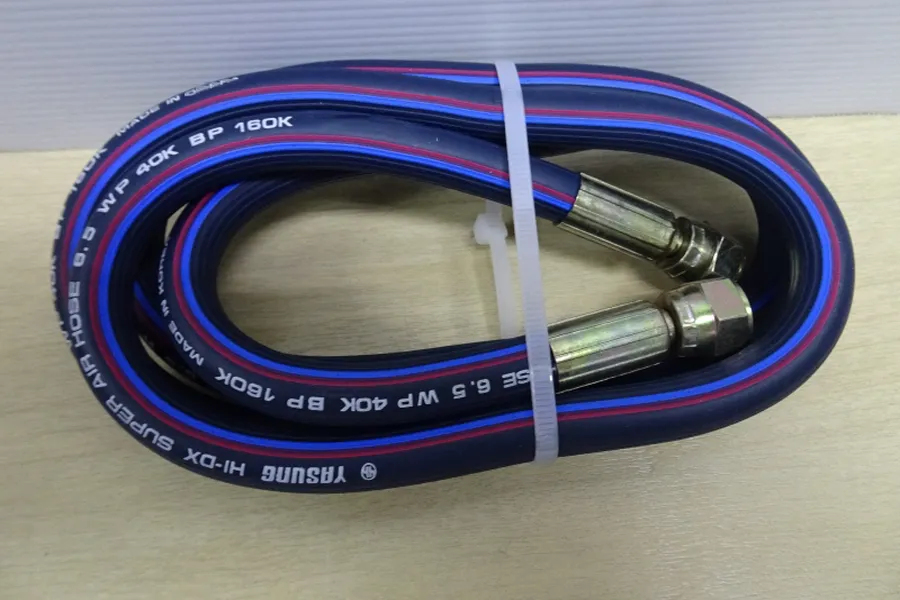

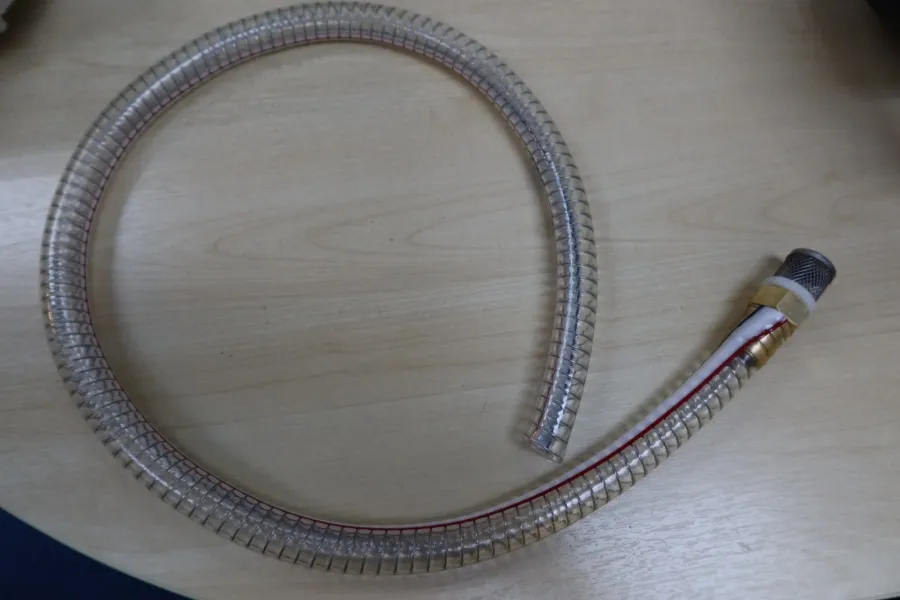

0.8M Electric Refrigeration Oil Charging Pump Suction Hose(PCO-4)	1.0M Electric Refrigeration Oil Charging Pump Suction Hose(PCO-6)	1.5M Electric Refrigeration Oil Charging Pump Charging Hose

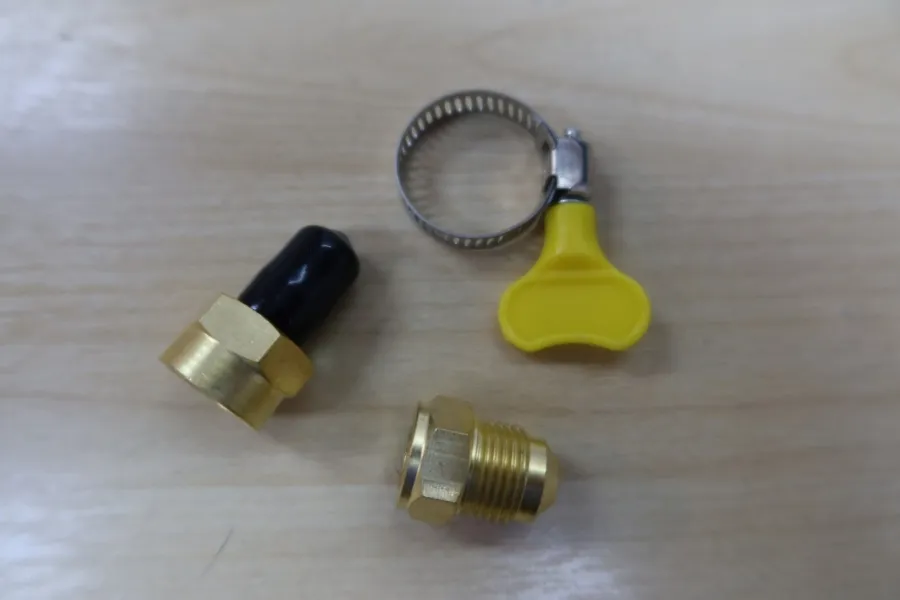

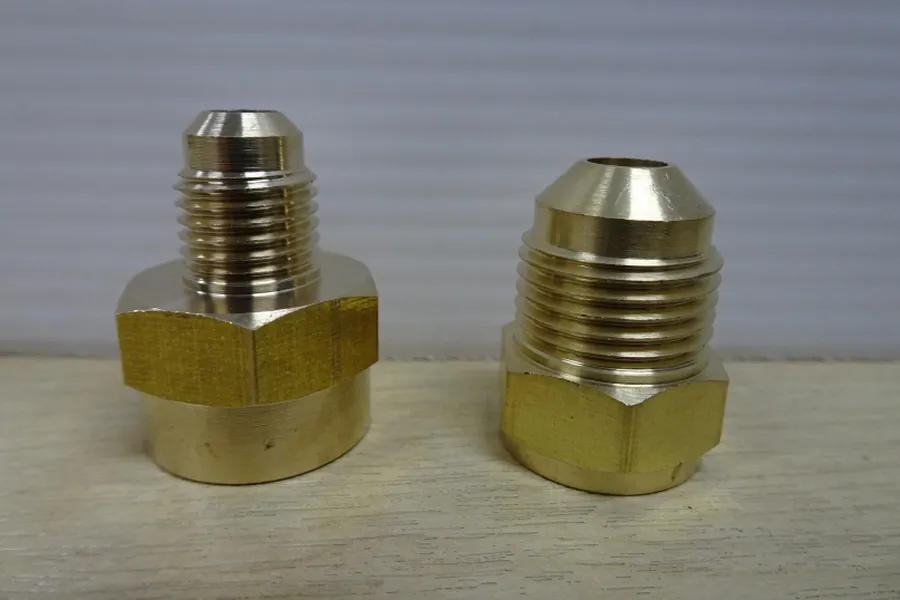

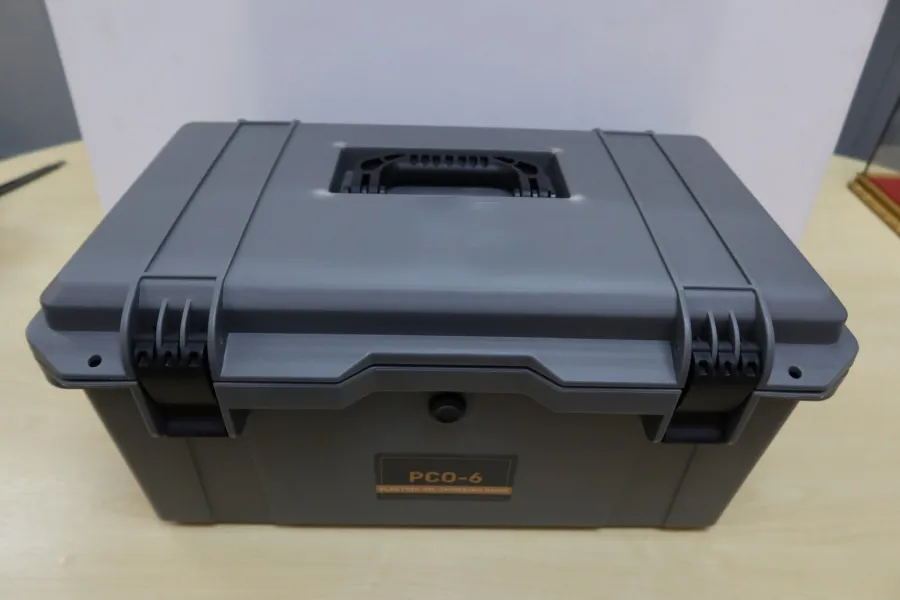

Electric Refrigeration Oil Charging Pump Adapter 3/8"SAE	Electric Refrigeration Oil Charging Pump Adapter 1/4"SAE	Electric Refrigeration Oil Charging Pump Toolbox

▍How to Choose the Right Electric Refrigeration Oil Charging Pump?

Choosing the right electric refrigeration oil charging pump is important to ensure that it is capable of meeting the specific needs of your HVAC system. Here are some factors to consider when choosing an electric refrigeration oil charging pump:1. Capacity: The capacity of the electric refrigeration oil charging pump is an important consideration, as it will determine how much oil the pump can transfer in a given amount of time. The capacity should be matched to the needs of the HVAC system being serviced.2. Flow rate: The flow rate of the electric refrigeration oil charging pump should also be considered, as this will determine how quickly the oil can be transferred. A higher flow rate can be beneficial for larger HVAC systems or when time is of the essence.3. Pressure rating: The pressure rating of the electric refrigeration oil charging pump is also important, as this will determine how much pressure the pump can generate when transferring oil. The pressure rating should be matched to the needs of the HVAC system being serviced.4. Portability: If the electric refrigeration oil charging pump will be used in multiple locations or needs to be transported to different job sites, portability should be a consideration. Look for a pump that is lightweight and easy to move around.5. Durability: The durability of the electric refrigeration oil charging pump is important, as it should be able to withstand frequent use and potentially harsh job site conditions. Look for a pump that is made from high-quality materials and is built to last.6. Cost: The cost of the electric refrigeration oil charging pump is also a consideration, as it should fit within your budget. However, it's important to balance cost with quality and ensure that you're getting a pump that will meet your needs and last for years to come.By considering these factors, you can choose an electric refrigeration oil charging pump that is well-suited for your specific HVAC system and job requirements.

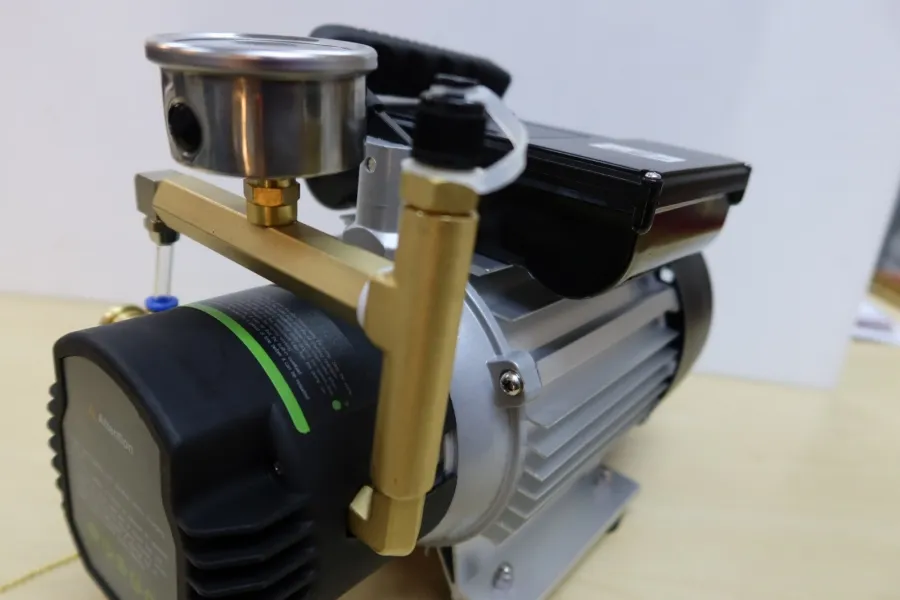

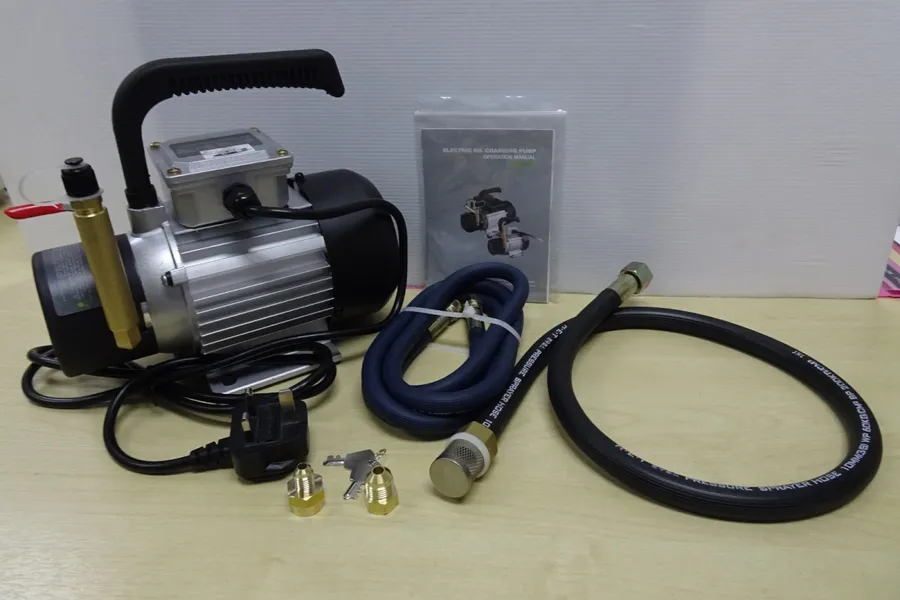

▍Electric Refrigeration Oil Charging Pump Supplier

For Different Kinds of Refrigeration Oil, Unlimited Charging Under Back PressureRefrigeration oil plays an important role in the operation of refrigeration compressors. The correct use and timely replacement of refrigerate oil will have a great impact on the service life and refrigeration effect of the compressor.Our refrigeration oil charging pump is developed for a wide range of types of refrigeration compressors, represented by the electric oil charging pump series, which solves the charging problem of large flow under large back pressure, saves labor, and improves efficiency. At the same time, considering the high viscosity of refrigeration oil in winter, We developed an unlimited charging series for all kinds of refrigeration oil. It's the industry's first large displacement electric refrigeration oil charging pump in China, take the easy charging.
