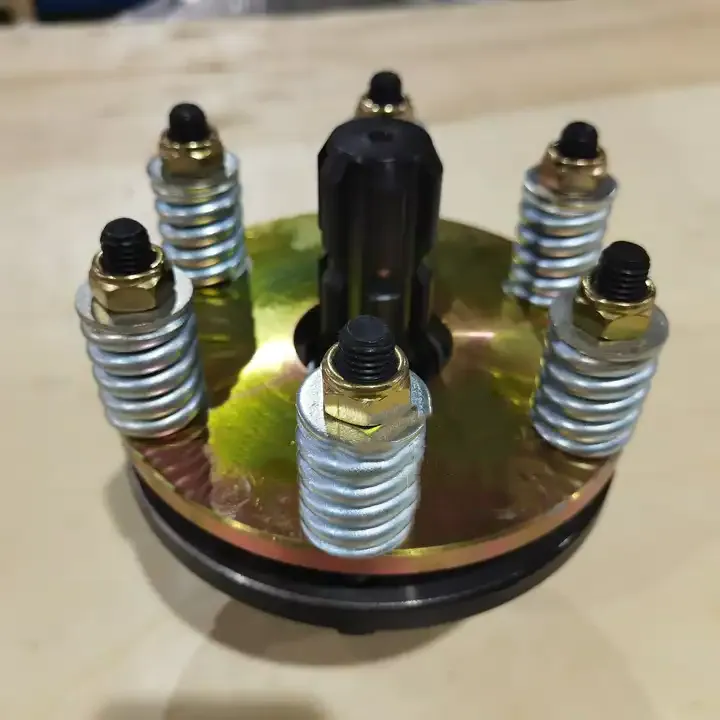

Manufacturing Factories in China Drive Shaft Parts FCS165 Friction Torque Limiter Coupling

The FCS165 Friction Torque Limiter, a product of China's manufacturing factories, stands as a top-tier solution for safeguarding machinery from torque overload. This product, new and under a year's warranty, finds applications in various industries ranging from hotels, garment shops, and building material stores to manufacturing plants, energy & mining sectors, food & beverage factories, and more. The product comes in a sleek black color with a weight of 9.5 KG and a diameter of 165. This friction torque limiter offers a practical and reliable solution for machinery protection, particularly in PTO shafts.

Advantages of FCS165 Friction Torque Limiter

A Friction Torque Limiter for a Power Take-Off (PTO) shaft in agricultural and industrial machinery offers several significant advantages:

1. Equipment Protection: The limiter protects machinery from mechanical overload by slipping when torque exceeds a predetermined level.
2. Improved Safety: It reduces the risk of sudden mechanical failures, contributing to a safer operating environment.
3. Ease of Maintenance: The limiter is easy to adjust to the desired torque settings and typically has straightforward maintenance procedures.
4. Versatility: The friction torque limiters are useful in applications where variable loads can cause torque spikes.
5. Customizable Torque Settings: It can be adjusted according to specific task requirements, allowing for customization based on the implement used or the nature of the work.
6. Extended Equipment Lifespan: By mitigating excessive torque and preventing overload situations, these friction torque limiters extend the lifespan of both the PTO shaft and the attached equipment.

Applications of FCS165 Friction Torque Limiter

Friction torque limiters are essential safety devices in agricultural machinery. Here are some key applications:

1. Rotary Cutters & Mowers: Protects gearboxes and blades when they encounter obstacles like rocks or thick brushes.
2. Balers: Protects balers from getting overloaded when processing large amounts of material.
3. Tillage Equipment: Used in plows and cultivators to prevent damage from hard objects or overly compacted soil.
4. Seeders and Planters: Protects seeders and planters from damage due to clogs or rough terrain.
5. Harvesting Equipment: Protects drivelines of combines and forage harvesters from damage due to overloading during intense harvesting operations.
6. Feed Mixers and Manure Spreaders: Helps prevent torque overload in drivelines, which can occur with uneven loads or blockages.

PTO Shaft Torque Limiter Types

Agricultural Power Take-Off (PTO) shaft torque limiters are crucial safety devices designed to protect tractors and implements from damage caused by torque overload.

1. Friction Torque Limiters: Operate based on friction between contact surfaces. When the preset torque limit is exceeded, the device slips, preventing the transfer of excessive torque.
2. Shear Bolt Torque Limiters: Use a shear bolt that breaks when the torque exceeds a specific threshold, disconnecting the drive between the tractor and the implement.
3. Ratchet Torque Limiters: Utilize a ratcheting mechanism that allows rotation in one direction and locks or slips in the opposite direction when overloaded.
4. Overrunning Clutch Torque Limiters: Allow free rotation in one direction and lock in the opposite direction. They also limit torque by slipping or disengaging when overloaded.

How Does Friction Torque Limiter for Agricultural Work?

A friction torque limiter, particularly for agricultural applications, is a crucial safety and protection device designed to prevent damage from torque overload in machinery like tractors and various implements.

1. Torque Transmission: Under normal operation, the torque from the tractor's PTO is transmitted through the friction plates of the limiter to the implement.
2. Setting the Torque Limit: The amount of torque that can be transmitted is directly related to the amount of pressure that the springs apply to the friction plates.
3. Activation During Overload: If the torque exceeds the set limit, the friction between the plates becomes insufficient to continue transmitting the full torque. As a result, the plates start to slip relative to each other.
4. Slippage and Protection: This slippage action effectively limits the torque transmitted to the implement, protecting both the tractor's PTO system and the implement from damage due to overloading.
5. Automatic Resetting: Once the overload condition is removed or resolved, the friction torque limiter automatically returns to its normal operation, transmitting the regular amount of torque without the need for manual resetting.

How to Install Friction Torque Limiter on Agricultural Equipment?

Installing a friction torque limiter on agricultural equipment, particularly on a Power Take-Off (PTO) shaft, is a crucial task.

1. Disconnect Power: Ensure the tractor or equipment is turned off and the PTO is disengaged.
2. Remove the Existing Equipment: If replacing an existing torque limiter or coupling, first remove it by disconnecting it from the PTO shaft and the implement.
3. Prepare the Friction Torque Limiter: Unpack the new torque limiter and apply lubricant if required.
4. Install the Torque Limiter: Align the torque limiter with the PTO shaft. Connect the torque limiter to the PTO shaft, ensuring that any splines or keys align properly.
5. Adjust the Torque Settings: Adjust the torque settings according to the manufacturer??s specifications and your particular requirements.
6. Test the Installation: Once installed, rotate the PTO shaft by hand to ensure that the limiter is moving freely and is properly aligned.

Maintenance and Care of Friction Torque Limiter

Maintaining and caring for a Friction Torque Limiter on a Power Take-Off (PTO) shaft is essential to ensure its effective operation and longevity.

1. Regular Inspection: Regularly inspect the friction surfaces for wear. Excessive wear can reduce the effectiveness of the torque limiter.
2. Lubrication: Some friction torque limiters may require periodic lubrication of their bearings. Ensure you use the correct type of grease or lubricant as specified by the manufacturer.
3. Adjustment and Calibration: Regularly check and adjust the torque settings according to the manufacturer's specifications.
4. Cleaning: Keep the torque limiter clean from dirt, grime, and crop residue. Build-up can impede its operation and lead to premature wear.
5. Avoid Overloading: Do not intentionally overload the PTO shaft beyond the limiter??s capacity, as this can cause excessive wear or failure.

Why Choose Raydafon's PTO Shaft Friction Torque Limiter?

Raydafon Drive Shaft Co., Ltd., located in Ningbo Zhejiang City, is a top professional OEM supplier for many agricultural implement factories in the domestic market. We specialize in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft u-joints, PTO shaft torque limiters, PTO shaft tubes, PTO shaft yokes, PTO shaft adaptors, industrial cardan shafts, car driveshafts, u-joint coupling shafts, etc. Our products gained a great reputation from European, American, Asia, Australian, and North American customers. We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing types of equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation.
