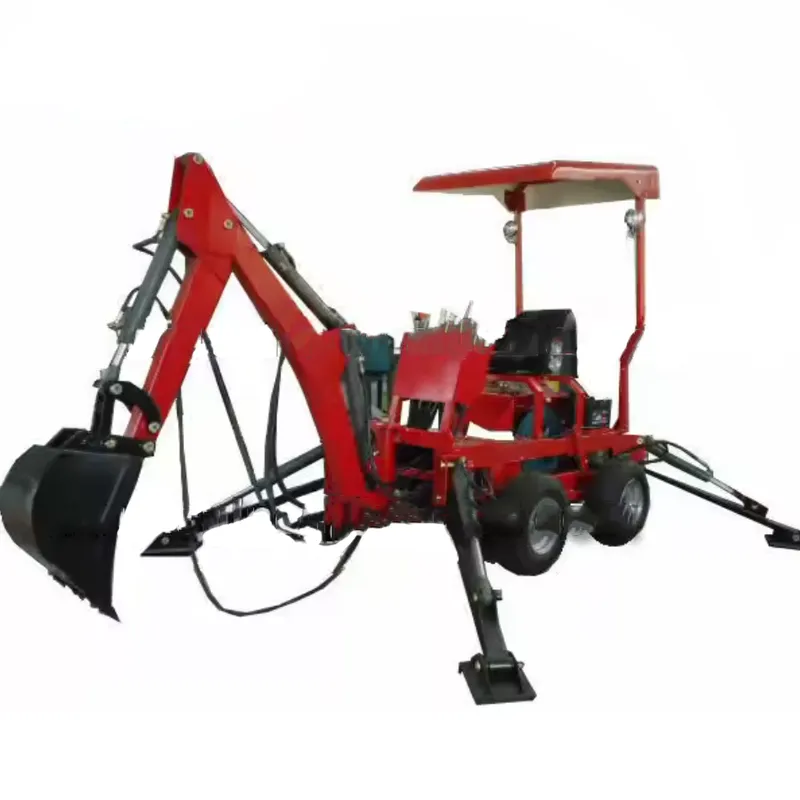

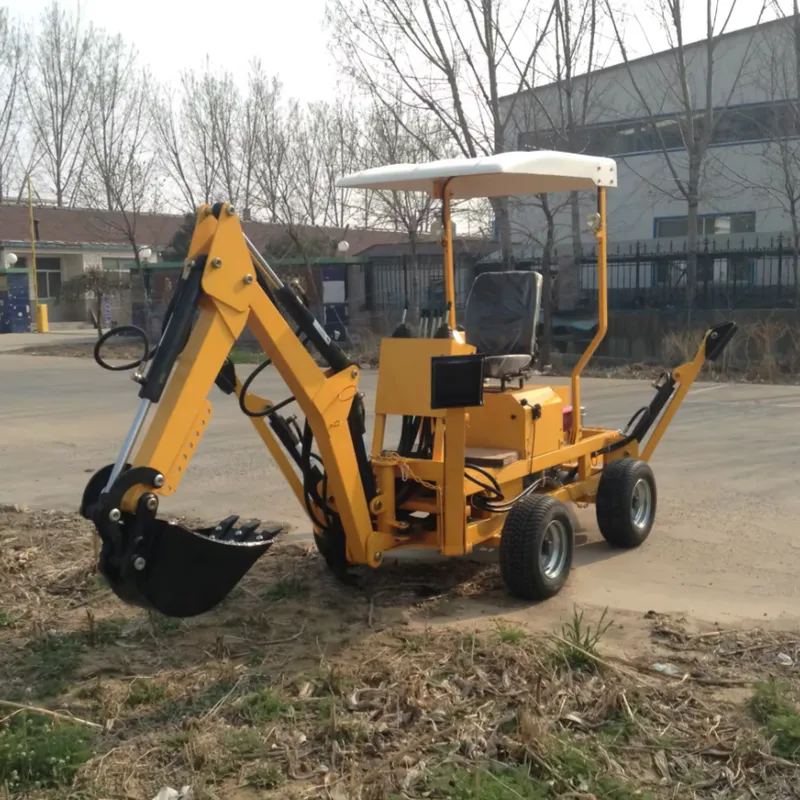

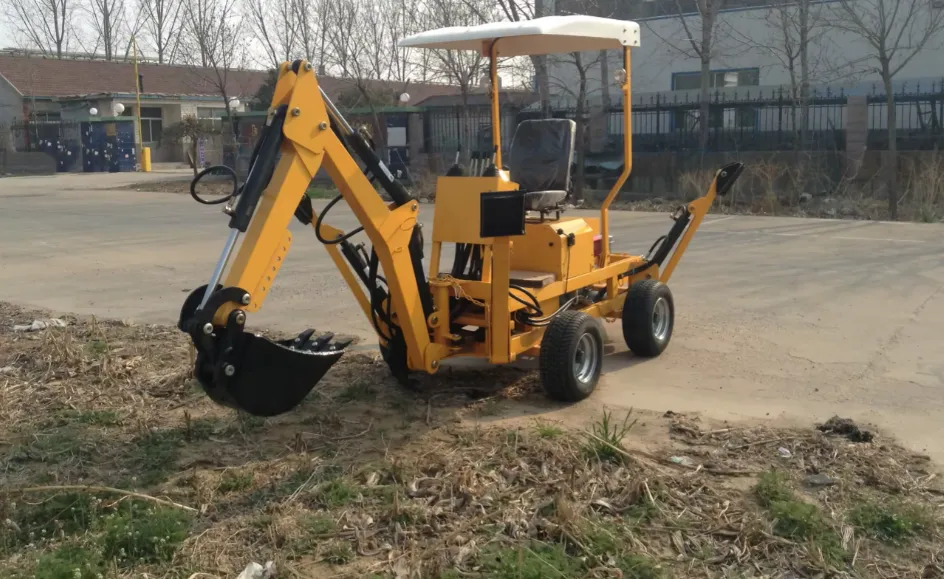

Mini Excavator/Towable Backhoe with Diesel Engine for Garden or Farm RXDLW-13 RXDLW-18

Mini Excavator/Towable Backhoe with Diesel Engine for Garden or Farm RXDLW-13 RXDLW-18

A mini excavator/towable backhoe with a diesel engine is a versatile and powerful machine designed for various tasks in gardens or farms. It combines the functionality of an excavator and a backhoe, making it ideal for digging, trenching, landscaping, and other earthmoving activities. Mini excavators/towable backhoes are compact in size, typically smaller than their larger counterparts used in construction projects. They are designed to be easily towed behind a vehicle, making transportation between different work areas convenient. The compact size allows them to maneuver in tight spaces, making them suitable for gardens or farms with limited access. The excavator part of the equipment consists of a rotating cabin or platform that houses the operator's controls and a hydraulic arm with a bucket attachment. The arm can be extended, retracted, and rotated, allowing for precise digging and lifting of materials. The bucket can be changed to accommodate different tasks, such as digging trenches or moving soil. The backhoe component is located at the rear of the machine and is equipped with a digging arm and a bucket. It provides the ability to dig below ground level, making it useful for tasks like digging foundations, installing utilities, or creating drainage systems. The backhoe arm is designed to swing from side to side, offering flexibility and reach in different directions. Mini excavators/towable backhoes come with various attachments that enhance their versatility. These attachments can include grapples, augers, breakers, and more, which allow the machine to perform a wide range of tasks beyond digging and trenching. By switching attachments, the machine can be used for tasks such as tree removal, stump grinding, drilling holes, or breaking up concrete.

Specifications for Mini Excavator/Towable Backhoe RXDLW-13

Model	RXDLW-13	RXDLW-18	RXDLW-22
Motor	13hp gasoline engine	18hp diesel engine	22 hp diesel  engine
Wheels/stablizers no.	4 or 2	4 or 2	4 or 2
Digging depth(mm)	1850	2150	2150
Digging radius	120 degrees	140 degrees	140 degrees
Stabilizer width(mm)	Down 2755/up 1210	Down 2833/up 1273	Down 2833/up 1273
Bucket width	200,300,400 mm
Tow ball size	2" ball or trailer connectors.
packing method	iron crate	iron crate	iron crate

Benefits of Using the Mini Excavator/Towable Backhoe for Garden or Farm

Using a mini excavator/towable backhoe with a diesel engine in a garden or farm setting offers several benefits. Here are some of the advantages: 1. Efficient and Time-Saving: The mini excavator/towable backhoe significantly speeds up digging, trenching, and other earthmoving tasks compared to manual labor. It can handle large volumes of soil or debris quickly and efficiently, allowing you to complete projects in a fraction of the time it would take with manual tools. This time-saving feature is especially valuable in time-sensitive situations or when dealing with large areas. 2. Versatility: Mini excavators/towable backhoes come with a range of attachments that expand their functionality. With the ability to switch attachments, you can perform various tasks with a single machine. Whether you need to dig trenches, remove trees or stumps, drill holes, or break up concrete, the versatility of the equipment makes it a valuable asset for multiple applications on a garden or farm. 3. Enhanced Precision: These machines are equipped with hydraulic systems and precise controls, allowing for accurate and controlled movements. This precision is particularly useful when working in tight spaces or when performing delicate tasks that require careful excavation or placement of materials. The operator can manipulate the machine's arm, bucket, or attachments with ease, ensuring precise results and minimizing the risk of damage. 4. Increased Productivity: By using a mini excavator/towable backhoe, you can significantly increase your productivity on the garden or farm. The machine's power and efficiency enable you to accomplish more work in less time, allowing you to take on larger projects or complete multiple tasks within a shorter timeframe. This increased productivity can lead to improved efficiency and profitability for your garden or farm operations. 5. Reduced Physical Strain: Manual digging and earthmoving tasks can be physically demanding and exhausting. By utilizing a mini excavator/towable backhoe, you can minimize the physical strain on yourself or your workforce. The equipment's hydraulic systems and mechanical power handle the heavy lifting, reducing the risk of injuries or fatigue associated with manual labor. This benefit is particularly valuable when working on larger projects or when dealing with challenging terrain. 6. Durability and Reliability: Mini excavators/towable backhoes are built to withstand demanding outdoor conditions. With sturdy construction and a diesel engine, they offer durability, reliability, and longevity. These machines can handle rugged terrains, uneven surfaces, and challenging weather conditions, making them suitable for continuous use in garden or farm environments.

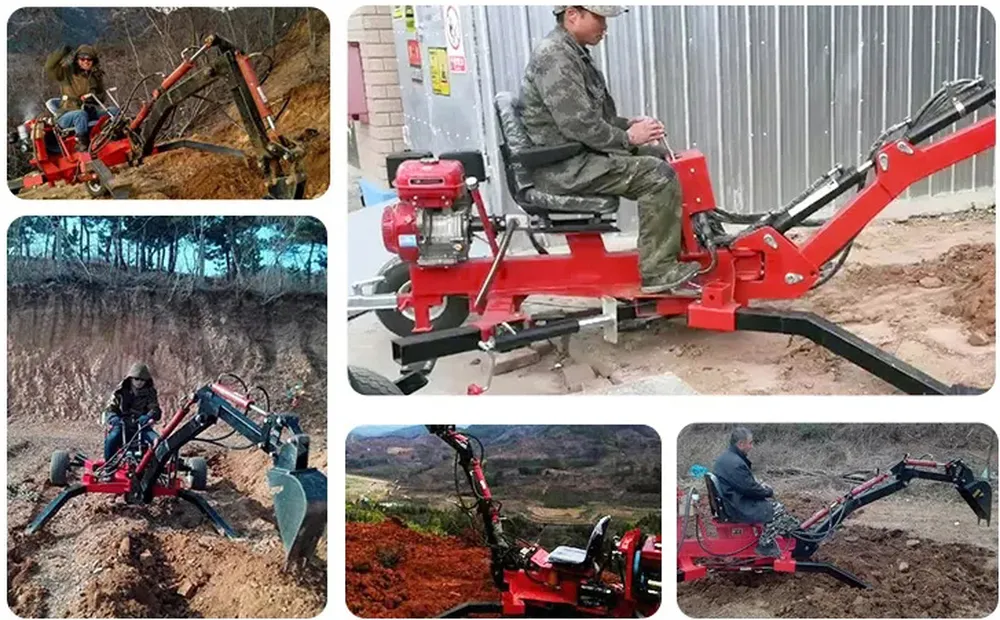

Mini Excavator/Towable Backhoe Common Applications

Mini excavators/towable backhoes with diesel engines are versatile machines that find numerous applications in gardens and farms. Here are some common applications:

• Digging and Trenching: One of the primary uses of a mini excavator/towable backhoe is for digging and trenching tasks. Whether you need to dig holes for planting trees, install irrigation systems, or create trenches for drainage, the machine's hydraulic arm and bucket attachment make these tasks quick and efficient.
• Tree and Stump Removal: Mini excavators/towable backhoes can assist in removing trees and stumps from gardens or farms. With the help of attachments like grapples or tree shears, the machine can safely and efficiently uproot trees or cut them into manageable pieces. It can also dig around stumps and extract them from the ground.
• Drainage and Irrigation Systems: For effective water management on gardens or farms, mini excavators/towable backhoes are used to dig trenches and install drainage or irrigation systems. They can excavate channels for water flow, create ditches for drainage, or dig trenches for laying pipes and conduits.
• Fencing and Post Hole Digging: When installing fences or posts on a property, these machines are invaluable. They can dig precise and deep holes for fence posts, saving time and effort compared to manual digging. This application is particularly useful when setting up livestock enclosures, boundary fences, or support structures.
• Pond and Water Feature Construction: Mini excavators/towable backhoes are utilized in the construction of ponds, lakes, or other water features on gardens or farms. They can dig and shape the desired water body, create embankments, and remove excess soil. The machines can also assist in the installation of liners or other water-retaining materials.
• Utility Installation: When installing utilities such as water lines, electrical conduits, or underground cables, mini excavators/towable backhoes are indispensable. They can dig trenches, create access points, and lay the necessary infrastructure with precision and efficiency.

Common Troubleshooting of Mini Excavator/Towable Backhoe

Troubleshooting common issues with mini excavators or towable backhoes can save time and money, and keep your project on schedule. Here are some typical problems encountered with these machines and suggested troubleshooting steps:

1. Engine Won’t Start

• Check fuel levels: Ensure there's enough fuel in the tank.
• Inspect battery connections: Clean and tighten any loose or corroded terminals.
• Fuel filter: A clogged fuel filter can impede starting; consider replacing it.

2. Hydraulic Functions are Slow or Weak

• Hydraulic fluid level: Low fluid levels can lead to poor hydraulic performance; refill as needed.
• Hydraulic fluid quality: Contaminated or old fluid can affect performance; replace if necessary.
• Hydraulic leaks: Inspect for leaks along hydraulic lines and seals and repair any found.
• Filter: A clogged hydraulic filter can restrict flow; clean or replace it.

3. Excessive Vibration

• Attachment connections: Ensure buckets or other attachments are securely fastened.
• Worn pins and bushings: Check for wear and replace as necessary.
• Imbalanced tracks (for tracked models): Make sure the tension on both tracks is equal and adjust if necessary.

4. Overheating Engine

• Coolant level: Verify the coolant is at the correct level and refill if needed.
• Radiator and air filter: Clean any debris from the radiator and check the air filter to ensure proper air flow.
• Thermostat: A malfunctioning thermostat may cause overheating and may need replacement.

5. Loss of Power During Operation

• Air filter: A dirty air filter can restrict airflow to the engine; clean or replace it.
• Fuel quality: Poor fuel quality can reduce engine performance; ensure you're using the correct type of fuel.
• Exhaust system: Check for blockages in the exhaust pipe.

6. Difficulty in Controlling the Machine

• Control linkage: Inspect the control linkage for damage or excessive wear and adjust or replace as necessary.
• Hydraulic fluid: Low or contaminated hydraulic fluid can affect control responsiveness; refill or replace as needed.
• Pilot pressure: Incorrect pilot pressure settings can lead to control issues; check and adjust according to the manufacturer’s specifications.

7. Tracks or Wheels Slipping

• Tension: For tracked models, ensure tracks are properly tensioned. For wheeled models, check tire pressure.
• Wear and tear: Inspect tracks or tires for excessive wear or damage and replace if necessary.
• Surface conditions: Slippery or muddy conditions can cause slippage; assess the work environment for hazards.

8. Bucket or Arm Movement is Jerky

• Hydraulic oil: Ensure the hydraulic system is filled with oil of the correct viscosity.
• Air in the hydraulic system: Bleed the system to remove trapped air.
• Control valve: Inspect the control valve for damage or contamination and clean or replace as needed.
