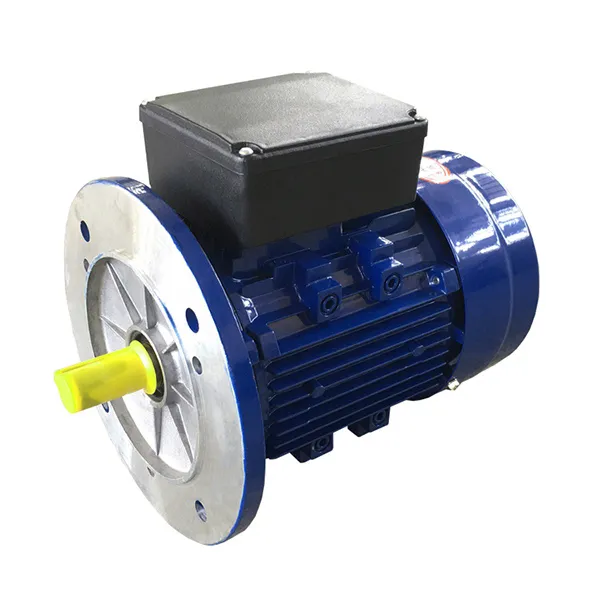

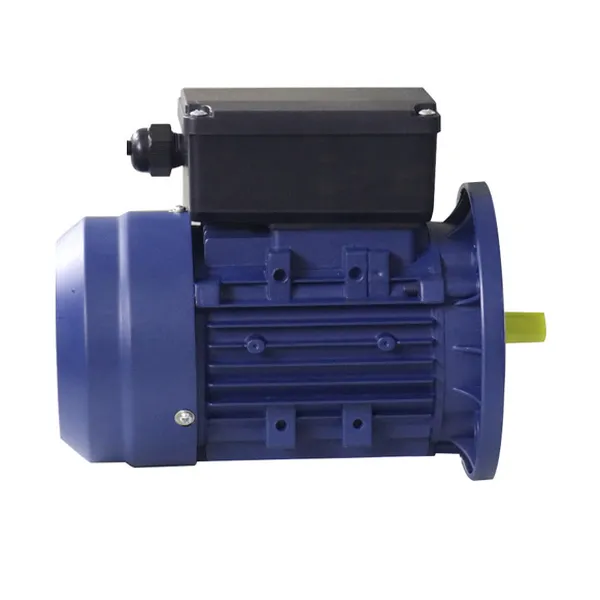

ML Series Capacitor Running and Starting Single Phase Asynchronous Motor

ML Series Capacitor Running and Starting Single Phase Motor

ML series single-phase motor starts with a capacitor, a so-called two-value capacitor induction motor with the advantages of the capacitor start motor and capacitor running motor, high efficiency, energy saving, low noise, little vibration, light weight, convenient operation, and maintenance. ML series aluminum housing single-phase dual-capacitor asynchronous motors, with the latest design in entirety, are made of selected qualified die-cast aluminum-alloy materials and conform to the IEC standard.ML series electric motors have good performance, safety, and reliable operation, the multiple of starting torque is up to 2.5, and driven by a single- -phase AC supply. Widely used in many places, where do not exist combustible, explosive, or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, air compressors,s, etc.

ML Series Single Phase Asynchronous Motor Operating Conditions:

• Ambient temperature:-15℃≤0≤40℃
• Altitude: not exceeding 1000m
• Rated voltage:380V
• Rated frequency:50Hz、60Hz
• Protection class: IP54、IP55
• Insulation class: Class B/F
• IC411 (Totally-enclosed, fan-cooled)
• Working Duty: S1 (Continuous)

ML Series Single Phase Asynchronous Motor Technical Data:

Type	Rated Power		Rated Current (A)			Rated Speed	Efficiency	Power Factor	Rated Torque	Ist/In	Tst/Tn	Tmax/Tn	Noise	Weight
	(kW)	(HP)	110V	220V	240V	(r/min)	(η%)	(cosφ)	(N.m)	(times)	(times)	(times)	dB(A)	(kg)
Synchronous Speed 3000 r/min = 2-poles (50Hz)
ML631-2	0.18KW	0.25HP	2.89	1.44	1.32	2710	63	0.9	0.63	5.8	2.5	1.6	70	4
ML632-2	0.25KW	0.34HP	3.95	1.97	1.81	2710	64	0.9	0.88	5.3	2.5	1.6	73	4.5
ML711-2	0.37KW	0.5HP	5.56	2.78	2.55	2780	65	0.93	1.27	5.6	2.5	1.8	75	6
ML712-2	0.55KW	0.75HP	7.91	3.95	3.62	2790	68	0.93	1.88	5.3	2.5	1.8	76	6.5
ML801-2	0.75KW	1HP	10.2	5.09	4.67	2800	72	0.93	2.56	6.2	2.5	1.8	76	9
ML802-2	1.1KW	1.5HP	14.7	7.36	6.75	2810	73	0.93	3.74	5.7	2.5	1.8	79	10
ML90S-2	1.5KW	2HP	19.8	9.91	9.08	2810	74	0.93	5.10	5.8	2.5	1.8	84	13
ML90L-2	2.2KW	3HP	28.4	14.2	13.0	2810	75	0.94	7.48	5.5	2.5	1.8	84	14
ML100L-2	3KW	4HP	37.3	18.6	17.1	2830	77	0.95	10.1	6.2	2.5	1.7	88	24
ML112M-2	4KW	5.5HP	47.8	23.9	21.9	2850	80	0.95	13.4	6.8	2.5	1.7	90	34
Synchronous Speed 1500 r/min = 4-poles (50Hz)
ML631-4	0.12KW	0.16HP	2.20	1.10	1.01	1350	55	0.9	0.85	5.7	2.5	1.6	64	4
ML632-4	0.18KW	0.25HP	3.25	1.62	1.49	1350	56	0.9	1.27	5.5	2.5	1.6	64	4.5
ML711-4	0.25KW	0.34HP	4.21	2.10	1.93	1380	60	0.9	1.73	5.0	2.5	1.7	66	6
ML712-4	0.37KW	0.5HP	5.93	2.97	2.72	1380	63	0.9	2.56	5.3	2.5	1.7	68	6.5
ML801-4	0.55KW	0.75HP	8.42	4.21	3.86	1400	66	0.9	3.75	5.0	2.5	1.8	71	9.5
ML802-4	0.75KW	1HP	11.0	5.49	5.03	1410	69	0.9	5.08	5.7	2.5	1.8	71	10.5
ML90S-4	1.1KW	1.5HP	15.1	7.57	6.94	1410	71	0.93	7.45	5.5	2.5	1.8	74	13.5
ML90L-4	1.5KW	2HP	20.1	10.0	9.21	1400	73	0.93	10.2	5.7	2.5	1.8	79	14.5
ML100L1-4	2.2KW	3HP	29.1	14.5	13.3	1430	74	0.93	14.7	5.4	2.5	1.8	79	24
ML100L2-4	3KW	4HP	39.1	19.6	17.9	1440	75	0.93	19.9	5.9	2.5	1.8	83	29
ML112M-4	4KW	5.5HP	48.9	24.4	22.4	1440	80	0.93	26.5	6.7	2.5	1.7	86	33

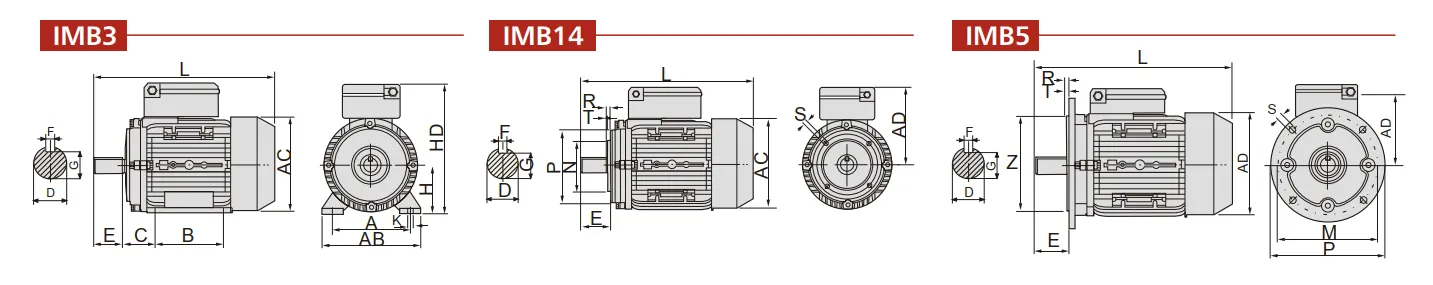

ML Series Single Phase Asynchronous Motor Installation Dimension:
