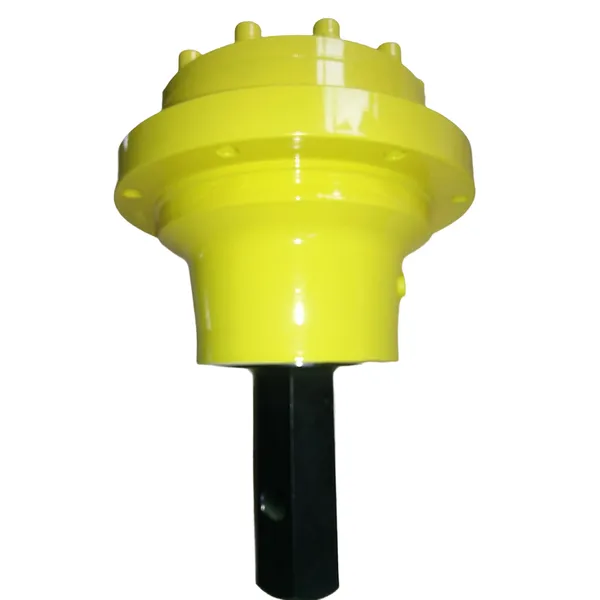

Model 6 Wheel Drives Planetary Gearbox (Long Flange Distance Version)

Model 6 Wheel Drives Planetary Gearbox Replacement of Auburn Gear Model 6 Planetary Gearbox

The Model 6 wheel drives planetary gearbox is a high-performance, compact, and efficient planetary gear drive manufactured by Auburn Gear. It is designed for off-road mobile equipment, agricultural vehicles, and offshore applications. The Model 6 wheel drives planetary gearbox has a maximum continuous torque of 25,000 lbf-in (2,900 N-m) and a maximum intermittent output torque of 50,000 lbf-in (5,700 N-m). It can also handle a maximum radial load of 14,400 lbs (6,500 Kgf). The gear box has a maximum input speed of 3,500 rpm (single reduction) and 5,000 rpm (double reduction). The ratio range is 3.50 ~ 33.79:1.The Model 6 wheel drives planetary gearbox is available with either an SAE "A" or "B" hydraulic motor mounting. It can also be equipped with an integral parking safety brake. Multiple wheel stud options are also available. The Model 6 wheel drives planetary gearbox is a rugged and reliable planetary gear drive that is well-suited for a variety of demanding applications. It is characterized by its high efficiency, compact design, and long service life.

▍Model 6 Wheel Drives Planetary Gearbox Specifications

output torque (N.m)		Ratio (i)		Recommend Hydraulic Motor pilot/hubs and input spline	Max. input speed(rpm)	Brake torque(N.m)	Brake work pressure(bar)
normal	Max. Intermittent
3400	7000	2.81,  3.47,  4.54	Single reduction	SAE A, B motor pilot/hubs13T - 16/32 Spline15T - 16/32 Spline1” - 6B Spline14T - 12/24 Spline	3500	440	22-50
		12.45,  15.91	Double reduction			330	27-50
		20.05,  23.71				260	22-50
		27.50,   34.31				160	17-50

* Input rotation opposite output rotation.* Other ratios and other input types can special design.* If with manual disconnect application, please add mark “M” in order number end.

▍Model 6 Wheel Drives Planetary Gearbox Parameter

Model 3 Series Wheel Drives Planetary Gearbox (Long Flange Distance Version)
Options	Description	Order Number	Use Option Order Codes to Build Order Number
Model Series	Model 6	6W	6W
Motor Pilot/Hubs	SAE A	A		A
	SAE A1	A1
	SAE B	B
	SAE B1	B1
Motor Input Spline or Shaft Input Options	13T - 16/32	13			13
	15T - 16/32	15
	1” - 6B	6B
	14T - 12/24	14
	2K Bearing less	2K
	OMSS Bearing less	OMSS
Ratio Options	2.81, 3.47, 4.5412.45, 15.91,20.05, 23.71,27.50, 34.31	02, 03, 0413, 1520, 2426, 30				15
Output Options	1/2×1.891/2×2.509/16×2.069/16×2.755/8×2.36NONE	15161718800					15
Brake	160Nm	B4D
	260Nm	B4F
	330Nm	B4H						B4H
	440Nm	B4L
	Without Brake	WO
Disconnect	With disconnect	M							M
	Without disconnect	NONE
Example of complete order code:			6W	A	13	15	15	B4H	M

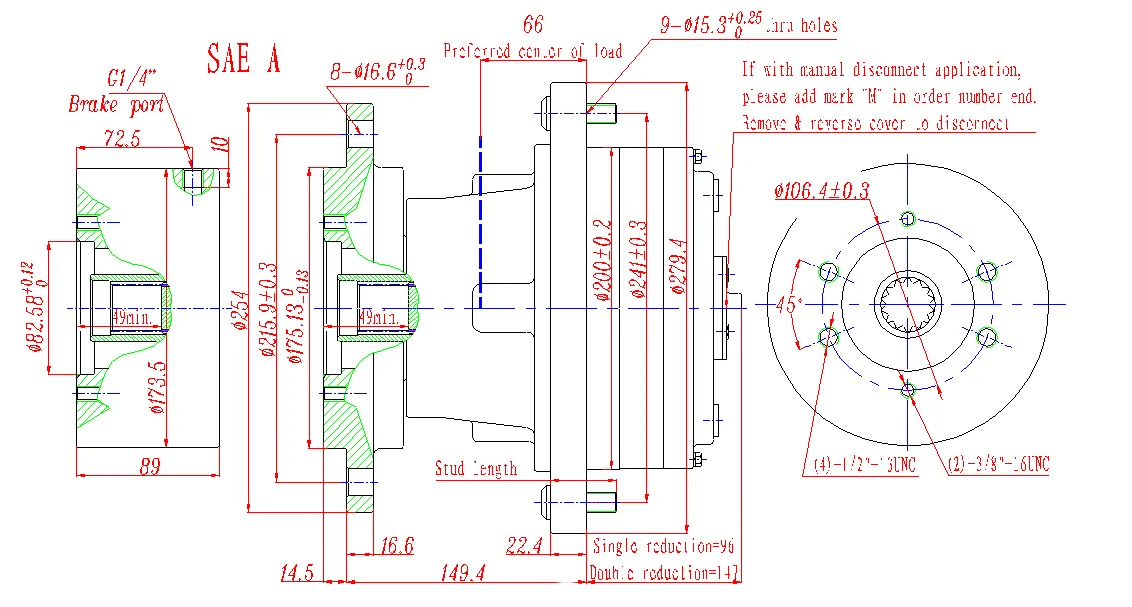

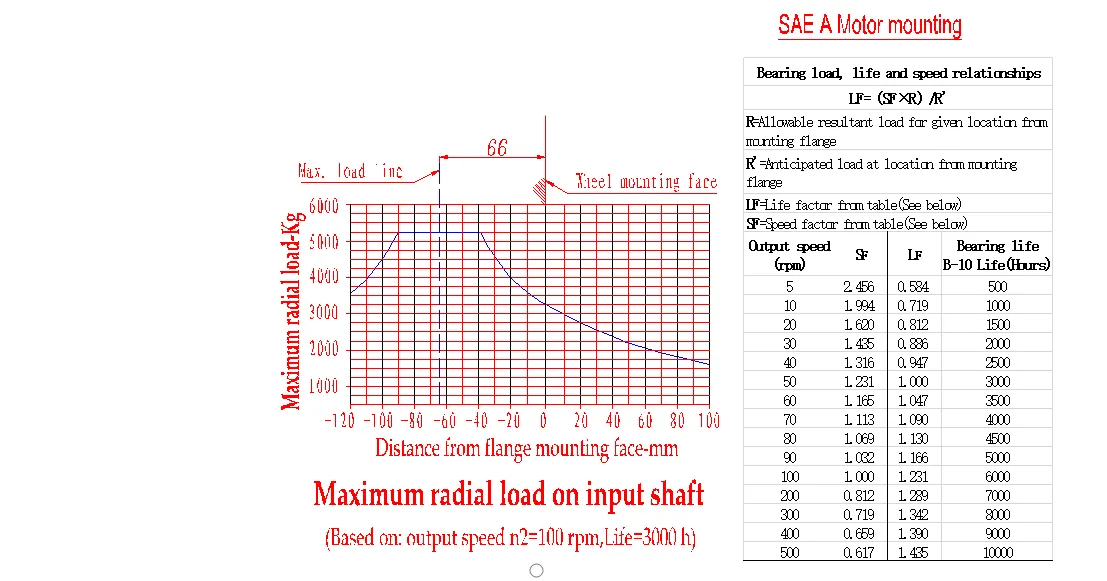

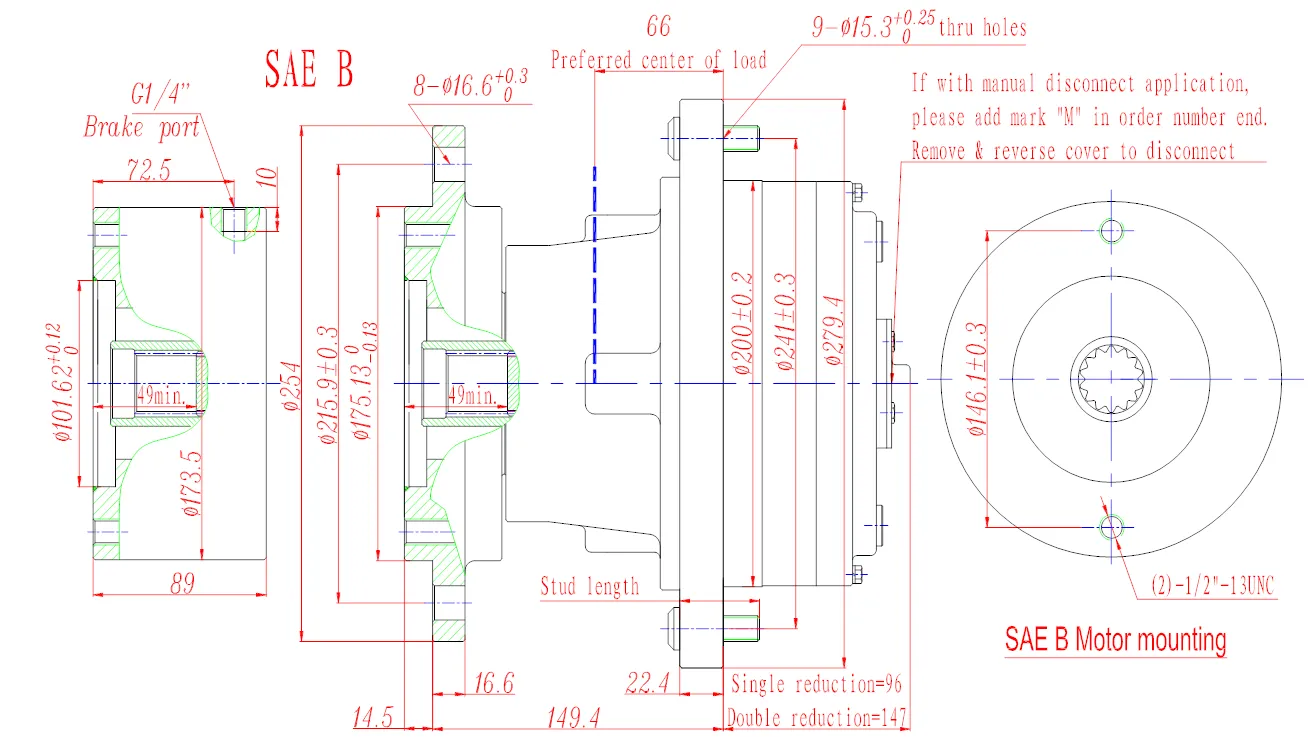

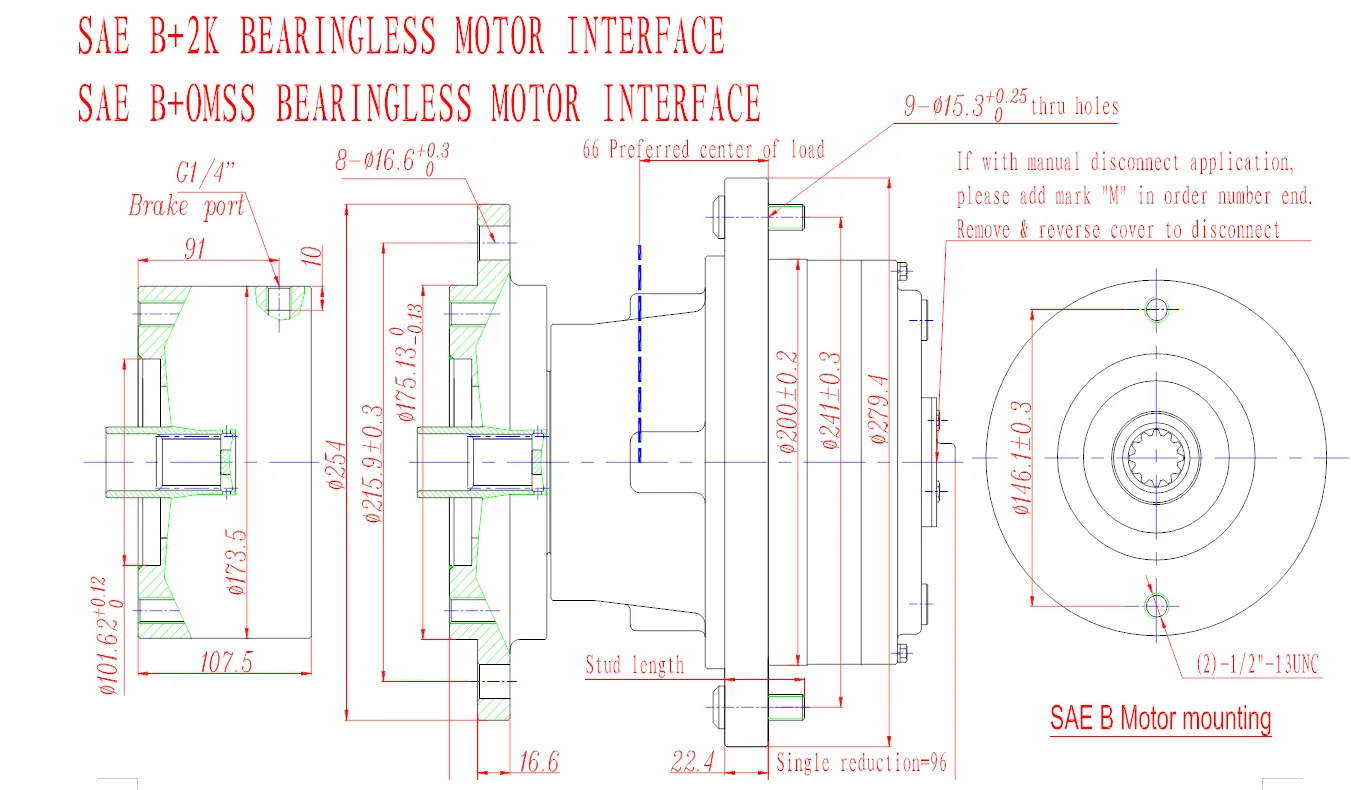

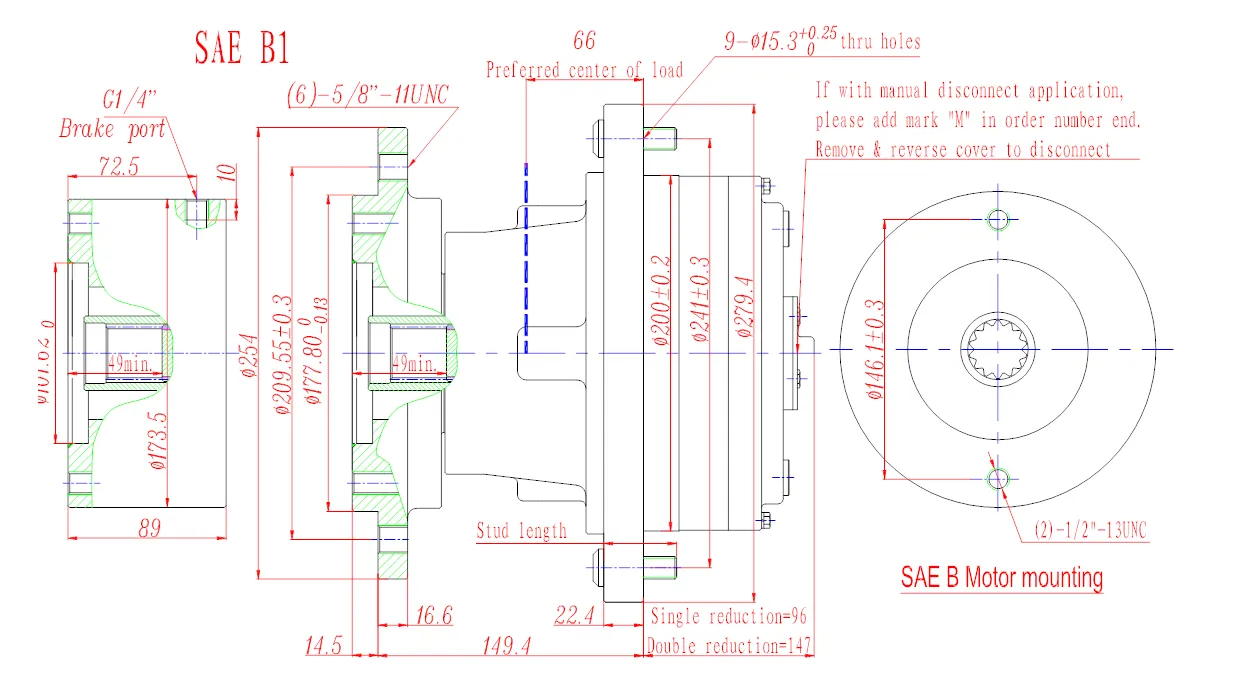

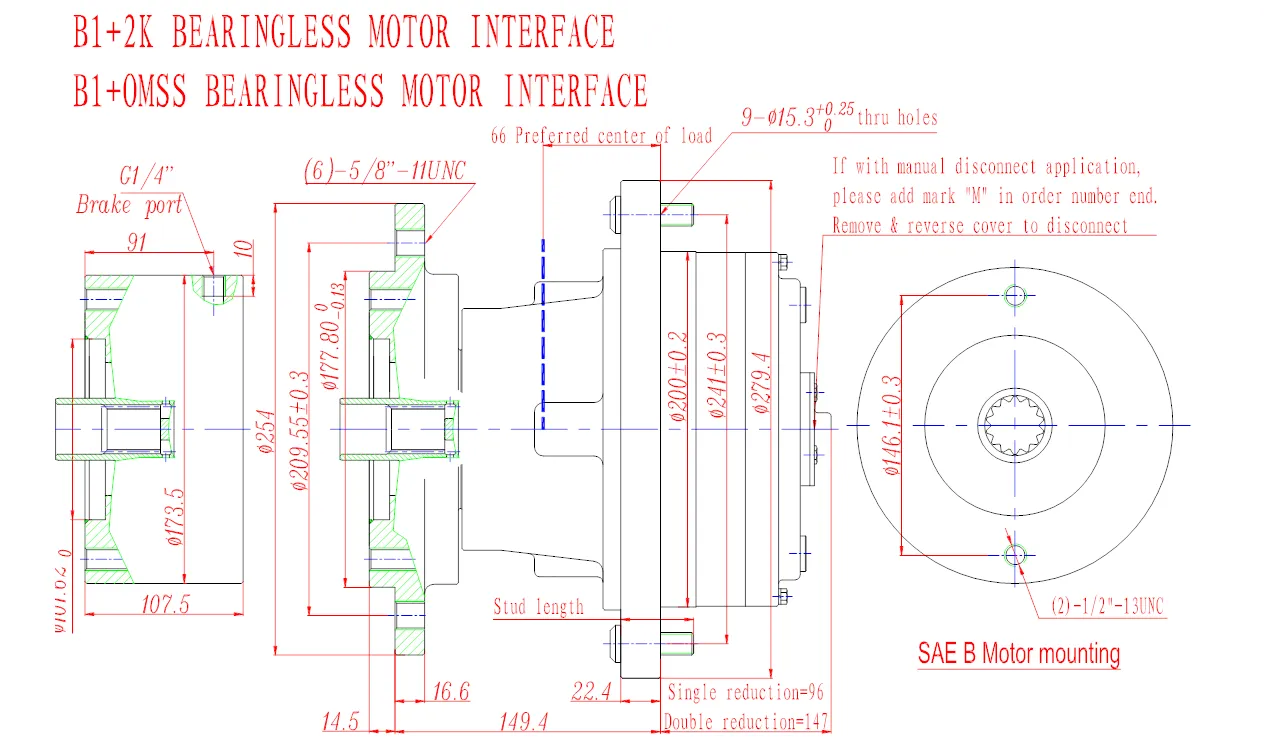

▍Model 6 Wheel Drives Planetary Gearbox Dimensions

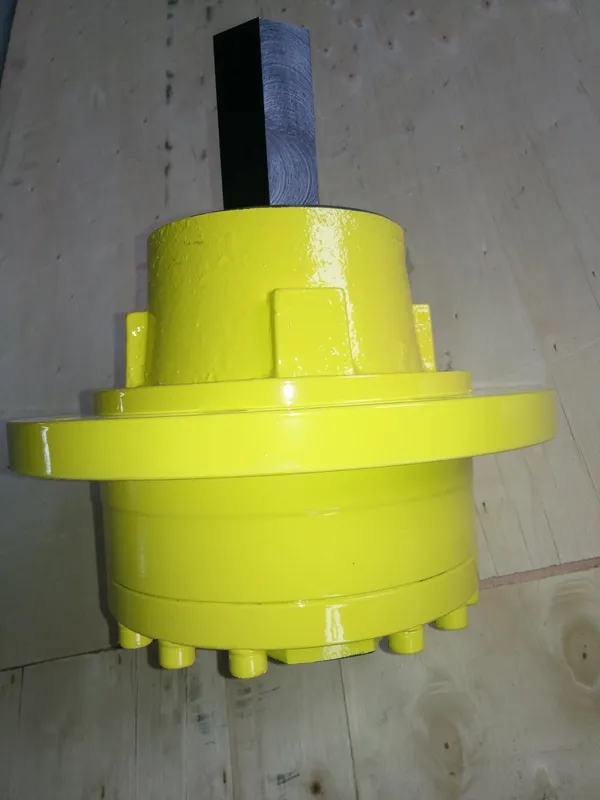

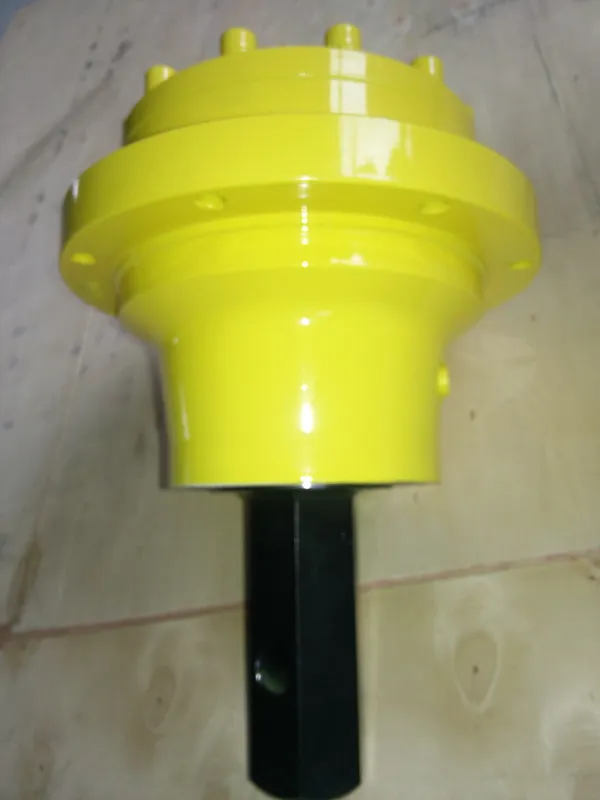

▍Model 6 Wheel Drives Planetary Gearbox Features

The Model 6 wheel drives planetary gearbox is a high-performance, compact, and efficient planetary gear drive. It is designed for off-road mobile equipment, agricultural vehicles, and offshore applications.Here are some of the key features of the Model 6 wheel drives planetary gearbox:

• High efficiency: 96 to 98% power transfer efficiency
• Compact design: Saves space and provides for long service life
• Rugged and reliable: Well-suited for demanding applications
• Integral parking safety brake: Provides added safety
• Multiple wheel stud options: Available for a variety of applications

1. High efficiency: The Model 6 wheel drives planetary gearbox is significantly more efficient than many other types of drives, including differential design planetaries. This is due to its compact design and the use of high-quality materials.2. Compact design: The Model 6 wheel drives planetary gearbox is very compact, which saves space and makes it easy to install. This is important in applications where space is limited, such as on off-road mobile equipment.3. Rugged and reliable: The Model 6 wheel drives planetary gearbox is designed to withstand the harsh conditions of off-road mobile equipment, agricultural vehicles, and offshore applications. It is made of high-quality materials and is built to last.4. Integral parking safety brake: The Model 6 wheel drives planetary gearbox can be equipped with an integral parking safety brake. This provides added safety by preventing the drive from rotating when it is not in use.5. Multiple wheel stud options: The Model 6 wheel drives planetary gearbox is available with multiple wheel stud options. This allows you to select the option that is best suited for your application.

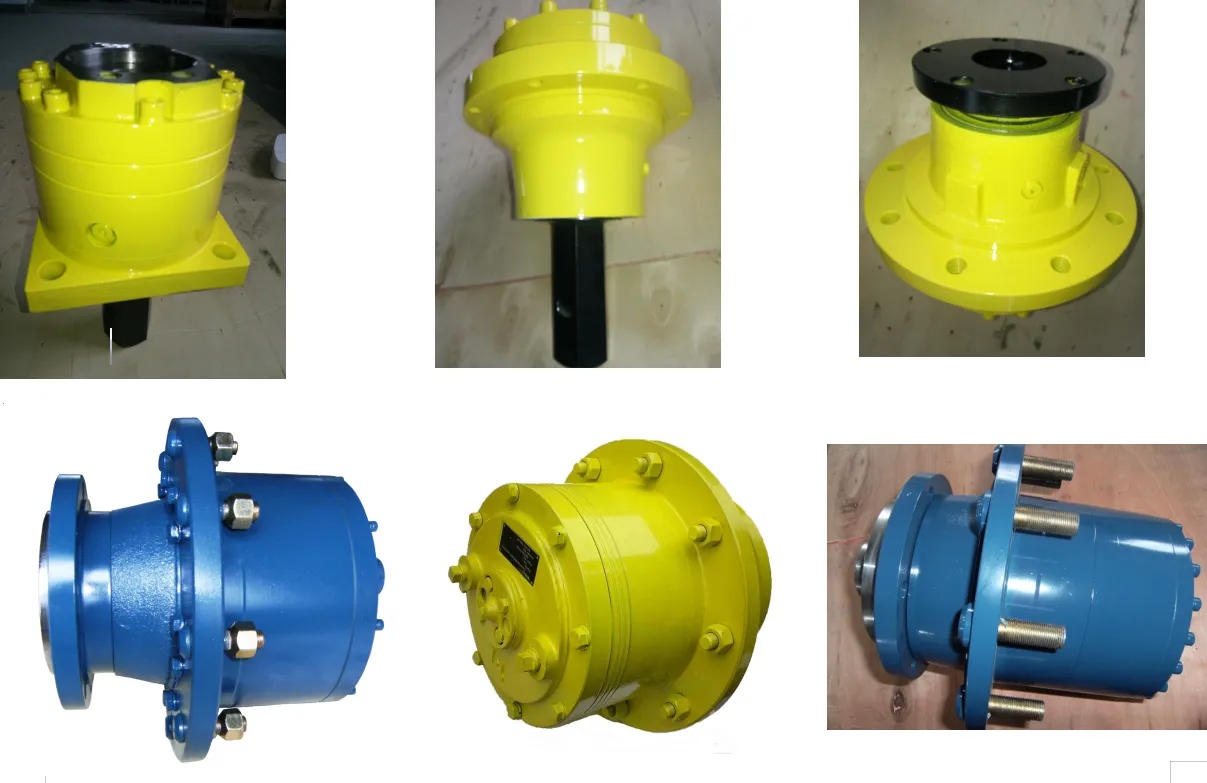

▍China Wheel Drives Planetary Gearbox Manufacturers
