MRV050 Worm Gear Reducer for Car Washing Machine

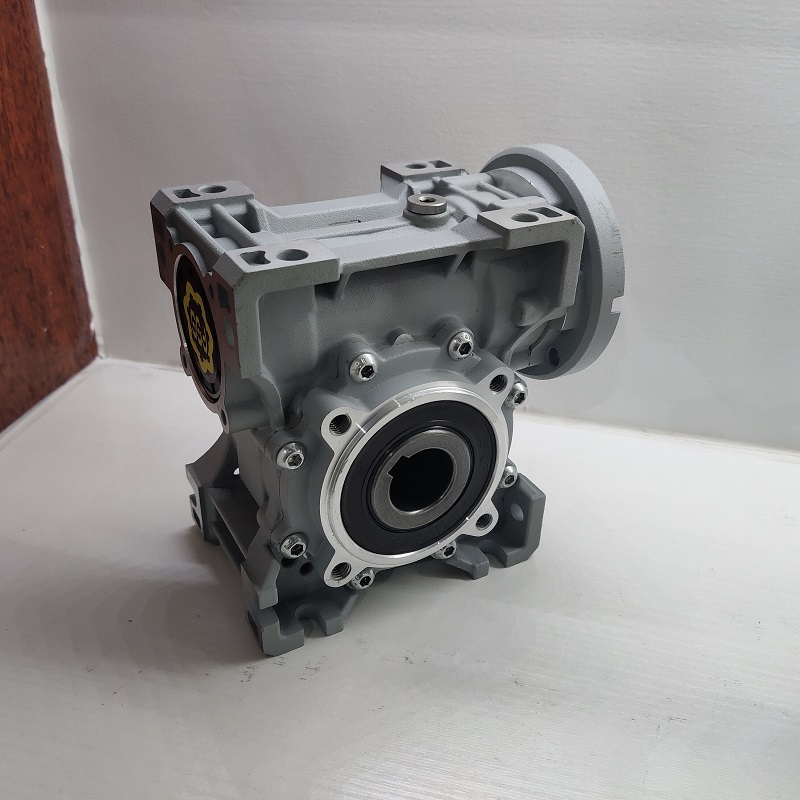

The MRV050 Worm Reducer is a cutting-edge device specifically designed for automatic car washers. It is a modified version of the RV reducer, equipped with a wide range of advantages such as cost-effectiveness, wide applicability, and convenience of installation. It surpasses the XRV model in terms of flexibility and is accompanied by a supporting motor power range of 0.25kw~0.75kw. This worm gear reducer also comes with matching flanges, catering to the diverse needs of our customers.

Technical Parameters of MRV050 Worm Gearmotor for Car Washing System

Type	Ratio	Flange	Power
MRV050	5     7.5  10     12  15     20  30     40  50     60  80    100	71B14	0.06KW 0.09KW 0.12KW 0.18KW 0.20KW 0.25KW 0.37KW 0.55KW 0.75KW 1.1KW 1.5KW 2.2KW 3KW 4KW 5.5KW 7.5KW
		80B14

Type	i	n2/r/min	Mn2/Nm	Fr2/N	Motor	P1/kw	L/mm
MRV050	5	280	17	1577	7134	0.55	180
		280	23	1577	8024	0.75	205
	7.5	187	25	1805	7134	0.55	180
		187	34	1805	8024	0.75	205
	10	140	22	1987	7124	0.37	180
		140	32	1987	7134	0.55	180
		140	44	1987	8024	0.75	205
	12	117	26	2016	7124	0.37	180
		117	33	2016	7134	0.55	205
		117	48	2016	8024	0.75	205
	15	93	31	2274	7124	0.37	180
		93	46	2274	7134	0.55	180
		93	63	2274	8024	0.75	205
	20	70	27	2503	7114	0.25	180
		70	40	2503	7124	0.37	180
		70	59	2503	7134	0.55	180
		70	81	2503	8024	0.75	205
	25	56	32	2696	7114	0.25	180
		56	48	2696	7124	0.37	180
		56	71	2696	7134	0.55	180
	30	47	37	2865	7114	0.25	180
		47	55	2865	7124	0.37	180
		47	81	2865	7134	0.55	180
	40	35	33	3153	7114	0.25	180
		35	46	3153	7124	0.37	180
		35	68	3153	7134	0.55	180
	50	28	54	3397	7114	0.25	180
		28	72	3397	7124	0.37	180
		28	80	3397	7134	0.55	180
	52	27	55	3482	7114	0.25	180
		27	73	3482	7124	0.37	180
		27	82	3482	7134	0.55	180
	60	23	60	3610	7114	0.25	180
		23	75	3610	7124	0.37	180
		23	84	3610	7134	0.55	180
	80	18	64	3973	7114	0.25	180
		18	77	3973	7124	0.37	180
		18	89	3973	7134	0.55	180
	100	14	68	4280	7114	0.25	180
		14	79	4280	7124	0.37	180
		14	93	4280	7134	0.55	180



Key Features of MRV050 Worm Gearbox for Car Washer

Our MRV050 Worm Reducer comes with an array of remarkable features that set it apart in the market:

• Modular flange and other component options, universal mounting configurations
• A large ratio range to suit varying needs
• IP Grade that can reach IP67, adapting to most spraying conditions
• A compact body that can fit most equipment structures
• Full-Synthetic Oil lubrication (with the choice of 320/220 viscosity)
• The housing material is ADC12 with powder painting, offering superior anticorrosive properties and aesthetics
• Sealing with NOK oil seal (NBR), providing good sealability
• Worms material is 20CrMnTi with carburizing and quenching, thickness 0.25-0.45mm, HRCSS-62
• Wheels material is QT450+GcuSn12, ensuring high wear resistance

How Does a Worm Gear Reducer Work in Car Wash System?

In a car wash system, a worm gear reducer is a crucial component used to transfer power and control the movement of various mechanisms. The worm gear reducer consists of two main parts: a worm gear and a worm wheel.The worm gear, which resembles a screw, meshes with the worm wheel, which looks like a toothed wheel. The worm gear is connected to the motor, while the worm wheel is linked to the mechanism that requires power transmission, such as the conveyor belt or brush system in a car wash.When the motor rotates the worm gear, the inclined threads on its surface engage with the teeth of the worm wheel. As the worm gear rotates, it drives the worm wheel to rotate as well. The unique shape of the worm gear and the angle of its threads create a high gear reduction ratio, resulting in a significant decrease in rotational speed but an increase in torque.This reduction in speed allows the car wash system to operate effectively and safely. The worm gear reducer ensures that the conveyor belt or brush system moves at an appropriate speed, providing sufficient contact time with the car's surface for effective cleaning while maintaining a controlled and smooth operation.

Applications of MRV050 Worm Gear Motors

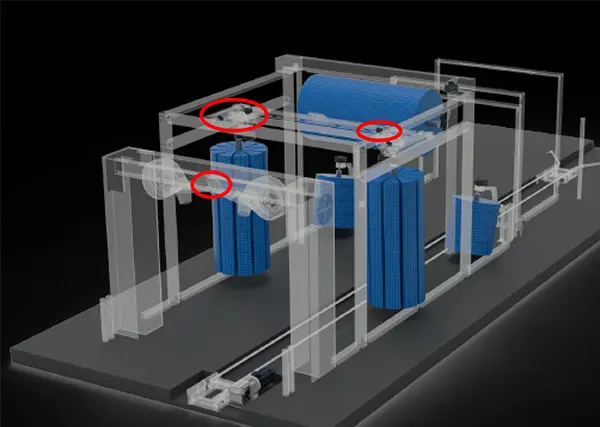

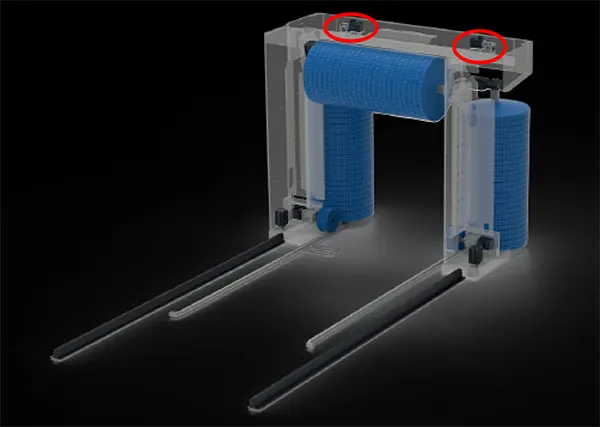

MRV050 worm gearboxes play a vital role in car wash systems by controlling the movement of brushes to adapt to various vehicles, facilitating the gantry's motion for a thorough washing process, and driving fans in drying systems to ensure fast and effective vehicle drying. These uses take advantage of the robustness, ability to bear heavy loads, and precise operational control provided by worm gearmotors.、Brush Adjustment: When it comes to car wash systems, it is essential to modify and adapt the brushes to suit various sizes and shapes of vehicles. To achieve this, MRV050 worm gearboxes are utilized to control the movement of these brushes. Their purpose is to position the brushes accurately for effective cleaning without causing any damage to the vehicle. This is particularly crucial for side brushes and top brushes, as they need to adjust to the height and contour of different cars.Gantry Motion: In a car wash, the gantry refers to the framework that moves along the length of the vehicle, carrying brushes, nozzles, and dryers. MRV050 worm gear reducers are employed in the mechanisms responsible for propelling the gantry back and forth over the vehicle. These gearboxes offer a high torque output and the ability to remain locked in position under load, eliminating the need for additional brakes or locking mechanisms. This makes them highly suitable for ensuring smooth and steady movement throughout the entire washing process.Drying System Fans: Once the washing and rinsing stages are complete, vehicles proceed through a drying area equipped with powerful fans. To drive these fans efficiently, worm gearmotors are employed. They provide the necessary speed and power to effectively dry the vehicle before it exits the system. The strength and durability of worm gearboxes allow them to operate continuously at the high speeds required by the drying fans, effectively handling the load while maintaining energy efficiency.

Motors for Worm Gear Reducers

Choosing the appropriate motor for your worm gear reducer is crucial as it greatly affects the overall performance and efficiency of your system. We also provide a wide range of electric motors that are highly compatible with our worm gear reducers.

Motor Dimensions

IP67 Motor DimensionIP67 Motor Dimension

Type	IP56 Motor					IP67 Motor
RV/De	L	D	ΦC	ΦS	T	L	D	ΦC	ΦS	T
71B14	190	140	85	14	M6	180	120	85	14	M6
80B14	215	158	100	19	M6	205	135	100	19	M6



Why Choose Raydafon for Your Worm Gear Reducer Needs?

At Raydafon, we are a globally recognized manufacturer of transmission equipment, backed by over 15 years of experience in the design, production, and sales of gearboxes. We are committed to providing superior quality, high energy efficiency, and high stability products to our valued customers.Whether you require a MRV series worm gear reducer, GV series gear reducer, or any other type of non-standard reducer, we have the expertise and the resources to meet your specific needs. Our products are widely used in various industries such as the equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, and solar energy industry.We invite you to explore our comprehensive range of products and encourage you to reach out to us for any inquiries or purchases. Trust in Raydafon for all your worm gear reducer needs.
