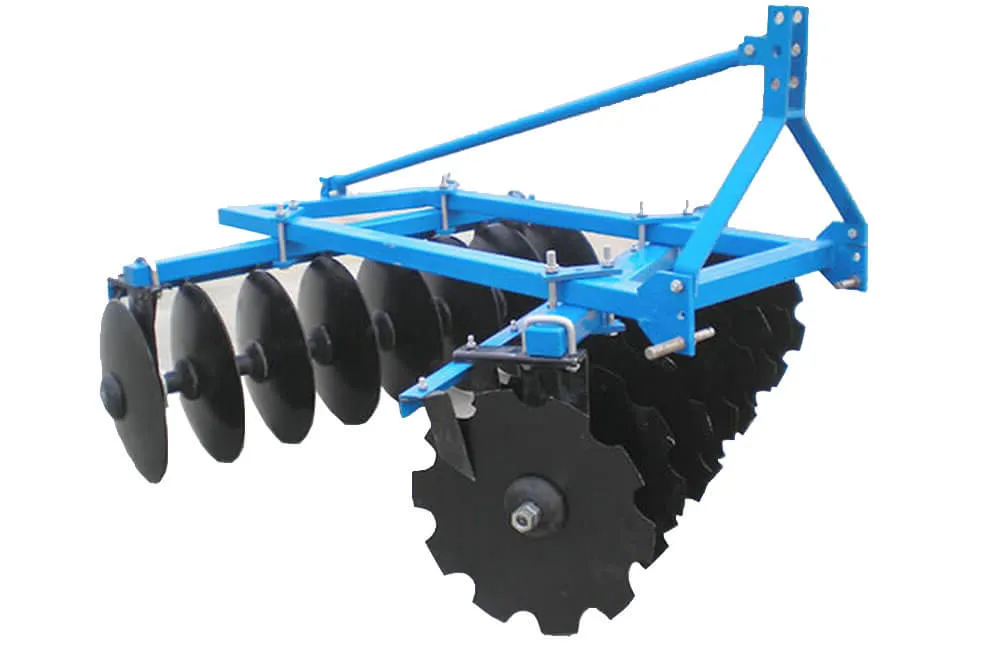

Introducing the New Design Harrow Disc Agricultural Machine, a farm cultivator designed to make your hard soil tillage operations easier and more efficient. This cutting-edge machinery, powered by tractors, comes with a one-year warranty and is built to withstand the most challenging farming conditions. It weighs 1600 KG and measures 3300*3500*1500mm. With high productivity as a key selling point, this product is a must-have for modern farms and manufacturers.
The New Design Harrow Disc Agricultural Machine, model 1BZX-3.0, boasts of a working width of 3000mm and a working depth of 250-280mm. Engineered to match power between 140-160hp, it features 28 units of boron disc blades, each with a diameter of 26'' (660mm). The machine is three-point mounted, making it easy to install and remove. Ensuring longevity, the core components of this machine, including the boron disc blade, square shaft, and RSP sealed bearing assembly, come with a 6-month warranty.
This new product is not just about power and durability; it's also about convenience. Its design allows for easy uninstallation when not in use and requires minimal maintenance. The only precautionary measure to be taken is to avoid overloading and ensure regular check-ups of the core components. As for its working principle, the disc harrow cuts into the ground with the help of the tractor's power, breaking up the soil and making it perfect for planting. The boron disc blades are robust and sharp, effectively cutting through hard soil.
A product of Raydafon Group Co., Ltd, the New Design Harrow Disc Agricultural Machine is a testament to the company's commitment to providing high-quality, efficient, and durable farming machinery. Raydafon Group Co., Ltd is renowned for its wide range of products including disc harrows, disc ploughs, cultivators, rotary tillers, trailers, sprayers, and fertilizer spreaders among others.
The 1BZX series Harrow Disc Agricultural Machine is a heavy-duty disc harrow, designed to be an upgrade on the traction heavy disc harrow. It's mounted with four-wheel tractors, making it easy to maneuver back and forth during operation. This harrow disc machine is made with high-quality materials, ensuring its strength and durability. It uses a weight adjustable main frame and sealed bearings to withstand heavy usage and challenging farming conditions.

For further information and specifications please refer to the table below:
| Model | 1BZX-3.0 |
| Working width | 3000mm |
| Working depth | 250-300mm |
| Size of harrow disc blade | 26'' (660mm) x 5mm |
| No. of harrow disc blade | 28pcs |
| Weight | 1600kg |
| Macthed power | 140-180hp |
| Square shaft size | 40*40mm, shaft with heat treatment |
| Bearing | RSP sealed bearing pedestal ,with oi hole |
At Raydafon Group Co., Ltd, we are committed to providing you with the best agricultural solutions. Our New Design Harrow Disc Agricultural Machine is a testament to this commitment. We invite you to learn more about this exceptional product and encourage you to contact us for any inquiries or purchases. Please reach out to our contact person, Lyna Zhang, via Mobile/Whatsapp: 0086 151 6593 6190. Take your farming operations to the next level with our New Design Harrow Disc Agricultural Machine.
