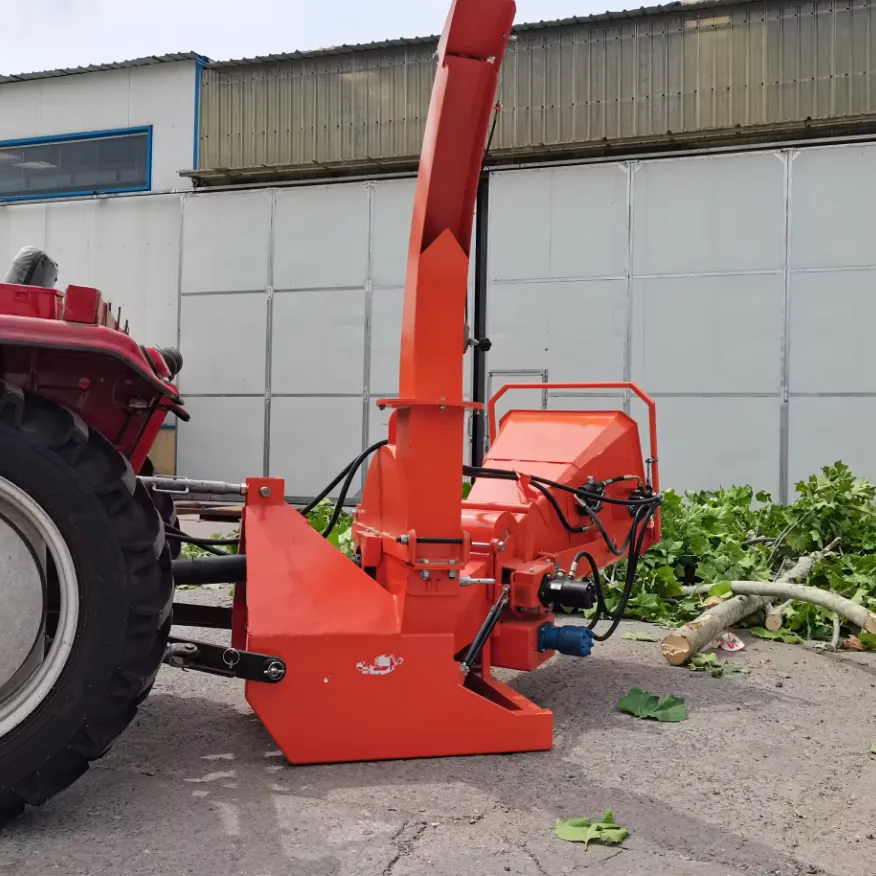

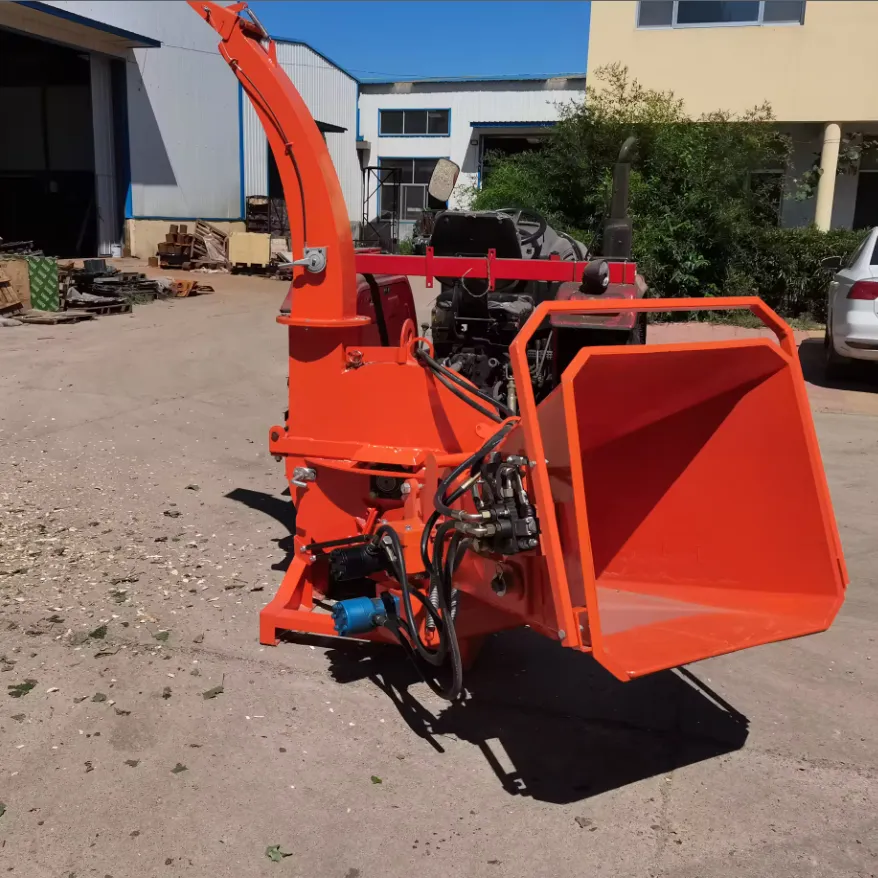

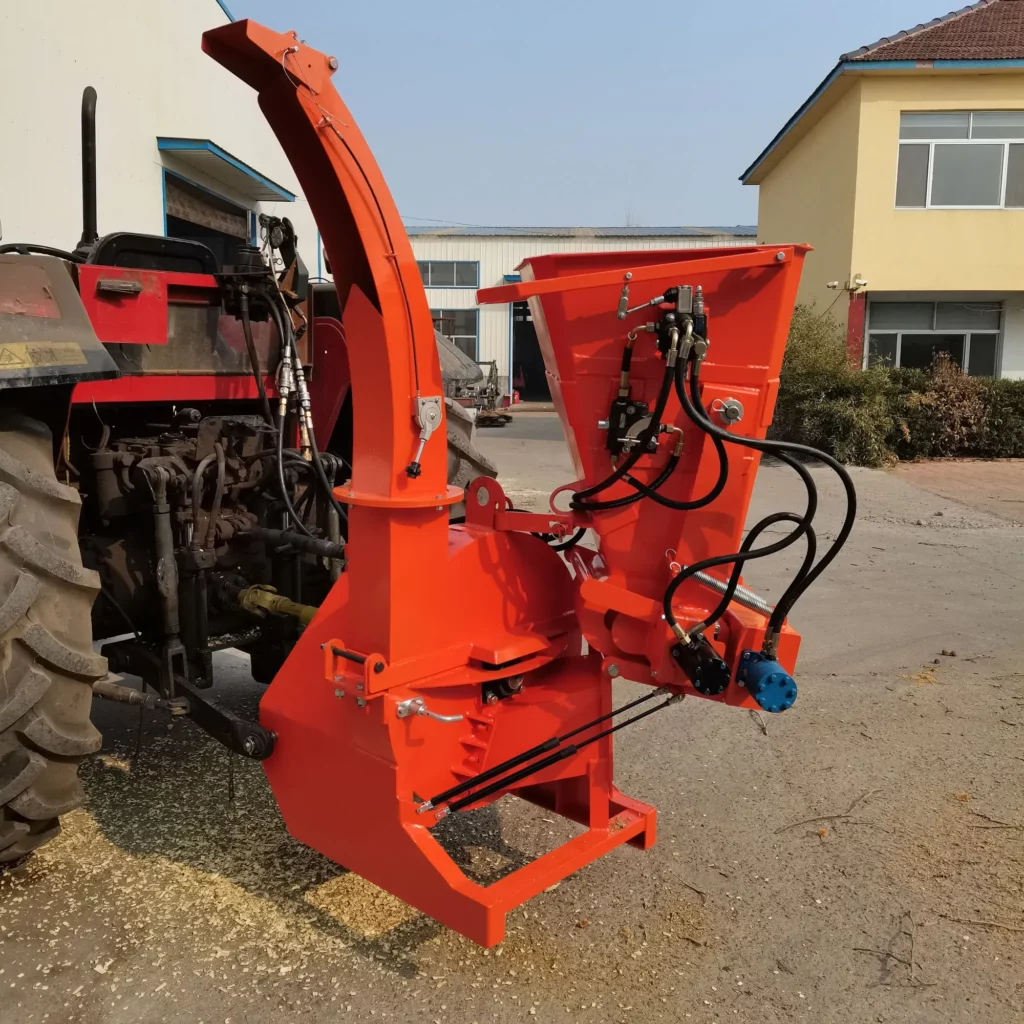

NEW Designed BX62 Tractor Wood Chipper Shredder for Chipping Wood and Tree Branch

[embed]https://www.youtube.com/embedj3Wm-RDreEc[/embed] Introducing the newly designed bx62 Tractor Wood Chipper Shredder, ideal for farms and various agricultural industries. A brand new product, it serves the purpose of chipping wood and tree branches, powered by the tractor's PTO (Power Take-Off). Its compact dimensions (1600*1020*1400mm) and weight of 390 KG make it a manageable addition to your farming tools. It comes with a 1-year warranty and is certified with CE ISO standards. Underneath the hood, it comprises of two rotary blades and one stationary blade. The maximum chipping diameter is 20cm/8 inch. It can be fed either via a hydraulic feeding system or a mechanical feeding system. The color is customizable to suit your preference. The BX62 Tractor Wood Chipper is a powerful and versatile machine designed for chipping wood and tree branches. It is commonly used in agricultural and landscaping applications to process large volumes of wood waste into valuable wood chips. This wood chipper is specifically designed to be attached to a tractor's power take-off (PTO) system, making it ideal for use on rural properties, farms, and forestry operations. One of the key features of the BX62 Tractor Wood Chipper is its robust construction. It is built with heavy-duty materials and components to withstand the high demands of chipping dense wood and branches. The chipper is equipped with a durable cutting disc or drum that has sharp blades or knives strategically positioned to efficiently chip and shred the wood material. To operate the BX62 Tractor Wood Chipper, you connect it to the tractor's PTO shaft, which transfers power from the tractor's engine to the chipper. As the tractor's engine runs, it powers the chipper's cutting mechanism, allowing it to chip wood and branches up to a certain diameter. The chipper is typically operated by a dedicated operator who feeds the wood material into the hopper, where it is grabbed and pulled into the cutting mechanism. Once the wood or branches are fed into the BX62 Tractor Wood Chipper, the cutting mechanism quickly slices them into small chips. The chips are then discharged through a chute, which can be directed into a collection container or spread directly onto the ground for various applications such as mulching or composting. The size of the wood chips can often be adjusted by changing the settings on the chipper, allowing for different uses and applications.

Tractor Wood Chipper Shredder BX62 Specifications

Model	BX42S/BX42R	BX62S/BX62R	BX92R
Drive system	Direct drive, pto with shearbolt	Direct drive, pto with shearbolt	Direct drive, pto with shearbolt
HP Range	35-60	60-80	75-100
Capacity	4” diameter	6” diameter	10” diameter
Max. of wood	4" x 10"	6.5" x 12"	10" x 14”
Dia. of rotor	630mm	740mm	940mm
Thickness of rotor	18mm	25mm	35mm
No. of Knives	4	4	4
Rotor Weight	50kg	80kg	170kg

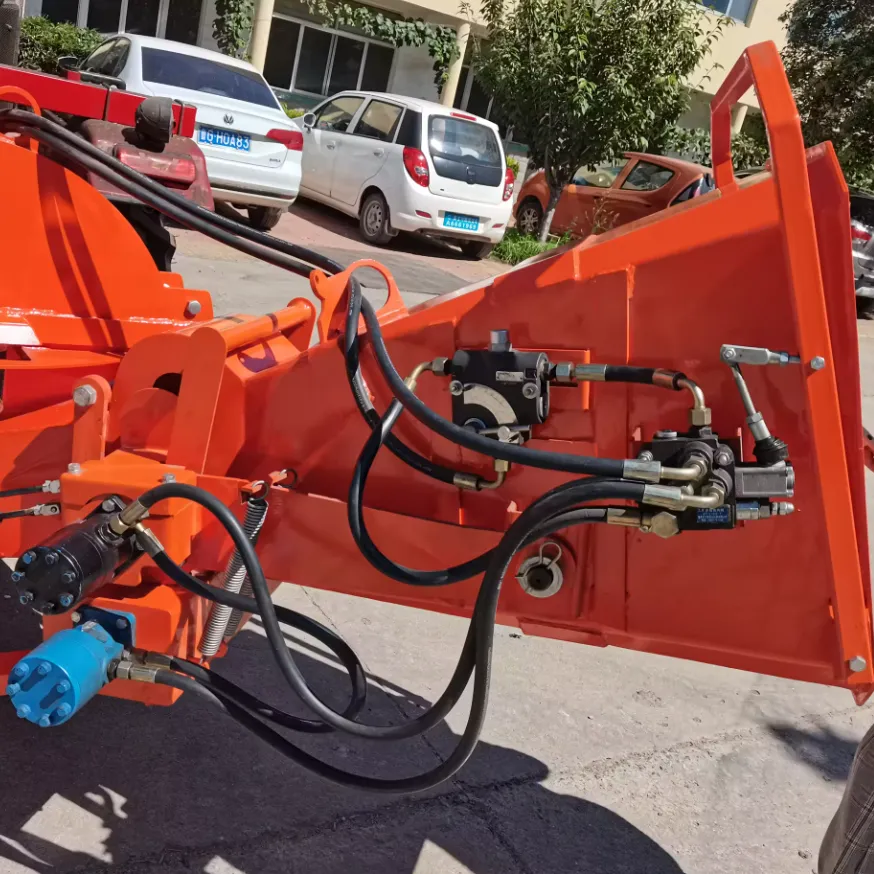

Feeding System	Self feed / Hydraulic feed	Self feed / Hydraulic Feed	Hydraulic Feed
Dimensions(hopper folded)	40" L x 42"W x 60" H	50"L x 52"W x74" H	52"L x 50"W x90" H
Infeed hopper Opening	500*500mm	580*580mm	620*620mm
Discharge Hood Rotation	360	360	360
Discharge Hood Height	60"	74"	90"
Rated RPM	540-1000	540-1000	540-1000
Weight	225kg / 430kg	435kg / 560kg	780kg

Advantages of the bx62 Tractor Wood Chipper Shredder

The bx62 Tractor Wood Chipper Shredder comes with numerous benefits:

1. Efficiency: It is designed to deliver high performance, thus improving the efficiency of your farming operations.
2. Easy Operation: It is user-friendly and easy to operate, even for beginners.
3. Low Noise: The machine operates with minimal noise, providing a comfortable working environment.
4. Durability: With a robust build and quality components, it promises a long lifespan.
5. Customizable: With options for custom color and feeding systems, it allows for personalization to suit your needs.
6. Versatile: It can chip different types of wood and tree branches, making it versatile for various farming needs.

Applications of the bx62 Tractor Wood Chipper Shredder

From small-scale farms to large agricultural industries, the bx62 Tractor Wood Chipper Shredder finds application in various settings:

• Agricultural Farms: It is perfect for clearing out waste wood and tree branches in farms.
• Orchards: It can be used for pruning and cleaning up orchards.
• Forestry: It is applicable for managing wood waste in forestry operations.
• Landscaping: It can assist in creating wood chips for mulching and landscaping purposes.
• Construction Sites: It can help manage and dispose of wood waste at construction sites.
• Wood Processing Industries: It can be used for processing wood for various industrial applications.

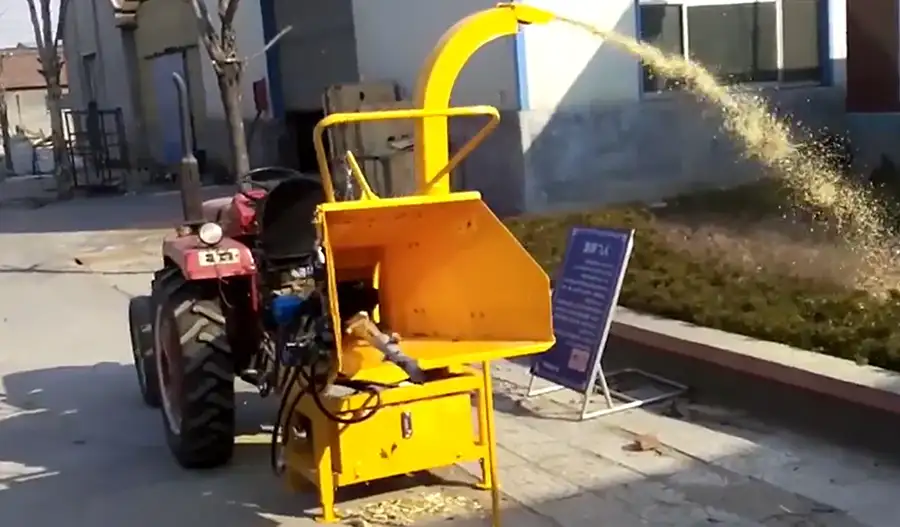

How Does the Tractor PTO Wood Chipper Work?

The operation of the 3-point hitch tractor PTO wood chipper involves several steps:

1. Attachment: The chipper is positioned behind the tractor and aligned with the tractor's 3-point hitch. The hitch's lower arms are connected to the chipper's frame, while the top link is attached to the hitch's top. Pins or latches secure the attachment.
2. Power Source: The chipper is powered by the tractor's PTO shaft. The PTO shaft is connected to the chipper's drivetrain, which transfers power from the tractor's engine to the chipper's cutting mechanism.
3. Input Hopper: The wood material to be chipped is fed into the chipper through the input hopper. Safety features are in place to prevent accidental contact with the cutting mechanism.
4. Cutting Mechanism: Inside the chipper, a heavy-duty rotor equipped with sharp blades or knives is connected to the chipper's drivetrain and powered by the tractor's PTO. As the rotor spins at high speed, it draws in the wood material from the input hopper and cuts it into smaller pieces.
5. Discharge Chute: Once the wood is chipped, it is discharged through a chute or spout. The discharge chute can be adjusted to direct the chips into a container or onto the ground.
6. Tractor Controls: The operator controls the operation of the chipper using the tractor's controls. This includes engaging and disengaging the PTO, controlling the tractor's speed, and adjusting the tractor's position to feed the wood material into the chipper effectively.

How to Install the 3 Point Hitch PTO Wood Chipper to Tractor?

Installing a 3-point hitch PTO wood chipper to a tractor involves several steps:

1. Prepare the Chipper and Position the Tractor: Before attaching the chipper to the tractor, ensure it is on a level surface and in a position that allows easy access to the attachment points.
2. Align the Chipper: Position the chipper behind the tractor, aligning the lower arms of the tractor's 3-point hitch with the attachment points on the chipper.
3. Attach the Lower Arms: Connect the lower arms of the tractor's 3-point hitch to the attachment points on the chipper. Insert the pins or latches through the holes in the arms and attach them securely.
4. Adjust the Top Link: The top link of the tractor's 3-point hitch should be adjusted to match the height of the attachment point on the chipper.
5. Connect the PTO Shaft: Locate the PTO shaft on the chipper and the PTO output shaft on the tractor. Line up the splines on both shafts and slide them together.
6. Check the Attachment: Once all the connections are made, visually inspect the attachment to ensure it is secure and properly aligned.
7. Test the Operation: Start the tractor's engine and engage the PTO according to the manufacturer's instructions. Observe the chipper's operation to ensure it is functioning correctly.

Common Troubleshooting of the bx62 Tractor Wood Chipper Shredder

While a 3-point hitch tractor PTO wood chipper is a reliable machine, there may be instances where troubleshooting is necessary. Here are some common troubleshooting steps:

1. Chipper Does Not Start: Check the PTO engagement, ensure that the PTO is properly engaged and the PTO shaft is securely connected to the tractor's PTO output shaft. Inspect the electrical connections and wiring.
2. Chipper Vibrates Excessively: Inspect all bolts, nuts, and fasteners to make sure they are tightened securely. Check the blades or knives on the cutting mechanism for any damage or dullness.
3. Chipper Produces Inconsistent Chip Sizes: If the chipper has an adjustable cutting system, ensure the blades are properly positioned for the desired chip size.
4. Chipper Clogs or Material Does Not Feed Properly: Check the feed mechanism, ensure that it is functioning correctly and not obstructed by debris. Make sure the wood material being fed into the chipper is within the recommended size and diameter limits.
5. Unusual Noises or Excessive Heat: Check all moving parts, such as bearings and belts, for any signs of damage, wear, or misalignment. Ensure that all moving parts are properly lubricated according to the manufacturer's recommendations.

Why Choose Raydafon's PTO Wood Chipper?

Raydafon Agricultural Machinery Co., Ltd. is a leading manufacturer of agricultural machinery, including PTO shafts, agricultural gearboxes, chains, pulleys, and sprockets. With more than 100 employees, including 20 technical staff and five senior R&D personnel, Raydafon boasts strong production technology and advanced equipment. We produce a wide range of farming machinery and accessories, all of which are set up by the main tractor manufacturers in China. Our products are sold across the country and are exported to various countries and regions around the world. With over a decade of production experience, Raydafon is committed to excellence in quality and performance. All our products are complete in specifications, excellent in performance, and reliable in quality. We offer a comprehensive range of agricultural machinery, from drum mowers and rotary hay rakes to flail mowers and lawn mowers. Our PTO wood chipper is one of our top-selling products, known for its efficiency, durability, and versatility. At Raydafon, we understand the unique needs of our customers and offer customized services to meet those needs. Our team of experts is always ready to provide professional guidance and after-sales service to ensure you get the most out of your Raydafon products.

Professionalism

Raydafon prides itself on its professionalism. With a team of skilled technical staff and experienced R&D personnel, we strive to deliver the best products and services to our customers. We use CAD computer-aided design systems for precision and accuracy in our product designs. Our focus on professionalism extends to our customer service, where we aim to provide prompt and efficient service to all our customers.

International Certifications

All our products are certified with CE ISO standards, ensuring they meet international quality standards. Our commitment to quality and safety has earned us a reputation as a trusted manufacturer of agricultural machinery.

Customized Services

We understand that every customer's needs are unique. That's why we offer customized services to meet your specific requirements. Whether you need a specific color for your wood chipper or a particular feeding system, we can customize our products to suit your needs.

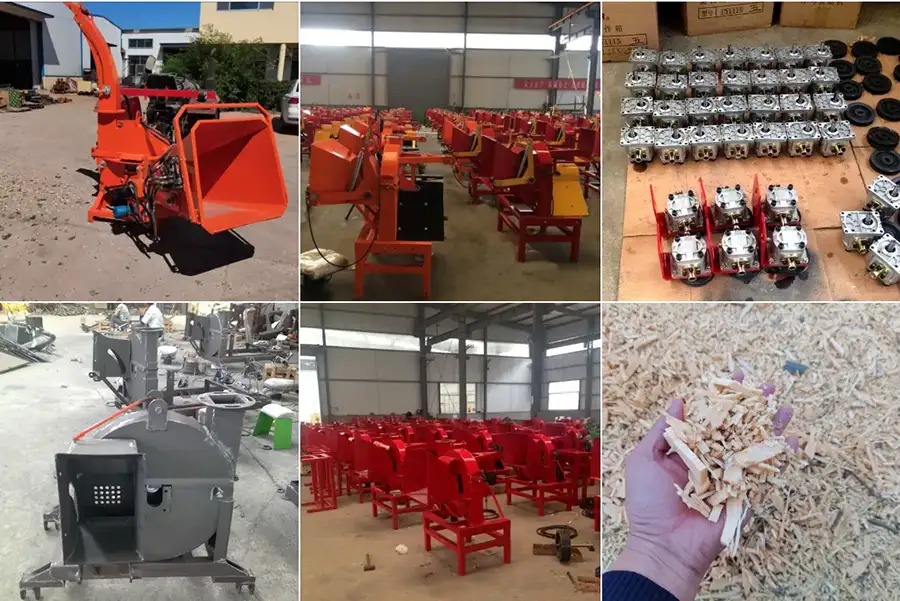

Production Facilities

Our production facilities are equipped with advanced machinery and technology. From lathing and milling to stamping and electric welding, we have all the necessary equipment to produce high-quality agricultural machinery. Additionally, we have two advanced casting, forging, machining, heat treatment, and lacquering production lines, ensuring efficiency and speed in our production process.

After-Sales Services

Our commitment to our customers doesn't end at the point of sale. We offer comprehensive after-sales services, providing support and assistance long after your purchase. Our team is always ready to help with any queries or issues you may have with our products. Author: Yjx
