NEW Designed WC-8 Commercial Wood Chipper For Sale
  • NEW Designed WC-8 Commercial Wood Chipper For SaleNEW Designed WC-8 Commercial Wood Chipper For Sale

NEW Designed WC-8 Commercial Wood Chipper For Sale

Introducing the NEW Designed WC-8 Commercial Wood Chipper For Sale by Raydafon Group, a powerful machine for shredding wood into fine chips, ideal for landscaping and forestry professionals. Its durable steel construction, efficient cutting blades, and compact design ensure smooth operation and reduced workload, solving waste management challenges while boosting productivity. With enhanced safety features and low maintenance, it stands out for reliability in harsh conditions, making outdoor tasks easier and more efficient, leading to a cleaner, cost-effective workspace.

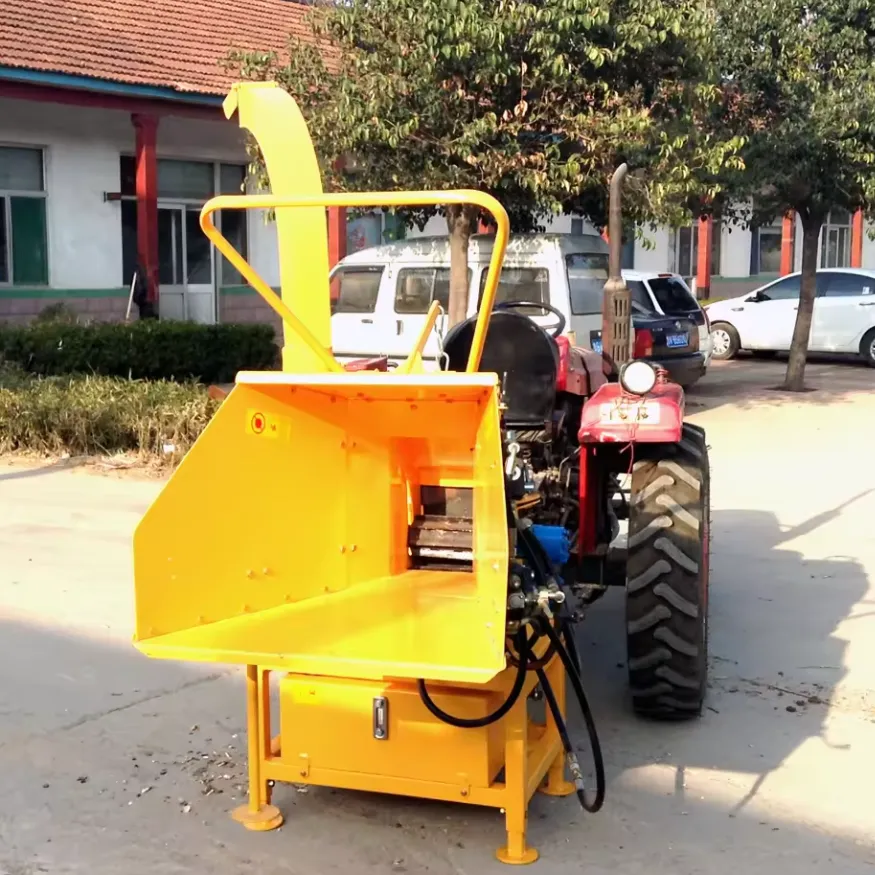

Presenting the newly designed WC-8 Commercial Wood Chipper, tailor-made for the farming industry. This state-of-the-art chipper comes with a one-year warranty and is powered by a Tractor PTO drive. Weighing in at 390KG, this compact machine sports dimensions of 1600*1020*1400mm and is a valuable addition to any farm. The chipper is designed with two rotary blades and one stationary blade, making it capable of chipping wood and tree branches up to a maximum diameter of 20cm/8 inches. With a hydraulic feeding system, this chipper offers the options of a red, green, or orange finish, or a customized color based on your preference.

Advantages of the WC-8 Commercial Wood Chipper

The WC-8 Commercial Wood Chipper comes with numerous advantages, making it a superior choice for handling wood chipping tasks. Here are six key benefits:

  1. Efficient Performance: The chipper comes with two rotary blades and one stationary blade, ensuring efficient and uniform chipping of wood and branches.
  2. Highly Versatile: With adjustable settings, the chipper can handle a variety of wood sizes up to a maximum diameter of 20cm/8 inches.
  3. Durable Construction: Built to last, the chipper features core components like bearings and pressure vessels that come with a one-year warranty.
  4. Tractor PTO Driven: The chipper is powered by a tractor PTO drive, allowing for easy operation and maintenance.
  5. Convenient Feeding System: The chipper comes with a hydraulic feeding system, ensuring smooth and efficient feeding of wood material.
  6. Customizable Appearance: Available in red, green, or orange, the chipper can also be customized to your preferred color.

NEW Designed WC-8 Commercial Wood Chipper For Sale

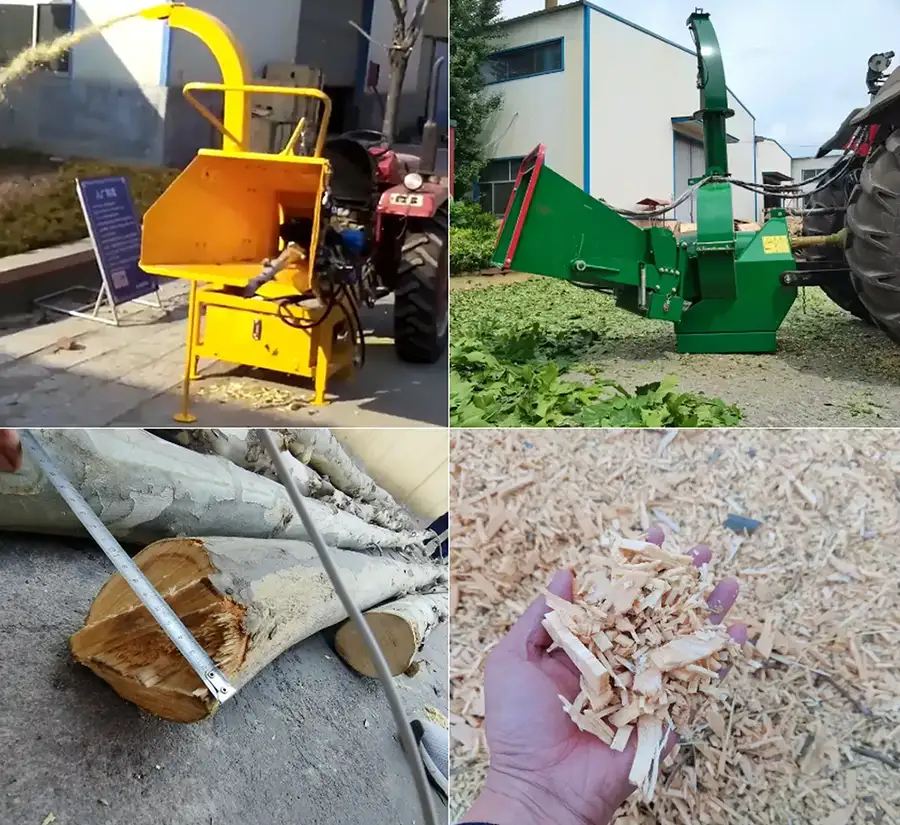

Applications of the WC-8 Commercial Wood Chipper

The WC-8 Commercial Wood Chipper is a highly versatile machine with a wide range of applications. Here are six key areas where this chipper can be effectively used:

  1. Farming: Ideal for use in farming industries, the chipper can efficiently process branches, logs, and other wood waste into useful chips.
  2. Landscaping: With its efficient chipping capability, the chipper is perfect for landscaping tasks, turning branches and logs into mulch for gardens and parks.
  3. Waste Management: The chipper can be used for efficient disposal of wood waste, turning it into chips that can be easily transported or used as mulch.
  4. Construction: In construction sites, the chipper can help in managing and disposing of wood waste, reducing the overall waste management cost.
  5. Tree Services: Tree service companies can use the chipper to process branches and logs, making waste disposal easier and more efficient.
  6. NEW Designed WC-8 Commercial Wood Chipper For Sale
  7. Wood Recycling: The chipper can be used in wood recycling operations, turning waste wood into chips that can be used for various applications.

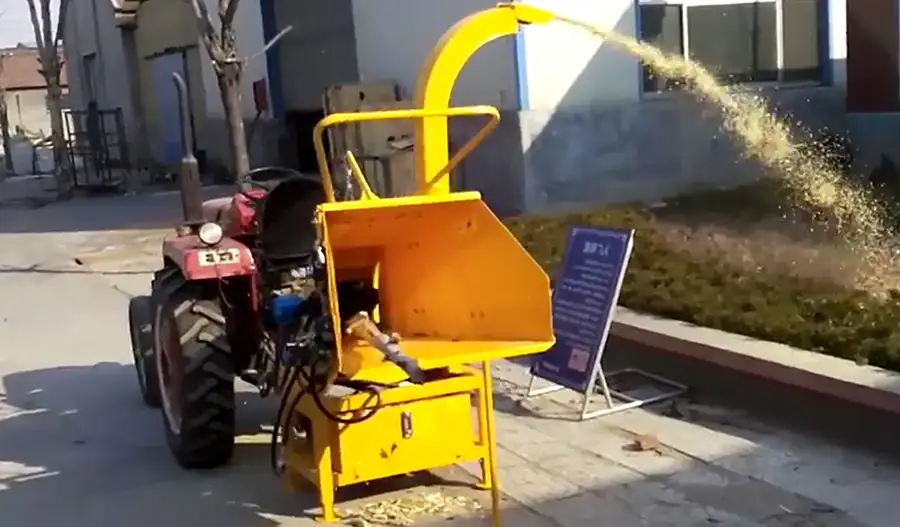

How Does the Tractor PTO Wood Chipper Work?

A 3-point hitch tractor PTO wood chipper is designed to be attached to the rear of a tractor using the tractor's 3-point hitch system. This system allows for easy attachment and detachment of the chipper to the tractor. Here's how a 3-point hitch tractor PTO wood chipper works:

  1. Attachment: The chipper is positioned behind the tractor and aligned with the tractor's 3-point hitch. The lower arms of the hitch are connected to the chipper's frame, while the top link is attached to the top of the hitch. Secure the attachment with pins or latches to ensure a stable connection.
  2. Power Source: The chipper is powered by the tractor's PTO (Power Take-Off) shaft. The PTO shaft is connected to the chipper's drivetrain, which transfers power from the tractor's engine to the cutting mechanism of the chipper.
  3. Input Hopper: The wood material to be chipped is fed into the chipper through the input hopper. The hopper is usually equipped with safety features, such as a chute or cover, to prevent accidental contact with the cutting mechanism. Some chippers may have a self-feeding mechanism that assists in pulling the wood material into the chipper.
  4. Cutting Mechanism: Inside the chipper, there is a heavy-duty rotor equipped with sharp blades or knives. The rotor is connected to the chipper's drivetrain and is powered by the tractor's PTO. As the rotor spins at high speed, it draws in the wood material from the input hopper and cuts it into smaller pieces. The size of the wood chips or mulch can be adjusted using the chipper's settings.
  5. Discharge Chute: Once the wood is chipped, it is discharged through a chute or spout. The discharge chute can often be adjusted to direct the chips into a container or onto the ground in a specific location.
  6. Tractor Controls: The operator controls the operation of the chipper using the tractor's controls. This includes engaging and disengaging the PTO, controlling the tractor's speed, and adjusting the tractor's position to feed the wood material into the chipper effectively.

NEW Designed WC-8 Commercial Wood Chipper For Sale

How to Install the 3 Point Hitch PTO Wood Chipper to Tractor?

Installing a 3-point hitch PTO wood chipper to a tractor involves a few steps to ensure a secure and proper attachment. Here's a general guide on how to install a 3-point hitch PTO wood chipper to a tractor:

  1. Prepare the Chipper and Position the Tractor: Before attaching the chipper to the tractor, make sure it is on a level surface and in a position that allows easy access to the attachment points. Park the tractor on a level surface, engage the parking brake, and turn off the engine. Ensure the tractor's hitch is in the lowered position.
  2. Align the Chipper: Position the chipper behind the tractor, aligning the lower arms of the tractor's 3-point hitch with the attachment points on the chipper. The attachment points are typically located on the chipper's frame.
  3. Attach the Lower Arms: Connect the lower arms of the tractor's 3-point hitch to the attachment points on the chipper. Insert the pins or latches through the holes in the arms and attach them securely. Make sure the pins or latches are properly inserted and locked in place.
  4. NEW Designed WC-8 Commercial Wood Chipper For Sale
  5. Adjust the Top Link: The top link of the tractor's 3-point hitch should be adjusted to match the height of the attachment point on the chipper. Extend or retract the top link as needed to align the holes on the top link with the attachment point on the chipper. Insert the pin or latch and secure it tightly.
  6. Connect the PTO Shaft: Locate the PTO shaft on the chipper and the PTO output shaft on the tractor. Line up the splines on both shafts and slide them together. Ensure the locking mechanism engages properly and secures the PTO shaft in place.
  7. Check the Attachment: Once all the connections are made, visually inspect the attachment to ensure it is secure and properly aligned. Shake the chipper slightly to check for any excessive movement or looseness.
  8. NEW Designed WC-8 Commercial Wood Chipper For Sale
  9. Test the Operation: Start the tractor's engine and engage the PTO according to the manufacturer's instructions. Observe the chipper's operation to ensure it is functioning correctly and that there are no unusual vibrations or noises. Check the feeding, cutting, and discharge mechanisms for smooth operation.

Common Troubleshooting for the PTO Wood Chipper

While a 3-point hitch tractor PTO wood chipper is a reliable machine, there may be instances where troubleshooting is necessary to address any issues that arise during operation. Here are some common troubleshooting steps for a 3-point hitch tractor PTO wood chipper:

  1. Chipper Does Not Start: Check the PTO engagement, ensure that the PTO is properly engaged and the PTO shaft is securely connected to the tractor's PTO output shaft. Make sure the tractor's engine is running at the recommended RPM to provide sufficient power to the chipper. Inspect the electrical connections and wiring to ensure there are no loose or damaged connections.
  2. Chipper Vibrates Excessively: Check for loose components, inspect all bolts, nuts, and fasteners to make sure they are tightened securely. Check the blades or knives on the cutting mechanism for any damage or dullness. Replace or sharpen them as needed. Ensure that the chipper is properly aligned with the tractor's hitch and the drivetrain is aligned with the PTO shaft.
  3. Chipper Produces Inconsistent Chip Sizes: If the chipper has an adjustable cutting system, ensure the blades are properly positioned for the desired chip size. Adjust the feed rate to ensure a steady and consistent flow of material into the chipper.
  4. Chipper Clogs or Material Does Not Feed Properly: Check feed mechanism, ensure that the feed mechanism, such as rollers or self-feeding system, is functioning correctly and not obstructed by debris. Make sure the wood material being fed into the chipper is within the recommended size and diameter limits. Remove any oversized or knotty pieces that may cause clogging.
  5. Unusual Noises or Excessive Heat: Inspect moving parts, check all moving parts, such as bearings and belts, for any signs of damage, wear, or misalignment. Replace or repair as necessary. Ensure that all moving parts are properly lubricated according to the manufacturer's recommendations.

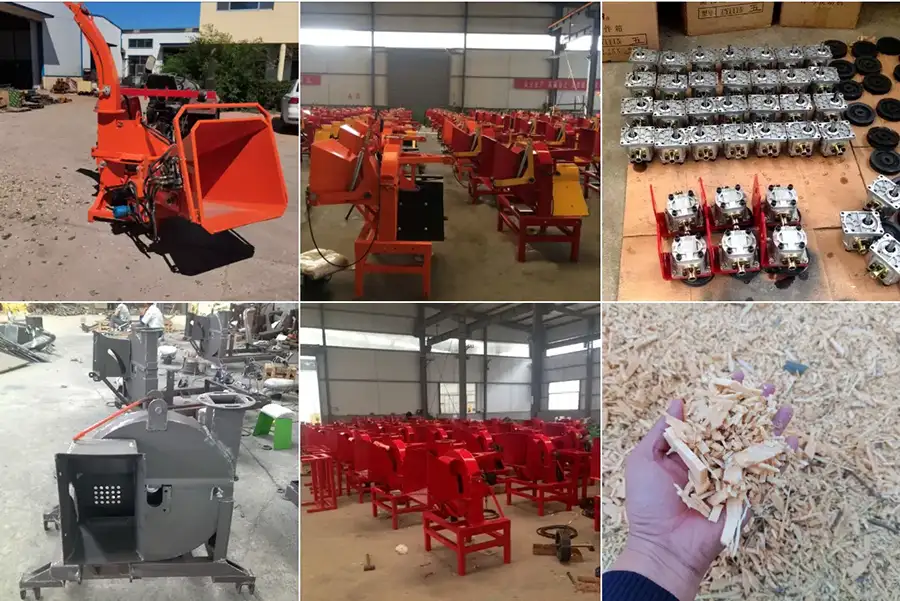

Why Choose Raydafon's PTO Wood Chipper?

When it comes to choosing a PTO wood chipper, Raydafon Agricultural Machinery Co., Ltd. stands out as a leading choice. Here are some key reasons why Raydafon's PTO Wood Chipper is your best option:

NEW Designed WC-8 Commercial Wood Chipper For Sale

  1. Experience and Expertise: With over 100 employees, including 20 technical staff and five senior R&D personnel, Raydafon has more than ten years of experience in producing high-quality farming machinery.
  2. Advanced Technology and Facilities: Raydafon uses CAD computer-aided design systems and boasts advanced production lines for casting, forging, machining, heat treatment, and lacquering. This ensures the production of top-quality products.
  3. Wide Range of Products: Raydafon produces a wide variety of farming machinery and accessories, catering to the needs of different types of agricultural tasks. From PTO shafts and agricultural gearboxes to corn seeders, drum mowers, rotary hay rakes, flail mowers, and more, Raydafon has got you covered.
  4. Quality Assurance: All products produced by Raydafon are of superior quality and performance. This ensures that your farming tasks are handled efficiently and effectively.
  5. Excellent After-Sales Service: Raydafon offers comprehensive after-sales service, including training on how to install and use the machine, and quick delivery of spare parts. This ensures that you can use your Raydafon PTO Wood Chipper with confidence and ease.

Video: PTO Wood Chipper in Action

Watch this video to see the Raydafon PTO Wood Chipper in action:
