NK140B Standard Bore Sprocket

NK140B Standard Bore Sprocket

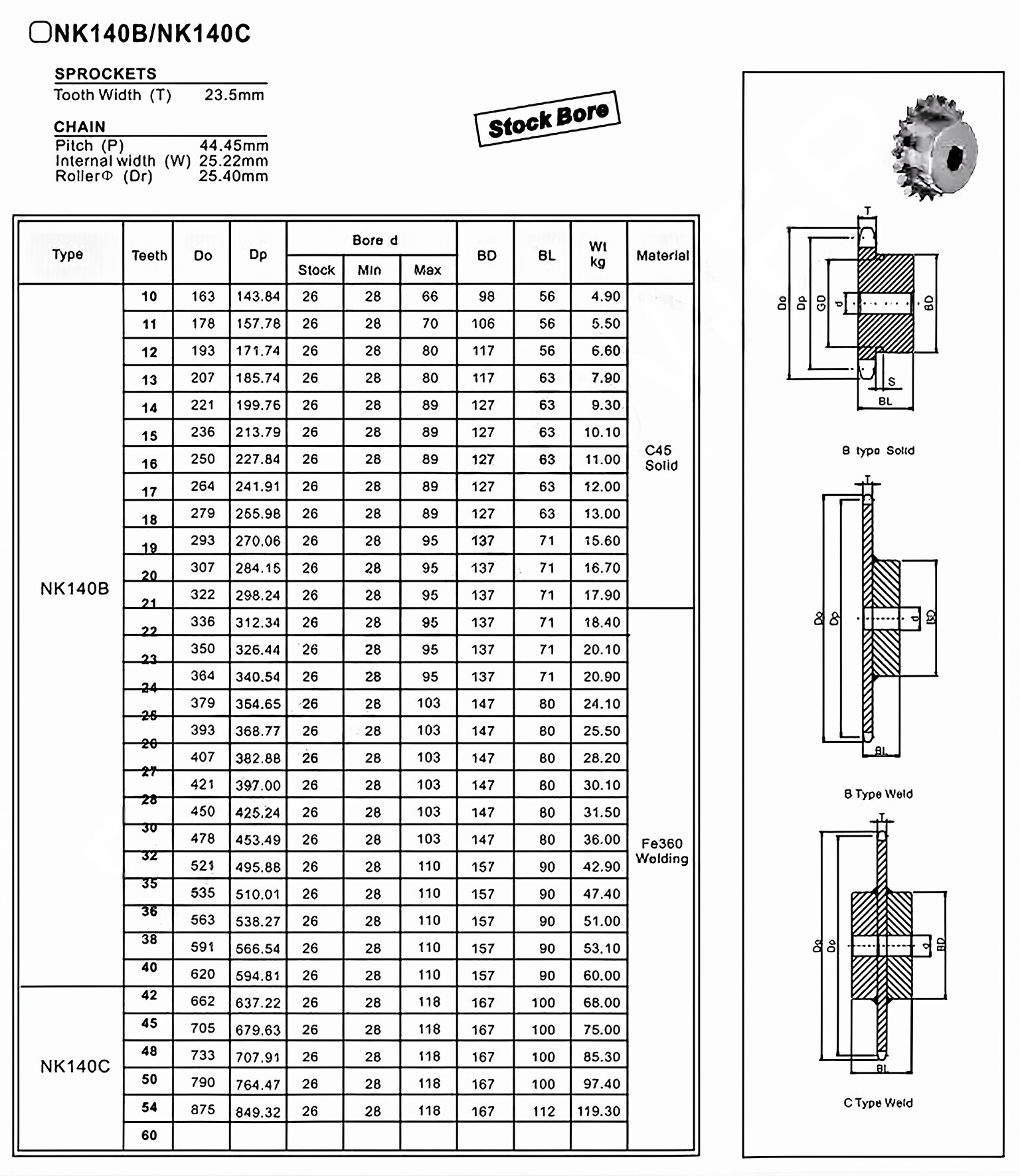

A standard bore sprocket is a key component in various mechanical systems. It is designed to transmit rotational motion between two or more shafts using a chain. The NK140B Standard Bore Sprocket, as shown in the selection chart below, is a high-quality sprocket that meets industry standards.

Basic Structure of a Sprocket

A sprocket consists of several essential components that need to be considered when customizing it. These components include:

1. Material: The sprocket can be made of high carbon steel, alloy steel, or stainless steel, depending on the application requirements.
2. Tooth Profile: The shape of the teeth on the sprocket determines how the chain engages with it and affects the overall performance.
3. Number of Teeth: The number of teeth on the sprocket determines the speed ratio and torque transmission.
4. Dimensions: The overall dimensions of the sprocket, such as outer diameter and thickness, need to be specified according to the system requirements.
5. Bore: The center hole of the sprocket needs to be sized correctly to fit the shaft it will be mounted on.
6. Keyway: If necessary, a keyway can be added to ensure proper shaft-to-sprocket connection.
7. Surface Treatment: The sprocket can undergo various surface treatments, such as rust prevention, to enhance its durability and performance.

Material and Manufacturing Process

Our sprockets are made from high-quality materials and undergo precise manufacturing processes to ensure their reliability and longevity. The materials used can be high carbon steel, alloy steel, or stainless steel, depending on the specific requirements of the application. The manufacturing process includes:

• Material Selection: The appropriate material is chosen based on the application's demands.
• Cutting and Stamping: The selected material is cut and stamped to form the initial shape of the sprocket.
• Machining: Various machining techniques, such as turning, milling, and drilling, are employed to achieve the desired dimensions and tooth profile.
• Heat Treatment: The sprocket undergoes heat treatment processes like quenching, tempering, and surface hardening to enhance its hardness and strength.
• Surface Treatment: Surface treatments are applied to prevent rust and corrosion and ensure optimal performance.
• Quality Inspection: Each sprocket undergoes rigorous quality inspection to ensure it meets the required standards and specifications.

Applications

Our NK140B Standard Bore Sprocket finds applications in various industries, including:

• Heavy Machinery and Equipment: The sprocket is commonly used in heavy-duty machinery and equipment for power transmission.
• Food Processing and Packaging: The sprocket plays a vital role in the food industry for conveying and packaging processes.
• Chemical and Pharmaceutical: In chemical and pharmaceutical applications, the sprocket is used for precise and efficient material handling.
• Assembly Lines: The sprocket is an integral component in assembly lines to facilitate smooth and synchronized operations.
• Logistics and Warehousing: Sprockets are utilized in conveyor systems for transportation and storage purposes.

Maintenance and Troubleshooting

Proper maintenance and regular inspection are essential to ensure the optimal performance and longevity of the sprocket. The following maintenance practices should be followed:

• Daily Checks: Regularly inspect the sprocket for any signs of wear, damage, or misalignment.
• Cleaning: Keep the sprocket clean from dirt, debris, and other contaminants that may affect its performance.
• Lubrication: Apply appropriate lubrication to reduce friction and ensure smooth operation.
• Adjustment and Calibration: Periodically check and adjust the tension and alignment of the chain and sprocket.

Common problems that may occur with sprockets include tooth skipping, breakage, wear, excessive noise, and chain detachment. The following solutions can help resolve these issues:

• Tooth Skipping: Check for misalignment or excessive wear and realign or replace the sprocket accordingly.
• Breakage: Inspect the sprocket for any signs of fatigue or overload, and replace it if necessary.
• Wear: Regularly monitor the wear patterns and replace the sprocket before it reaches its critical wear limit.
• Excessive Noise: Ensure proper lubrication and check for misalignment or damaged teeth.
• Chain Detachment: Verify the tension and alignment of the chain, and replace any damaged or worn-out components.

Other Types of Sprockets

In addition to the NK140B Standard Bore Sprocket, we also offer a range of other sprocket types to meet various application needs:

These include platewheel sprockets, idler sprockets, QD sprockets, taper lock sprockets, and more. We provide matching chains for these sprockets to ensure optimal compatibility and performance.

Author: Miya
