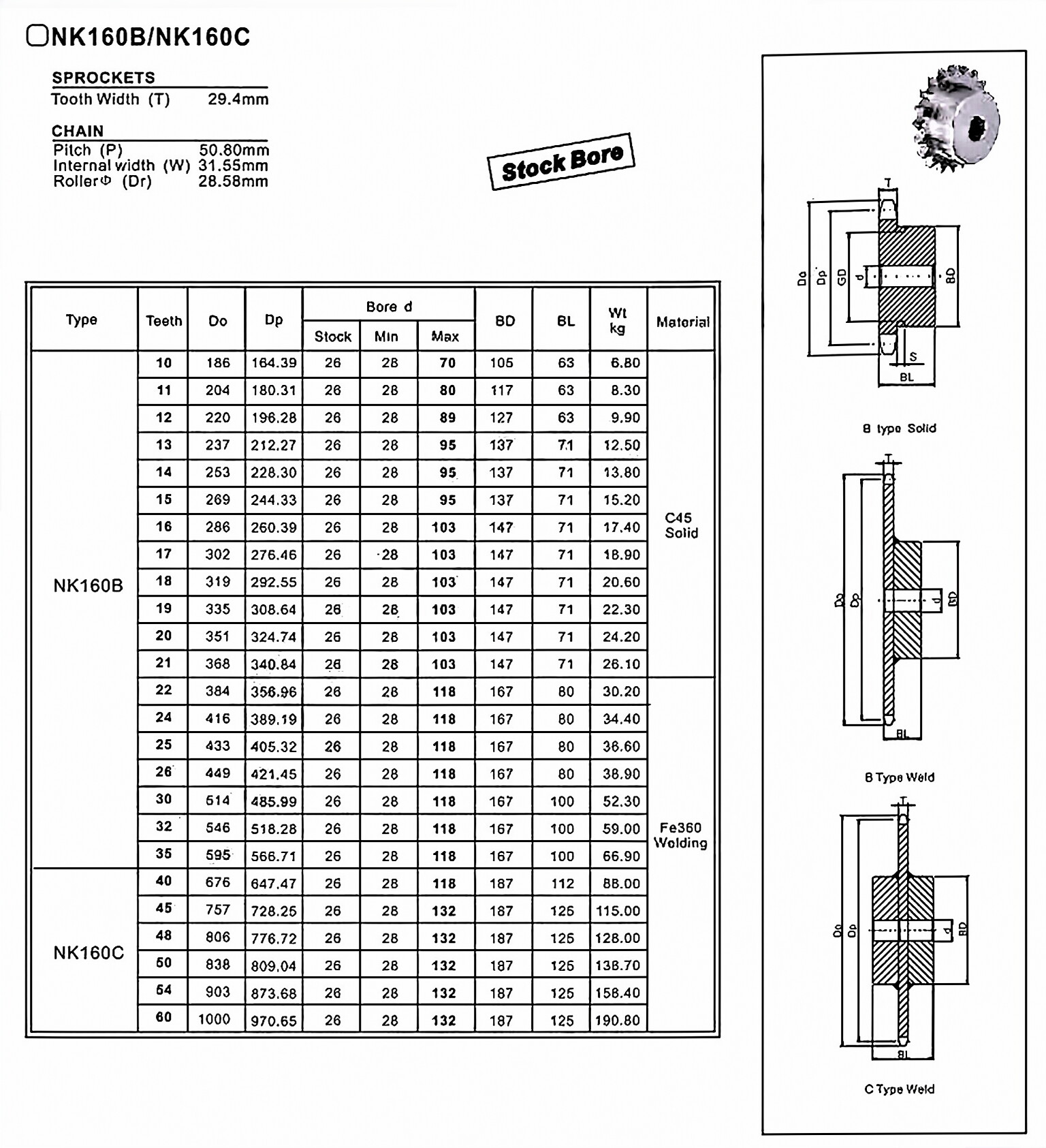

NK160C Standard Bore Sprocket

NK160C Standard Bore Sprocket

Introduction to Standard Bore Sprocket

A standard bore sprocket is a key component in power transmission systems. It is commonly used in various industries to transfer rotational motion between shafts by engaging with a chain. The standard bore sprocket features a hub with a pre-bored center hole that allows it to be easily mounted on a shaft. This type of sprocket is widely used due to its versatility and compatibility with different chain sizes.

Key Factors for Customized Sprockets

• Material: The choice of material affects the sprocket's strength, durability, and resistance to wear. Common options include high carbon steel, alloy steel, or stainless steel.
• Tooth Profile: The tooth profile determines how the sprocket engages with the chain. Different tooth profiles are suitable for different types of chains.
• Number of Teeth: The number of teeth on the sprocket determines the speed ratio between driving and driven shafts.
• Dimensions: The dimensions of the sprocket, including outer diameter and thickness, need to be carefully determined based on the specific application requirements.
• Center Hole: The center hole size and configuration should match the shaft diameter and keyway specifications for proper mounting.
• Keyway: The keyway allows the sprocket to be securely attached to the shaft, preventing any rotational slippage.
• Surface Treatment: Proper surface treatment such as rust prevention coating or heat treatment can enhance the sprocket's corrosion resistance and durability.

Materials and Manufacturing Processes

• Material: Our sprockets are made from high-quality materials such as high carbon steel, alloy steel, or stainless steel. The selection of material depends on the specific application requirements.
• Manufacturing Processes: Our sprockets undergo a series of manufacturing processes to ensure their quality and performance. These processes include material selection and cutting, forging or stamping, machining through turning, milling, and drilling, heat treatment for hardening and tempering, surface treatment for rust prevention, and quality inspections to meet industry standards.

Applications

• Heavy Machinery and Equipment: Standard bore sprockets are widely used in heavy machinery and equipment, such as construction machinery, mining equipment, and agricultural machinery.
• Food Processing and Packaging: The sprockets find applications in food processing and packaging equipment, ensuring efficient and reliable production processes.
• Chemical and Pharmaceutical Industries: Sprockets are essential components in chemical and pharmaceutical manufacturing processes, handling various types of conveyors and rotary equipment.
• Assembly Lines: Sprockets are used in assembly line systems to transfer motion and power between different stages of production.
• Logistics and Warehousing: Sprockets are utilized in conveyor systems for logistics and warehousing operations, facilitating the movement of goods and materials.

Maintenance and Troubleshooting

Proper maintenance of the sprocket is crucial for ensuring its longevity and optimal performance. Here are some key maintenance practices:

• Daily Inspection: Regularly inspect the sprocket for any signs of wear, damage, or misalignment.
• Cleaning: Remove any dirt, debris, or lubricant buildup from the sprocket to prevent performance issues.
• Lubrication: Apply appropriate lubrication to ensure smooth operation and reduce friction between the sprocket and chain.
• Adjustment and Calibration: Periodically check and adjust the tension and alignment of the chain to ensure proper engagement with the sprocket.

Common sprocket problems and their corresponding solutions include:

• Tooth Skipping: Check the chain tension and alignment, and replace any worn-out components.
• Breakage: Inspect the sprocket for signs of fatigue or excessive wear, and replace it if necessary.
• Wear: Regularly check the sprocket and chain for signs of wear, and replace them if they exceed the recommended limits.
• Noise: Ensure proper lubrication and alignment, and replace any damaged or worn-out components.
• Chain Slippage: Verify the chain tension and alignment, and adjust or replace components as needed.

Other Types of Sprockets

In addition to the NK160C Standard Bore Sprocket, we also offer various other types of sprockets to meet different application needs:

• Platewheel Sprocket
• Idler Sprocket
• QD Sprocket
• Taper Lock Sprocket

Author: Miya
