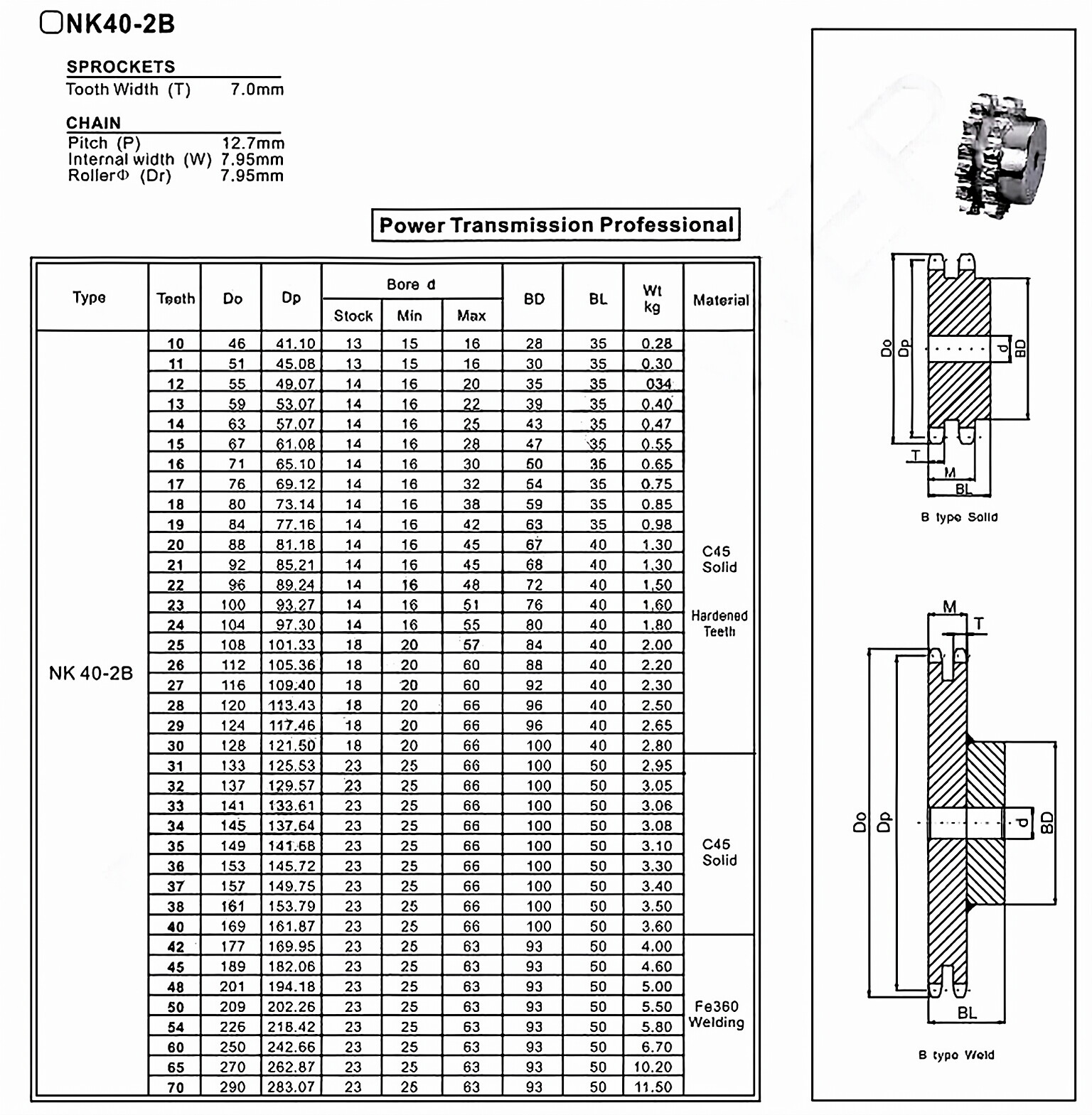

NK40-2B Standard Bore Sprocket

NK40-2B Standard Bore Sprocket

A standard bore sprocket is a type of sprocket that has a predrilled hole, or bore, to fit a specific type of shaft. The NK40-2B Standard Bore Sprocket is an example of this type of sprocket. It has a bore size of 5/8 inch and is made from high-quality steel to ensure durability and longevity.

Basic Structure of Sprocket and Customization Options

A sprocket is a wheel with teeth that meshes with a chain to transmit torque from one component to another. The basic structure of a sprocket consists of a hub, spoke, and teeth. When customizing a sprocket, the following parameters need to be considered:

• Material: The material of the sprocket depends on the application and the environment in which it will be used. Common materials used for sprockets are high carbon steel, alloy steel, and stainless steel.
• Tooth profile: The tooth profile of the sprocket determines the type of chain that can be used with it. Common tooth profiles include ANSI, BS, and DIN standards.
• Number of teeth: The number of teeth on the sprocket determines the speed ratio between the driver and driven components.
• Size: The size of the sprocket depends on the diameter of the shaft and the pitch of the chain.
• Bore size: The bore size of the sprocket must be compatible with the diameter of the shaft on which it will be mounted.
• Keyway: The keyway is a slot in the bore of the sprocket that allows a key to be inserted to prevent the sprocket from rotating on the shaft.
• Surface treatment: The surface of the sprocket can be treated to provide protection against corrosion and wear. Common treatments include black oxide, zinc plating, and nickel plating.

Materials and Manufacturing Process

The NK40-2B Standard Bore Sprocket is made from high-quality steel and is manufactured using the following processes:

• Material selection: The material used for the sprocket is carefully selected based on the application and environment in which it will be used. High carbon steel, alloy steel, and stainless steel are commonly used.
• Cutting and stamping: The sprocket is cut and stamped to the desired shape and size using CNC machines.
• Heat treatment: The sprocket is heat-treated to improve its strength and durability. This involves quenching and tempering the steel to achieve the desired hardness.
• Machining: The sprocket is machined to the desired dimensions and surface finish using lathes, mills, and drilling machines.
• Surface treatment: The sprocket is treated to protect against corrosion and wear. Common treatments include black oxide, zinc plating, and nickel plating.
• Quality control: The sprocket is inspected at each stage of the manufacturing process to ensure that it meets the required specifications and standards.

Applications

The NK40-2B Standard Bore Sprocket is suitable for use in a wide range of applications, including:

• Heavy machinery and equipment: Sprockets are commonly used in heavy machinery and equipment to transmit torque from one component to another.
• Food processing and packaging: Sprockets are used in food processing and packaging equipment to ensure reliable and efficient operation.
• Chemical and pharmaceutical: Sprockets are used in chemical and pharmaceutical equipment where hygiene and cleanliness are critical.
• Assembly lines: Sprockets are used in assembly line equipment to transfer components from one station to another.
• Logistics and warehousing: Sprockets are used in conveyor systems to move goods from one location to another.

Maintenance and Troubleshooting

To ensure that sprockets operate reliably and efficiently, regular maintenance is required. The following maintenance procedures should be performed:

• Daily inspection: Sprockets should be inspected daily for signs of wear, damage, and misalignment.
• Cleaning: Sprockets should be cleaned regularly to remove dirt, debris, and other contaminants.
• Lubrication: Sprockets should be lubricated regularly to ensure smooth and efficient operation.
• Adjustment and calibration: Sprocket alignment and tension should be checked and adjusted regularly to ensure optimal performance.

Common problems that can occur with sprockets include:

• Skipping teeth: This can be caused by worn or damaged teeth, improper tension, or misalignment.
• Fracture: This can be caused by excessive load, improper material selection, or fatigue.
• Wear: This can be caused by abrasion from the chain or environmental factors.
• Noise: This can be caused by misalignment, worn or damaged teeth, or loose mounting.
• Chain disengagement: This can be caused by worn or damaged teeth, improper tension, or misalignment.

To address these problems, the following solutions can be applied:

• Replace sprocket: If the sprocket is worn or damaged, it should be replaced.
• Adjust tension: If the tension is too loose or too tight, it should be adjusted to the manufacturer's specifications.
• Align sprocket: If the sprocket is misaligned, it should be realigned to the manufacturer's specifications.
• Lubricate: If the sprocket is noisy or not running smoothly, it should be lubricated.

Other Types of Sprockets

In addition to the NK40-2B Standard Bore Sprocket, we also offer a range of other types of sprockets, including:

• Platewheel sprocket: A sprocket with a plate or ring attached to it to provide a larger surface area for the chain to engage with.
• Idler sprocket: A sprocket used to guide the chain and maintain tension.
• QD sprocket: A sprocket with a quick-detachable (QD) hub for easy installation and removal.
• Taper lock sprocket: A sprocket with a taper-lock bushing for easy installation and removal.

We also offer a range of chains that are compatible with our sprockets, including roller chains, agricultural chains, and conveyor chains.
