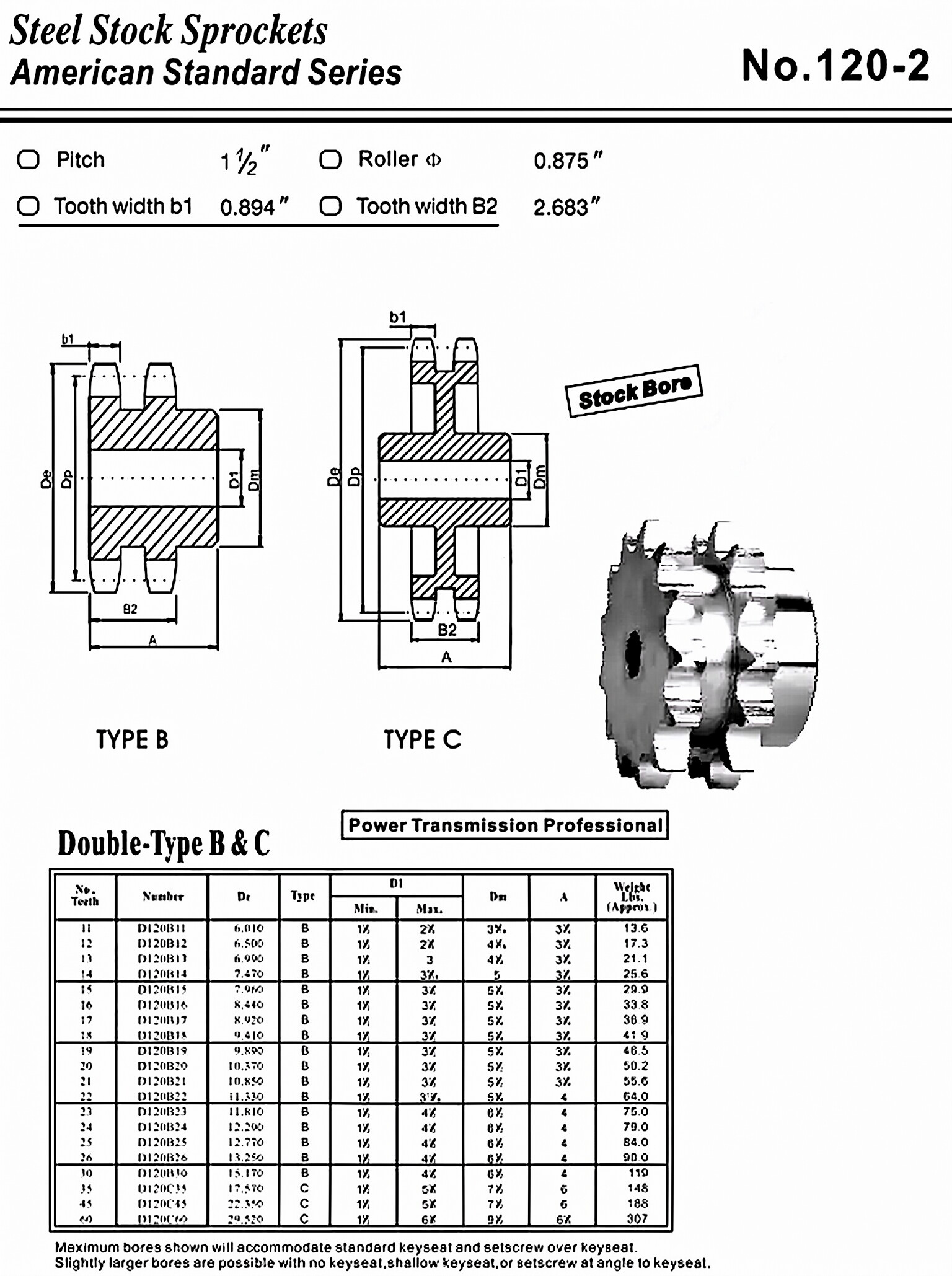

No.120-2 Standard Bore Sprocket

No.120-2 Standard Bore Sprocket

A standard bore sprocket refers to a sprocket with a hole that is already machined to fit onto a specific shaft size without the need for a keyway. It is typically used in applications where the torque is not too high or where the sprocket is not subjected to frequent changes.

Basic Structure of Sprockets and Customization Requirements

A sprocket consists of a body and teeth. The body has a center bore and may also have a keyway, while the teeth provide the engagement surface for the chain. When it comes to customization, the following aspects need to be determined:

• Material: Depending on the application, sprockets can be made from high carbon steel, alloy steel, or stainless steel.
• Tooth profile: The tooth profile needs to be matched with the chain to ensure proper engagement and power transmission.
• Number of teeth: This determines the gear ratio and the speed of the driven shaft.
• Size: The outer diameter of the sprocket needs to be chosen based on the space constraints of the application.
• Center bore: The bore needs to fit the shaft diameter of the mating component.
• Keyway: A keyway can be added to prevent sprocket rotation on the shaft.
• Surface treatment: The surface can be treated to improve wear resistance, corrosion resistance, or aesthetics.

Materials and Manufacturing Process of Our Sprockets

Our sprockets are made from high-quality materials and manufactured using advanced processes. Depending on the material and application, the following processes may be used:

• Material selection: We carefully choose the right material to suit the specific application requirements.
• Cutting: We use the latest cutting technologies to ensure precise and smooth cuts.
• Forming: Our forming processes include punching, stamping, and forging, which can achieve high precision and strength.
• Machining: We use CNC machines to achieve high accuracy and consistency in dimensions and tolerances.
• Heat treatment: We use heat treatment methods such as quenching, tempering, and surface hardening to improve the mechanical properties of the sprocket.
• Surface treatment: We can apply various surface treatments such as plating, coating, and painting to improve the appearance and performance of the sprocket.
• Quality control: We have rigorous quality control procedures to ensure that every sprocket we make meets the highest standards.

Applications of No.120-2 Standard Bore Sprocket

Our No.120-2 Standard Bore Sprocket can be used in a variety of applications, including:

• Heavy machinery and equipment: Our sprockets are suitable for use in heavy machinery and equipment such as excavators, bulldozers, and cranes.
• Food processing and packaging: Our sprockets can be used in the food industry, where hygiene and cleanliness are critical.
• Chemical and pharmaceutical: Our sprockets are resistant to corrosion and chemical damage, making them suitable for use in chemical and pharmaceutical applications.
• Assembly lines: Our sprockets are used in assembly lines to drive conveyor belts and other equipment.
• Logistics and warehousing: Our sprockets are used in conveyor systems for sorting, packing, and transporting goods.

Maintenance and Troubleshooting of Sprockets

To ensure the longevity and performance of your sprockets, regular maintenance is essential. Here are some maintenance tips:

• Daily inspection: Inspect the sprocket regularly for wear, damage, and misalignment.
• Cleaning: Clean the sprocket regularly to remove dirt, dust, and debris.
• Lubrication: Apply lubricant to the sprocket to reduce friction and wear.
• Adjustment and calibration: Check the sprocket alignment and tension regularly and adjust if necessary.

Here are some common problems that may occur with sprockets and their solutions:

• Skipping teeth: This can be caused by worn or damaged teeth, loose chains, or misaligned sprockets. Replace the sprocket or chain if necessary, and adjust the tension and alignment.
• Breakage: This can be caused by excessive load, fatigue, or corrosion. Replace the sprocket if necessary, and inspect the chain and other components for damage.
• Wear: This can be caused by prolonged use, abrasive particles, or poor lubrication. Replace the sprocket if necessary, and check and improve the lubrication system.
• Noise: This can be caused by misaligned sprockets, loose chains, or worn components. Adjust the alignment and tension, and replace any damaged components.
• Chain falling off: This can be caused by worn or damaged sprockets, loose chains, or misaligned sprockets. Replace the sprocket or chain if necessary, and adjust the tension and alignment.

Other Types of Sprockets We Offer

In addition to No.120-2 Standard Bore Sprocket, we also offer other types of sprockets, including:

• Platewheel sprocket: This type of sprocket has a flat, plate-like shape and is commonly used in heavy-duty applications.
• Idler sprocket: This type of sprocket is used to maintain tension in a chain and prevent slack.
• QD sprocket: This type of sprocket has a quick-detachable bushing that allows for easy installation and removal.
• Taper lock sprocket: This type of sprocket has a taper lock bushing that provides a secure and easy-to-install mounting solution.

Author: Miya
