No.160-2 Standard Bore Sprocket

No.160-2 Standard Bore Sprocket

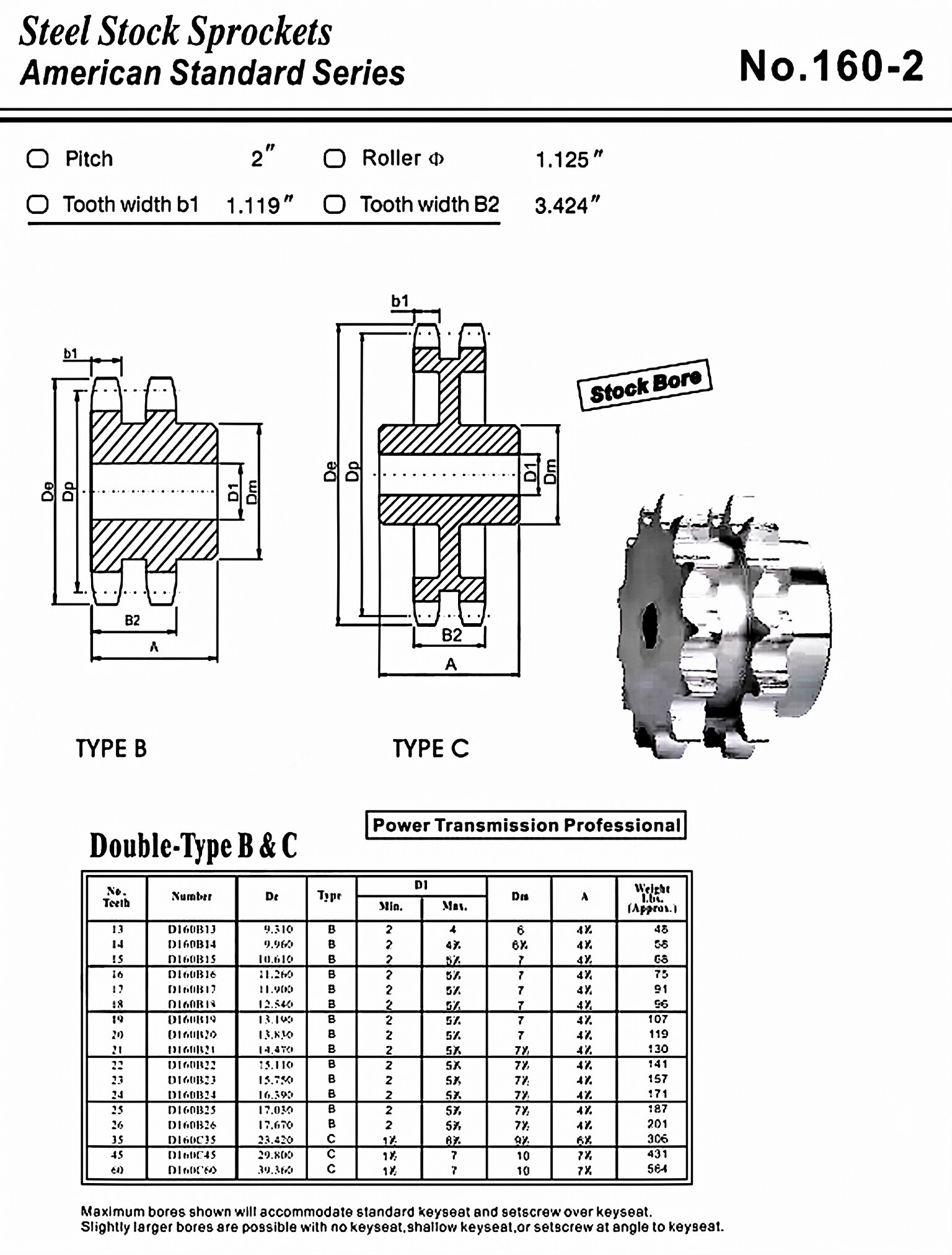

A standard bore sprocket is a type of sprocket that has a pre-determined diameter of the center hole. The No.160-2 Standard Bore Sprocket has a pitch of 2 inches and comes in various sizes for different chain widths. The table below shows the dimensions of the sprocket.

Basic Structure of a Sprocket

A sprocket consists of a plate with teeth, which meshes with a chain. When the sprocket rotates, it drives the chain, which in turn drives other parts of machinery. When customizing a sprocket, several factors need to be determined:

• Material: The material used for a sprocket can affect its durability and strength. Common materials include high-carbon steel, alloy steel, and stainless steel.
• Tooth Profile: The shape and size of the teeth on a sprocket can impact the performance of the chain. Common tooth profiles include standard, S-shaped, and special profiles.
• Number of Teeth: The number of teeth on a sprocket affects the speed ratio between the driving and driven shafts. The number of teeth should be selected based on the specific application.
• Size: The overall size of the sprocket, including its outer diameter and thickness, should be selected based on the available space and desired performance.
• Center Hole: The diameter of the center hole should be selected based on the shaft size of the driving or driven shaft.
• Keyway: The keyway is a slot in the center hole that is used to secure the sprocket to the shaft. The size and shape of the keyway should be selected based on the shaft size and application.
• Surface Treatment: Surface treatments such as plating, painting, or coating can enhance the corrosion resistance and appearance of the sprocket.

Materials and Manufacturing Process Used for Our Sprockets

Our sprockets are made of high-carbon steel or alloy steel, which provides excellent durability and strength. Our manufacturing process includes:

• Material Selection: We carefully select the best materials to ensure our sprockets meet the highest quality standards.
• Cutting: The material is cut into the desired shape using precision cutting tools.
• Forging or Stamping: The rough shape is formed using a forging or stamping process, which ensures a consistent and precise shape.
• Machining: The sprocket is finished to the desired dimensions and surface finish using a variety of machining processes, including turning, milling, drilling, and grinding.
• Heat Treatment: The sprocket is heat-treated to improve its hardness and strength. The process includes quenching, tempering, and surface hardening.
• Surface Treatment: The sprocket is treated with a surface coating or plating to enhance its corrosion resistance and appearance.
• Quality Control: Each sprocket undergoes rigorous quality control procedures to ensure it meets the highest standards of performance and reliability.

Applications of No.160-2 Standard Bore Sprocket

The No.160-2 Standard Bore Sprocket is commonly used in heavy machinery and equipment, food processing and packaging, chemical and pharmaceutical processing, assembly lines, logistics, and warehousing. Its durable design and high-quality construction make it ideal for demanding industrial applications.

Maintenance and Troubleshooting of Sprockets

Maintaining and troubleshooting sprockets is critical to ensure their proper operation and longevity. Some maintenance tips include:

• Daily Inspection: Inspect the sprocket daily for signs of wear or damage.
• Cleaning: Clean the sprocket regularly to remove debris and prevent buildup.
• Lubrication: Lubricate the sprocket regularly to reduce friction and wear.
• Adjustment and Calibration: Adjust and calibrate the sprocket as needed to ensure proper alignment and tension.

Some common issues that can occur with sprockets include teeth skipping, cracking, wear, excessive noise, and chain slippage. These issues can be addressed by adjusting the tension, replacing worn parts, or lubricating the chain and sprocket.

Other Types of Sprockets We Offer

In addition to the No.160-2 Standard Bore Sprocket, we also offer other types of sprockets, including platewheel sprockets, idler sprockets, QD sprockets, and taper lock sprockets. We also offer a range of compatible chains to complement our sprockets. Our products are designed and manufactured to the highest standards of quality and performance.

Author: Miya
