No.50 Standard Bore Sprocket

No.50 Standard Bore Sprocket

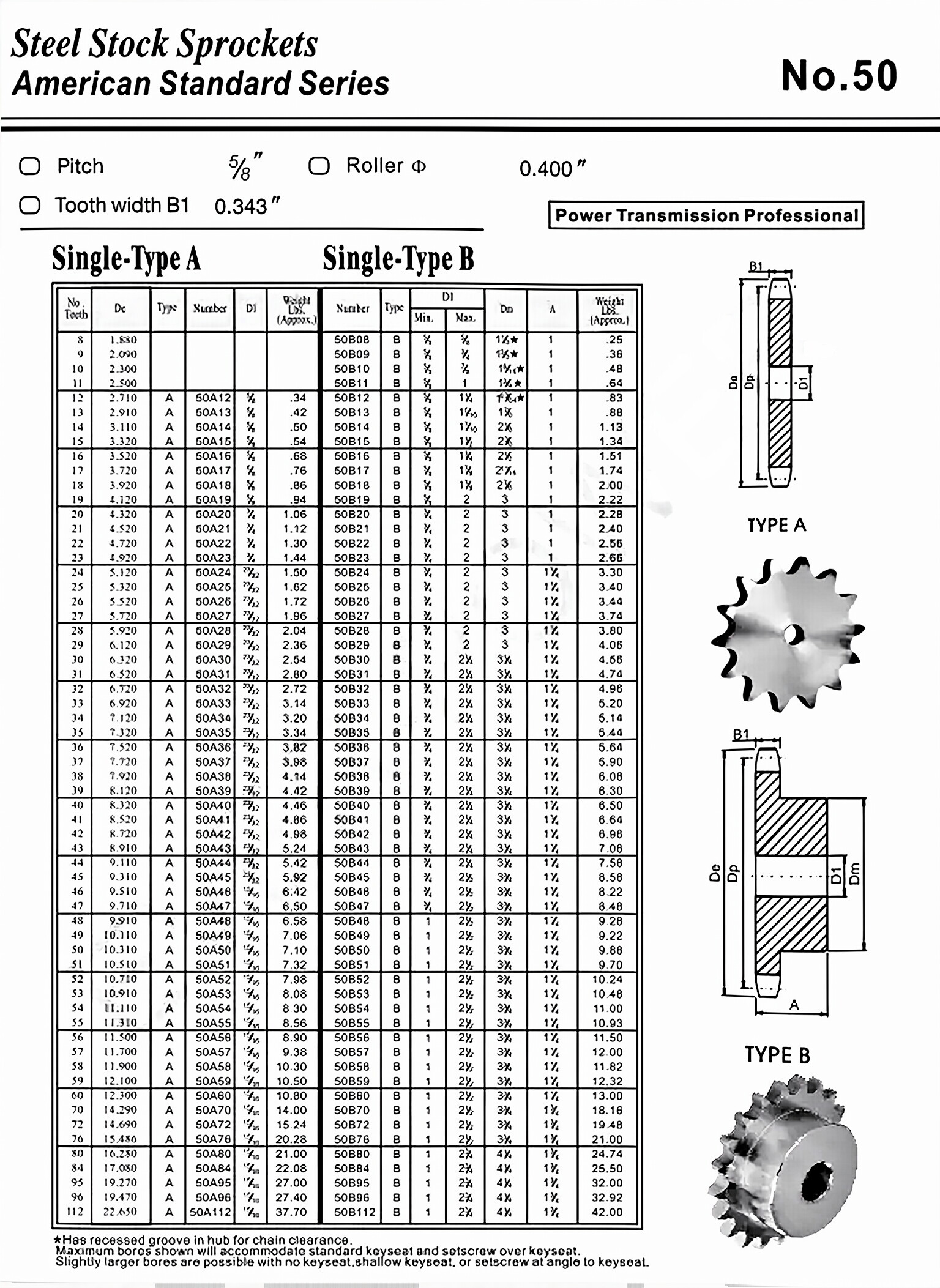

A standard bore sprocket is a device that consists of a wheel with teeth around the circumference, which mesh with a chain or track to transmit power and motion. The No.50 Standard Bore Sprocket is a specific type of standard bore sprocket, which has a bore size of 1-1/4" and 50 teeth. See the selection table below for more details:

Basic Structure and Customization

The basic structure of a sprocket includes the hub, bore, teeth, and keyway. When customizing a sprocket, there are several things to consider:

• Material: The material used for the sprocket depends on the application. Common materials include high carbon steel, alloy steel, and stainless steel.
• Tooth profile: The tooth profile depends on the type of chain or track that will be used.
• Number of teeth: The number of teeth determines the speed ratio and torque transmission capacity.
• Dimensions: The dimensions of the sprocket should match the design requirements.
• Bore size: The bore size should match the shaft diameter of the machine.
• Keyway size: The keyway size should match the key size used in the shaft.
• Surface treatment: The surface of the sprocket can be treated to enhance its performance and durability, such as hardening or coating.

Materials and Processes Used in Our Sprockets

Our sprockets are made of high-quality materials and manufactured using advanced processes, including:

• Material: We use high carbon steel, alloy steel, or stainless steel, depending on the application and customer requirements.
• Process: Our sprockets are made by cutting, stamping, forging, machining, heat treatment, surface hardening, surface treatment, and quality inspection.

Applications

Our sprockets can be used in a wide range of industries and applications, including:

• Heavy machinery and equipment: Sprockets are used in construction equipment, agricultural machinery, and mining equipment.
• Food processing and packaging: Sprockets are used in conveyor systems and packaging equipment in the food industry.
• Chemical and pharmaceutical: Sprockets are used in chemical reactors, mixers, and pharmaceutical production equipment.
• Assembly lines: Sprockets are used in manufacturing and assembly lines for automotive, electronics, and other products.
• Logistics and warehousing: Sprockets are used in conveyor systems and material handling equipment in logistics and warehousing operations.

Maintenance and Troubleshooting

To ensure the proper functioning and longevity of sprockets, regular maintenance and troubleshooting are essential. Here are some tips:

• Daily inspection: Check for wear, damage, and alignment regularly.
• Cleaning: Keep the sprocket clean and free of debris.
• Lubrication: Apply lubricant regularly to reduce friction and wear.
• Adjustment and calibration: Make sure the sprocket is properly aligned and tensioned.

Common problems with sprockets include:

• Skipping teeth: This can be caused by worn or damaged teeth, or improper tensioning.
• Breakage: This can be caused by overloading, fatigue, or material defects.
• Wear: This can be caused by abrasive particles or poor lubrication.
• Noise: This can be caused by misalignment, loose chains, or worn teeth.
• Chain fall off: This can be caused by improper installation, tensioning, or worn teeth.

Other Types of Sprockets

In addition to the No.50 Standard Bore Sprocket, we also provide other types of sprockets, such as platewheel sprocket, idler sprocket, QD sprocket, and taper lock sprocket. We also offer a wide range of compatible chains, such as roller chain, leaf chain, and conveyor chain.

Author: Miya
