Non-standard Hollow Pin Conveyor Chains

Non-standard Hollow Pin Conveyor Chains

Non-standard hollow pin conveyor chains feature a hole in the pin that allows various attachments to be installed. These chains operate with the same sprockets. They also do not expand or contract when they bend or are moved.Drive chains are available in a wide variety of pitch levels. The pitch is determined by the toughness of the wheel teeth, the overall chain rigidity, and the type of generate motor. The most common pitch is determined by the width of the link plates and the angle between the mounting angles. If the pitch is too low, the chain can be strengthened by strengthening the bushes. The gap between the wheel tooth and the bushes should be one-fourth inch or smaller.A non-standard hollow pin conveyor chain should have a minimum tensile power of one-tenth of a standard drive chain. This limit is necessary to prevent link plate fatigue, which is a leading cause of premature breakdown.

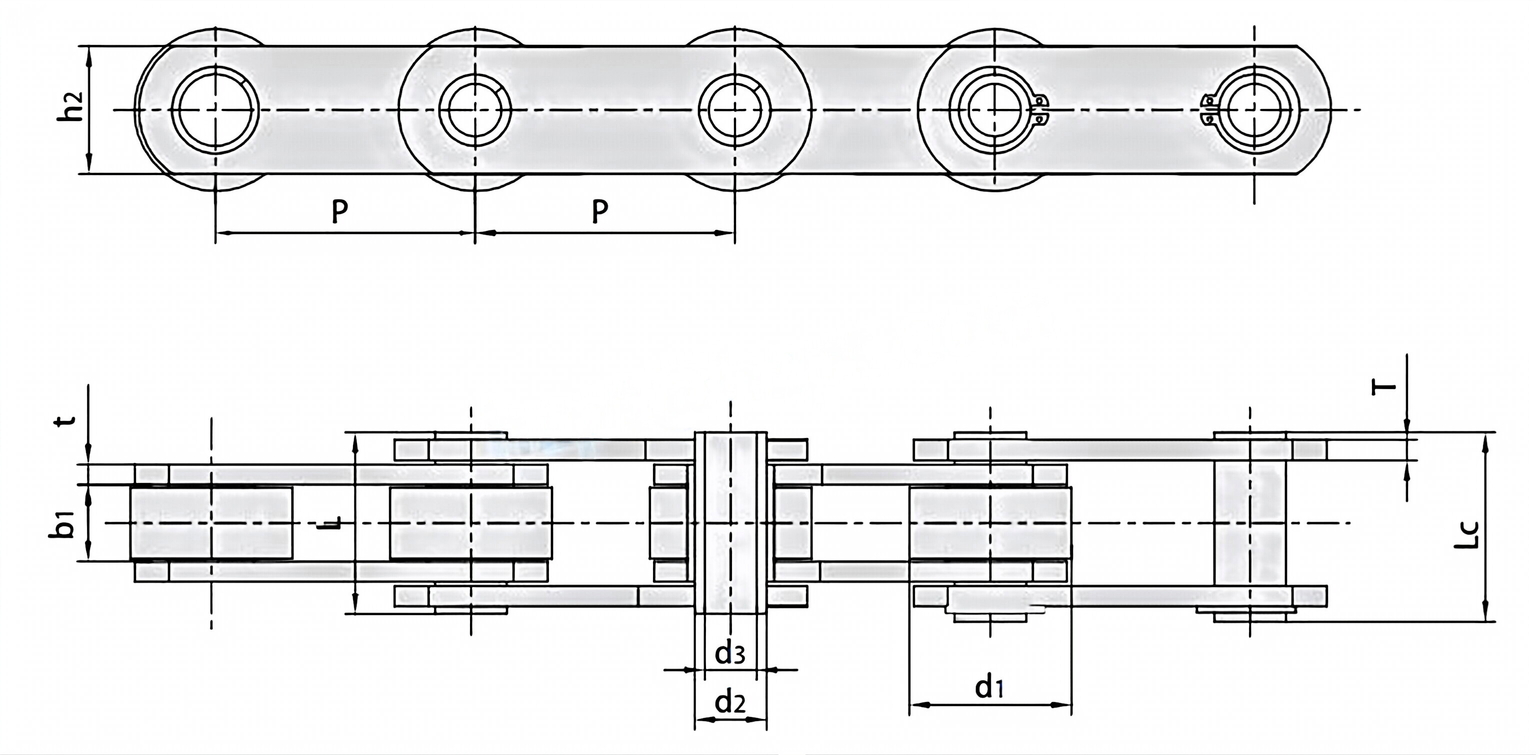

Dimensions of Non-standard Hollow Pin Conveyor Chains

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter		Pin length		Inner plate depth	Plate thickness	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d1max	b1min	d2 max	d3 min	Lmax	Lc max	h2max	t/Tmax	Qmin	Q0	q
	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN	kg/m
MC18F1-P-40	40.00	22.00	9.00	9.00	6.20	23.00	24.50	18.0	2.5	21.0/4721	23.1	1.57
MC40-PF1-100	100.00	35.00	23.40	14.00	10.20	36.00	37.50	25.0	4.0	40.0/8992	44.0	2.79
MC40F11-P-50.8(a)	50.80	38.10	15.50	14.28	10.20	37.00	38.50	27.0	4.0	40.0/8992	44.0	5.00
MC40F21-P-50.8	50.80	38.10	15.50	14.28	9.70	37.00	-	27.0	4.0	50.0/11241	55.0	5.17
MC56F1-S-80	80.00	30.00	24.00	16.00	10.20	45.50	47.00	35.0	4.0	56.0/12600	62.0	4.64
MC56F1-P-80	80.00	50.00	24.00	16.00	10.20	45.50	47.00	35.0	4.0	56.0/12600	62.0	7.39
MC56F2-P-100	100.00	50.00	23.00	16.00	10.20	45.50	47.00	35.0	4.0	56.0/12600	62.0	6.27
MC60F7-P-152.4	152.40	47.50	19.00	19.00	12.50	45.00	46.50	40.0	5.0/4.0	120.0/27000	132.0	4.97
MC60F7-P-203.2	203.20	47.50	19.00	19.00	12.50	45.00	46.50	40.0	5.0/4.0	120.0/27000	132.0	4.43
MC60F10-P-127	127.00	47.50	19.00	19.00	13.20	42.00	44.00	40.0	5.0/4.0	60.0/13489	66.0	5.34
MC60F12-P-88.9	88.90	47.50	19.00	19.00	13.90	45.00	46.50	40.0	5.0/4.0	60.0/13489	66.0	6.38
MC112F1-P-100	100.00	70.00	32.00	22.00	16.30	67.00	68.50	50.0	6.0	112.0/25195	123.2	14.91
MC150F2-P-110	110.00	66.70	25.40	26.90	20.20	58.00	60.50	51.0	7.1/5.1	106.7/24003	118.0	13.50
MC300F1-F-254	254.00	95.00	38.00	46.00	36.00	95.00	97.00	75.0	13.0/8.0	392.0/88126	431.2	22.50
FVC63F1-B-40	40.00	18.00	22.00	12.00	8.20	47.50	49.00	35.0	5.0	46.0/10348	51.0	5.34
FVC63F2-B-50	50.00	17.00	22.00	12.00	8.20	41.00	42.00	25.0	3.0	30.0/6750	33.0	2.24
FVC63F3-P-63	63.00	40.00	22.00	11.70	8.10	44.00	46.00	30.0	4.0	46.0/10348	51.0	5.83
FVC90F1-P-63	63.00	42.00	25.00	14.00	10.20	52.00	53.50	35.0	5.0	73.0/16422	80.0	5.33
FVC112F2-P-100	100.00	95.00	30.00	17.00	11.20	60.20	61.50	40.0	6.0	130.0/29225	143.0	9.69
FVC140F1-B-80	80.00	26.00	35.00	18.00	12.50	65.00	67.0	46.0	6.0	110.0/24745	120.0	7.80



Features of Hollow Pin Roller Chains

The hollow pin roller chain is designed with precision, and is available in carbon steel, stainless steel, and double pitch versions. They have double and single-pitch variations, and allow for an almost unlimited number of attachments. In fact, it is possible to build an entire conveyor from one hollow pin. These hollow pin chains also feature a variety of attachment options and can be used with almost any type of roller. You can even use different types of attachments with these chains, so that you can get the exact one you need.Hollow pin chains are a great choice for a variety of applications. They are flexible and allow for various attachments and cross rods to be easily inserted. Their pitch lengths are the same as those of standard ANSI roller chains, so they run on standard sprockets. These chains are commonly used in conveyors, but you can also use them for other purposes.

Hollow Pin Roller Chains and Sprockets

• Chains and sprockets are mainly used in all applications such as transportation, machinery and other motor applications.
• Chain and sprockets are maintained with grease and oil spray to provide smoother and better operation.
• It makes the wheels run as the motor rotates and is considered as Rotation Per Minute (RPM).

Chains and sprockets are mainly used in the transport industry and machine building industry to rotate wheels by means of motors or engines. These chains and sprockets both help the wheelbase to run fast according to the engine speed. The chain hangs between the motor and the sprocket, the motor turns the sprocket and the chain is connected to the sprocket teeth, which can turn simultaneously with the motor wheel, thus making the vehicle or machine run smoothly. Raydafon is one of the leading manufacturers and suppliers in China. We can offer various high-quality chains and?sprockets for sale.
