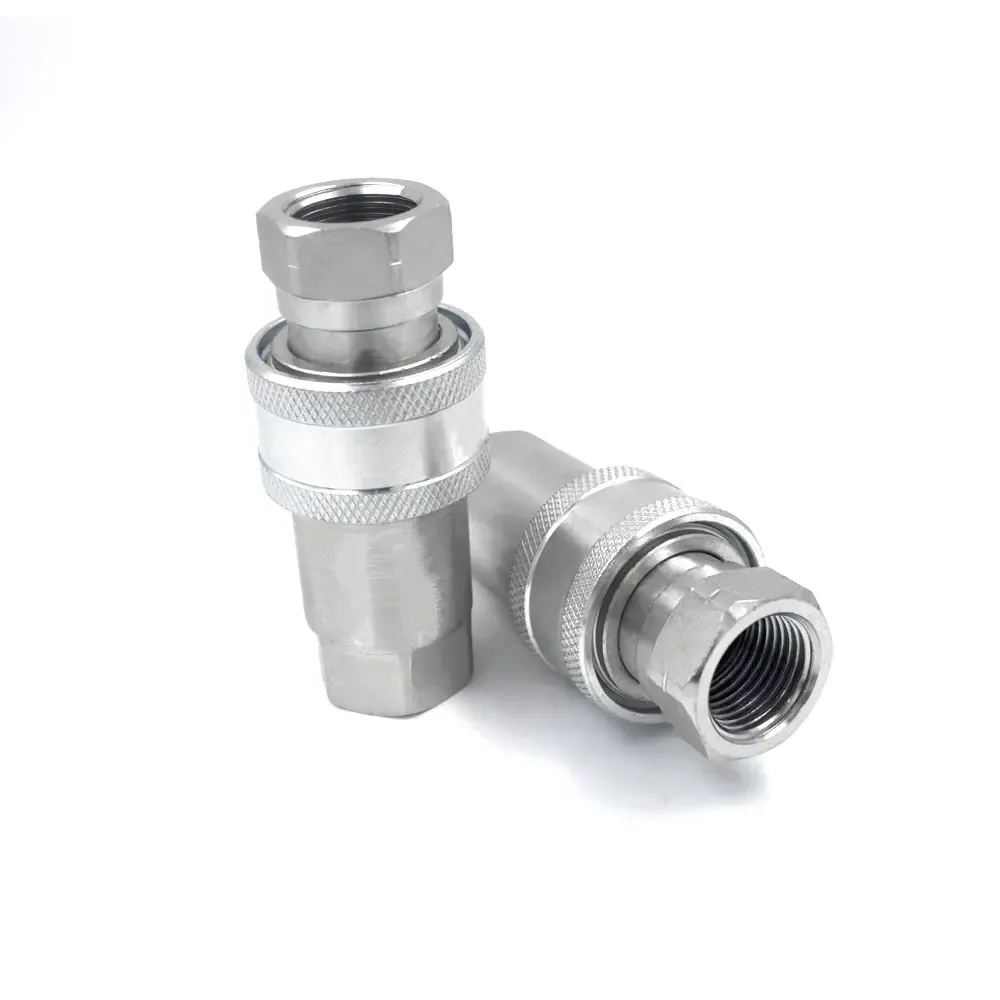

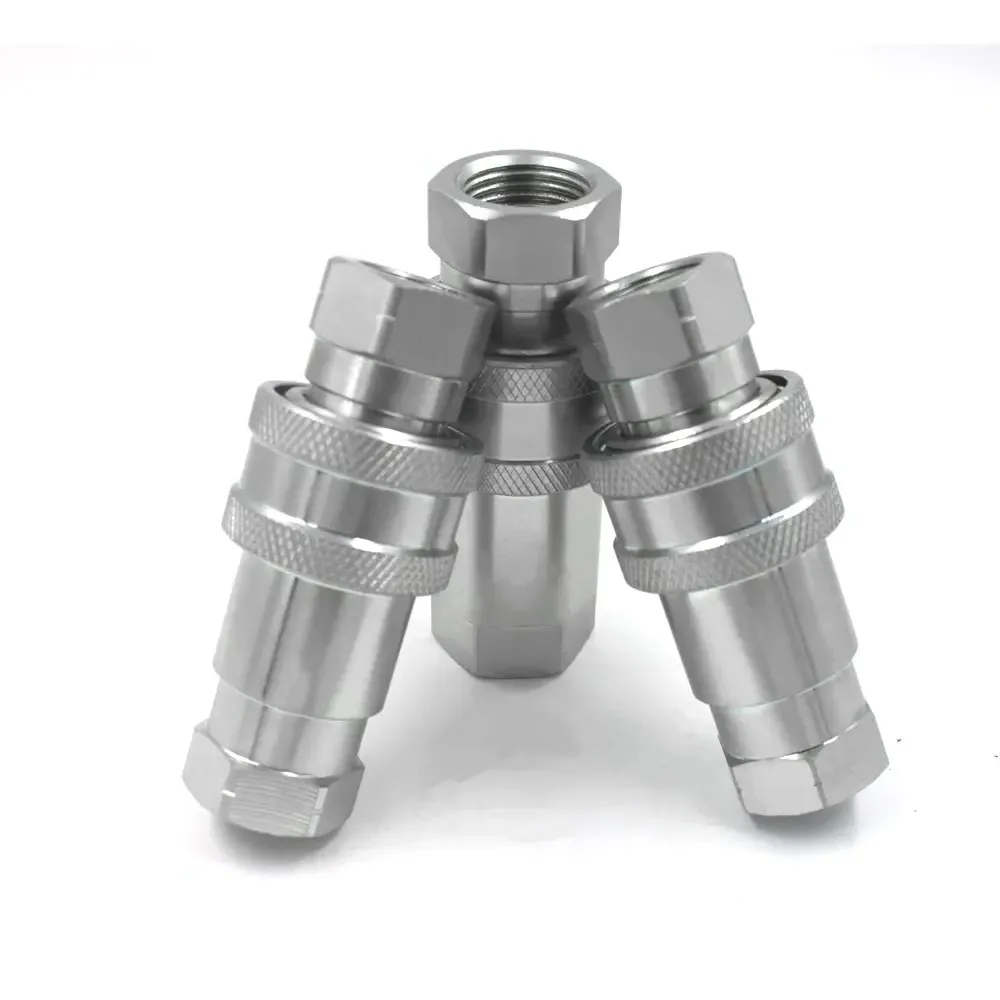

Non-Valve Series 1/4 Size BSP/NPT Thread Hand Plate Hydraulic Pressure Coupling Interchange for Hansen High Pressure Washer

Experience the unmatched performance of Non-Valve series 1/4 size BSP/NPT Thread hand plate hydraulic pressure coupling interchange for hansen high pressure washer. This robust fitting is designed to withstand high pressure, making it an ideal choice for demanding hydraulic applications. Made from high-quality brass or steel, it ensures durability and reliability. The product features NPT G BSP threading and offers a warranty of 1 year. The pressure rating of 27.6 further enhances its versatility and utility across various applications. The product is carefully packaged in a box or carton as per your demand and can be shipped via the port of Ningbo or Shanghai.

Advantages of the Non-Valve Series 1/4 Size BSP/NPT Thread Hand Plate Hydraulic Pressure Coupling

The Non-Valve series 1/4 size BSP/NPT Thread hand plate hydraulic pressure coupling interchange is designed with several unique features that set it apart from other products in the market. The advantages include:

• Smooth, open bore design with no valving in either half offers minimal pressure drop.
• Easy cleaning in applications where the same lines are used for more than one media.
• Machined from solid barstock, providing a quality coupling that is durable.
• Available in brass and 303 stainless Steel as standard.
• Its compact size and efficient design make it ideal for high-pressure applications.
• Comes with a 1-year warranty, ensuring reliability and customer satisfaction.

With our extensive expertise and state-of-the-art facilities, we can produce this high-quality product with precision and efficiency.

Applications of Hydraulic Quick Couplings

Hydraulic Quick Couplings find widespread applications across various industries due to their ability to efficiently connect and disconnect hydraulic lines and components. Here are some common applications where hydraulic quick couplings are extensively used:

1. Construction and Heavy Machinery: They enable the rapid attachment and detachment of hydraulic attachments such as buckets, breakers, and grapples.
2. Agriculture: Quick couplings enable farmers to quickly switch between different implements, saving time and increasing productivity.
3. Manufacturing and Automation: In manufacturing processes, hydraulic quick couplings are used to connect hydraulic actuators, presses, and tools.
4. Oil and Gas Industry: Quick couplings are essential for connecting hydraulic lines and components in these harsh environments.
5. Aerospace: Quick couplings are used during maintenance and repair activities to ensure the integrity of hydraulic connections.
6. Automotive Industry: Quick couplings enable easy assembly and servicing of hydraulic components in automotive applications.

How Does the Hydraulic Quick Coupling Work?

Hydraulic quick couplings work based on a simple yet effective principle to ensure a secure and leak-free connection. Here's how hydraulic quick couplings work:

1. Male and Female Couplings: These components are designed to fit together seamlessly.
2. Valve Mechanism: This valve can be in the form of poppet valves, ball valves, or flat-face valves.
3. Sealing O-Ring: Each coupling has an O-ring or other sealing mechanism that ensures a watertight and pressure-tight seal.
4. Push-to-Connect: To make a connection, the operator simply pushes the male coupling into the female coupling.
5. Fluid Flow: With the valves open, hydraulic fluid can flow freely from one side of the coupling to the other.
6. Locking Mechanism: Most hydraulic quick couplings have a locking mechanism that holds the male and female couplings together securely.

Hydraulic Quick Coupling Installation Steps

Installing hydraulic quick couplings correctly is crucial for the efficient and safe operation of hydraulic systems. Here are the installation steps for hydraulic quick couplings:

1. Select the Right Couplings: Choose hydraulic quick couplings that are suitable for your specific application.
2. Clean the Couplings: Use a lint-free cloth or compressed air to clean them thoroughly.
3. Position the Couplings: Position the male and female couplings so that they align correctly for connection.
4. Secure the Connection: If your hydraulic quick couplings have a locking mechanism, engage it to secure the connection further.
5. Test the Connection: Perform a pressure test to ensure that the hydraulic quick couplings are securely connected and there are no leaks.

Maintenance of Hydraulic Quick Couplings

Maintenance of hydraulic quick couplings is essential to ensure the reliability and longevity of hydraulic systems. Here are some maintenance steps for hydraulic quick couplings:

1. Regular Inspection: Perform routine visual inspections of the hydraulic quick couplings.
2. Cleanliness: Keep the couplings and surrounding areas clean. Use a lint-free cloth or compressed air to clean the couplings.
3. Lubrication: Apply a small amount of compatible hydraulic oil or grease to O-rings and seals before coupling.
4. Torque Checks: Periodically check the torque on the coupling nuts. Use a torque wrench to tighten them to the manufacturer's specifications.
5. Replace Damaged Components: If you notice any damaged or worn-out O-rings, seals, gaskets, or locking mechanisms, replace them immediately.
6. Use Protective Caps: When quick couplings are not in use, protect the exposed ends with dust caps or plugs.

Why Choose Raydafon's Hydraulic Quick Couplings?

Raydafon Hydraulic Component Co., Ltd is located in the Ningbo Industrial Zone Zhejiang City, covering 6500 square meters. It launched in 1992, which is the design, development, production, and sales of quick couplings, including hydraulic cylinders, hydraulic couplings, hydraulic fittings, hydraulic ball valves, pneumatic couplings, and pipe couplings. Raydafon is focused on international market explorations and the South China market's development. Our products are not only sold well in the domestic market but also in the USA, Europe, Southeast Asia, and the Middle East. We mainly provide the hydraulic and pneumatic products for oil, engineering, metallurgical, machine tools, military equipment and machinery manufacturing industry. We stick to the principle of "Quality first, Customer first, Reputation first, and Service first" to satisfy the customers' requirements and increase the market share. We are growing stably and healthily. We pursue the excellent brand and comply to the best service, which will make us move faster to keep up with the international enterprise. We look forward to creating a bright future with you.

Our professionalism, international certifications, customized services, advanced production facilities, and impeccable after-sales services make us the preferred choice for hydraulic quick couplings.
