Nylon Gear Rack Plastic Gear Rack Custom OEM Manufacturer Machining

Discover Raydafon Group's custom OEM nylon and plastic gear racks, engineered for precision machining and durability. Our products offer lightweight, corrosion-resistant solutions ideal for industrial automation, robotics, and machinery upgrades, ensuring smooth performance and reliability. Stand out with tailored designs that enhance efficiency and solve motion control challenges, backed by expert craftsmanship. Experience the difference with Raydafon Group—your trusted partner for high-quality gear racks.

Send Inquiry

Product Description

Nylon Gear Rack is a type of gear mechanism made from nylon material. It consists of a long, straight rack with teeth along its length that mesh with a mating gear to convert rotational motion into linear motion or vice versa. Nylon gear racks are known for their durability, lightweight nature, and excellent wear resistance.

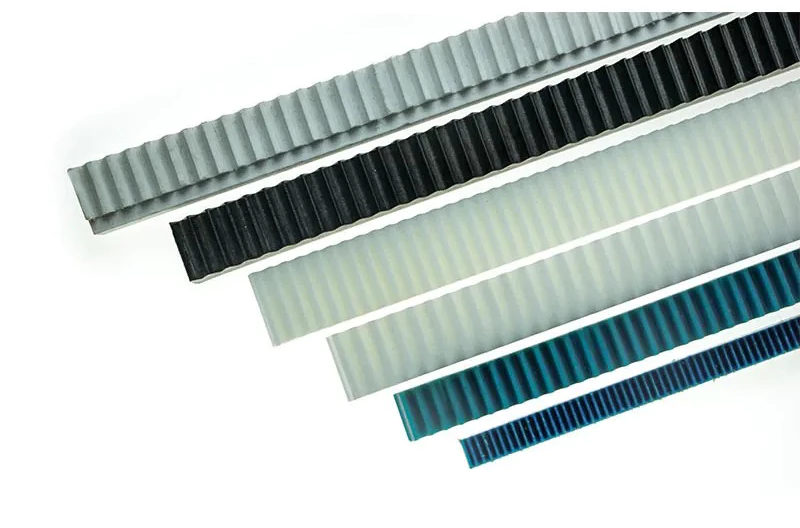

Advantages

One of the key advantages of Nylon gear racks is their ability to operate quietly due to the self-lubricating properties of nylon. They provide smooth and precise motion control, making them suitable for various applications where accurate positioning is crucial. Nylon gear racks also offer high resistance to chemicals, corrosion, and UV radiation, making them suitable for use in challenging environments.

1. Durability: Nylon gear racks are known for their high durability and resistance to wear, making them suitable for long-lasting performance in various applications.2. Lightweight: Nylon is a lightweight material, which makes Nylon gear racks ideal for applications where weight reduction is desired without compromising strength and performance.3. Self-lubricating: Nylon has inherent self-lubricating properties, reducing the need for additional lubrication and resulting in smooth and quiet operation.4. Chemical and Corrosion Resistance: Nylon gear racks exhibit excellent resistance to chemicals and corrosion, making them suitable for use in harsh and corrosive environments.5. UV Resistance: Nylon gear racks have good resistance to UV radiation, making them suitable for outdoor applications where exposure to sunlight is a concern.6. Precision: Nylon gear racks offer precise motion control and accurate positioning, allowing for reliable and repeatable performance in various applications.

Nylon Gear Rack Plastic Gear Rack Custom OEM Manufacturer Machining

OEM manufacturer machining plastic pinion Custom nylon rack and pinion

Product Name	OEM manufacturer machining plastic pinion Custom plastic gear rack and pinion
Material(Metals or plastic)	Alloy Steels/ Aluminum/ Brass/ Bronze AlloysCarbon Steel/ Copper/ Stainless Steel/ Tool SteelCold Rolled Steel/ Bearing SteelABS/ Delrin/ Nylon/ PVC
Color	silver/blue/red/gold
Surface finish/treatments	anodized/polished/plated/coated
Lead Times Available	Max: 2 Weeks (On Initial Order) Rush Services Available
Processes(Special Capabilities)	Broaching/ Hobbing/ Slotting/tapping
Testing equipment	Projector, Calliper, micrometer, plug gauge, ring gauge, thread gauge
packing	For light objects:bubble pack individually to prevent damagingand scratches in transporting, then in carton;For heavy objects:Wrapped in PE bags and then in wooden boxes

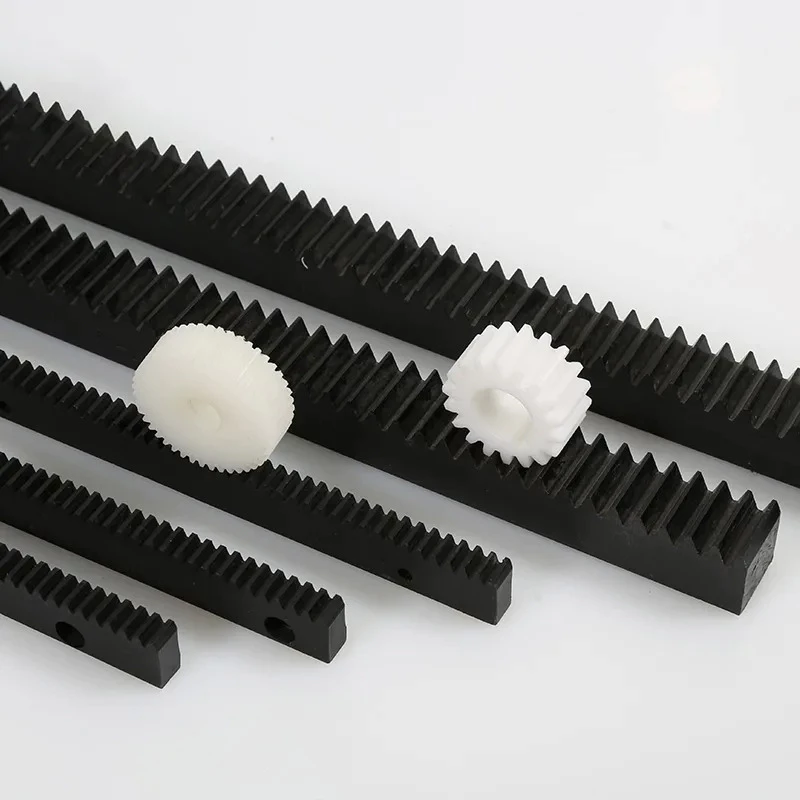

Application

These gear racks find applications in a wide range of industries, including industrial automation, packaging machinery, robotics, automotive, material handling, and more. They are commonly used in conveyor systems, linear motion systems, and other applications requiring linear motion or power transmission.1. Industrial Automation: Nylon gear racks are widely used in industrial automation systems for linear motion and power transmission, including conveyors, robotics, and packaging machinery.2. Material Handling: Nylon gear racks are commonly employed in material handling equipment such as conveyor systems, lifting mechanisms, and automated storage systems.3. Automotive: Nylon gear racks find applications in automotive systems, including adjustable seats, sunroof mechanisms, and power window systems.4. Medical Equipment: Nylon gear racks are used in medical devices and equipment, such as adjustable hospital beds, dental chairs, and surgical robotics.5. Textile Machinery: Nylon gear racks are utilized in textile machinery for precise and controlled movement of components, such as yarn tensioning systems and fabric cutting machines.6. Renewable Energy: Nylon gear racks can be found in renewable energy systems, such as solar tracking mechanisms and wind turbine pitch control systems.7. Packaging and Labeling: Nylon gear racks are used in packaging and labeling machinery to ensure accurate and synchronized movement of components.8. Furniture and Cabinetry: Nylon gear racks are employed in adjustable furniture systems, such as height-adjustable desks and modular cabinetry.9. Agriculture and Farming: Nylon gear racks are used in agricultural machinery, such as irrigation systems, grain handling equipment, and livestock feeding systems.10. Aerospace and Defense: Nylon gear racks find applications in aerospace and defense systems, including aircraft seating mechanisms, missile guidance systems, and satellite tracking mechanisms. Nylon Gear Rack Plastic Gear Rack Custom OEM Manufacturer Machining

About the plastic gear rack

Plastic Gear Racks are versatile tools for storing and displaying your vintage and modern gear collection. A plastic rack can hold up to 75 gears, and its circular shape makes it easy to move from one location to another. A jack or clamping system is also an option. Some racks even serve as pushers, while others serve as fixed supports for pinions. No matter how you use them, they’re sure to add to the appeal of your gear collection.

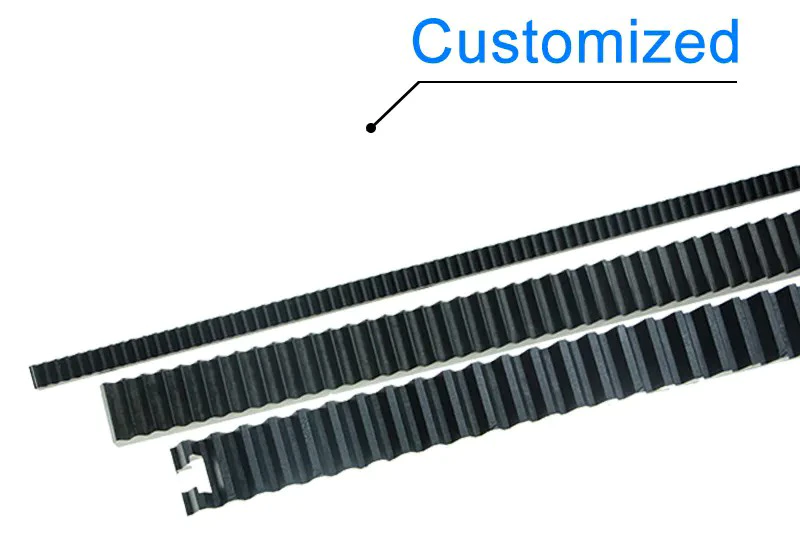

Nylon gear racks can be customized to specific requirements, such as different sizes, lengths, and tooth profiles. They are available in various pitch options to meet different gear ratios and load capacities. The lightweight nature of Nylon gear racks makes them ideal for portable and lightweight equipment.In summary, Nylon gear racks provide a reliable and efficient solution for converting rotational motion into linear motion. Their durability, low noise operation, and resistance to chemicals make them a popular choice in various industries where precise motion control is required.

Evaluate Nylon Gear Rack Properties:

Standard Nylon: Offers a good balance of affordability, weight, and noise reduction. Suitable for light to moderate loads in controlled environments.Reinforced Nylon: Increased strength and wear resistance through added glass fibers or other materials. Ideal for moderate to heavy loads.Self-Lubricating Nylon: Reduces friction and wear, extending lifespan. Useful for applications requiring smooth, low-maintenance operation.Metal-Core Nylon: Combines the strength of metal with the corrosion resistance and quiet operation of nylon. Great for high-load applications needing durability.

Factor	Standard Nylon	Reinforced Nylon	Self-Lubricating Nylon	Metal-Core Nylon	Custom Nylon
Strength	Low	Moderate	Moderate	High	Variable
Wear Resistance	Low	Moderate	High	High	Variable
Weight	Light	Moderate	Moderate	Heavy	Variable
Cost	Low	Moderate	Moderate	High	Variable
Noise Level	Low	Low	Low	Moderate	Variable
Temperature Resistance	Moderate	Moderate	Moderate	High	Variable
Corrosion Resistance	High	High	High	High	High

Material of plastic gear rack

Plastic racks can be made from a variety of materials. The traditional PR uses MC nylon, while the PRF has end machining to connect multiple racks. The polyacetal-based DRFD and DRFK series have mounting holes. The injection-molded DR series has unique flexibility properties that make it suitable for curved locations. You can also choose between various racks based on size, shape, and material. The material used for the gears will depend on the number of gears and the force required to move them. Considerations may include the application and environment of the gear, including moisture and chemical exposure. Choose a material with good strength and stiffness. Dimensional stability is critical for maintaining gear tooth contact ratio, tooth tip clearance, and overall geometry. Depending on the manufacturing process and moisture content, plastic materials will have different sizes.As a plastic gear supplier, we always aim to provide the highest quality products and the most comprehensive services and look forward to cooperating with you. Nylon Gear Rack Plastic Gear Rack Custom OEM Manufacturer Machining

FAQ

1. Q: Can you provide drawings and technical data?A: Our professional technical department will design and provide drawings and technical data.2. Q: Have your products been exported?A: Yes, they have been exported to the USA, Canada, Australia, Russia, Chile, Panama, Nicaragua, UAE, Saudi Arabia, Egypt, Sri Lanka, Nigeria, Iran, Vietnam,Indonesia, Singapore, Greece, Netherland, Georgia, Romania, Ireland, India, Thailand, Pakistan, Philippines, Singapore, HK, Taiwan...3. Q: Can the customer requirement manufacture the products?A: Yes, the specifications stated above are the standard ones. We can design and manufacture as required.4. Q: Visiting the factory is allowed or not?A: Yes, we welcome customers visiting our factory. Our factory is located in Ningbo city, Zhejiang province, China mainland.5. Q: Do you looking for an Agent?Yes, we're looking for an agent worldwide; please contact us for further discussion.6. Q: How to solve the equipment trouble during use?A: Please email us about the problem with pictures, or a small video will be better; we will find the problem and solve it. We will send you a new free part in the warranty period if broken.
