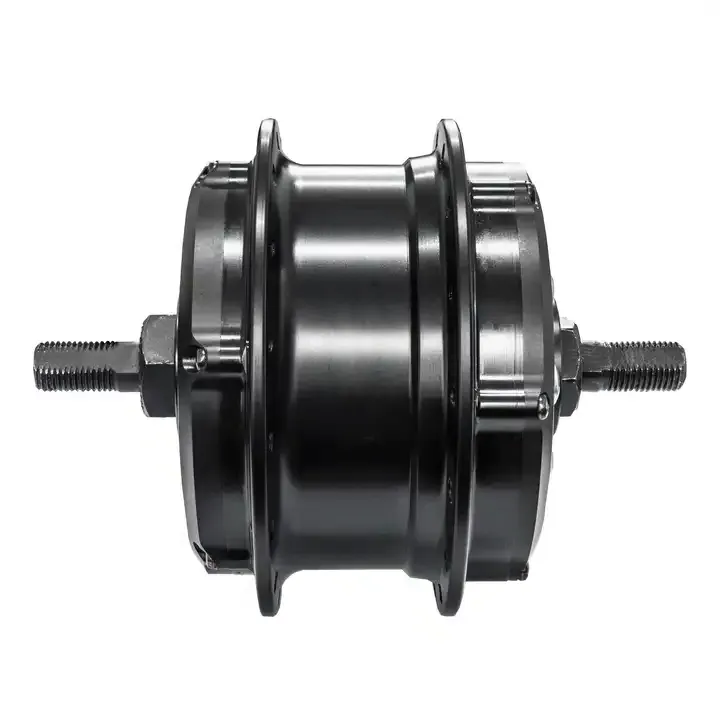

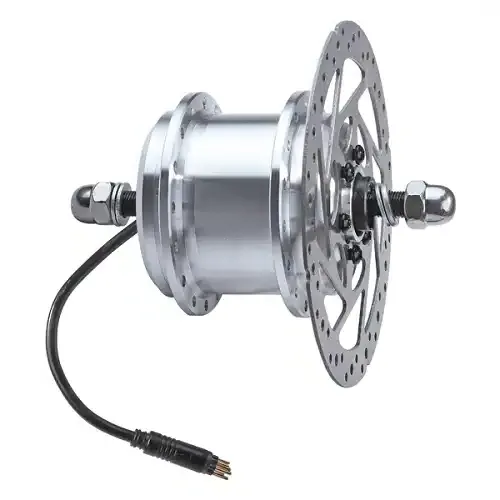

Oem Factory Electric Bike Electric Motor for Adults ebike conversion kit / electric bicycle motor

Transform your regular bicycle into a state-of-the-art eBike with our easy-to-install conversion kit. S110SWXDC is a brushless motor designed to provide two rounds of power. Its sleek design is available in both black and silver colors. With a diameter of 112±1mm and width options of 135, 142, and 148mm, it is a versatile choice for most bicycles.

Specification of S110 Front Hub Motor for E-bike

Specification	S110SWXC / S110SWXDC
Diameter (mm)	112±1mm
Width (mm)	100±2mm
Communication	Wireless
Sensor	Wireless Pedal Sensor
Spokes Number	20, 24, 28, 32, 36
Rated Voltage (V)	36V	33V	24V
Maximum Current (A)	6.18A	6.67A	9.0A
Rated Output Power (W)	250W	250W	250W
Maximum Power (W)	500W	500W	500W
Maximum Torque (N·m)	>35N·m	>35N·m	>35N·m
Efficiency (%)	≥89%	≥88%	≥87%
Rated Revolution (r/min)	160-260r/min	160-260r/min	160-260r/min
Weight (kg)	2.1kg	2.1kg	2.1kg

S110 E-bike Front Hub Motor Dimension

Product Advantages

The S110SWXDC boasts a range of features designed to enhance your cycling experience. Not only is it lightweight and easy to install, but it also offers a host of other benefits.

• Built-in controller: The motor comes with an integrated controller, eliminating the need for an external one and simplifying the installation process.
• Wireless pedal sensor: This feature allows the motor to sense when you are pedaling, enabling it to provide assistance when needed and conserve energy when not.
• Lightweight & small size: It's compact size and light weight ensure that it doesn't add unnecessary bulk to your bicycle, preserving its original balance and maneuverability.
• Super-silent: Unlike some motors that create a humming noise, this one operates silently, allowing you to enjoy your ride without any annoying sounds.
• Easy to install & disassemble: The installation process is straightforward, and disassembling it is just as easy, should you need to do so for maintenance or other purposes.
• Wireless control: This feature enables you to control the motor wirelessly, adding to your convenience.

With all these features and more, the S110SWXDC electric motor is a perfect choice for adults looking to convert their regular bike into an eBike.

Applications of the S100/S110 Front Hub Motor

The S100/S110 front hub motor is versatile not just in terms of installation but also in terms of its uses. Here are some of the ways you can utilize this motor:

• • Electric Assist: The motor provides assistance while pedaling, making it easier to climb hills or cycle against the wind.
  • Commuting: The electric assist feature also makes this motor a great option for commuting, enabling you to travel longer distances with less effort.
  • Hill Climbing: The motor's high torque output makes it a great aid in climbing steep hills.
  • Cargo and Utility Bikes: Given its high power output, this motor is also ideal for cargo bikes designed to carry heavy loads.
  • Recreational Riding: The electric assist feature allows for longer, more enjoyable rides.
  • Conversion Kits: The S100/S110 is also a popular choice for eBike conversion kits, thanks to its ease of installation and high performance.

How Does the Ebike System S100/S110 Front Hub Motor Work?

The S100/S110 front hub motor system is an ingeniously designed piece of machinery. Here's how it works:

• Motor and Hub Assembly: The brushless DC motor is integrated into the front wheel of the bike, providing direct power to it.
• Power Source: The motor derives its power from a lithium-ion battery pack.
• Pedal Assist Sensors: These sensors detect the rider's pedaling motion and signal the motor controller accordingly.
• Motor Controller: This component regulates the operation of the motor based on the input it receives from the pedal assist sensors.
• Electric Assistance: When the rider starts pedaling, the motor provides electric assistance by powering the front wheel.
• Power Output and Control: The rider can control the level of electric assistance provided by the motor.
• Regenerative Braking: Some models of the S100/S110 front hub motor system are equipped with regenerative braking capabilities, which help conserve energy and increase the system's overall efficiency.

Choose the Right S100/S110 Front Hub Motor for Electric Bicycle

When choosing the right S100/S110 front hub motor for your eBike, it??s important to consider a few key factors:

• Power and Torque: Higher power and torque ratings provide better performance, so consider your riding needs and the terrain conditions before making a choice.
• Voltage and Battery Compatibility: Ensure that your bike??s battery pack is compatible with the motor??s voltage rating.
• Wheel Size: The S100/S110 front hub motor is designed for specific wheel sizes, so ensure that your bike??s wheel size matches that of the motor.
• Installation Compatibility: The motor should fit properly and securely onto your bike??s front wheel. Check the axle diameter and width to ensure compatibility.
• Weight and Size: The weight and size of the motor can impact your bike??s overall weight distribution and handling, so this is another important factor to consider.
• Efficiency and Noise: A high-efficiency motor can increase your eBike??s range and battery life, and a quieter motor can provide a more enjoyable riding experience.

Maintenance of the S100/S110 Front Hub Motor

To ensure the longevity and optimal performance of your S100/S110 front hub motor, regular maintenance is essential:

• Regular Cleaning: Prevent the accumulation of dirt and grime on the motor by cleaning it regularly with a damp cloth.
• Inspection: Regularly check the motor for signs of damage or wear. If you notice any issues, have them addressed by a qualified technician.
• Lubrication: Depending on the manufacturer??s recommendations, the motor??s internal components may need to be lubricated periodically.
• Battery Maintenance: To ensure that the motor functions properly, maintain the battery pack that powers it according to the manufacturer??s guidelines.
• Tighten Fasteners: Regularly check and tighten any fasteners that secure the motor to the bike frame or wheel.
• Avoid Overloading: Do not exceed the recommended weight capacity of the motor and eBike to prevent strain or damage.
• Avoid Water Exposure: The S100/S110 front hub motor may not be fully waterproof, so avoid exposing it to heavy rain or water.

Why Choose Raydafon's S100/S110 Front Hub Motor for Ebike System?

Raydafon Electric Technology Co Ltd. is a leading manufacturer of high-end electric bicycle parts. Our products, including the S100/S110 front hub motor, are designed and developed in-house and protected by a number of domestic and international intellectual property rights.We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design.Our main products include super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays, etc. They are suitable for all kinds of bikes.Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly. If you are seeking high-end electrical components of electric bicycles, Raydafon is your ideal choice.If you are still worried about traffic jams, and if you would like to contribute to environmental protection, we sincerely welcome global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.[embed]https://www.youtube.com/embedZ3rT9dG_4wI[/embed]Author: Yjx
