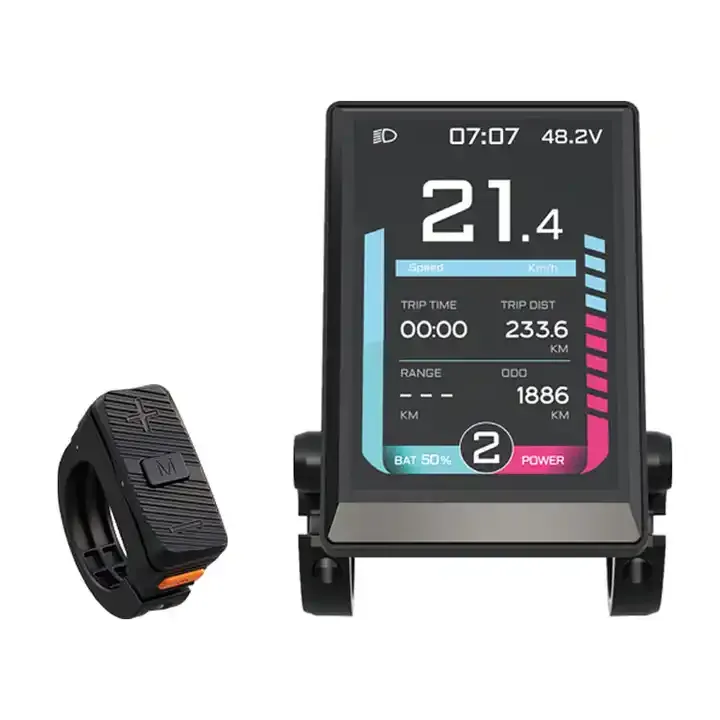

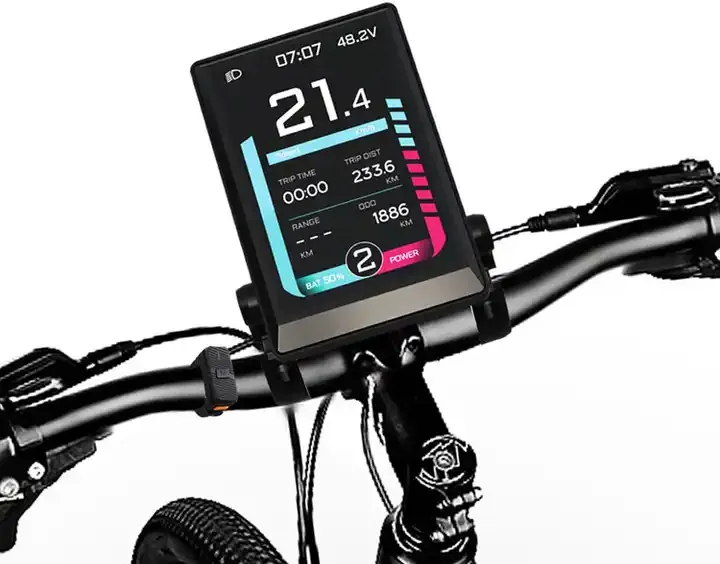

OEM High Quality 22.2mm Handlebar Diameter Ebike 36V LCD Speed Display

The Raydafon OEM TFT350 Colorful Display is a top-notch, high-quality TFT display designed for electric bicycles. With a display size of 78mm*96mm*53mm and a 3.2-inch screen size, this product guarantees superior visibility and clarity. The display type is TFT, with support levels ranging from 0-5. The communication is carried out via UART, and the data port is wireless. The product is waterproof with an IP65 rating and weighs a mere 147g.

Electric Bike TFT350 Display Specifications

Specification	TFT350
Display Size (L×W×H mm)	78mm×96mm×53mm
Screen Size (inch)	3.5inch
Display Type	TFT
Holder Diameter (mm)	Φ22.2mm / Φ25.4mm / Φ31.8mm
Voltage (V)	24V / 33V/ 36V
Support Level	0-5
Communication	UART
Show Info	PAS Level / Speed / Trip /ODO etc.
Error Info	Yes
Data Port	Wireless
Working Temperature (℃)	-20℃ ~ 60℃
Waterproof	IP65
Weight (g)	147g

Electric Bike TFT350 Display Dimension

Advantages of the TFT350 Colorful Display

The TFT350 Colorful Display offers a multitude of advantages:1. 3.5 inch TFT HD colorful screen: Providing a clear and vibrant display for easy visibility and reading.2. Multi-angle install design: Ensures a comfortable and optimal viewing angle for the rider.3. Tempered glass: Enhances durability and protects the screen from scratches and damage.4. Non-screw assembling craft: Makes installation quick and easy.5. Full-screen design: Maximizes the display area for a comprehensive view.6. Simple style & slim design: Offers a sleek and modern look that adds style to any electric bicycle.

Applications of the TFT350 Colorful Display

The TFT350 Colorful Display is a critical component of electric bicycles, serving various applications:1. Speed and Distance Measurement: Provides real-time speed and distance traveled data.2. Battery Monitoring: Shows the remaining battery charge, allowing the rider to plan their ride.3. Power Assist Modes: Enables the rider to select and switch between different power assist modes.4. Trip and Odometer: Tracks and displays trip-related information.5. Lighting Control: Includes controls for the integrated lights on the electric bicycle.6. Data Logging and Connectivity: Offers data logging capabilities and connectivity options for data analysis and sharing.

How Does the TFT350 Display Work?

The TFT350 Display works through a series of steps:1. Sensor Input: Receives input from various bicycle sensors.2. Data Processing: Processes the input data to calculate and interpret relevant information.3. Display Output: Shows the processed data on the TFT screen.4. User Interaction: Allows the rider to interact with the bicycle's electrical system.5. Control Signals: Sends control signals to the bicycle's electrical system based on the rider's input.6. Connectivity: Connects with external devices for data synchronization, analysis, and more.

Choosing the Right TFT Display for Your Electric Bicycle

Choosing the right TFT display involves considering several factors:1. Compatibility: Ensure the display is compatible with your electric bicycle's electrical system.2. Display Size and Visibility: Consider the size and visibility of the TFT display.3. Information and Features: Determine the specific information and features you need.4. User Interface and Controls: Evaluate the user interface and controls of the TFT display.5. Build Quality and Durability: Assess the build quality and durability of the TFT display.

Maintenance Tips for the TFT350 Display

Maintaining the TFT350 Display involves several steps:1. Keep it Clean: Remove accumulated dirt, dust, and debris regularly.2. Protect from Moisture: Take precautions to protect the display from water and moisture.3. Handle with Care: Avoid accidental damage by handling the display with care.4. Avoid Extreme Temperatures: Protect the display from extreme temperatures.5. Check Connections: Ensure that the cables and connectors are securely attached.6. Firmware Updates: Check for firmware updates provided by the manufacturer.

Why Choose Raydafon's Electric Bicycle TFT Display?

Raydafon Electric Technology Co Ltd. is a renowned manufacturer of high-end electric bicycle parts. We offer superior-quality products that are CE-certified and protected by independent intellectual property rights. Our products are designed and developed in-house by a professional R&D team, ensuring the highest level of quality and performance. We offer a comprehensive range of products, including super-mini smart motors, wireless motors, Li-lon batteries, TFT/LCD displays, water bottle batteries, ALL-IN-ONE rear hub motors, P100/P110 rear hub motors, S100/S110 rear hub motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, ALL-IN-ONE rear hub motors, down tube battery, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes.

FAQ

Q: Are you a manufacturer?A: Yes. Established in 1993, our company is keeping dedicated to the R&D, manufacturing and worldwide marketing of high-end electric bicycle parts. We provide ODM & OEM services as per your requests. Welcome to our company.Q: Can I get a sample and how long will it take?A: Yes. We'd like to submit a sample for checking at the beginning of our business. Usually it needs take about 2 weeks to produce sample order.Q: What is your MOQ and delivery time?A: Our MOQ is 1 pcs normally. It takes about 30 days to complete an order. The specific delivery time depends on the items and the quantity of your order.Q: How to control the quality of the products?A: We have independent quality inspection department for products quality. The parts are inspected in every production process to prevent bad parts from entering the next process. 100% products are inspected before shipment. Third party detection is welcomed.Q: Do you have customized service?A: Yes, the technical specifications and logo of Motor, and the Raydafon APP both can be customized.Q: What is the warranty period for your products?A: Motor: 2 years. Battery: 1.5 - 2 years. Other Accessories: 1 year.Q: Where is your after-sales service location?A: Germany or China. You can choose a suitable after-sales location according to your convenience.Q: How do I pay for my order?A: We accept your payment through T/T, L/C, D/C, Paypal, Western Union, etc.Author: Yjx
