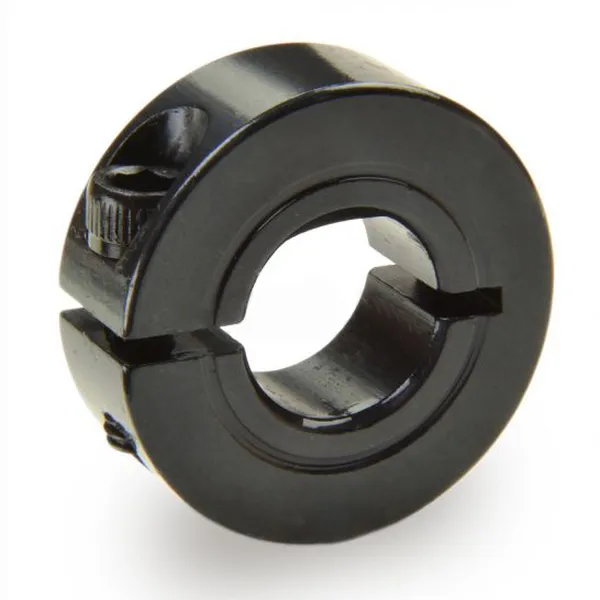

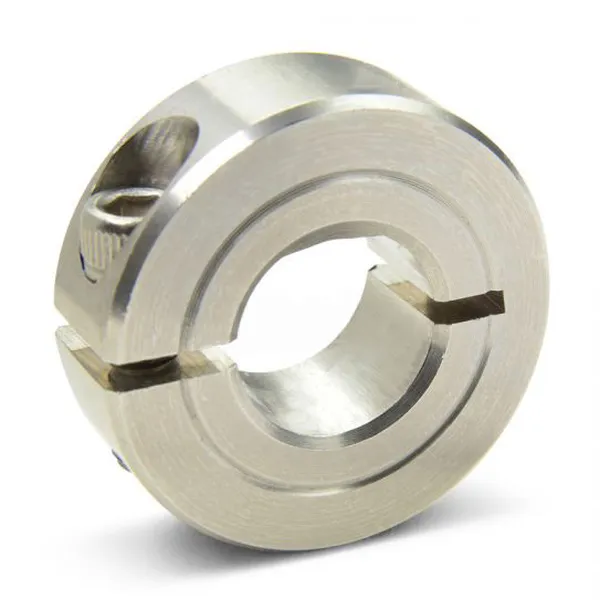

The inch series one piece d bore shaft collars are a type of shaft collar that is used to secure components to a shaft. They are made of one piece of material and have a D-shaped bore that fits snugly over the shaft. This type of d profile shaft collar is often used in applications where high holding power is required, such as in high-speed machinery.The inch series one piece d bore shaft collars are available in a variety of sizes and materials to suit a wide range of applications. They are typically made of steel, aluminum, or stainless steel. The size of the d shaft collar is determined by the diameter of the shaft that it will be used on. The material of the d shaft collar is chosen based on the application and the environment in which it will be used.The inch series one piece d bore shaft collars are easy to install and remove. To install the shaft collar, simply slide it over the shaft and tighten the screws. To remove the shaft collar, loosen the screws and slide the collar off the shaft. The inch series one piece d bore shaft collars are a versatile and reliable type of shaft collar that can be used in a wide range of applications. They are easy to install and remove, and they are available in a variety of sizes and materials to suit the needs of any application.

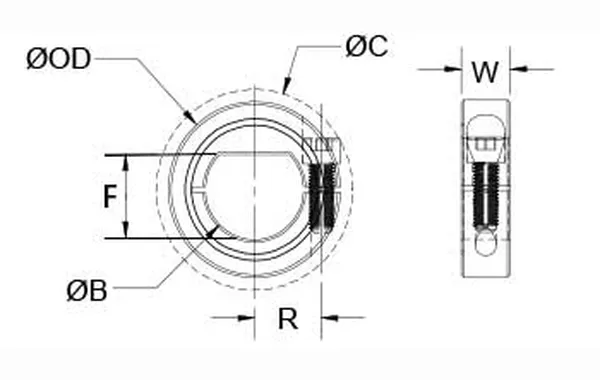

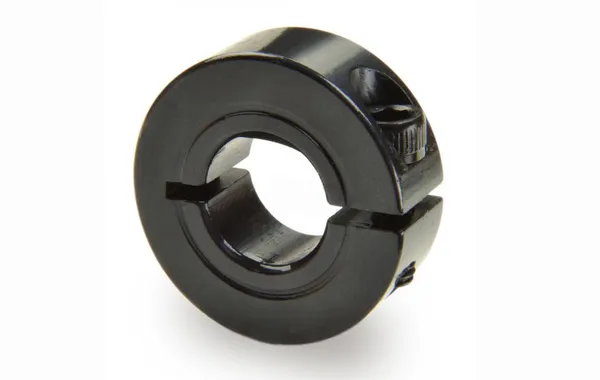

▍One Piece D Bore Shaft Collar Sizes Chart (Inch Series)

Part Number Steel	Part Number Aluminum	Part Number Stainless Steel	Bore (B) (in)	Outer Diameter (OD) (in)	Width (W) (in)
CLD-4-F	CLD-4-A	CLD-4-SS	0.2500 in	5/8 in	0.281 in
CLD-6-F	CLD-6-A	CLD-6-SS	0.3750 in	7/8 in	0.343 in
CLD-8-F	CLD-8-A	CLD-8-SS	0.5000 in	1 1/8 in	0.406 in
CLD-10-F	CLD-10-A	CLD-10-SS	0.6250 in	1 5/16 in	0.437 in
CLD-12-F	CLD-12-A	CLD-12-SS	0.7500 in	1 1/2 in	0.500 in
CLD-16-F	CLD-16-A	CLD-16-SS	1.0000 in	1 3/4 in	0.500 in

▍One Piece D Bore Shaft Collar Design Features

A shaft collar is a mechanical component that is used to secure a component on a shaft. The one piece d bore shaft collar is a specific type of shaft collar that is designed to be installed onto a shaft with a D-shaped cross section. Here are some of the design features of the one piece d bore shaft collar:1. One-piece design: The one piece d bore shaft collar is designed as a single piece, which means that it doesn't have any separate components that need to be assembled. This makes it easier to install and reduces the risk of losing parts.2. D-shaped bore: The bore of the one piece d bore shaft collar is designed to match the D-shaped cross section of a shaft. This ensures a secure fit and prevents the collar from rotating on the shaft.3. Set screw: The one piece d bore shaft collar features a set screw that is used to tighten the collar onto the shaft. The set screw is typically located on the flat side of the collar and is tightened using a hex key.4. Material: The one piece d bore shaft collar is typically made from a durable and corrosion-resistant material such as steel, stainless steel, or aluminum. The choice of material will depend on the specific application and the environment in which the collar will be used.5. Surface finish: The surface of the one piece d bore shaft collar is typically finished to provide a smooth and even surface. This helps to reduce friction and wear between the collar and the component that it is securing.6. Size range: The one piece d bore shaft collar is available in a variety of sizes to accommodate different shaft diameters. The size range can vary depending on the manufacturer but typically ranges from a few millimeters to several inches in diameter.

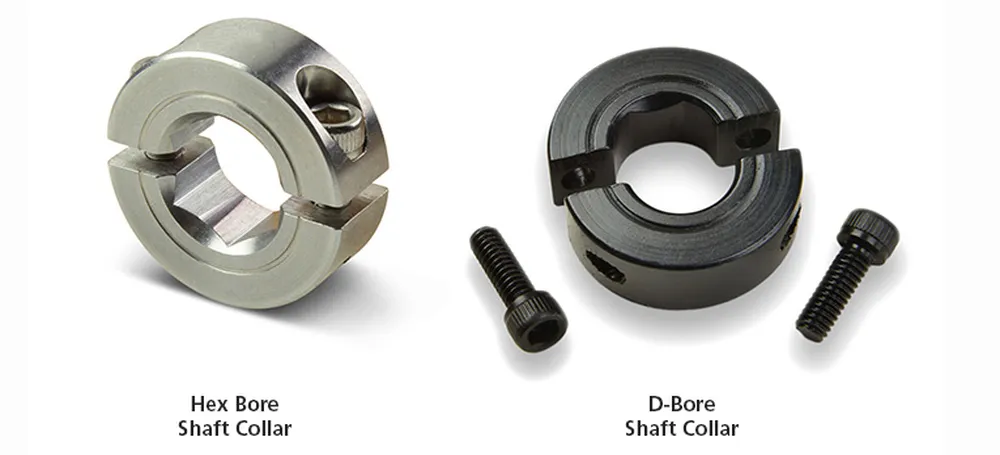

▍D Bore Shaft Collars Vs Hex Bore Shaft Collars

D bore shaft collars and hex bore shaft collars are both used to secure components to a shaft. However, there are some key differences between the two types of collars.D-bore shaft collars have a single flat on the bore, which is designed to fit into a corresponding D-shaped groove on the shaft. This type of shaft collar is often used in applications where high holding power is required, such as in conveyors and other industrial machinery. D-bore shaft collars are also less likely to mar the shaft than other types of shaft collars, such as set screw shaft collars.Hex bore shaft collars have a hexagonal bore that fits over a hexagonal shaft. This type of shaft collar is less expensive than D bore shaft collars, and it is also easier to install. However, hex bore shaft collars do not provide as much holding power as D-bore shaft collars.In general, D-bore shaft collars are the preferred choice for applications where high holding power is required. Hex bore shaft collars are a less expensive option that is easier to install, and they may be suitable for applications where lower holding power is required.Here is a table that summarizes the key differences between D-bore shaft collars and hex bore shaft collars:

▍One Piece D Bore Shaft Collars Application Scenarios

The one piece d bore shaft collar is a versatile and widely used mechanical component that can be applied in a variety of scenarios. Here are some of the common application scenarios for the one piece d bore shaft collar:(1) Robotics and automation: In robotics and automation systems, the one piece d shaped shaft collar can be used to secure components such as gears, pulleys, and sprockets onto a shaft. This helps to ensure precise positioning and reduces the risk of slippage or misalignment.(2) Machinery and equipment: One piece d bore shaft collars are commonly used in machinery and equipment such as motors, pumps, and conveyors. They can be used to secure bearings, couplings, and other components onto a shaft, helping to keep the machine running smoothly and preventing damage to the components.(3) Medical devices: The one piece d profile shaft collars can be used in medical devices such as surgical instruments and diagnostic equipment. It can be used to secure components such as blades and sensors onto a shaft, ensuring precise positioning and reducing the risk of slippage or misalignment.(4) Laboratory equipment: One piece d bore shaft collars can be used in laboratory equipment such as centrifuges and mixers. They can be used to secure components such as rotors and stirrers onto a shaft, ensuring precise positioning and reducing the risk of slippage or misalignment.(5) Sporting equipment: One piece d bore shaft collars can also be used in sporting equipment such as bicycles and exercise machines. They can be used to secure components such as pedals, chains, and flywheels onto a shaft, ensuring smooth and efficient movement and reducing the risk of damage to the components.(5) Agricultural machinery: One piece d profile shaft collars are frequently used in agricultural machinery such as tractors and harvesters. They can be used to secure components such as blades and belts onto a shaft, ensuring smooth operation and preventing damage to the components.

▍One Piece D Bore Shaft Collar Manufacturers

Shaft collars are machine components that feature a simple design but play an important role in a wide range of industrial applications. They serve three primary functions; holding components in place, locating or positioning components on a shaft, and creating an attachment between the shaft and another component. Designers have a variety of factors to consider, such as style, material, bore size, and shaft geometry, before a selection can be made. It is important to identify the requirements, parameters, and limitations of your system in order to determine the right style for the application.Despite their simple design, shaft collars play an important role in a wide range of industrial applications. As such, when choosing one for a particular application, it is essential to use the one with the right design and performance characteristics.As an experienced manufacturer and distributor of shaft collars suitable for use in power transmission, motion control, automation, and other OEM and ODM operations, Raydafon has the knowledge, skills, and inventory to help customers select and source the right shaft collar for their application. In addition to offering standard shaft collars, including set screw shaft collars, heavy duty shaft collars, one piece shaft collars, two piece shaft collars, quick release shaft collars, double wide shaft collars, mountable shaft collars, hex shaft collars, D profile shaft collars, and threaded shaft collars, we also provide custom design and engineering services to manufacturing specialized shaft collars for unique customer needs.

▍FAQ

Q1: What is a D bore shaft collar?A: A D bore shaft collar is a type of collar used to secure a machine component onto a shaft. It has a D-shaped hole that fits snugly around the shaft, providing a secure grip and preventing the component from sliding or rotating on the shaft.Q2: What materials are D bore shaft collars made from?A: D bore shaft collars are typically made from materials such as steel, stainless steel, aluminum, brass, and plastic. The choice of material depends on the application and the operating conditions.Q3: What sizes are available for D bore shaft collars?A: D bore shaft collars come in a range of sizes to fit different shaft diameters. The sizes are usually specified in inches or millimeters, and the shaft collar's width can also vary depending on the application.Q4: How are D bore shaft collars installed?A: D bore shaft collars are installed by sliding them onto the shaft and tightening the set screw(s) using a hex key or Allen wrench. The set screw(s) press against the flat side of the D-shaped hole, creating a tight grip on the shaft.Q5: What are some common applications for D bore shaft collars?A: D bore shaft collars are commonly used in applications such as robotics, automation equipment, conveyor systems, and packaging machinery. They can be used to secure bearings, sprockets, pulleys, gears, and other components onto shafts. They are also used in medical equipment, food processing equipment, and other industries where hygiene and corrosion resistance are important.Q6: Are D bore shaft collars reusable?A: Yes, D bore shaft collars are designed to be reusable. They can be removed from the shaft by loosening the set screw(s) and sliding the shaft collar off. However, it is important to inspect the shaft collar and the set screw(s) for damage or wear before reusing them to ensure proper function and safety.Q7: What are some advantages of using D bore shaft collars?A: D bore shaft collars are easy to install and remove, making them a convenient solution for securing components onto shafts. They are also relatively low-cost compared to other types of shaft collars. Additionally, D bore shaft collars provide a secure grip on the shaft without damaging the surface, and they can be positioned anywhere along the shaft for maximum flexibility.Q8: Are there any limitations or drawbacks to using D bore shaft collars?A: One limitation of D bore shaft collars is that they can only be used on shafts with a flat side or a keyway. They are not suitable for use on round or tapered shafts. Additionally, D bore shaft collars may not provide as strong a grip as other types of shaft collars, such as split shaft collars or clamping shaft collars, and they may be more prone to slipping or coming loose if the set screw(s) are not tightened properly or if there is excessive vibration or torque. However, these limitations can often be mitigated by choosing the appropriate shaft collar size and material and by following proper installation and maintenance procedures.
