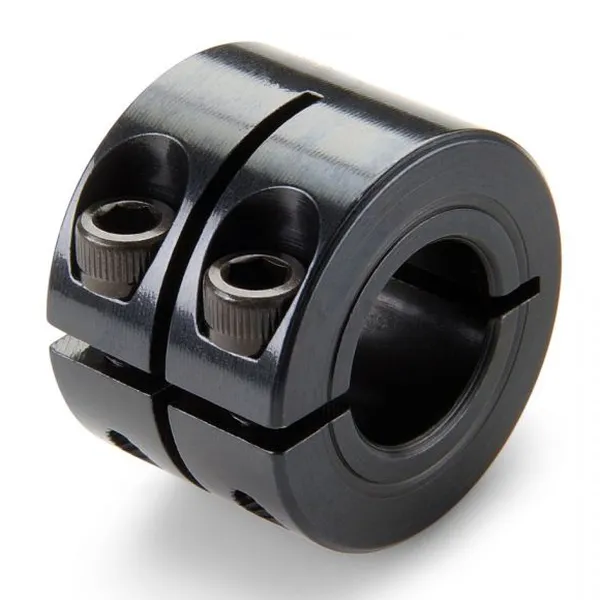

One Piece Double Wide Shaft Collars (Shaft Clamps) Metric Series

One Piece Double Wide Shaft Collars (Shaft Clamps) Metric Series

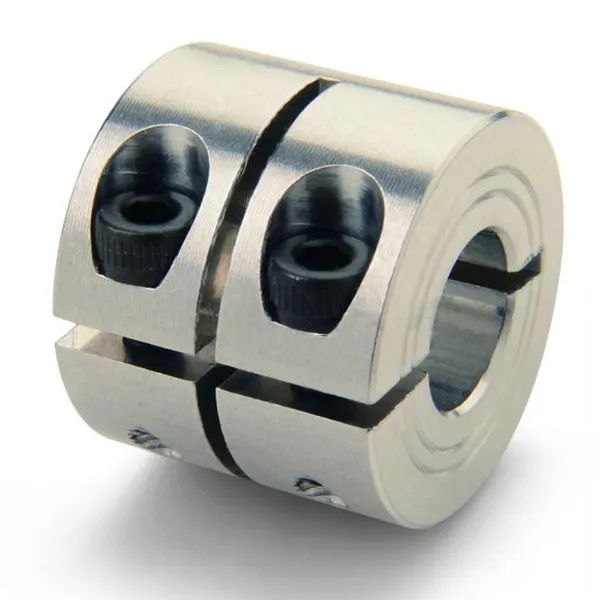

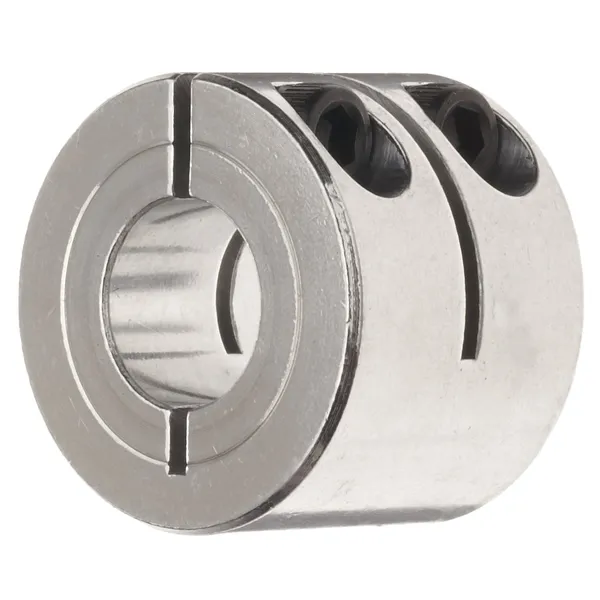

The metric series one piece double wide shaft collars are mechanical components used to hold two or more objects or components in place on a shaft. They are designed to be placed on a shaft and tightened using screws or bolts to provide a secure grip on the shaft and prevent the components from moving or slipping.These double wide shaft collars are called "double wide" because they have a wider surface area than standard shaft collars, which makes them ideal for use with larger or heavier components that require more support. They are also made with a single piece construction, meaning that they do not have any seams or welds that could weaken the shaft collar's structure.The metric series refers to the standardized sizing of the collar, which is based on the metric system of measurement. This means that the collar's dimensions are given in millimeters, such as the inner diameter, outer diameter, and width.Overall, metric series one piece double wide shaft collars are commonly used in various industrial applications, such as manufacturing equipment, robotics, and automation systems, to provide a reliable and durable connection between the shaft and the components being attached.

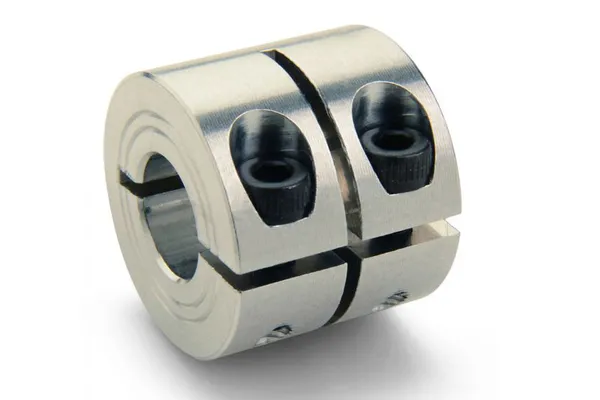

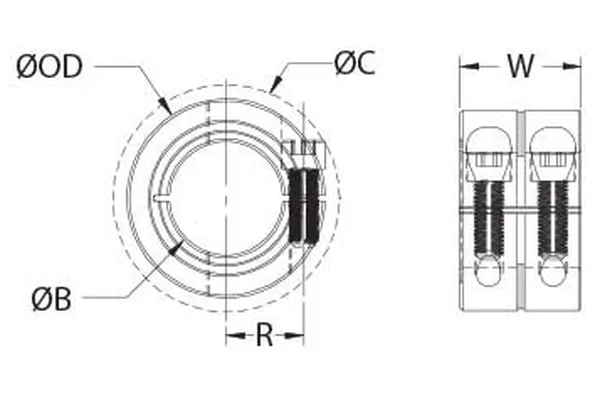

▍One Piece Double Wide Shaft Collar Sizes Chart (Metric Series)

Part Number Steel	Part Number Aluminum	Part Number Stainless Steel	Bore (B) (mm)	Outer Diameter (OD) (mm)	Width (W) (mm)
MWCL-6-F	MWCL-6-A	MWCL-6-SS	6	16	19.6
MWCL-8-F	MWCL-8-A	MWCL-8-SS	8	18	19.6
MWCL-10-F	MWCL-10-A	MWCL-10-SS	10	24	19.6
MWCL-12-F	MWCL-12-A	MWCL-12-SS	12	28	23.6
MWCL-16-F		MWCL-16-SS	16	34	27.6
MWCL-20-F		MWCL-20-SS	20	40	31.6
MWCL-25-F		MWCL-25-SS	25	45	31.6

▍Advantages of One Piece Double Wide Shaft Collars

There are several advantages to using one piece clamp style double wide shaft collars, including:1. Increased Holding Power: The wider surface area of the double wide shaft collar provides increased holding power over standard shaft collars, making them ideal for use with larger or heavier components that require more support.2. Improved Stability: The increased holding power of double wide shaft collars also means that they provide improved stability for attached components. This can be particularly important in applications where vibration or movement could cause components to shift or become misaligned.3. Easy Installation: One piece double wide shaft collars are designed for easy installation and can be easily placed on a shaft and tightened using screws or bolts. This makes them a convenient and time-saving solution for securing components in place.4. No Welds or Seams: The one-piece construction of double wide shaft collars means that they do not have any seams or welds that could weaken the shaft collar's structure. This makes them more durable and less prone to failure than shaft collars with multiple pieces or joints.5. Availability: One piece double wide shaft collars are widely available in various sizes, materials, and configurations, making them a versatile solution for a wide range of industrial applications.Overall, the increased holding power, improved stability, easy installation, durability, and availability make one piece double wide shaft collars a popular choice for securing components on a shaft in various industrial applications.

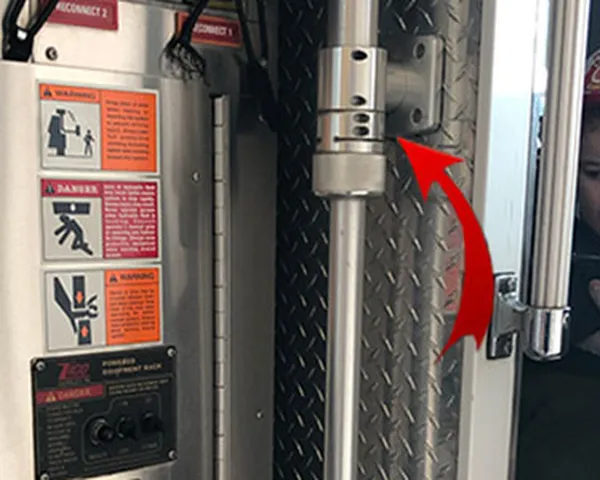

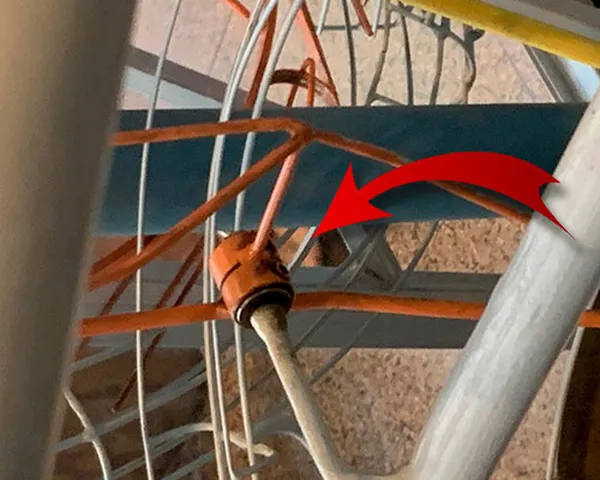

▍Applications of One Piece Double Wide Shaft Collars

One-piece double wide shaft collars are mechanical components used to secure or position two adjacent parts on a shaft. These double wide shaft collars offer a wide range of applications in various industries, such as:(1) Robotics: One piece double wide shaft collars are used in robotics to secure the motors and other rotating components to the shaft. This ensures that the robot's moving parts are aligned and remain in position during operation.(2) Material handling: Double wide shaft collars are often used in material handling equipment to hold bearings, gears, and other components in place. They provide a secure grip on the shaft and can withstand the stresses of heavy loads and frequent movement.(3) Conveyors: Conveyor systems use one piece double wide shaft collars to hold bearings and other components in place. This ensures that the conveyor belt stays aligned and moves smoothly.(4) Packaging: One piece double wide shaft collars are used in packaging machines to hold the rollers and other moving parts in place. This ensures that the packaging is accurately aligned and the machine operates smoothly.(5) Agricultural equipment: One piece double wide shaft collars are used in agricultural equipment, such as tractors, and combine to secure rotating components to the shaft. This ensures that the equipment operates smoothly and reliably.Overall, one piece double wide shaft collars play a critical role in various industries, ensuring that the rotating components on a shaft remain in position and operate smoothly.

▍One Piece Double Wide Shaft Collar Installation Operation

Installing a one piece double wide shaft collar is a simple process, but there are a few important considerations to keep in mind to ensure safe and effective operation. Here are some tips to follow:1. Make sure the double wide shaft collar is the correct size for your application. Measure the shaft diameter and choose a shaft collar that matches it. Double-check the shaft collar's specifications to ensure it is rated for the torque and load requirements of your application.2. Clean the shaft thoroughly before installing the double wide shaft collar. Any dirt, debris, or rust on the shaft can prevent the shaft collar from fitting properly and may cause it to slip or come loose during operation.3. Slide the double wide shaft collar onto the shaft and position it at the desired location. Ensure that the shaft collar is centered on the shaft and that there is enough clearance on either side to allow for any other components that may be attached to the shaft.4. Tighten the set screws evenly, alternating between screws to ensure that the double wide shaft collar is centered on the shaft and that it is clamped down evenly. Be careful not to over-tighten the screws, as this can damage the shaft collar or the shaft.5. Inspect the shaft collar and shaft after installation to ensure that everything is properly aligned and that the double wide shaft collar is securely in place. Check the shaft collar periodically during operation to ensure that it is still tight and that there is no slippage.6. Follow the manufacturer's instructions for any additional maintenance or servicing requirements. Some double wide shaft collars may need to be periodically lubricated or adjustedto ensure proper operation.7. Do not exceed the rated torque or load capacity of the collar. Overloading the double wide shaft collar can cause it to fail or come loose, which can be dangerous and cause equipment damage.If you need to remove the double wide shaft collar, loosen the set screws evenly and slide the shaft collar off the shaft. Do not use excessive force, as this can damage the shaft collar or the shaft. By following these tips, you can ensure safe and effective operation of your one piece double wide shaft collar.

▍Double Wide Shaft Collars Vs Single Split Shaft Collars

Double wide shaft collars and single split shaft collars are both types of shaft collars that are used to secure rotating components to a shaft. They both have their own advantages and disadvantages, and the best type to use will depend on the specific application.Double wide shaft collars have a wider width than single split shaft collars, which gives them a greater holding power. This makes them ideal for applications where high axial loads are present. Double wide shaft collars are also more difficult to install and remove than single split shaft collars, but they offer a higher level of security.Single split shaft collars are narrower than double wide shaft collars, which makes them easier to install and remove. They also have a lower holding power than double wide shaft collars, but they are still sufficient for many applications. Single split shaft collars are also less expensive than double wide shaft collars.

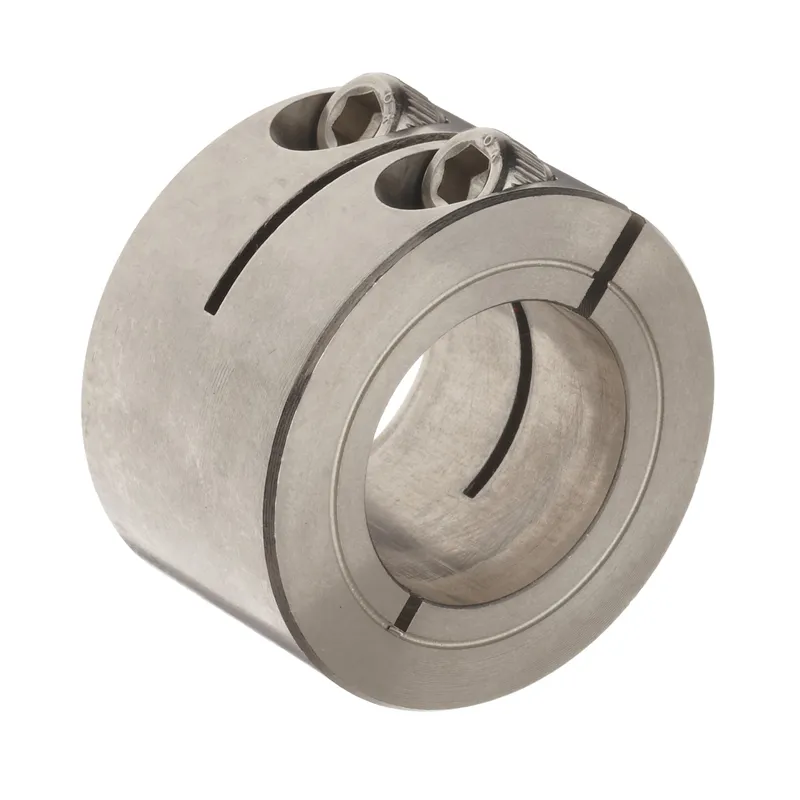

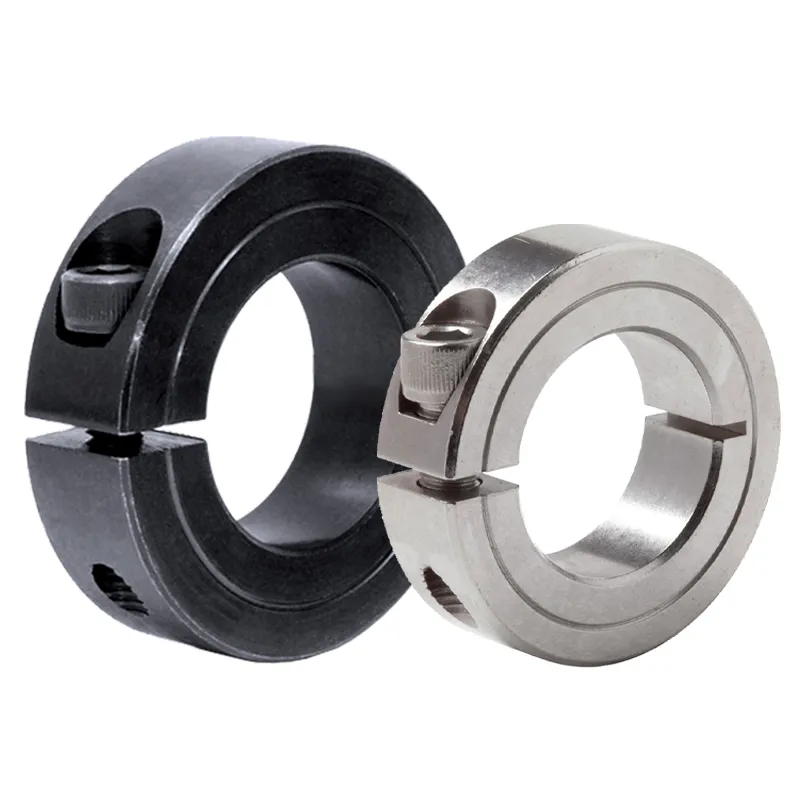

Double Wide Shaft Collar	Single Split Shaft Collar

Here is a table that summarizes the key differences between double wide shaft collars and single split shaft collars:In general, double wide shaft collars are the better choice for applications where high axial loads are present. Single split shaft collars are a good choice for applications where lower axial loads are present, and ease of installation is important.

▍One Piece Double Wide Shaft Collar Manufacturers

Shaft collars are machine components that feature a simple design but play an important role in a wide range of industrial applications. They serve three primary functions; holding components in place, locating or positioning components on a shaft, and creating an attachment between the shaft and another component. Designers have a variety of factors to consider, such as style, material, bore size, and shaft geometry, before a selection can be made. It is important to identify the requirements, parameters, and limitations of your system in order to determine the right style for the application.Despite their simple design, shaft collars play an important role in a wide range of industrial applications. As such, when choosing one for a particular application, it is essential to use the one with the right design and performance characteristics.As an experienced manufacturer and distributor of shaft collars suitable for use in power transmission, motion control, automation, and other OEM and ODM operations, Raydafon has the knowledge, skills, and inventory to help customers select and source the right shaft collar for their application. In addition to offering standard shaft collars, including set screw shaft collars, one piece shaft collars, two piece shaft collars, quick release shaft collars, double wide shaft collars, mountable shaft collars, hex shaft collars, D profile shaft collars, and threaded shaft collars, we also provide custom design and engineering services to manufacturing specialized shaft collars for unique customer needs.

▍FAQ

Q1: What is a double wide shaft collar?A: A double wide shaft collar is a type of collar that is used to secure two components or parts onto a shaft. It is called "double wide" because it has a wider width than a standard shaft collar. This allows it to provide greater holding power and stability to the components being secured.Q2: What are the benefits of using a double wide shaft collar?A: There are several benefits of using a double wide shaft collar, including increased holding power and stability, improved alignment of components, reduced vibration and noise, and increased resistance to axial forces.Q3: What materials are double wide shaft collars typically made of?A: Double wide shaft collars can be made from a variety of materials, including steel, stainless steel, aluminum, brass, and plastic. The material used depends on the application and the specific requirements of the collar.Q4: What sizes are available for double wide shaft collars?A: Double wide shaft collars are available in a range of sizes, typically ranging from 1 inch to 6 inches in diameter. However, custom sizes can be manufactured to meet specific application requirements.Q5: How are double wide shaft collars installed?A: Double wide shaft collars are typically installed by sliding them onto the shaft and tightening the set screws using a hex key. The set screws should be tightened evenly to ensure proper alignment and holding power.Q6: What are some common applications for double wide shaft collars?A: Double wide shaft collars are commonly used in applications where two components or parts need to be secured onto a shaft, such as in conveyor systems, machinery, and robotics. They can also be used to provide additional support and stability for bearings, sprockets, and other shaft-mounted components.
