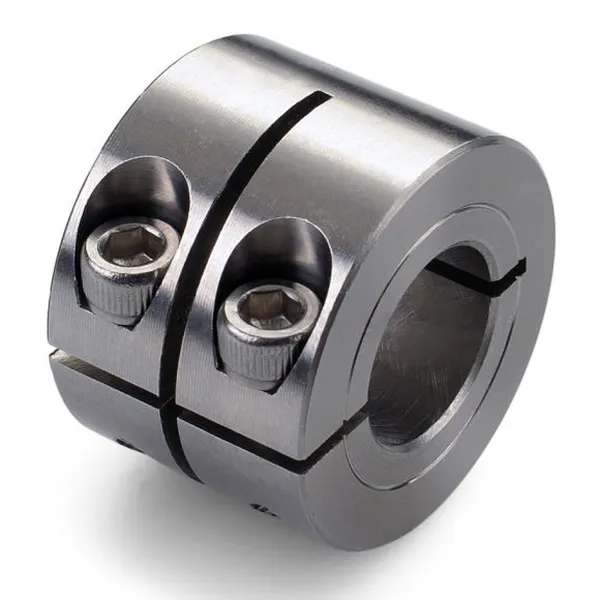

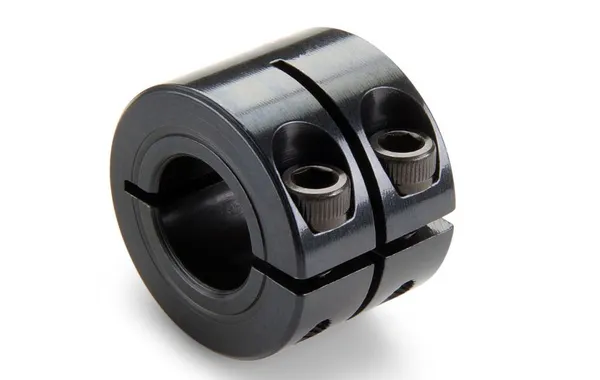

One Piece Double Wide Shaft Collars (Shaft Clamps) Inch Series

One Piece Double Wide Shaft Collars (Shaft Clamps) Inch Series

One piece double wide shaft collars are a type of shaft collar that is designed to provide increased holding power in applications with high axial loads. They are made of a single piece of material and have a wider face than standard shaft collars. This allows them to distribute the load more evenly over the shaft, resulting in a stronger hold. One piece double wide shaft collars are available in a variety of materials, including steel, stainless steel, and aluminum. They are also available in a variety of sizes to accommodate a wide range of shafts.One piece double wide shaft collars are commonly used in industrial machinery, such as conveyor systems, packaging equipment, and printing presses. If you are looking for a shaft collar that can provide increased holding power, durability, versatility, and ease of installation and removal, then a one piece double wide shaft collar is a good option.

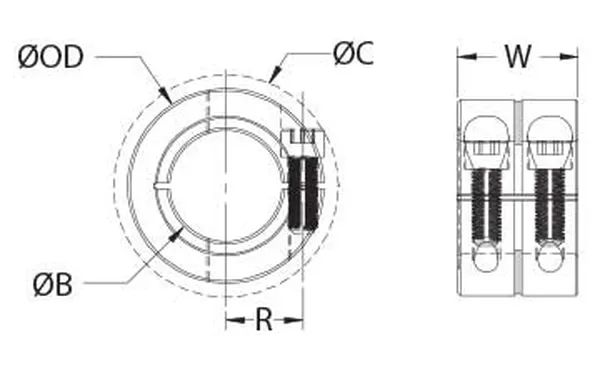

▍One Piece Double Wide Shaft Collar Sizes Chart (Inch Series)

Part Number Steel	Part Number Aluminum	Part Number Stainless Steel	Bore (B) (in)	Outer Diameter (OD) (in)	Width (W) (in)
WCL-2-F	WCL-2-A	WCL-2-SS	0.1250	5/8	5/8
WCL-3-F	WCL-3-A	WCL-3-SS	0.1875	5/8	5/8
WCL-4-F	WCL-4-A	WCL-4-SS	0.2500	5/8	5/8
WCL-5-F	WCL-5-A	WCL-5-SS	0.3125	11/16	5/8
WCL-6-F	WCL-6-A	WCL-6-SS	0.3750	7/8	3/4
WCL-8-F	WCL-8-A	WCL-8-SS	0.5000	1 1/8	7/8
WCL-10-F		WCL-10-SS	0.6250	1 5/16	15/16
WCL-12-F		WCL-12-SS	0.7500	1 1/2	1 1/16
WCL-14-F		WCL-14-SS	0.8750	1 5/8	1 1/16
WCL-16-F		WCL-16-SS	1.0000	1 3/4	1 1/16
WCL-18-F		WCL-18-SS	1.1250	1 7/8	1 1/16
WCL-20-F		WCL-20-SS	1.2500	2 1/16	1 1/16
WCL-24-F		WCL-24-SS	1.5000	2 3/8	1 3/16
WCL-28-F		WCL-28-SS	1.7500	2 3/4	1 15/32
WCL-32-F		WCL-32-SS	2.0000	3	1 15/32

▍One Piece Double Wide Shaft Collar Design Features

One piece double wide shaft collars are designed to provide a more uniform holding power and higher axial load capacity than set screw shaft collars. They are easier to remove and reposition than set screw shaft collars and are effective on both hard and soft shafts.Here are some of the design features of one piece double wide shaft collars:1. Double-wide design: The double wide design provides a more uniform holding power than a single wide shaft collar. This is because the force applied by the screws is spread over a larger area.2. One-piece construction: The one piece construction eliminates the need for alignment between two separate shaft collars. This makes installation and removal easier and faster.3. Forged socket-head cap screws: The forged socket-head cap screws provide a high level of strength and durability. They are also resistant to corrosion and wear.4. Black oxide finish: The black oxide finish provides a protective layer that helps to prevent corrosion and rust. It also makes the shaft collar easier to clean and maintain.One-piece double wide shaft collars are a versatile and reliable solution for a variety of applications. They are ideal for use in applications where high axial loads are present, such as in power transmission and machine tools. They are also a good choice for applications where easy removal and repositioning are required, such as in assembly and maintenance.

▍One Piece Double Wide Shaft Collar Common Applications

One piece double wide shaft collars are used in a variety of applications where precise positioning and secure clamping of shafts and other components are required. Some common applications of One piece double wide shaft collars include:(1) Industrial machinery: One piece double wide shaft collars are often used in industrial machinery such as conveyor systems, packaging equipment, and material handling systems. They are used to secure shafts and other components in place, ensuring accurate positioning and preventing slippage.(2) Robotics: One piece double wide shaft collars are frequently used in robotics applications to clamp and position robotic arms, grippers, and other components. They provide a secure grip and help to maintain precise positioning, which is critical for robotic applications.(3) Automotive systems: One piece double wide shaft collars are used in a variety of automotive systems, including engines, transmissions, and drivetrains. They are used to secure shafts and other components in place, ensuring reliable performance and preventing damage or slippage.(4) Medical equipment: One piece double wide shaft collars are used in medical equipment such as surgical tools and imaging devices. They are used to clamp and position components with precision, ensuring accurate and reliable operation.(5) Aerospace and defense: One piece double wide shaft collars are used in a variety of aerospace and defense applications, including aircraft engines, missile guidance systems, and satellite components. They are used to secure shafts and other components in place, ensuring reliable performance under extreme conditions.Overall, one piece double wide shaft collars are widely used in a variety of applications where precision positioning and secure clamping of shafts and other components are required. They provide a reliable and durable solution for a range of industries, including industrial machinery, robotics, automotive systems, medical equipment, and aerospace and defense.

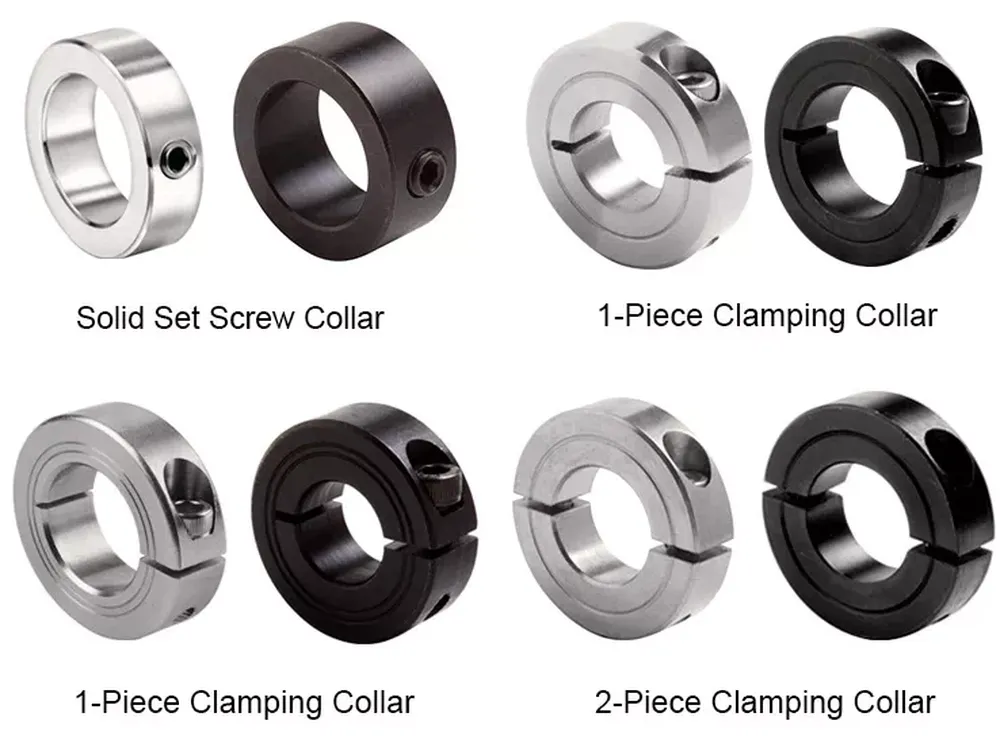

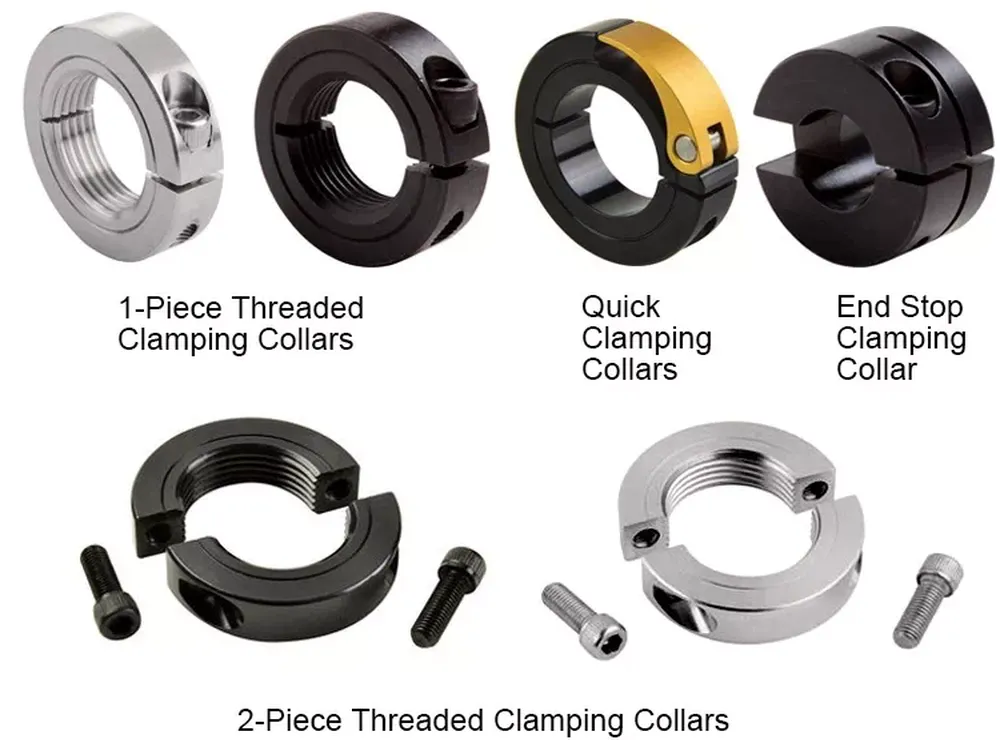

▍We Also Provide Other Types of Shaft Collars

Examples of Custom Shaft Collars Work:

• Custom bore sizes, tolerances, and geometry
• Special material or hardware requests.
• Custom color or finish
• Balanced designs
• Machined flats and mounting screws
• Set collars with extra screws
• And Many Others...

▍One Piece Double Wide Shaft Collar Manufacturers & Suppliers

Shaft collars are machine components that feature a simple design but play an important role in a wide range of industrial applications. They serve three primary functions; holding components in place, locating or positioning components on a shaft, and creating an attachment between the shaft and another component. Designers have a variety of factors to consider, such as style, material, bore size, and shaft geometry, before a selection can be made. It is important to identify the requirements, parameters, and limitations of your system in order to determine the right style for the application.Despite their simple design, shaft collars play an important role in a wide range of industrial applications. As such, when choosing one for a particular application, it is essential to use the one with the right design and performance characteristics.As an experienced manufacturer and distributor of shaft collars suitable for use in power transmission, motion control, automation, and other OEM and ODM operations, Raydafon has the knowledge, skills, and inventory to help customers select and source the right shaft collar for their application. In addition to offering standard shaft collars, including set screw shaft collars, one piece shaft collars, two piece shaft collars, quick release shaft collars, double wide shaft collars, mountable shaft collars, hex shaft collars, D profile shaft collars, and threaded shaft collars, we also provide custom design and engineering services to manufacturing specialized shaft collars for unique customer needs.

▍FAQ

Q1: What is a double wide shaft collar?A: A double wide shaft collar is a type of collar that is used to secure two components or parts onto a shaft. It is called "double wide" because it has a wider width than a standard shaft collar. This allows it to provide greater holding power and stability to the components being secured.Q2: What are the benefits of using a double wide shaft collar?A: There are several benefits of using a double wide shaft collar, including increased holding power and stability, improved alignment of components, reduced vibration and noise, and increased resistance to axial forces.Q3: What materials are double wide shaft collars typically made of?A: Double wide shaft collars can be made from a variety of materials, including steel, stainless steel, aluminum, brass, and plastic. The material used depends on the application and the specific requirements of the collar.Q4: What sizes are available for double wide shaft collars?A: Double wide shaft collars are available in a range of sizes, typically ranging from 1 inch to 6 inches in diameter. However, custom sizes can be manufactured to meet specific application requirements.Q5: How are double wide shaft collars installed?A: Double wide shaft collars are typically installed by sliding them onto the shaft and tightening the set screws using a hex key. The set screws should be tightened evenly to ensure proper alignment and holding power.Q6: What are some common applications for double wide shaft collars?A: Double wide shaft collars are commonly used in applications where two components or parts need to be secured onto a shaft, such as in conveyor systems, machinery, and robotics. They can also be used to provide additional support and stability for bearings, sprockets, and other shaft-mounted components.
