A pile driving barge luffing cylinder is a large hydraulic cylinder that is used to swing the pile frame of a pile driving barge. The pile frame is the structure that holds the pile hammer, and it needs to be able to swing in order to drive the piles into the ground at different angles. The luffing cylinder is responsible for providing the force to swing the pile frame, and it must be able to withstand the high loads and stresses that are involved in this operation.

Pile driving barge luffing cylinders are typically made of high-strength steel and are designed to withstand high pressures. They are also often coated with a protective layer to prevent corrosion. The size and capacity of a luffing cylinder will vary depending on the size of the pile driving barge and the type of piles that are being driven.

Luffing cylinders are an essential component of pile driving barges, and they play a vital role in the construction of many different types of structures. They are also used in other applications, such as offshore oil and gas platforms and wind turbine foundations.

Here are some of the key features of a pile driving barge luffing cylinder:

• Large bore: The bore diameter of a luffing cylinder is typically between 1000 and 1500 mm. This allows it to generate the high forces that are required to swing the pile frame.
• Long stroke: The stroke of a luffing cylinder is typically between 10000 and 15000 mm. This allows it to move the pile frame through a wide range of angles.
• High pressure: Luffing cylinders typically operate at pressures of up to 300 bar. This is necessary to generate the high forces that are required.
• Corrosion-resistant coating: The cylinder is often coated with a protective layer to prevent corrosion. This is important because luffing cylinders are often used in marine environments.

Pile driving barge luffing cylinders are a complex and specialized piece of equipment. They are essential for the safe and efficient operation of pile driving barges, and they play a vital role in the construction of many different types of structures.

Pile Driving Barge Luffing Cylinder Specifications:

Product Name	Pile Driving Barge Luffing Cylinder
Features:	swing the pile frame and bear the load, and the external force received is not only large but also complex
Bore diameter:	Up to 1400mm
Rod diameter:	Up to 900mmStroke up to 15500mm
Thrust force:	28465KN(pressure 25MPa)
Applications:	Jack-up Offshore Platform

Benefits of Pile Driving Barge Luffing Cylinder:

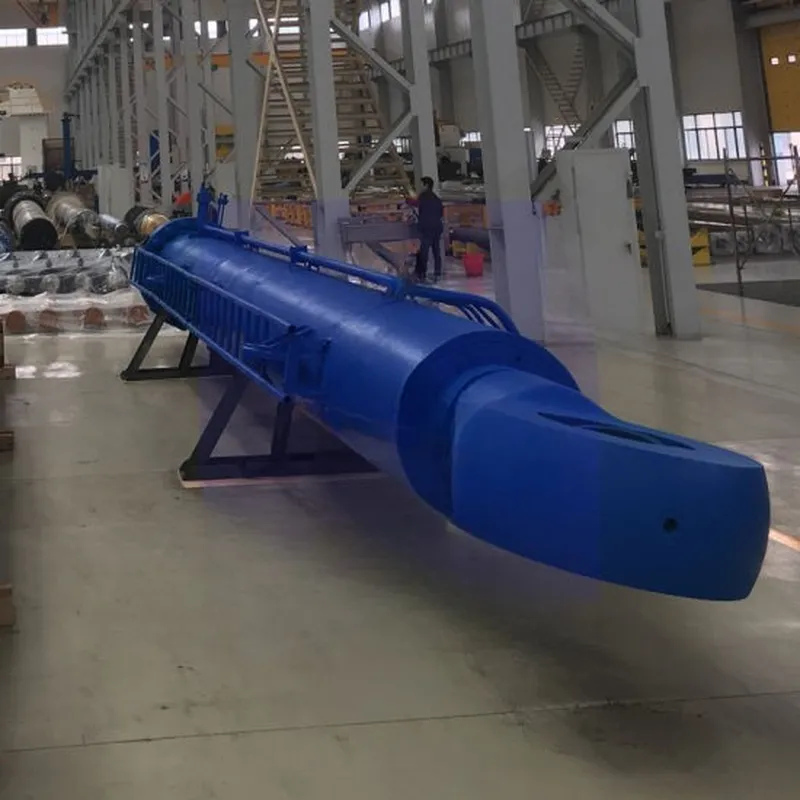

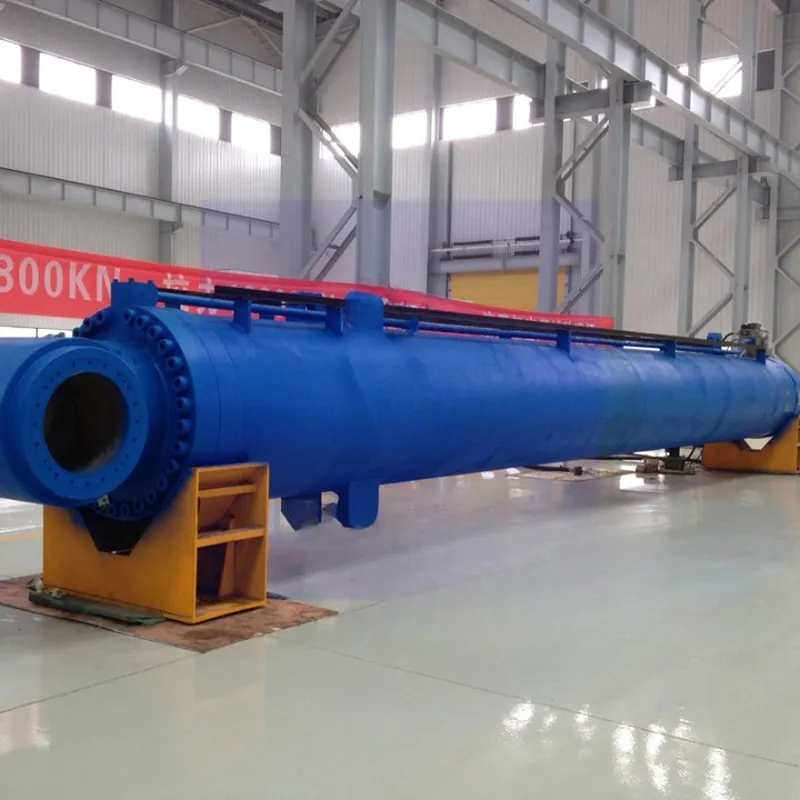

A pile driving barge luffing cylinder is a hydraulic device used in marine construction and pile driving operations. It provides several benefits that contribute to efficient and effective pile driving. Here are some of the key advantages of using a pile driving barge luffing cylinder:1. Precise Control: The pile driving barge luffing cylinder allows for precise control of the vertical movement of the pile driving equipment. It enables the operator to adjust the position and angle of the pile driver with accuracy, ensuring proper alignment with the pile and reducing the risk of misalignment or damage during driving.2. Increased Versatility: The pile driving barge luffing cylinder enhances the versatility of the pile driving barge by providing the ability to adjust the height and reach of the pile driver. This feature is particularly useful in various marine construction projects where different pile lengths and soil conditions may be encountered. It allows the barge to adapt to different pile driving requirements efficiently.3. Improved Safety: The precise control offered by the luffing cylinder enhances safety during pile driving operations. It enables the operator to maintain a safe working distance from the pile, reducing the risk of accidents and injuries. Additionally, the ability to adjust the angle of the pile driver minimizes the chances of pile leaning or falling during driving, ensuring a secure and stable operation.4. Enhanced Efficiency: With the luffing cylinder, the pile driving process becomes more efficient. The operator can quickly and accurately position the pile driver, reducing the time required for alignment and setup. This increased efficiency translates into higher productivity and cost savings, as more piles can be driven within a given timeframe.5. Adaptability to Site Conditions: Marine construction projects often encounter challenging site conditions, such as varying water depths and uneven seabeds. The pile driving barge luffing cylinder allows the pile driving barge to adapt to these conditions by adjusting the height and angle of the pile driver accordingly. This flexibility ensures optimal pile driving performance and helps overcome obstacles that could otherwise impede the progress of the project.6. Reduced Environmental Impact: By enabling precise control and accurate positioning, the pile driving barge luffing cylinder helps minimize the environmental impact of pile driving operations. It reduces the risk of pile damage, which can cause excessive noise and vibration in the water, potentially harming marine life. The ability to adapt to site conditions also allows for more efficient pile installation, reducing the disturbance to the surrounding environment.

Applications of Pile Driving Barge Luffing Cylinder:

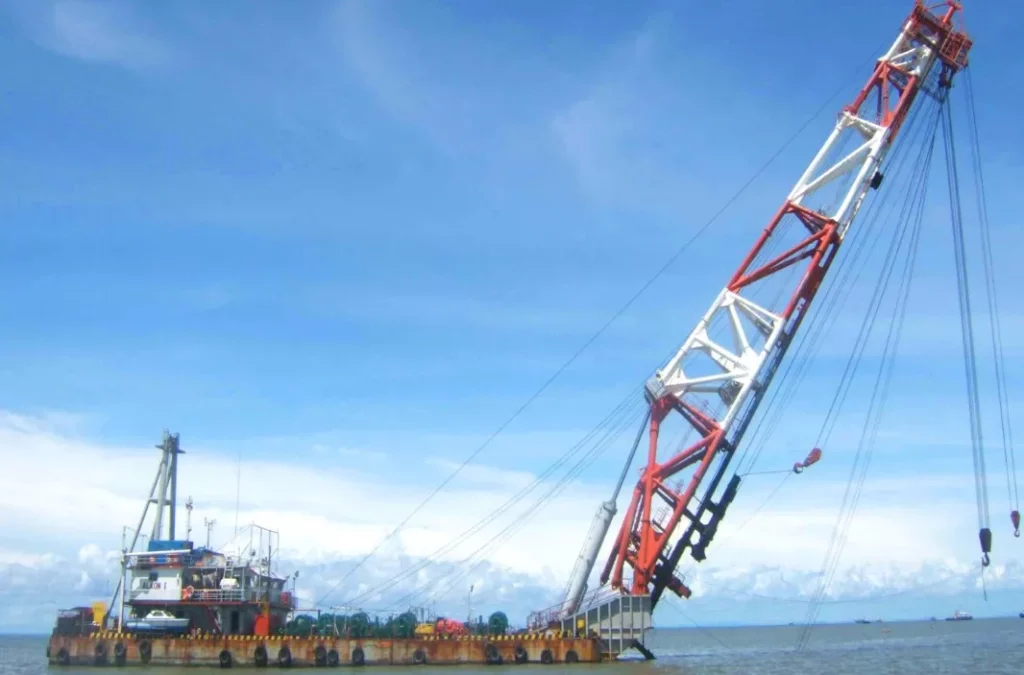

The pile driving barge luffing cylinder finds applications in various marine construction and pile driving projects. Here are some of the common applications where the luffing cylinder is used:(1) Bridge Construction: Pile driving barge luffing cylinders are commonly used in bridge construction projects. They are used to drive piles into the riverbed or seabed to create sturdy foundations for bridge piers and abutments.(2) Wharf and Pier Construction: Pile driving barge luffing cylinders are utilized in the construction of wharves, piers, and other waterfront structures. They help drive piles into the ground to create stable foundations that can withstand the loads imposed by ships, cargo handling equipment, and other structures.(3) Offshore Wind Farms: Pile driving barge luffing cylinders are employed in the installation of monopile foundations for offshore wind turbines. The luffing cylinder allows for precise positioning and driving of the piles into the seabed, providing a secure foundation for the wind turbines.(4) Jetty and Dolphin Construction: Jetty and dolphin structures, used for mooring vessels and protecting ports and harbors, often require pile foundations. Pile driving barge luffing cylinders are utilized to drive piles into the water or seabed to create stable and durable foundations for these structures.(5) Oil and Gas Platforms: Luffing cylinders play a crucial role in the construction of offshore oil and gas platforms. They are used to drive piles into the seabed to create the foundation for the platform's support structure, ensuring stability and safety.(6) Harbor Expansion and Dredging Projects: In harbor expansion projects or dredging operations, luffing cylinders are utilized to install new piles or replace existing ones. They help create or upgrade the infrastructure required for accommodating larger vessels, increasing port capacity, or improving navigation channels.

China Pile Driving Barge Cylinder Manufacturers

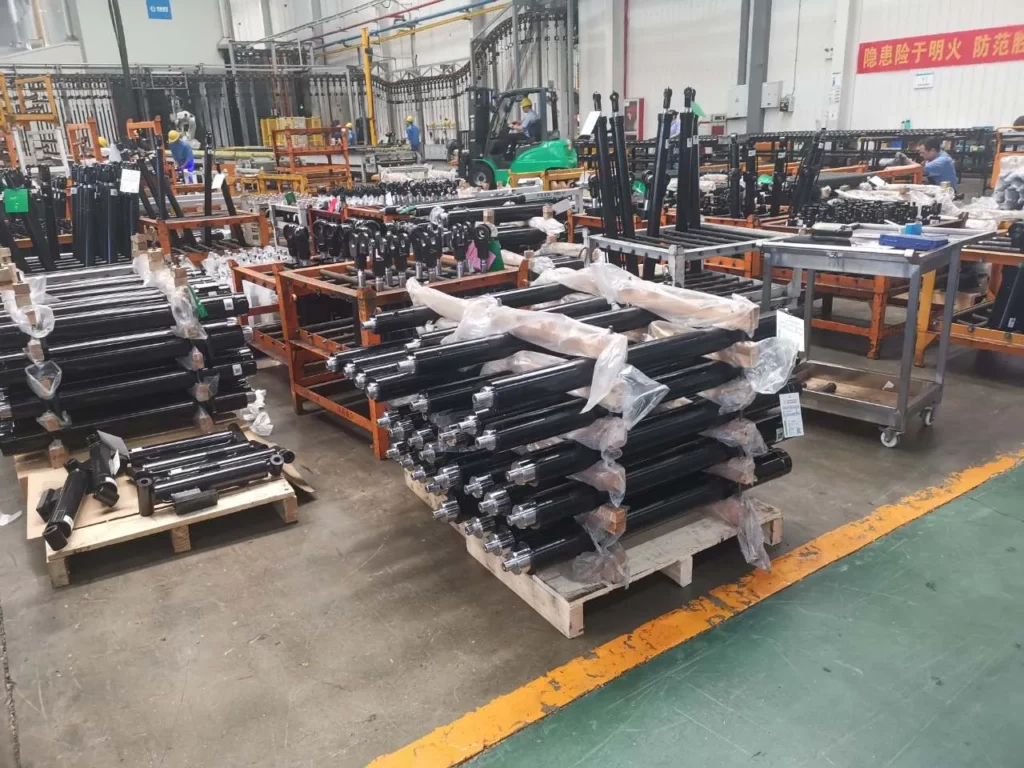

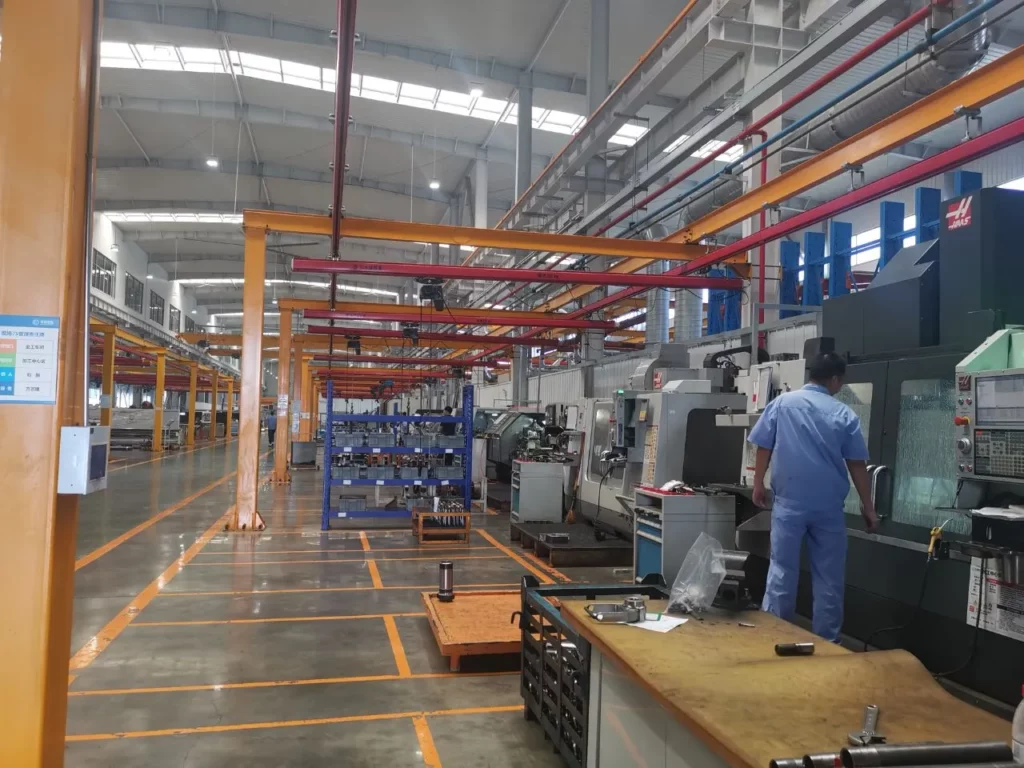

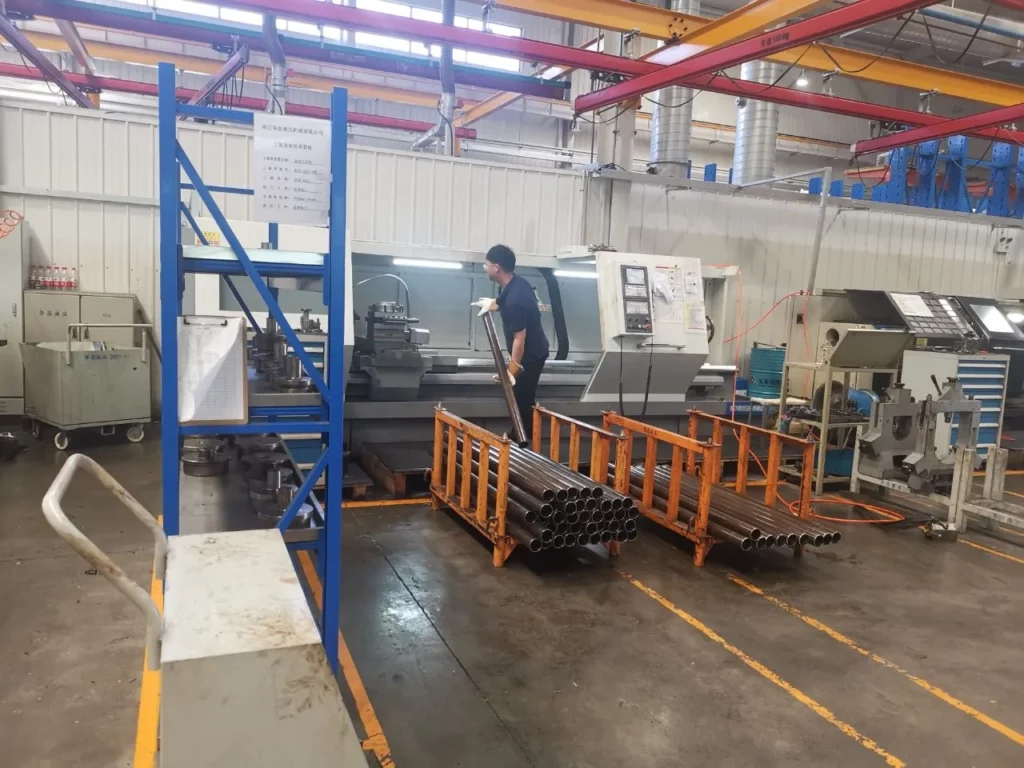

Piling platforms not only have to face the water environment but also complete complex piling operations; the conditions are often more severe, so the requirements for its components are higher. In particular, the important actuator hydraulic cylinder needs to withstand huge impact, which has a great test for its service life, and it also needs to be customized. Raydafon is one of the world's outstanding hydraulic cylinder manufacturers, which can provide tailor-made hydraulic cylinders for piling platforms. From design and development, production, and spraying to testing and inspection, we can better grasp the needs of customers and control the quality and delivery period of the products.Moreover, we go beyond just pile driving barge cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.
