The piston rod end - -internal threaded rod head earring connection engineering hydraulic cylinder is a high-performance hydraulic component designed for robust and efficient operation in a wide range of engineering applications. This product offers a secure and reliable connection between the piston rod end and external load-bearing structures, ensuring optimal performance and smooth hydraulic cylinder operation.HSG series engineering hydraulic cylinder is a double-acting piston rod hydraulic cylinder. The installation method adopts earring type; according to the connection method of cylinder head and cylinder block, there are three kinds of external thread connection, internal card critical connection, and flange connection. Engineering hydraulic cylinder is mainly used in construction, lifting, mining, and other hydraulic systems.

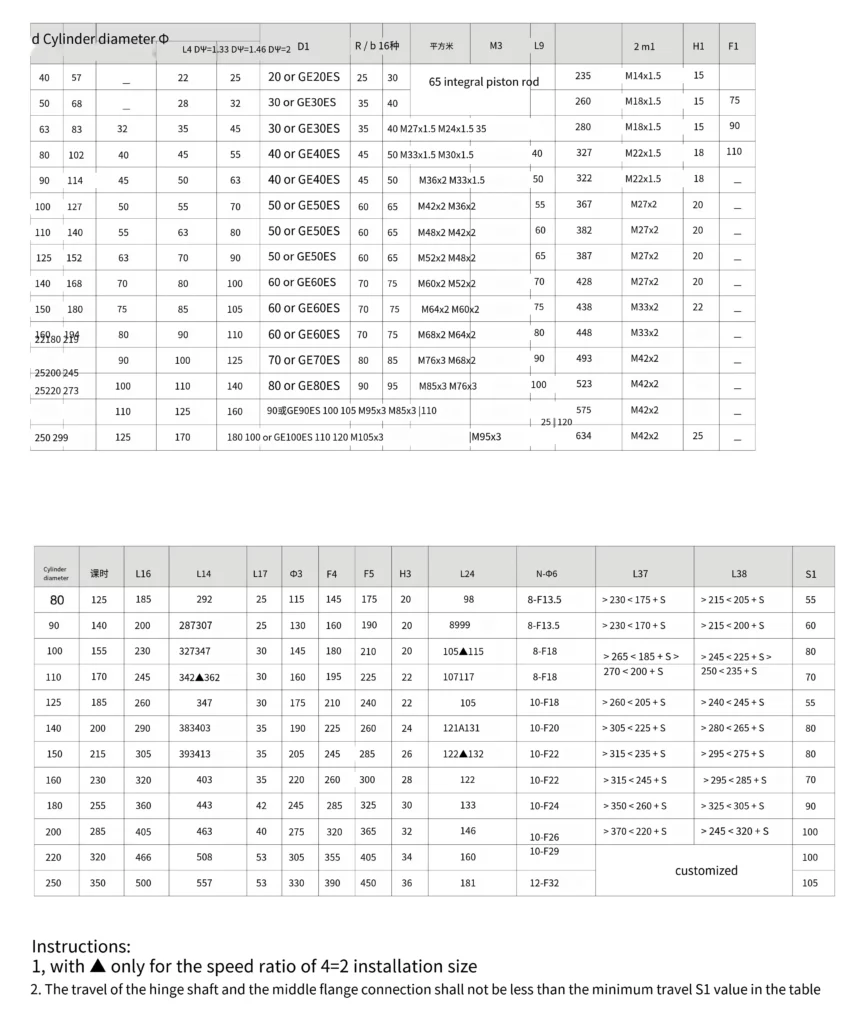

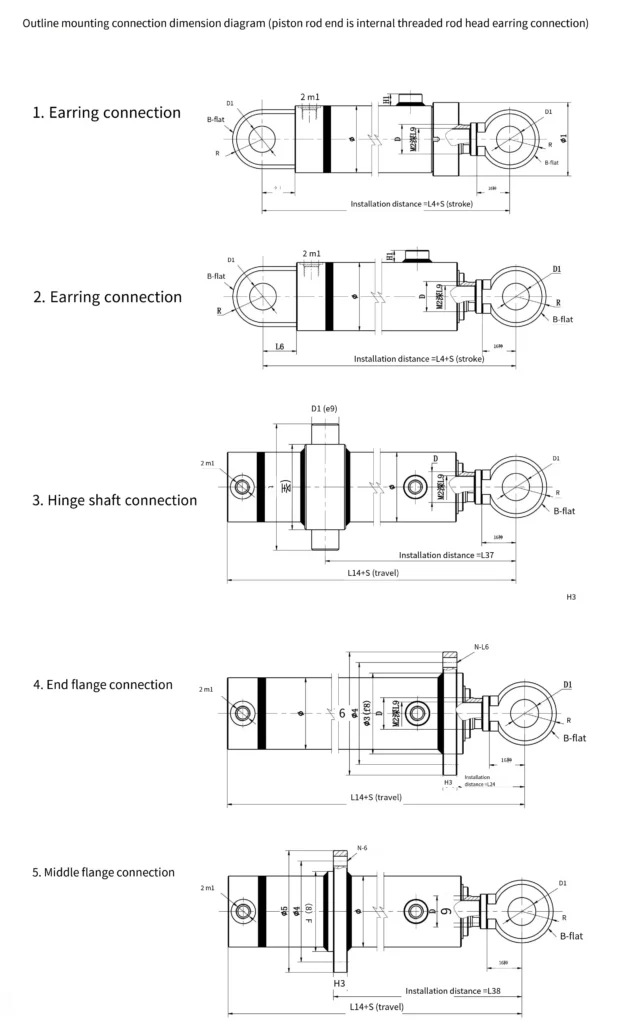

HSG Engineering Hydraulic Cylinder Parameter:

Usage Method Of HSG Engineering Hydraulic Cylinder:

1. Identify the Internal Thread:
   • Determine the specifications of the internal thread, including size, pitch, and type, as provided by the manufacturer.
   • Use thread gauges or calipers to measure the internal thread dimensions accurately.
2. Select Compatible Components:
   • Choose load-bearing structures or components that possess an external thread matching the specifications of the internal thread on the piston rod end.
   • Ensure that the selected components are clean, undamaged, and compatible with the hydraulic system requirements.
3. Thread Connection:
   • Align the external threaded portion of the component with the internal threaded hole/socket on the piston rod end.
   • Rotate the component clockwise to engage the threads.
   • Hand-tighten the connection until it is snugly fit.
4. Secure the Connection:
   • Utilize an appropriate tool, such as a wrench or spanner, to further tighten the connection, ensuring it is securely fastened.
   • Don't over-tighten, as it may damage the threads or components.

Characteristics Of HSG Engineering Hydraulic Cylinder:

• • Robust Construction: The hydraulic cylinder is sturdy and durable, allowing it to withstand demanding engineering applications.
  • Secure Connection: The internal threaded rod head earring connection ensures a reliable and secure attachment, providing stability and preventing unintended disconnection.
  • Compatibility: The product is designed for compatibility with various load-bearing structures and components, offering versatility in engineering projects.
  • Smooth Operation: The precise engineering of the piston rod end and internal thread ensures smooth and efficient hydraulic cylinder movement, reducing friction and enhancing overall performance.
  • Easy Maintenance: The threaded connection facilitates easy inspection, lubrication, and replacement of components, simplifying maintenance tasks.

How To Bleed Double-Acting Hydraulic Cylinder?

Bleeding a double-acting hydraulic cylinder involves removing air or trapped gases from the system to ensure proper functioning and prevent spongy or inconsistent movement. Here's a step-by-step guide on how to bleed a double-acting hydraulic cylinder:

1. Preparation:
   • Ensure that the hydraulic system is depressurized and the cylinder is in the retracted position.
   • Identify the bleed valves or fittings on the cylinder. These are typically located at the end cap or near the cylinder ports.
2. Position the Cylinder:
   • If possible, position the cylinder vertically with the rod end facing upward. This helps air bubbles rise to the top for easier bleeding.
3. Open the Bleed Valves:
   • Locate the bleed valves or fittings on the cylinder.
   • Use an appropriate wrench or tool to slowly open the bleed valves or fittings. Start with the one closest to the rod end of the cylinder.
4. Apply Pressure:
   • Activate the hydraulic system by operating the pump or actuator.
   • Gradually increase the pressure to a moderate level. This helps push the trapped air out of the cylinder through the open bleed valves.
5. Bleed the Air:
   • As the hydraulic system pressurizes, you may notice air bubbles escaping through the open bleed valves.
   • Allow the air to purge from the system until a steady flow of hydraulic fluid is observed without any air bubbles. This indicates that the cylinder is properly bled.
6. Close the Bleed Valves:
   • Once all the air is expelled, close the bleed valves or fittings on the cylinder.
   • Ensure they are tightened securely but avoid over-tightening.
7. Retract and Extend the Cylinder:
   • Operate the hydraulic system to retract and extend the cylinder fully a few times.
   • This helps to further purge any remaining air pockets and ensure smooth and consistent cylinder movement.
8. Check for Leaks:
   • After bleeding and cylinder operation, inspect the entire hydraulic system for any leaks or abnormal behavior.
   • Address any leaks or issues promptly to prevent further problems.
