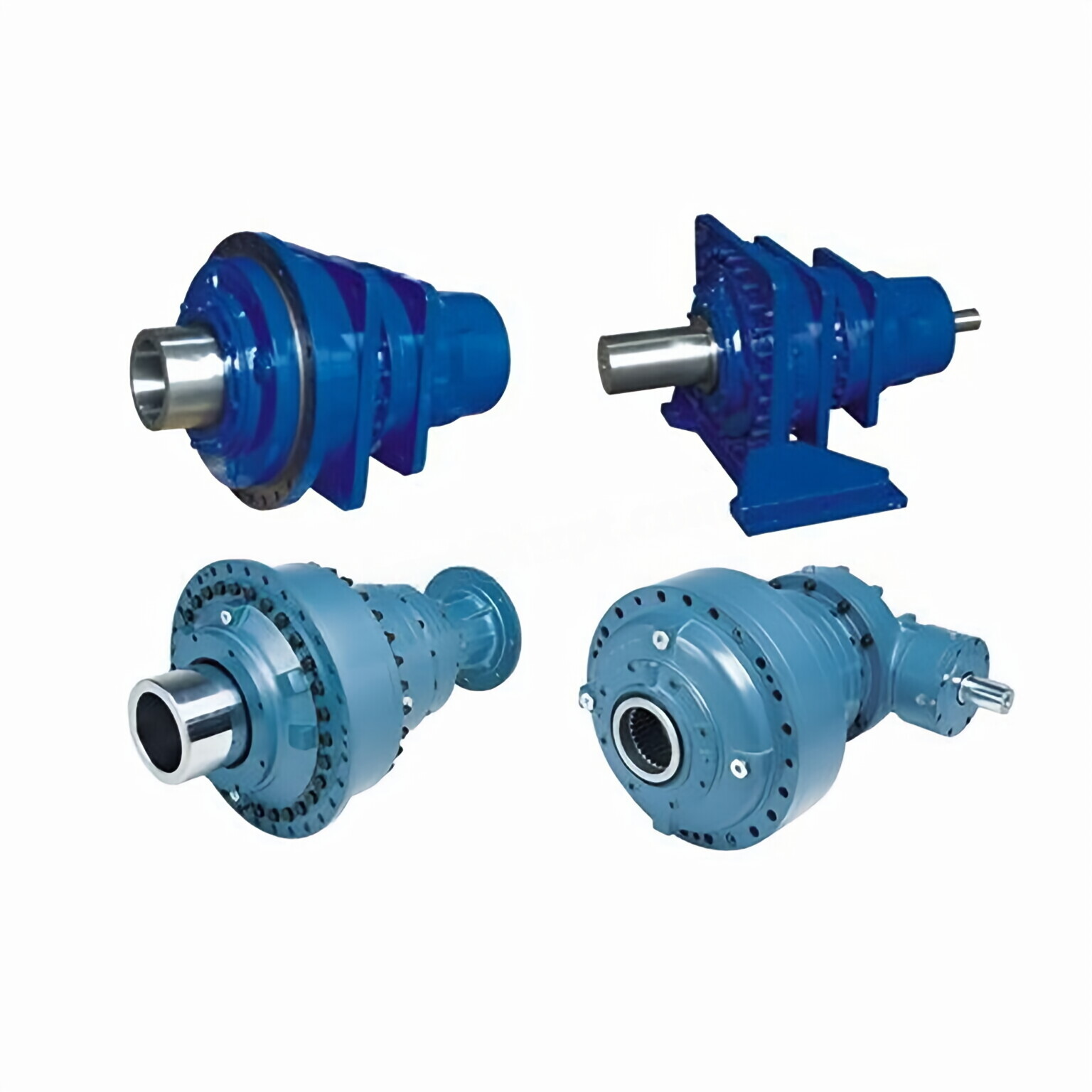

Planetary Gearbox for Articulated boom access

Chinese reducers are widely used in mining machinery, chemical industry, iron and steel metallurgy, light industry, environmental protection, papermaking, printing, lifting and transportation, food, and other industries.Our miniature planetary gearboxes for concrete mixers include primary, secondary and tertiary, suitable for the required speed ratio ≤1500r/min, the working temperature is around -40~45℃, and the two wheels run alternately.The miniature planetary gearbox for the concrete mixer is divided into two-stage, and three-stage, suitable for the required speed ratio of 25-4000, and the speed ratio is larger when used in conjunction with the R and K series reducers.

feature:

Modular design, right angle planetary gearbox for slewingMaterial: Housing is cast iron HT 250; 20CrMnTi for gears and shaftsSun gears, planetary gears, and ring gears can all improve the efficiency and service life of the reducer.Input mode: coaxial input, helical gear input, bevel-helical gear inputOutput mode: inner involute spline, hollow shaft with shrink disk, outer involute spline, solid shaft with flat key.Installation method: horizontal, vertical, torque arm

Type	Planetary gear units
Size	9-34
Stage	2 stage 3 stage
Ratio	25-4000
Input mode	coaxial input, helical gear input, bevel helical gear input

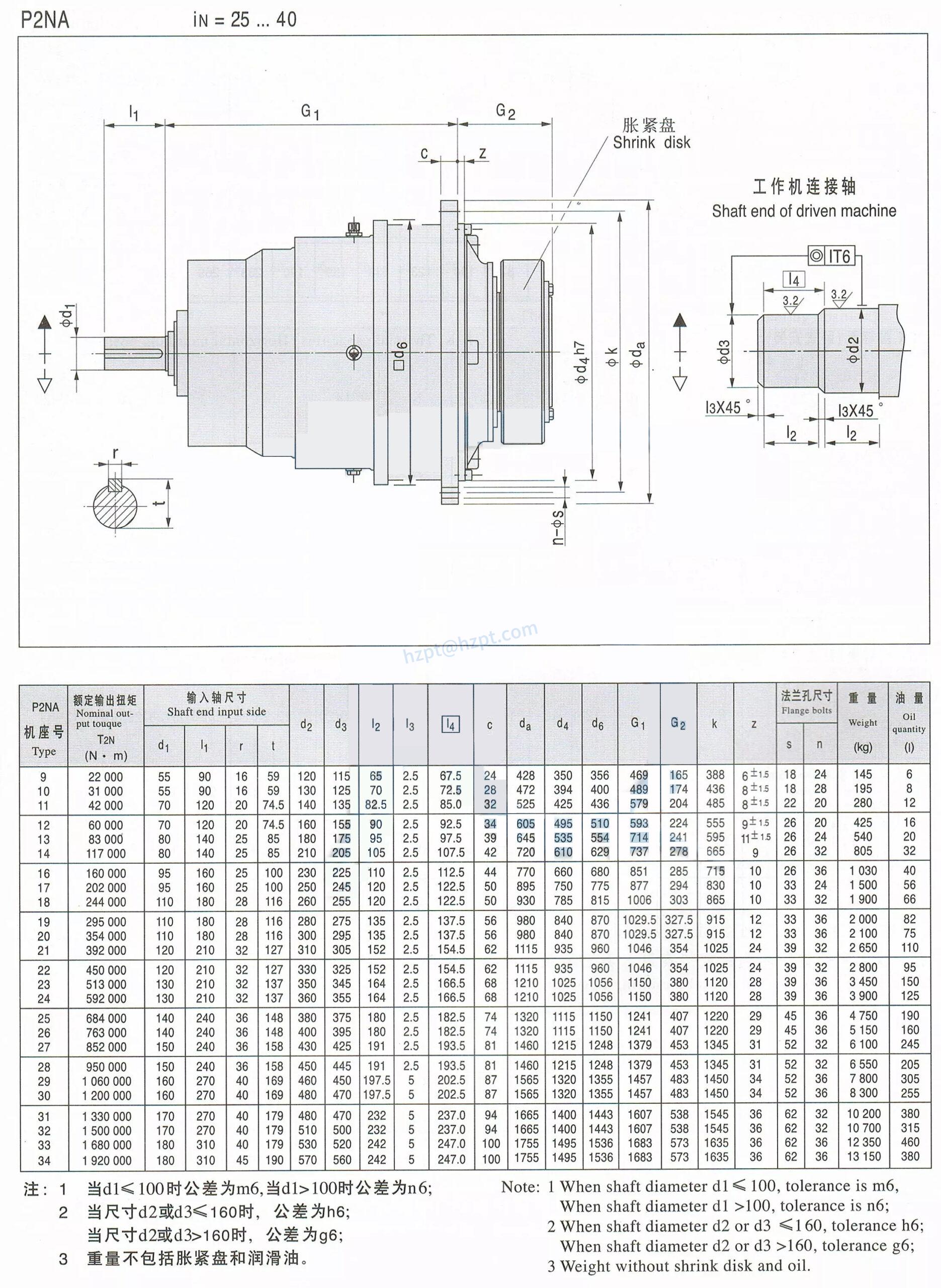

Output mode	A hollow shaft with a shrinking diskB solid shaft with parallel keyC hollow shaft with involute splinesD solid shaft with involute splines
Mounting mode	horizontal, vertical, torque arm

Selection of right-angle planetary gearbox for rotation:Use the ideal reduction ratio closely.Reduction ratio = servo motor speed/reducer output shaft speedTorque calculation: Torque calculation is very important for the life of the reducer; pay attention to whether the maximum torque value (TP) of acceleration exceeds the maximum load torque of the reducer.The applicable power is usually the applicable power of the servo models on the market. The applicability of the reducer is very high, and the working coefficient can be kept above 1.2, but the choice can also be determined according to your own needs. Right angle planetary gearbox reducer gearbox for slewing drive made in China.
