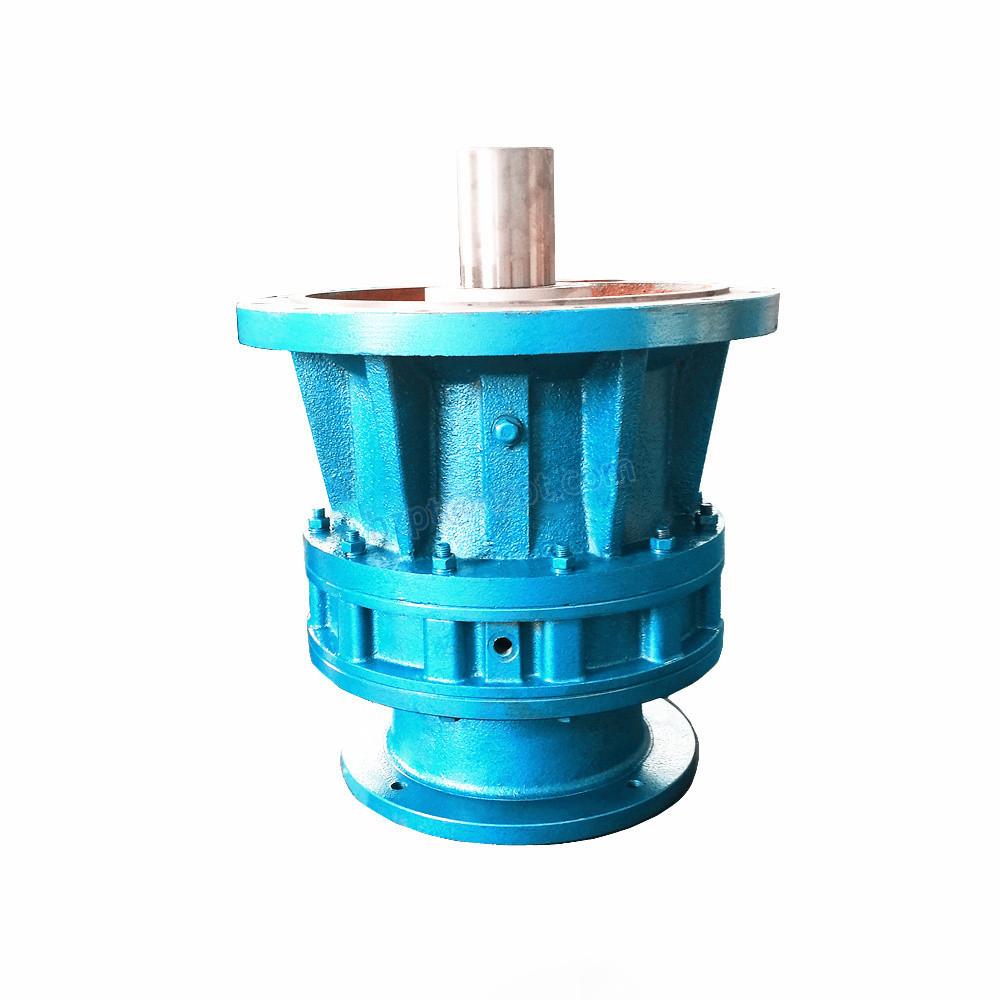

Planetary Gearbox for Concrete mixers

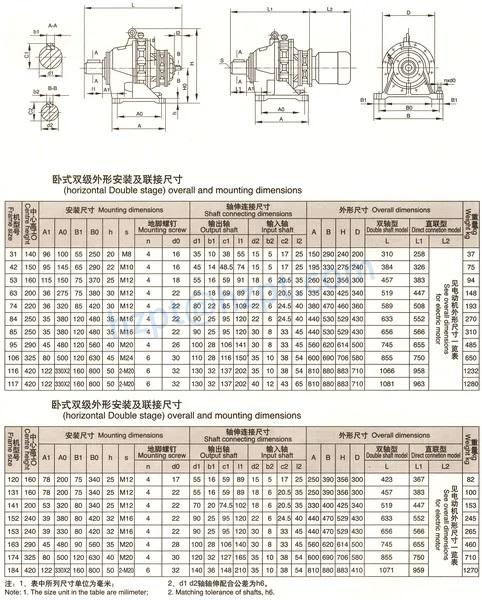

   Mounting   DimensionsFeature:

• 1. Big Velocity- Reducing Ratio: Ratio of single-stage speed-reducing is 1/11-1/87; Ratio of double-stage speed-reducing is 1/112-1/5133; Ratio of three-stage speed-reducing is 1/2057-1/446571;more-stages can be combined according to the requirement.
• 2. High driving efficiency: Due to adopting rolling engagement in the falling-in part, the driving efficiency can reach above 90%.
• 3. Small size, lightweight: compacted structure, small size, and lightweight. Due to adopting the principle of planet driving so that the input and output shaft in the same axis, which will be integrated with the motor.
• 4. Long service life: Has good resistance to abrasion because the main driving interesting parts are made of bearing steel and applying rolling friction.
• 5. Stable running: for the most driving procedure, we adopt multi-teeth falling-in. Then the running will be stable with low noise.
• 6. Convenient dismounting: reasonable structure and design.
• 7. Strong overloading ability,anti-compact, suitable for frequent start and double-side rotation.

Driven machines
Wastewater treatment	Thickeners,filter presses,flocculation apparata,aerators,raking equipment,combined longitudinal and rotary rakes,pre-thickeners,screw pumps,water turbines,centrifugal pumps	Dredgers	Bucket conveyors, dumping devices, caterpillar traveling gears, bucket wheel excavators as pick up, bucket wheel excavators for primitive material, cutter head, traversing gears
Chemical industry	Plate bending machines, extruders, dough mills, rubbers calenders, cooling drums, mixers for uniform media, agitators for media with uniform density, toasters, centrifuges	Metalworking mills	plate tilters, ingot pushers, winding machines, cooling bed transfer frames, roller straighteners, table continuous intermittent, roller tables reversing tube mills, shears continuous, casting drivers, reversing blooming mills
Metalworking mills	Reversing slabbing mills. reversing wire mills, reversing sheet mills, reversing plate mills, roll adjustment drives	Conveyors	Bucket conveyors, hauling winches, hoists, belt conveyors, good lifts, passenger lifts, apron conveyors, escalators, and rail traveling gears.
Frequency converters		Reciprocating compressors
Cranes	Slewing gears, luffing gears, traveling bags, hoisting gear, derrick jib cranes	Cooling towers	Cooling tower fans, blowers, axial and radial
Cane sugar production	Cane knives, cane mills	Beet sugar production	Beet cassettes macerators, extraction plants, mechanical refrigerators, juice boilers, sugar beet washing machines, sugar beet cutter
Paper machines	Pulper drives	Cableways	Material ropeways, continuous ropeway
Cement industry	Concrete mixer, breaker, rotary kilns, tube mills, separators, roll crushers

Related Products

Click and check out more products you're looking for.

Why choose us

1. Wide selection of reducers

Our company offers the widest range of standard and custom solutions for applications in motion control and mechanical transmission. We provide precision inline planetary gearboxes and right angle planetary gearboxes, 90 degree right angle servo motor gearboxes, harmonic drive gearboxes, RV reducers for robots, ground precision racks, and pinions, servo motors, stepper motors, brushless motor,s, etc. The company can also provide worm gear reducers, gear motors, screw jacks, steering gears, and other related reducer gearboxes and accessories. This means you can get what you want right here and benefit from our one-stop service, saving you time and money.

2. Attractive price and top brand quality

We offer our customers very attractive prices with good quality. Compared with other companies' gearboxes, our precision planetary gearboxes feature low backlash (2-8 arcmin), high efficiency (≥95%), and low noise (60dBA). All servo gearboxes produced by our famous brand will be strictly inspected and tested before leaving the factory. In addition, we provide customers with a one-year warranty and lifetime after-sales service.

3. All-round professional technical support

Don't worry if you don't know how to choose the right transmission for your machine. We have a professional technical team to serve you. As long as you follow our steps, you'll know how to choose the right size. After selecting the matching gearbox for your motor, we will send you the corresponding CAD drawing for your inspection to avoid any mistakes. We also offer 24-hour technical support if you have any other issues that need urgent resolution.

4. Provide customized service

If you need a custom gearbox for a unique application, we can provide custom service according to your requirements. We will provide you with reliable, high-performance custom gearboxes from small to large output torques. Please tell our sales engineer your detailed requirements and all the necessary dimensions you want. The more information you provide us, the more suitable we can design a custom transmission for you.

5. Fast delivery time

For most of the standard reducers, we have sufficient stock, which can be delivered to customers in a very short time, solve the problem of urgent replacement of damaged gearboxes on working machines, and save costs for customers. Also, if a customer needs a gearbox of a certain size urgently and we do not have it in stock, we can arrange priority production, especially for you.

6. Alternatives to branded reducers

Most of our Precision Gearboxes can perfectly match and replace Apex Gearboxes, Dawn Gearboxes, Shimpo Gearboxes, Neugart Gearboxes, SPG Gearboxes, and Harmonic Drive Gearboxes, Boston Gearboxes, Replacement of Bonfiglioli Gearboxes, etc. Product number. High quality and low price,  the planetary gearbox and the harmonic drive gear, are warmly welcomed by customers all over the world.
