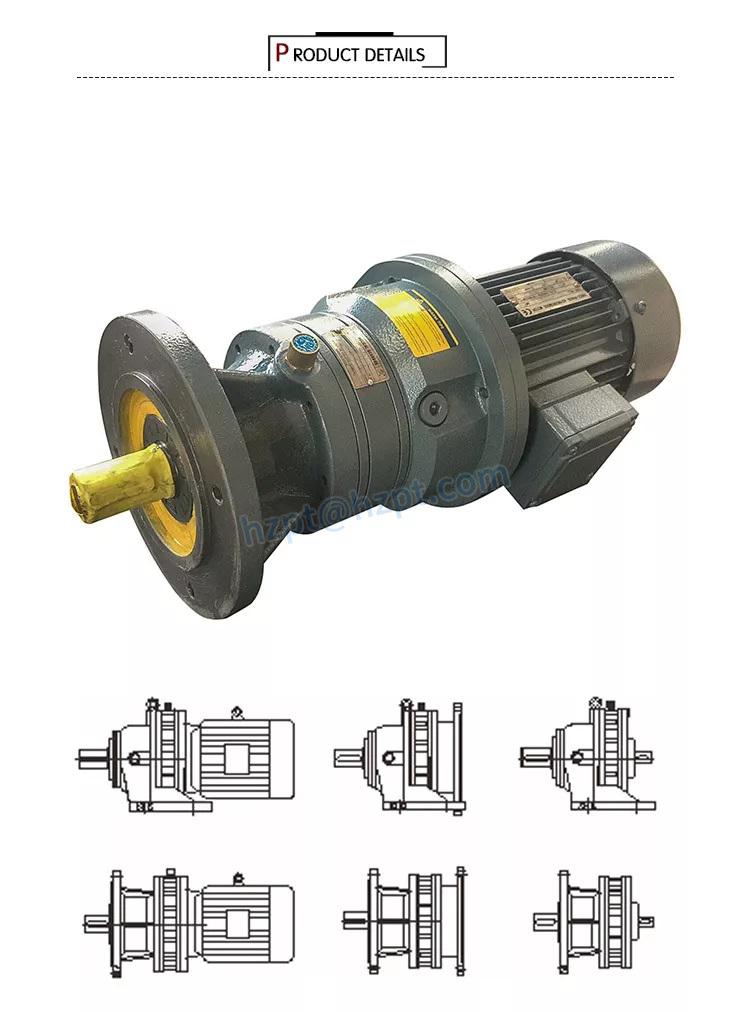

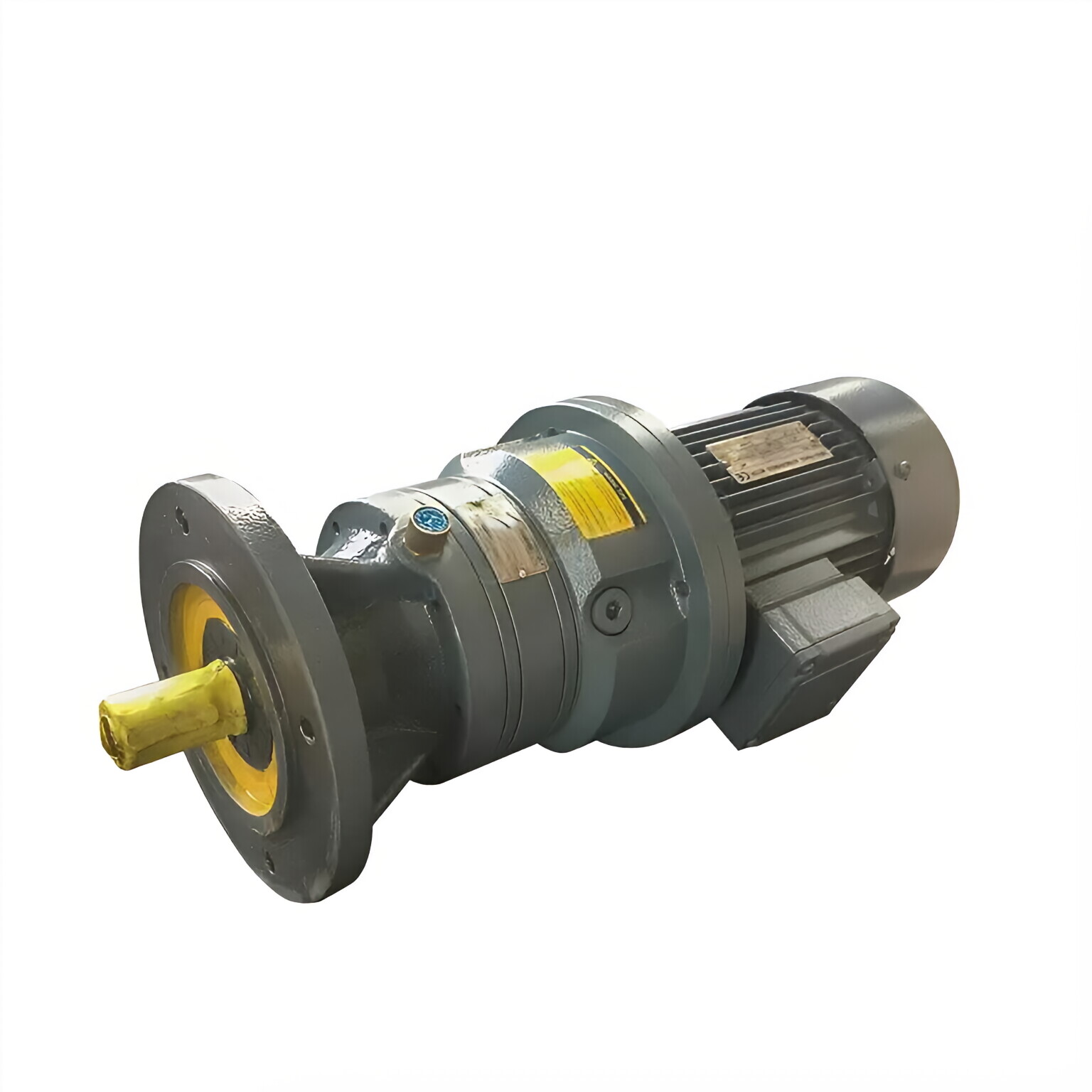

Planetary Gearbox for Dock Cranes

Planetary winch gearboxes are suitable for various winch applications due to their wide torque range. The compact design allows the gearbox to be integrated into the winch drum. The fail-safe brake can be integrated inside the gearbox or mounted externally; the gears are lubricated together. Electric versions are available in in-line and right-angle configurations. Torque ratings are organized by grade and are in accordance with the gear's minimum approved grade safety factor.We design and manufacture custom winches to fully meet each individual application requirement.Hydraulic traction winches have individually selected drums, gearboxes, motors, and valves according to the winch series. The result is a traction winch that guarantees the highest level of efficiency and reliability.The motor of the winch is coaxial with the drum and can be equipped with a disengagement device.A variety of accessories are available to complete the product: wire ropes, pulley blocks, hooks, tensioners, and fairlead roller guides.

Applications	Industry, chemical, oil, mine, and all transmission solutions!
Housing material	HT250 high-strength cast iron
Housing hardness	HBS190-240
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58°~62 °
Gear core hardness	HRC33~40
Input / Output shaft material	42CrMo alloy steel
Input / Output shaft hardness	HRC25~30
Machining precision of gears	accurate grinding, 6~5 Grade
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
Heat treatment	tempering, cementing, quenching, etc.
Efficiency	94%
Noise (MAX)	60~68dB
Temp. rise  (MAX)	40℃
Temp. rise (Oil)(MAX)	50℃
Vibration	≤20µm
Backlash	≤20Arcmin
