Plastic Flat Top Chain Single Hinge Straight Replacement Of System Plast 820

Plastic Flat Top Chain: A Comprehensive Guide

Keyword: Plastic Flat Top Chain

The Plastic Flat Top Chain is a versatile product, offering a variety of advantages in various industries. Crafted from high-quality engineering plastics, such as polypropylene (PP), polyethylene (PE), and polyamide (PA), it is an integral part of countless conveyor systems.

Plastic Flat Top Chain: An In-depth Look

The plastic flat top chain is composed of a series of flat chain plates, which are linked together by pins, rivets, or bolts. The resulting flat surface enables stable transportation, ensuring that the conveyed objects are safely and smoothly transported. These chain plates can be designed in various shapes and sizes, typically rectangular or square, to meet specific application requirements.

Key Features and Technical Parameters

Mainly used for all kinds of food industry, such as beverage, bottle, can and other conveyors.

The longest distance: 12M

Max. speed: lubricant 90M/min

dryness 60M/min

Working load: 2250N

Pin material: austenitic stainless steel

Plate material: POM acetal

(Temperature: -40 ~ 90℃)

Packing: 10 feet = 3.048 M/box 26pcs/M

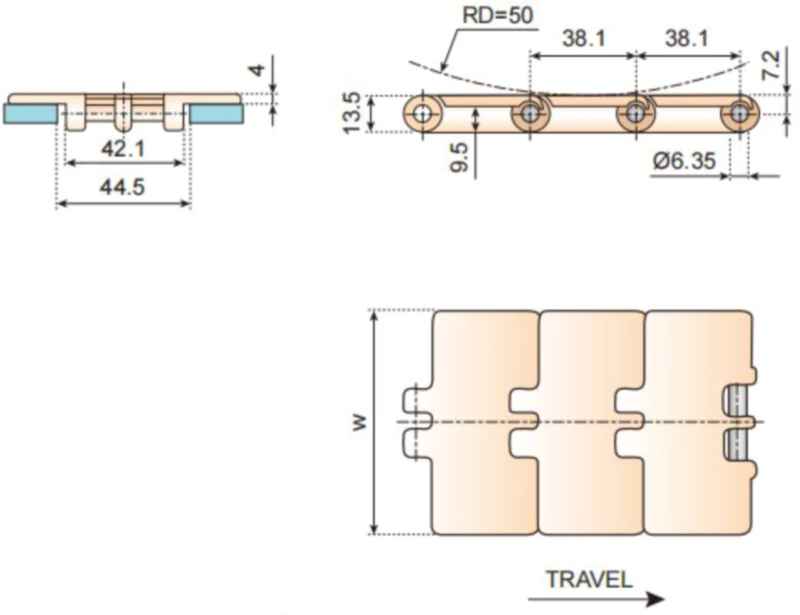

链号 Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF820 - K250	63.5	2.50	0.79	0.53
LF820 - K325	82.6	3.25	0.86	0.58
LF820 - K330	83.8	3.30	0.87	0.59
LF820 - K350	88.9	3.50	0.89	0.60
LF820 - K400	101.6	4.00	0.92	0.62
LF820 - K450	114.3	4.50	1.01	0.68
LF820 - K600	152.4	6.00	1.22	0.82
LF820 - K750	190.5	7.50	1.45	0.98

The plastic flat top chain boasts a variety of notable features. These include a high maximum load capacity, wide operating temperature range, excellent chemical resistance, and impressive wear resistance, and tensile strength. These product characteristics make it a highly adaptable and reliable choice for a range of applications and industries.

Material Characteristics and Industry Applications

Due to the high-quality materials used in its production, the plastic flat top chain is popular across various industries. It is commonly used in industries such as automobile manufacturing, electronic product manufacturing, mechanical processing, and food and beverage transportation.

Customer Case Studies

Practical customer case studies provide insight into the success of the plastic flat top chain in real-world applications. These success stories help potential customers understand the product's commercial value and practicality.

Customization Options

The plastic flat top chain offers a variety of customization options. These can be tailored to meet specific requirements, including various sizes, shapes, and accessory options. This flexibility ensures the chain's adaptability to a range of conveyor systems.

Installation and Maintenance

The installation and maintenance of plastic flat top chains are straightforward. Proper installation methods, chain adjustments, and alignment requirements for gears or rollers ensure the product's performance and longevity.

Future Development

The future of plastic flat top chain technology looks promising, with potential advancements in polymer technology and integrated intelligent technologies.

We also provide sprockets that match the chain.

Sprocket is a key component of chain power transmission. When the chain and sprocket are interlocked, the rotational motion of the sprocket transfers power to the chain, allowing it to move and drive. The design and size of the sprocket determine the torque and speed transmitted to the chain, directly affecting the operational efficiency and performance of the chain.

Additional Chain Products

In addition to the plastic flat top chain, we offer a variety of other chains, including Plastic Chain, Stainless Steel Chain, agricultural chains, leaf chains, Pintle Chain, and more.

About Raydafon

Raydafon is a leading company in the chain industry. Our advanced production and inspection equipment, including CNC Gear grinding machine, gear measuring machine, CNC gear shaper, machine center, CMMS, torque test system, ensure the production of high-quality, reliable products. We are committed to providing our customers with professional services, customized solutions, and exceptional after-sales service.
