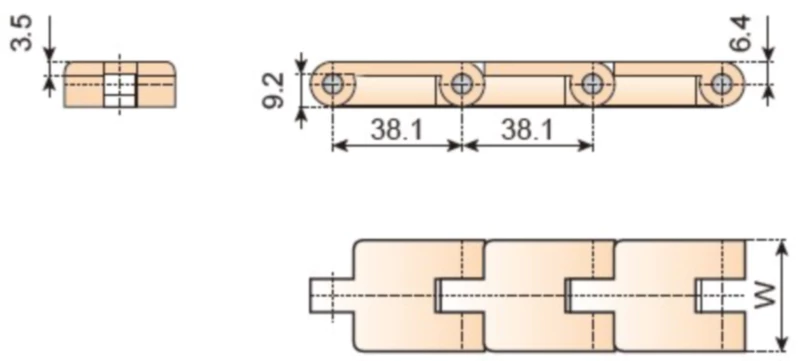

Plastic Flat Top Chain Single Hinge MiNi Straight Replacement Of System Plast 820

Discover the Plastic Flat Top Chain: A Comprehensive Guide

In the world of industrial manufacturing, the plastic flat top chain stands as a reliable and essential component. This guide aims to provide an in-depth understanding of this product and its various attributes that make it an industry favorite.

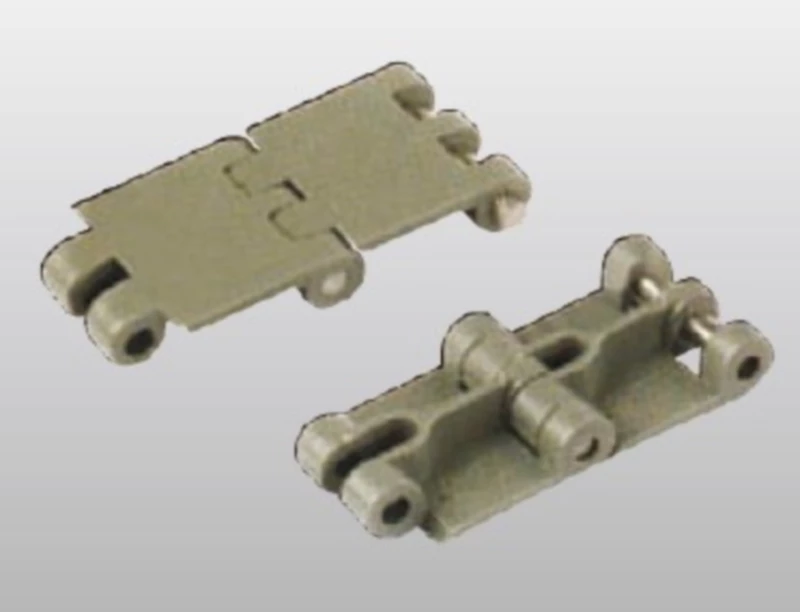

Understanding the Plastic Flat Top Chain

The plastic flat top chain is a versatile and durable product, crafted from high-grade engineering plastics. The choice of material, including polypropylene (PP), polyethylene (PE), or polyamide (PA), ensures superior corrosion resistance, wear resistance, and chemical stability.Mainly used for food beverage, pet and bottles conveying.Packing: 10 feet = 3.048m / box 1meter = 26pcsMax. conveyor length≤12m Max. tensile strength≤1230N

Chain Structure

The structure of the plastic flat top chain comprises several flat chain plates linked together by pins, rivets, or bolts. This design creates a flat conveying surface that stabilizes the conveyance of objects, ensuring a smooth transportation process.

Chain Plate Shape and Size

The shape and size of the chain plate can be tailored to meet specific application requirements. Common shapes include rectangular and square designs, with the size being determined by the requirements of the conveyor system.

Key Features of the Plastic Flat Top Chain

The plastic flat top chain boasts a plethora of features, including a high load capacity, a wide operating temperature range, chemical resistance, wear resistance, and impressive tensile strength. These features offer potential clients a deep understanding of the product's capability and adaptability.

Industries and Application Areas

From automobile manufacturing to material transportation, the plastic flat top chain is widely used and highly valued in various industries. Its superior features and adaptability make it a preferred choice for different sectors.The images below illustrate the application of the plastic flat top chain in different settings:

Customization Options

The plastic flat top chain offers flexible customization options. You can tailor the size, shape, and accessory options based on your specific requirements, making it adaptable to various conveyor systems.

Installation and Maintenance

Despite their robust build, plastic flat top chains require proper installation and maintenance. This includes proper chain adjustments and alignment of gears or rollers to ensure optimal performance and lifespan.

Future Development

With advancements in polymer technology and the integration of intelligent systems, the future of plastic flat top chains looks promising. Such innovations could further enhance the product's performance and capabilities.

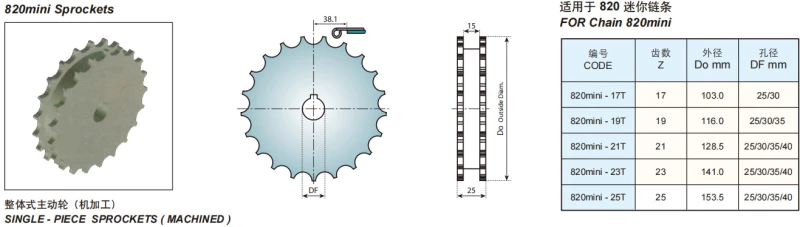

We also provide sprockets that match the chain.

Sprocket is a key component of chain power transmission. When the chain and sprocket are interlocked, the rotational motion of the sprocket transfers power to the chain, allowing it to move and drive. The design and size of the sprocket determine the torque and speed transmitted to the chain, directly affecting the operational efficiency and performance of the chain.

Additional Products

Aside from plastic flat top chains, we also offer other chain products such as Plastic Chain, Stainless Steel Chain, agricultural chains, leaf chains, Pintle Chain, and more. Furthermore, we provide matching sprockets, an essential component for effective operation.
