Single Hinge Straight Running Plastic Flat Top Chains

Single Hinge Straight Running Plastic Flat Top Chains

Plastic flat top chains are made of engineering plastic and are connected using stainless steel pins. The plastic flat top chains constitute a lightweight yet a strong and silent alternative to steel chains. These chains are primarily used in the food and packaging industry for conveying many kinds of containers. Examples are PET bottles, PET petaloid bottles, Aluminum, steel, cans, Cartons, Trays, Packaged products (cartons, shrink packs), Glass, and Plastic containers. Benefits:－Accuracy of the molding process guarantees optimum flatness－High wear resistance and low friction－High working load

(1) Lf520 Single Hinge Straight Running Chain

Product Specifications

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF520-K325	82.6	3.25	0.75	0.51

Mainly used for all kinds of the food industry, such as beverage, bottle, can, and other conveyors.The longest distance: 12MMax. speed: lubricant 80M/mindryness 50M/minWorking load: 1250NPin material: austenitic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 39pcs/M

(2) Lf 810 Single Hinge Straight Running Chain

Product Specifications

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF810-K200	50	2	0.42	0.28

Mainly used for all kinds of the food industry, such as beverage, bottle, can, and other conveyors.The longest distance: 8MMax. speed: lubricant 80M/mindryness 50M/minWorking load: 800NPin material: austenitic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 52pcs/M

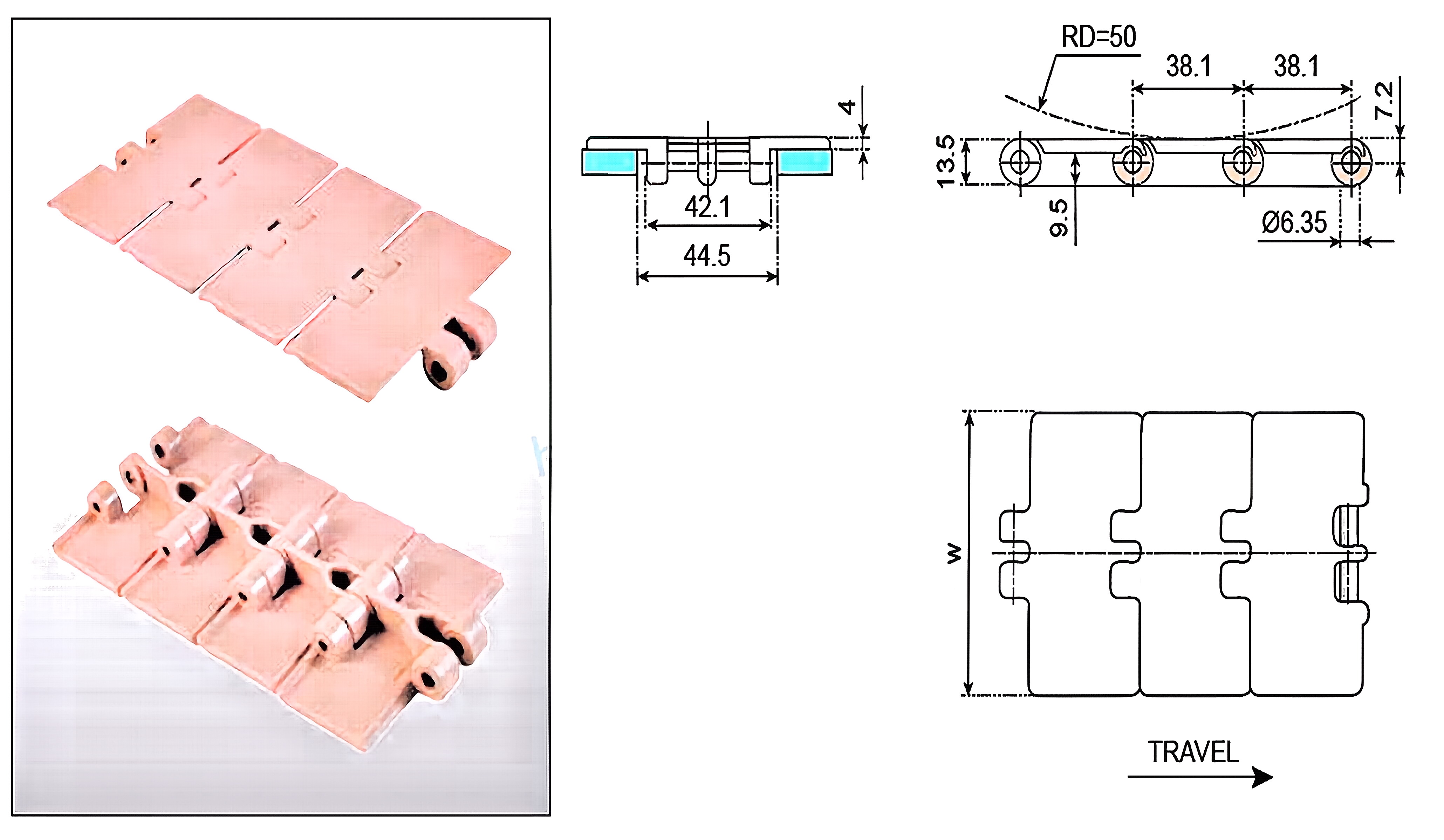

(3)? Lf820 Single Hinge Straight Running Chain

Product Specifications

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF820 - K250	63.5	2.50	0.79	0.53
LF820 - K325	82.6	3.25	0.86	0.58
LF820 - K330	83.8	3.30	0.87	0.59
LF820 - K350	88.9	3.50	0.89	0.60
LF820 - K400	101.6	4.00	0.92	0.62
LF820 - K450	114.3	4.50	1.01	0.68
LF820 - K600	152.4	6.00	1.22	0.82
LF820 - K750	190.5	7.50	1.45	0.98

Mainly used for all kinds of the food industry, such as beverage, bottle, can, and other conveyors.The longest distance: 12MMax. speed: lubricant 90M/mindryness 60M/minWorking load: 2250NPin material: austenitic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 26pcs/M

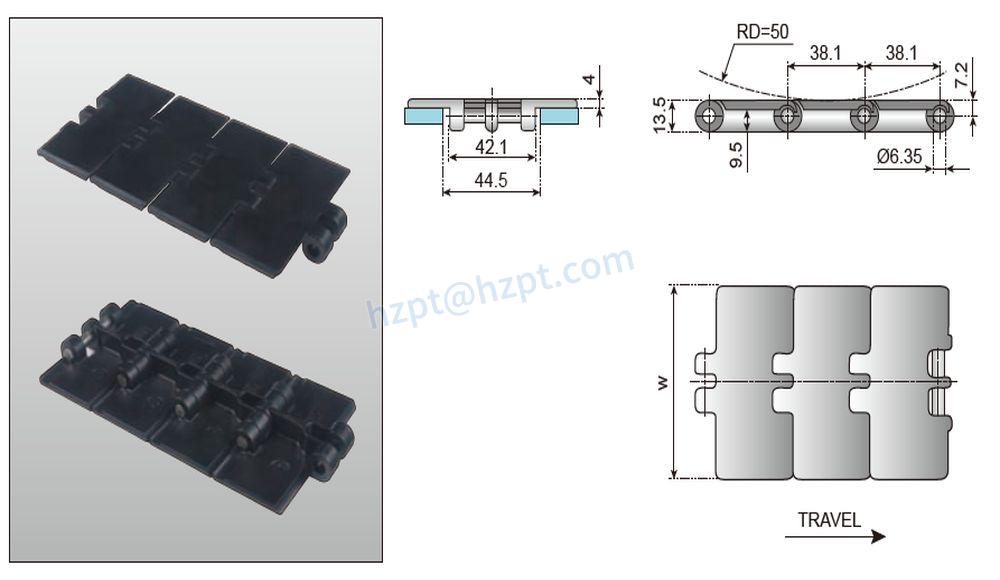

(4) Lf820e Anti-static Single Hinge Straight Running Chain

Product Specifications

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF820 - K250E	63.5	2.50	0.79	0.53
LF820 - K325E	82.6	3.25	0.86	0.58
LF820 - K350E	88.9	3.50	0.89	0.60
LF820 - K400E	101.6	4.00	0.92	0.62
LF820 - K450E	114.3	4.50	1.01	0.68
LF820 - K600E	152.4	6.00	1.22	0.82
LF820 - K750E	190.5	7.50	1.45	0.98

Mainly used for different kinds of anti-static conveyor lines.The longest distance: 12MMax. speed: lubricant 80M/mindryness 50M/minWorking load: 2250NPin material: austenitic stainless steelPlate material: anti-static POMPacking: 10 feet = 3.048 M/box 26pcs/M

(5) Lf831 Single Hinge Straight Running Chain

Product Specifications

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF831 - K325	82.6	3.25	0.95	0.64
LF831 - K450	114.3	4.50	1.11	0.75
LF831 - K750	190.5	7.50	1.6	1.08

Mainly used for all kinds of the food industry, such as beverage, bottle, can and other conveyors.The longest distance: 12MMax. speed: lubricant 90M/mindryness 60M/minWorking load: 2250NPin material: austenitic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 26pcs/M

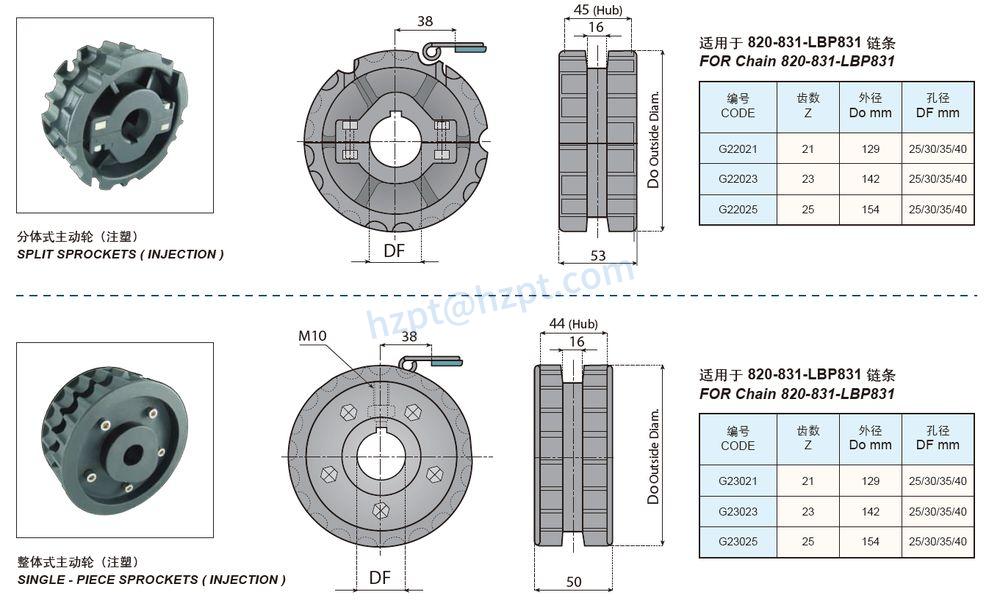

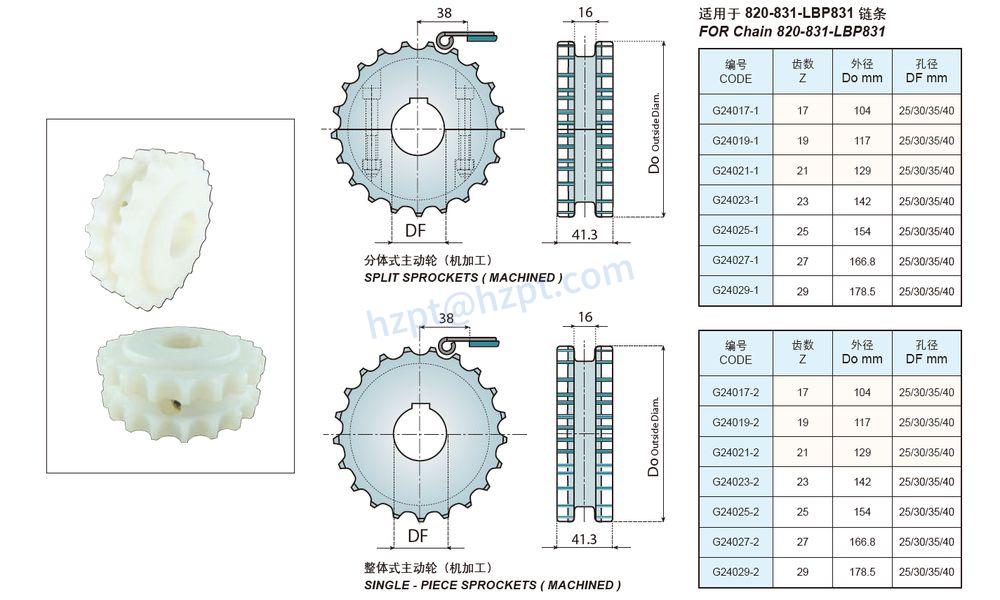

We Can Also Provide Matching Sprockets and Idler Wheels.

A drive chain?and sprocket drive is a type of power transmission in which a roller chain meshes with two or more gears or sprockets used in an engine as the drive from the crankshaft to the camshaft.A broken industrial chain sprocket can stop your machine from running. Many machines cannot operate without drive sprockets, and replacing them can cost a lot of time and money. Furthermore, the performance of a conveyor or drive depends on the interaction of the sprocket chain. Using the right sprocket is just as important as choosing the right chain. We offer a wide selection of standard roller chain sprockets at unbeatable prices. Our?sprockets?are engineered to perform well under pressure and to last.
