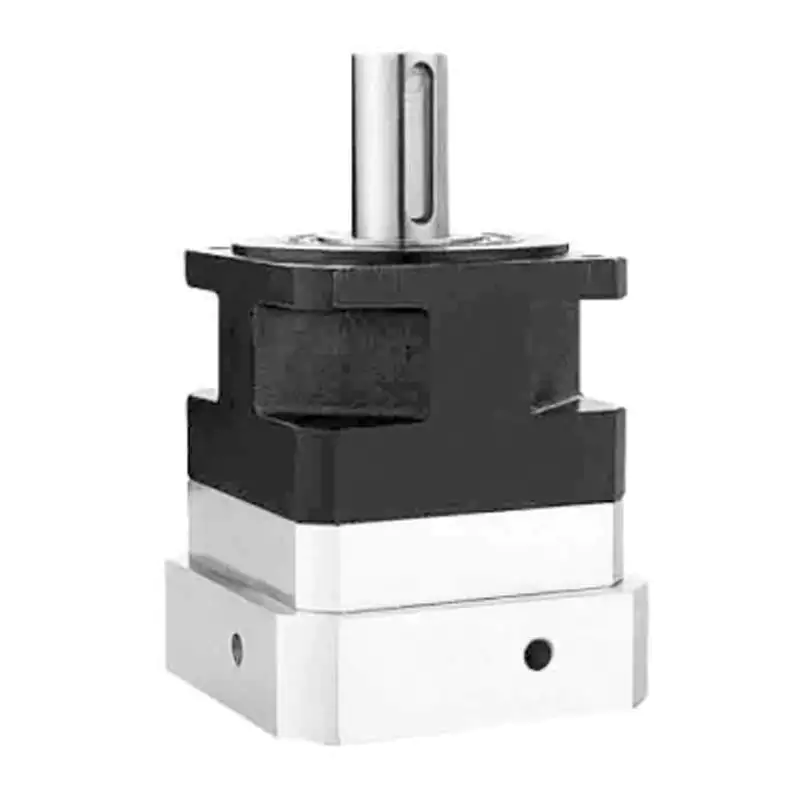

PLS Series High Precision Planetary Gearbox

Overview of PLS Series High Precision Planetary Gearbox

PLS Series High Precision Planetary Gearbox is a type of gearbox that has gained popularity in various industrial applications. It is a high-precision mechanism that functions by transmitting power from an input to an output shaft through the use of planetary gears. This gearbox is characterized by its accuracy, durability, and efficiency, making it a popular choice in the industry.

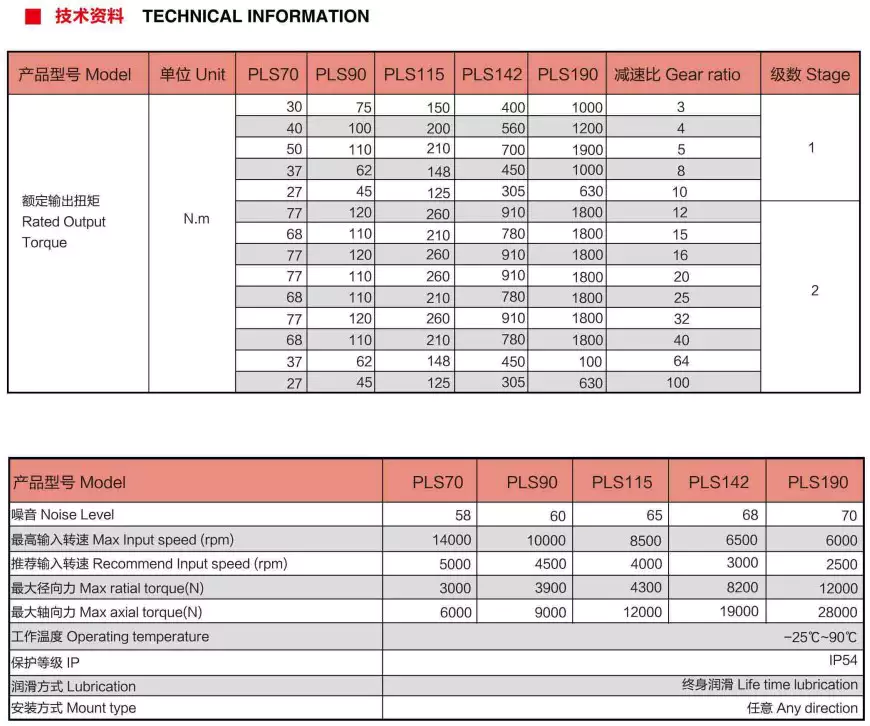

Technical Parameter

Features of High Precision Planetary Gearbox

1. Precision Transmission

PLS Series High Precision Planetary Gearbox has a precise transmission mechanism that allows it to operate with less noise and vibration.

2. High Torque Density

This gearbox has a high torque density that allows it to transmit more power from the input to output shafts while occupying less space.

3. Smooth Operation

The planetary design of this gearbox ensures smooth operation, even at high speeds and loads.

4. Reliability and Durability

PLS Series High Precision Planetary Gearbox is designed to withstand harsh conditions and has a long lifespan, making it a reliable option.

5. Various Mounting and Configuration Options

This gearbox has a versatile design that allows for multiple mounting and configuration options to fit different applications.

6. Wide Speed Range

The gearbox has a wide speed range that allows it to operate efficiently at varying speeds.

7. High Adaptability

PLS Series High Precision Planetary Gearbox has high adaptability, making it suitable for various applications.

8. High Efficiency

This gearbox has a high efficiency rating, which means it can transmit more power with less energy loss.

9. Protection Measures

The gearbox is equipped with protective measures such as temperature sensors and overload protection to prevent damage to the mechanism.

Internal Structure of High Precision Planetary Gearbox

1. Integral Double Wall Planet Pinion Carrier

This component of the gearbox is responsible for the transmission of power from the input shaft to the planetary gears.

2. Bearing for the Output Shaft

This component provides support for the output shaft of the gearbox.

3. Steel Output Flange

This component provides a connection point for the output shaft and other components.

4. Integral Inner Gear Housing

This component provides support and protection for the planetary gears.

5. Planetary Wheel

This component transmits power from the input shaft to the output shaft through the use of planetary gears.

6. Sun Wheel

This component is responsible for transmitting power from the input shaft to the planetary gears.

7. Bearing for the Input Shaft

This component provides support for the input shaft of the gearbox.

8. Integral Hoop Clamp Coupling

This component connects the input shaft to the sun wheel of the gearbox.

9. Back Cover

The back cover provides protection for the gearbox mechanism.Each component of the gearbox is made of high-quality materials that ensure its durability and reliability.

Applications of High Precision Planetary Gearbox

PLS Series High Precision Planetary Gearbox is used in various applications such as:

• Industrial Robots: The gearbox is used in the arm and leg joints of industrial robots.
• Machine Tools: The gearbox is used for precision motion control in machine tools.
• Medical Equipment: The gearbox is used in imaging equipment and surgical tools.
• Aerospace: The gearbox is used in space probes and satellites.
• Textile Machinery: The gearbox is used in spinning and weaving machines.
• Renewable Energy: The gearbox is used in wind turbines and solar trackers.

Our company is a high-tech enterprise that specializes in the production and sales of AC gear motors, small gear motors, servo planetary gearboxes, DC brushless and brushed motors, and other products. Our products are widely used in various industries, including industrial robots, logistics, new energy, and machine tools. We are committed to providing our customers with high-quality products and excellent service. Contact us to learn more about how we can help you with your precision motion control needs.Author: Miya
