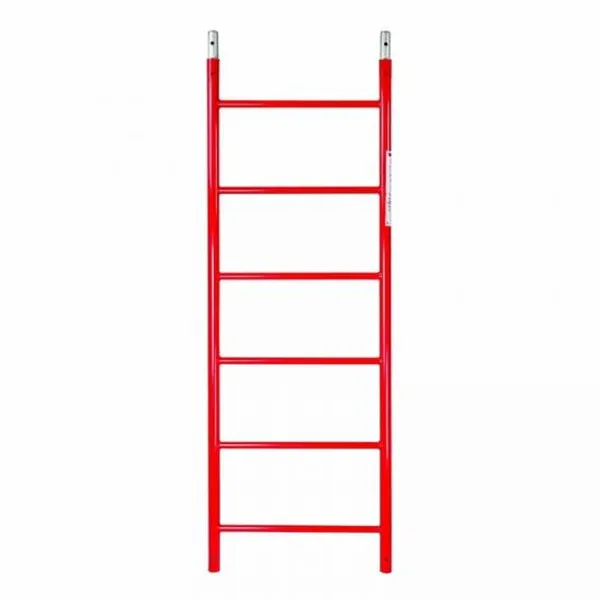

Powder Coated Steel Access Ladder For Frame Scaffolding

Code	Description	Ladder Height	Ladder Width	Weight(kg)	Weight(lbs)
AL.10	10' Access Ladder 17" wide	3048mm (10')	432mm (17")	13.65	30.10
AL.8	8' Access Ladder 17" wide	2438mm (8')		11.02	24.30
AL.7	7' Access Ladder 17" wide	2134mm (7')		9.70	21.39
AL.6	6' Access Ladder 17" wide	1829mm (6')		8.38	18.48
AL.5	5' Access Ladder 17" wide	1524mm (5')		7.07	15.59
AL.4	4' Access Ladder 17" wide	1219mm (4')		5.75	12.68
AL.3	3' Access Ladder 17" wide	914mm (3')		4.43	9.77
AL.BK17	Access Ladder Bracket 17" wide			3.07	6.77

Product Features:

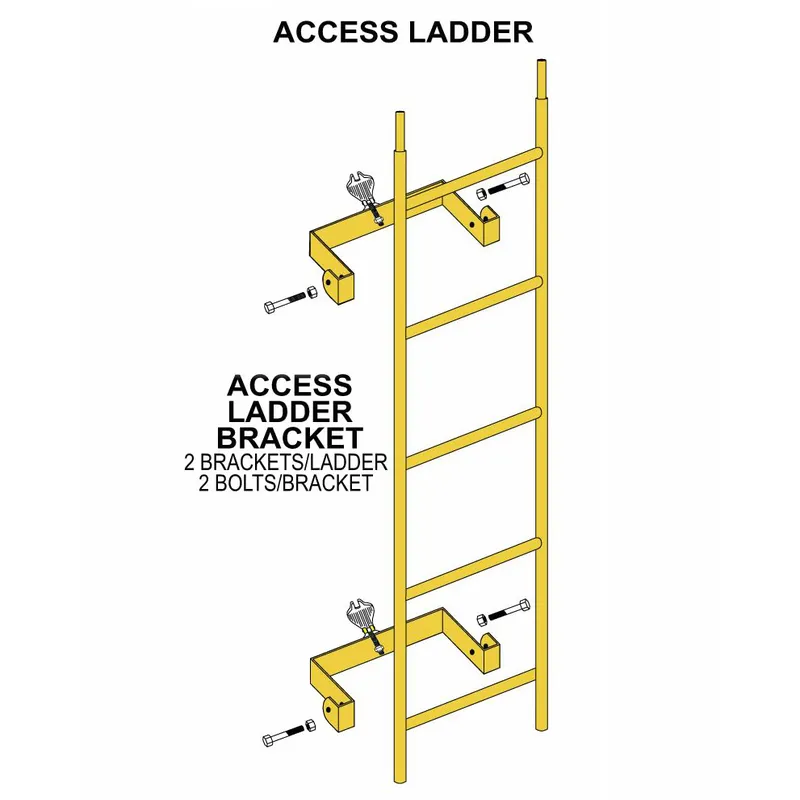

Description: Access LadderLadder Height: 3'-10'Ladder Width: 17"Rung distance: 12" (305mm, evenly spaced )Material: Steel, Q235. Ladder leg O.D 35x1.8mm, Rung tube O.D 25x1.8mmThe Access Ladder is stackable. It has a male and female end for stacking.Assemble with the male end up. The male Stacking Pin floats to make stacking easier!Use our Ladder Bracket to attach Access Ladders to the Scaffold Frame Leg.

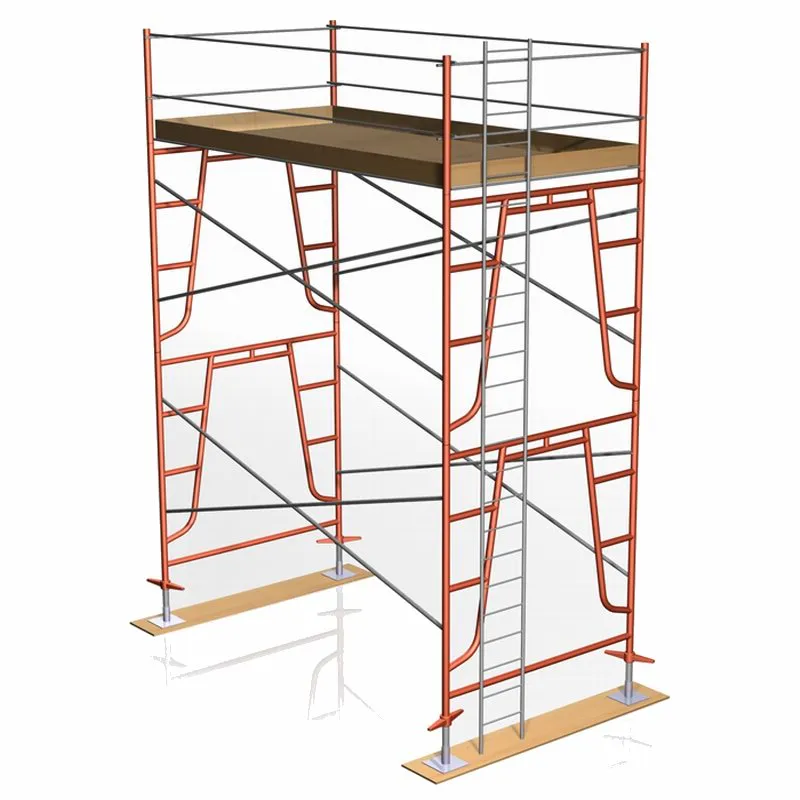

Install and Application
