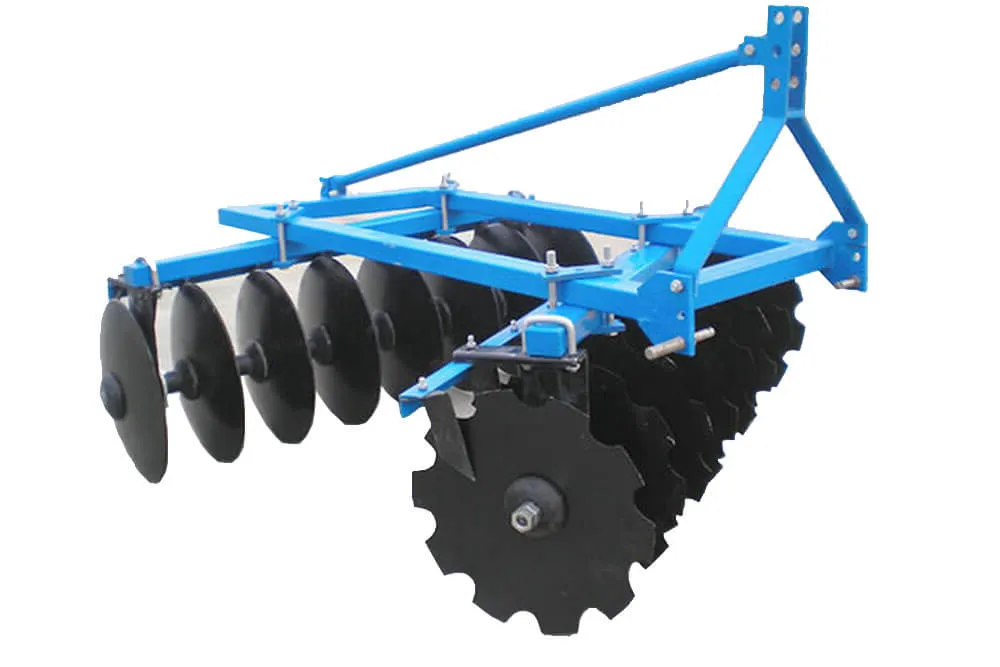

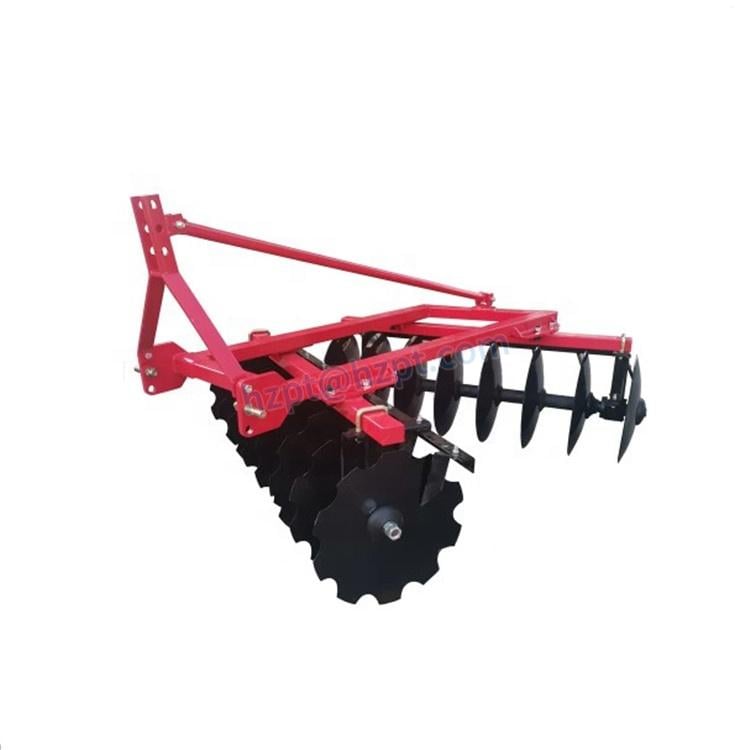

Featuring a professional, CE-certified rotary power harrow, our new disc plough is the latest innovation in farm machinery. It's powered by diesel and is designed for breaking hardened surfaces and cutting up straws. The product comes with a 1-year warranty and is new, with a weight of 240kg. It measures 1905*1750*1118mm in dimensions and is primarily used in farms. We also provide after-sales service, including free spare parts, video technical support, and engineers available to service machinery overseas. The product has an ISO9001 certification and comes with a 3-point mounted linkage. The disc has a diameter of 460mm and a thickness of 4mm. The power harrow has a working width of 1500mm and a working depth of 140-180mm.
The rotary power harrow operates on a straightforward principle: the rotating tines, or discs, work into the soil, breaking it down into a fine tilth suitable for seedbed preparation. These discs, made of 65Mn spring steel, are specifically designed to resist wear and tear. The harrow can be attached to the tractor using a 3-point mounted linkage, making it easy to install and uninstall. Maintenance is straightforward, primarily involving regular inspection of the discs for wear and tear and ensuring that the machine is kept clean after use. Regular lubrication of moving parts is also recommended to maintain optimal performance.
At Raydafon, we take pride in offering leading-edge agricultural machinery that improves productivity and efficiency. Our disc harrow products are robust, reliable, and designed to withstand the rigors of farm work. With a working width of 1500mm and a working depth ranging from 140mm to 180mm, our rotary power harrow and disc plough are perfect for preparing your soil for seeding. We also provide comprehensive after-sales services and spare parts for hassle-free maintenance. Don't miss out on our top-of-the-line agricultural machinery. Contact us today to learn more about our products or to make a purchase. Your farm deserves the best, and we're here to provide it.

| Model | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.2 | 1BQ-3.4 |
| Working width (mm) | 1100 | 1300 | 1500 | 1700 | 1900 | 2200 | 3400 |
| Working depth (cm) | 10-14 | 10-14 | 14-16 | 14-16 | 14-16 | 14-16 | 16-18 |
| No, of disc (pcs) | 12 | 14 | 16 | 18 | 20 | 24 | 42 |
| Diameter of disc (mm / inch) | 460/18 | 460/18 | 460/18 | 460/18 | 460/18 | 460/18 | 460/18 |
| Weight (kg) | 200 | 220 | 240 | 260 | 290 | 350 | 1100 |
| Matched power (hp) | 12-15 | 15-18 | 25-30 | 30-35 | 35-40 | 55-60 | 80-100 |
We understand that every farm is different, and that's why we offer a range of disc harrow models, each with varying working widths and depths. Take a look at our models to see which one could be the best fit for your farming needs. Each model is carefully designed for specific power ranges, ensuring you have the right equipment for your tractor's horsepower. Regardless of the model you choose, you can always count on the quality and durability of Raydafon products.
Don't settle for less when it comes to your farm. Invest in a professional rotary power harrow with a CE certificate and experience the difference in quality and efficiency. Reach out to us today to make your purchase or to learn more about our products. We are more than happy to assist you in choosing the right machinery for your needs. Contact Raydafon now for the best in agricultural machinery.
