PTO Shaft Adaptor Wide Angle U Joint Universal Agricultural Machinery Tractor Gearbox Gear Box Drive Shaft Power Take Off

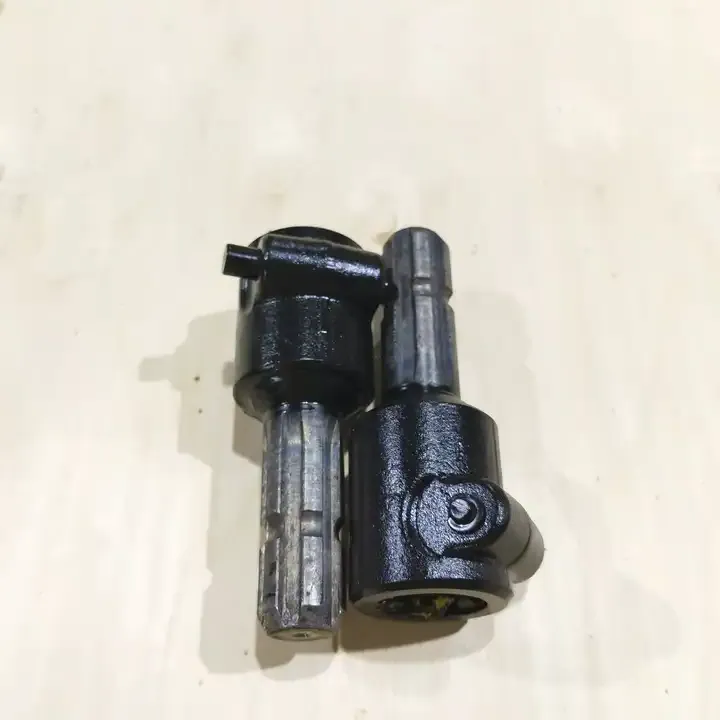

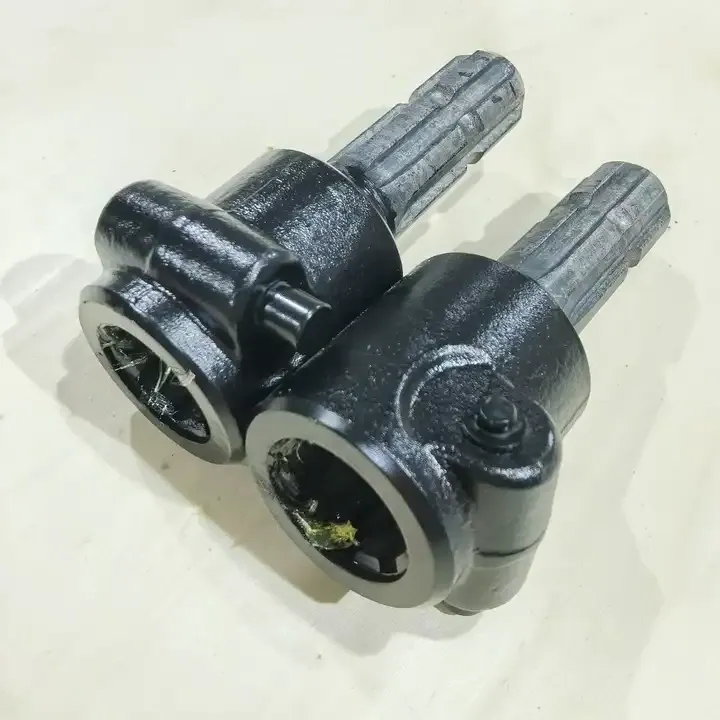

[embed]https://youtu.be/ARajay2Kf9A[/embed]This wide-angle PTO shaft adaptor is a crucial component in agricultural machinery. Designed for use with tractors and tractor implements, this adaptor enhances the functionality of your equipment. Constructed from durable 1045C material, the adaptor is designed for use with gearboxes and drive shafts. With a length of 160mm and a black finish, it is suitable for a range of applications. The adaptor is CE, ISO, and TS certified and comes with a one-year warranty for peace of mind.

PTO Shaft Adaptor Specifications

Model Number	00.18.07B*G PTO Shaft Adaptor
Function	Drive Shaft Parts & Power Transmission
Use	Kinds of Tractors & Farm Implements
Brand Name	EP
Yoke Type	Double push pin,Bolt pins,Split pins,Push pin,Quick release,Ball attachment,Collar.....
Processing Of Yoke	Forging
Plastic Cover	YW;BW;YS;BS;Etc
Color	Green;Orange;Yellow;Black Ect.
Series	T1-T10; L1-L6;S6-S10;10HP-150HP with SA,RA,SB,SFF,WA,CV Etc
Tube Type	Lemon,Trianglar,Star,Square,Hexangular,Spline,Special Ect
Processing Of Tube	Cold drawn
Spline Type	1 1/8" Z6;1 3/8" Z6; 1 3/8" Z21 ;1 3/4" Z20; 1 3/4" Z6; 8-38*32*6 8-42*36*7; 8-48*42*8;
Place of Origin	Haining, China (Mainland)

Advantages of PTO Shaft Adaptors and Spline Bushings

PTO shaft adaptors and spline bushings are essential components in agricultural machinery, offering several advantages to enhance the functionality and efficiency of equipment. Here are some of their key benefits:

• Compatibility Between Equipment: PTO shaft adaptors make it possible to connect tractors to various implements with different shaft sizes and spline configurations. This compatibility is crucial for the versatile use of a single tractor with multiple attachments.
• Transmission of Higher Torque: Spline bushings are designed to handle and transmit high torque loads efficiently. This capability is vital for the heavy-duty performance required in many agricultural tasks.
• Reduced Wear and Tear: By providing a proper fit between the PTO shaft and the implement, these components reduce wear and tear on both the tractor's PTO shaft and the implement's drive shaft. This prolongs the life of both sets of equipment.
• Easy Connection and Disconnection: Adaptors facilitate easier and quicker connection and disconnection of implements to the tractor, enhancing work efficiency and saving time.
• Durable Construction: Many adaptors and bushings are made from high-strength materials designed to withstand the rigors of agricultural work, including exposure to various environmental conditions.
• Versatility in Applications: With a range of sizes and types available, PTO shaft adaptors and spline bushings cater to a wide variety of agricultural equipment, making them versatile components in farm machinery.

Applications of PTO Shaft Adaptors and Spline Bushings

PTO shaft adaptors and spline bushings have several important applications in agriculture, enhancing the functionality and compatibility of various machinery and equipment. Here's how they are applied in agricultural settings:

• Connecting Diverse Implements: PTO shaft adaptors are essential for connecting a tractor??s PTO shaft to various implements like mowers, balers, rotary tillers, and harvesters, especially when the shaft sizes or spline configurations do not match.
• Tillage Equipment: For plows, harrows, and cultivators, adaptors and bushings ensure a secure and efficient connection to the tractor, enabling effective soil preparation.
• Harvesting Implements: Adaptors and bushings are used to connect tractors to various harvesting implements like combines and forage harvesters, ensuring smooth operation during the critical harvesting season.
• Baling Operations: For hay and straw baling equipment, these components ensure that balers are efficiently powered and can withstand the rigors of baling operations.
• Seeding and Planting: In seed drills and planters, adaptors and bushings provide a reliable connection for precise and effective seeding operations.
• Fertilizing and Spraying Equipment: They are used in connecting tractors to fertilizer spreaders and sprayers, ensuring consistent and efficient distribution of fertilizers and pesticides. Adaptors and bushings facilitate the attachment of manure spreaders to tractors, crucial for effective nutrient management and distribution in fields.

Types of PTO Shaft Adaptor & Spline Bushings

PTO Shaft Adaptors and Spline Bushings come in various types to suit different agricultural machinery and applications. Understanding these types is essential for ensuring proper fit and function. Here are the common types:

• Standard PTO Adaptors: These adaptors are used to connect standard PTO shafts to implements with different spline sizes. They typically change the size and/or number of splines to match the implement's input shaft.
• Quick-Release PTO Adaptors: Designed for ease of use, these adaptors allow for quick attachment and detachment of implements without tools. They usually feature a spring-loaded locking pin or similar mechanism.
• Overrunning PTO Adaptors: These adaptors have a built-in overrunning clutch. They are used with implements like mowers and balers that can continue spinning after the tractor stops, preventing the implement from driving the tractor.
• Splined Bushings: These are typically used to match the internal splines of an implement's input shaft with the external splines of a PTO shaft. They come in various sizes and spline counts.
• Shear Pin Adaptors: These adaptors have a shear pin that breaks under excessive load, protecting the tractor and implement from damage. They are used in applications where there is a risk of hitting obstructions, like in plowing.
• Slip Clutch Adaptors: These adaptors have a built-in clutch that slips under excessive load, offering protection similar to shear pin adaptors but without the need to replace a broken pin.

How to Install the PTO Shaft Adapter to Tractor?

Installing a PTO shaft adapter to a tractor requires careful attention to ensure proper alignment and secure attachment. Here is a general guide on how to install a PTO shaft adapter:

1. Inspect the adapter and PTO shaft: Before installation, inspect the PTO shaft adapter and the PTO shaft for any damage or wear. Ensure that the adapter is compatible with the PTO shaft and matches the required dimensions and connection types.
2. Align the adapter: Align the PTO shaft adapter with the PTO shaft on the tractor. Ensure that the splines or keyways on the adapter and the PTO shaft are properly aligned for a secure connection.
3. Slide the adapter onto the PTO shaft: Slide the PTO shaft adapter onto the PTO shaft, making sure it fits snugly. Apply a small amount of lubricant, if recommended by the manufacturer, to facilitate smooth sliding and reduce friction.
4. Secure the adapter: Once the adapter is in position on the PTO shaft, secure it using the appropriate fasteners, such as bolts or pins.
5. Test the installation: After securing the PTO shaft adapter, rotate the PTO shaft manually to ensure that it moves smoothly and without any obstructions. Check for any misalignment or unusual noise during rotation. Engage and disengage the PTO to verify that the adapter functions properly.

Maintenance of PTO Shaft Adaptors and Spline Bushings

Maintaining and lubricating a PTO Shaft Adaptor and Spline Bushings is crucial for ensuring the longevity and proper functioning of these components in agricultural machinery. Here are some key maintenance and lubrication tips:

• Regular Inspection: Regularly inspect the PTO shaft adaptor and spline bushings for signs of wear, damage, or corrosion. Look for cracks, bends, or excessive wear in the splines.
• Check for Proper Fit: Ensure that the adaptor and bushings fit snugly and securely. Misalignment can cause excessive wear and tear. Ensure that the adaptor and bushings are correctly aligned with the PTO shaft and the implement.
• Clean Regularly: Remove dirt, debris, and any other material that may have accumulated on the adaptor and bushings. This can be done using a brush or cloth. If your components are metal, keep them dry and clean to prevent rusting. If rust is present, remove it and consider applying a rust inhibitor.
• Lubricate Splines: Apply high-quality grease to the splines of both the PTO shaft adaptor and spline bushings. This reduces friction and wear during operation. Use a grease that is suitable for heavy-duty applications and that can withstand the environmental conditions in which the machinery operates.
• Tightening and Adjustments: Regularly check and tighten any bolts, screws, or fasteners on the adaptor and bushings. If the components show signs of wear, adjust them if possible, or replace them if necessary.
• Replace Worn Parts: If the adaptor or bushings are excessively worn or damaged, replace them to maintain efficient operation and safety.

Why Choose Raydafon's PTO Shaft Adaptor & Spline Bushings?

Raydafon specializes in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft u-joints, torque limiters, PTO shaft tubes, PTO shaft yokes, PTO shaft adaptors, industrial cardan shafts, car driveshafts, u-joint coupling shafts, etc. The annual turnover is 60 million RMB, 9 Million Dollars, and it is increasing year by year.Our products gained a great reputation from European, American, Asia, Australian, and North American customers. We are the top professional OEM supplier for many agricultural implement factories in the domestic market. Raydafon Driveshaft insists on our principles: Quality first, Delivery quickly, and Price Competitive. We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation. Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. Having the best-in-class brands in its product range, Raydafon continues its activities with the aim of becoming a global company in the fields it works.Author: Yjx.
